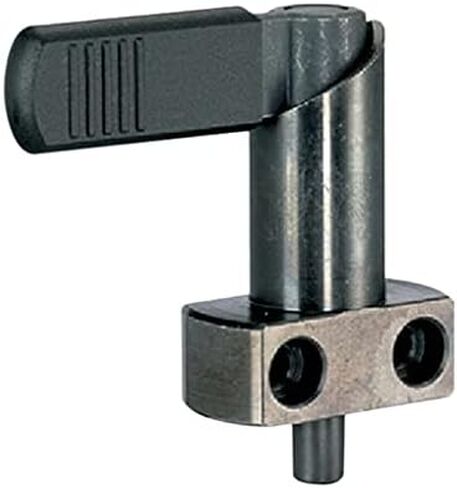

Locking bolts are used for indexing holes.
Better handling when executing with plastic cap.
Material:
sleeve.
Steel, burnished
Locking pin
Steel, nitrided, black.
Plastic cap.
Thermoplastic, black, matt.
Assembly
Thanks to countersinks on both sides, mounting on the right and left is possible.
Locking latch for side mounting.
Operation
By turning the latch 180°, the locking pin is retracted and held by the locking notch (if the locking pin must not protrude).
