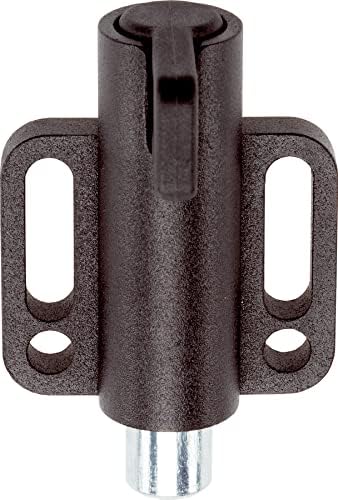

Locking bolts are used for indexing holes.
Material:
Casing
Die-cast zinc, plastic coated, black.
Locking pin
Galvanised steel.
latches
Plastic.
Assembly
Assembly using ISO 7092 discs.
Operation

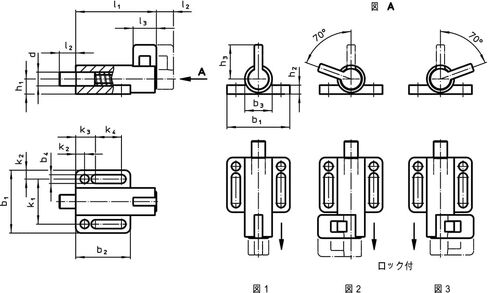

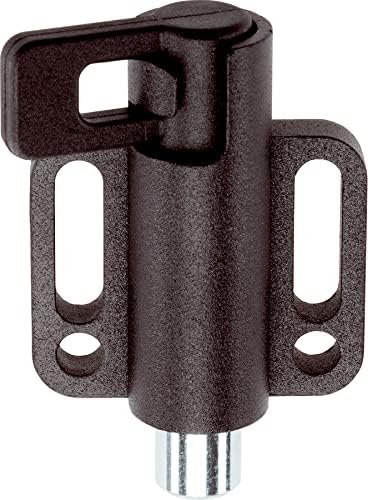

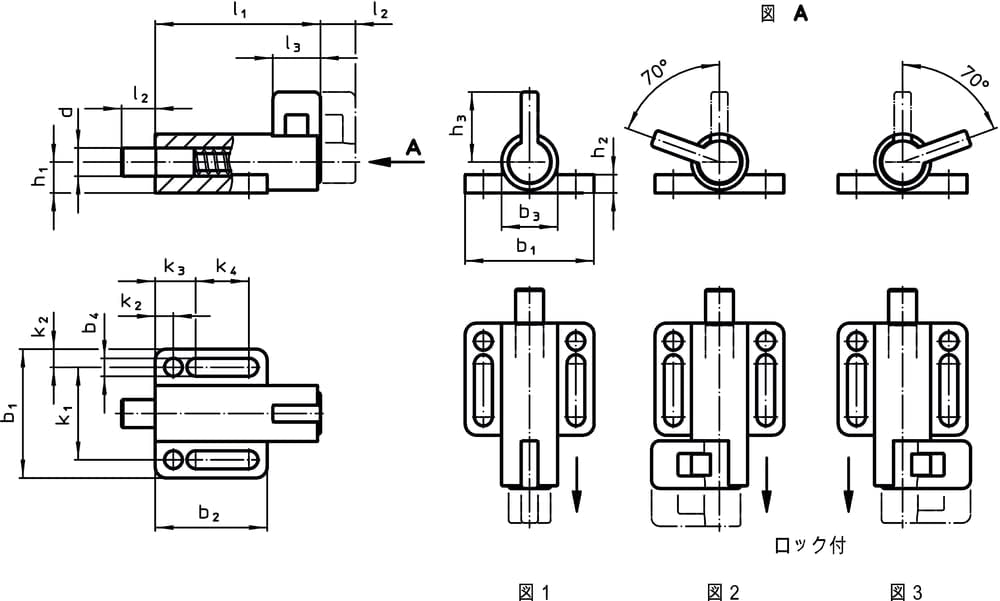

In the design with lock, the latch is pulled out, rotated 70° and secured by the locking notch (if the locking pin must not protrude).
