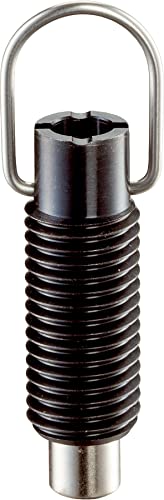

Locking bolts are used in indexing holes and serve for secure locking and precise positioning. Without additional tool insert, components can be reliably positioned or loosened. This means that locking bolts allow fast, repeatable positioning and thus ensures a high level of process reliability.
Locking bolts can be used wherever components need to be positioned or locked quickly, safely and precisely. Typical applications are machine and plant construction, fixture and tool making as well as assembly and production technology. They also ensure smooth processes in transport and packaging systems.
Material:
sleeve.
Steel, burnished
Locking pin
Stainless steel 1.4305, nickel-plated.
pull ring
Stainless steel 1.4310.
Assembly
Lock nuts are to be ordered separately.
Operation

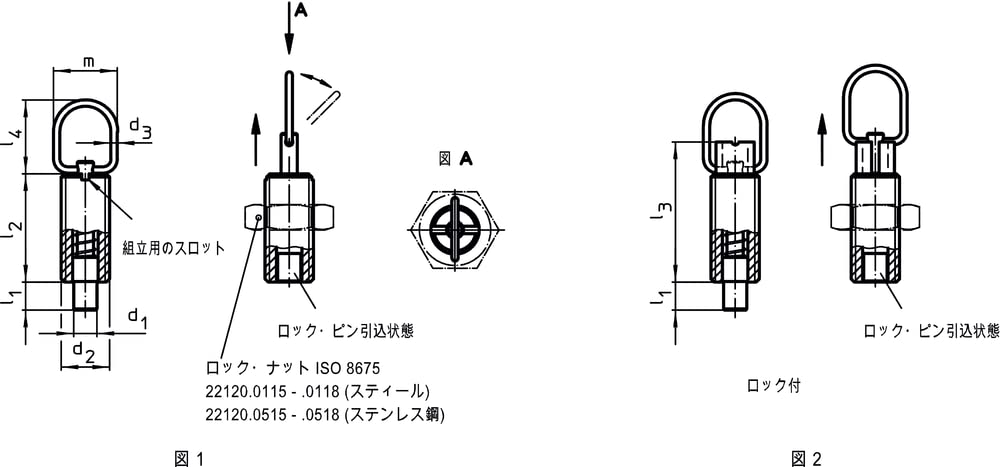

In the design with lock, the pull ring is rotated 90° after retracting the locking pin and secured by the locking notch (if the locking pin must not protrude).
