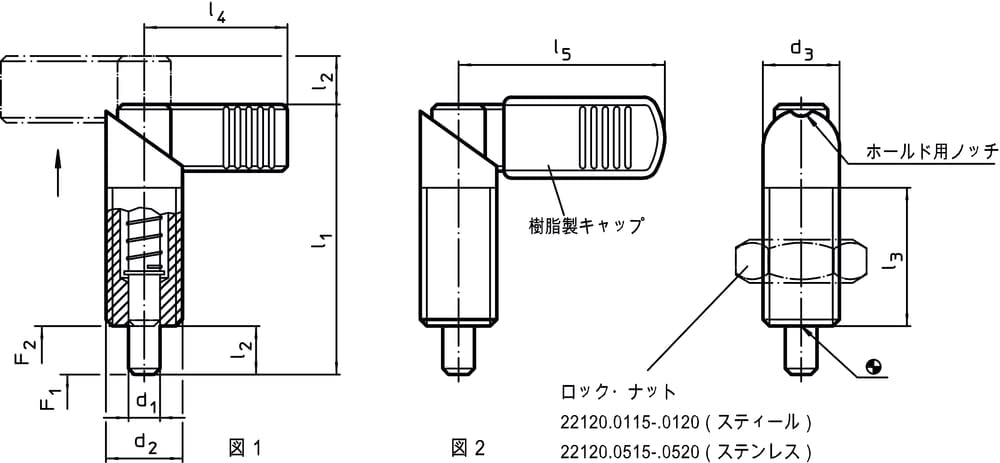

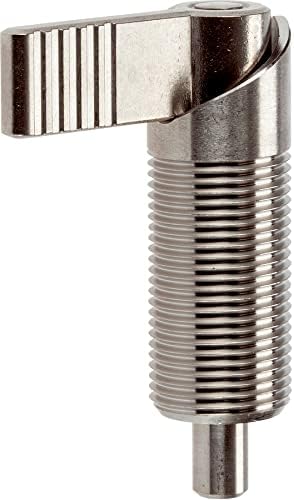

Locking bolts are used for indexing holes.
Better handling when executing with plastic cap.
Material:
sleeve.
Stainless steel 1.4305.
Locking pin
Stainless steel 1.4305, nickel-plated.
latches
Sintered metal 1.4404.
Operation
By turning the latch 180°, the locking pin is retracted and held by the locking notch (if the locking pin must not protrude).
Notes:
Lock nuts are to be ordered separately.
