Double nut Ball Screw Control Machine C7 Ball Screw SFU1605 Manual Linear Rail Guide Effective Stroke 50~1000mm MGN12R Guide MGW12C Handwheel Sliding Table(50MM Stroke)

KWD 78.500
Brand
DGIRHBJNFKBN
Weight
3 kg
Size50mm Stroke
– 1 +

Special Features

  • 1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
  • 2. Stability enhancement, especially suitable for CNC machining centers.
  • 3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
  • 1. Good shock absorption, low noise, long life, etc.
  • 2. Improve product precision and release module performance
  • 3. The module has a simple structure, solid materials, small size, high precision, easy maintenance, and strong reliability
  • 4. Stable structure, smooth operation, and long service life

Description

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life

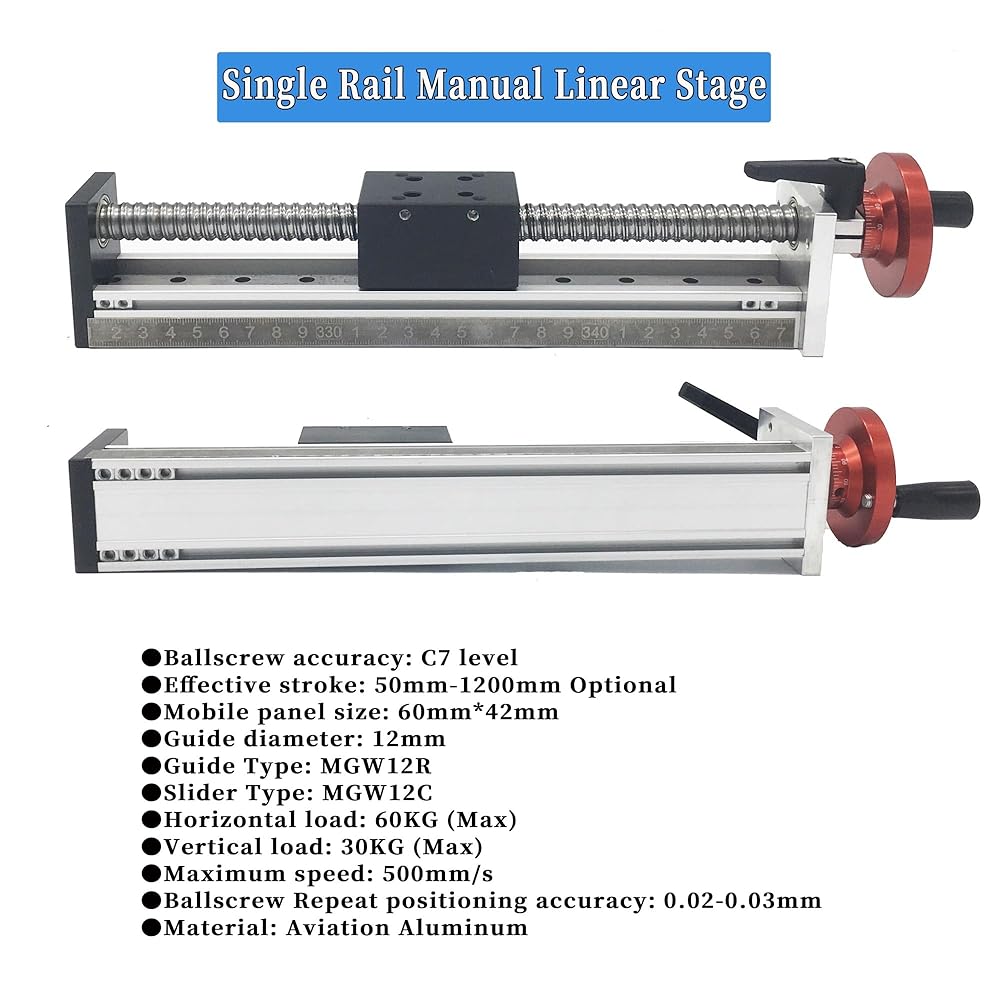

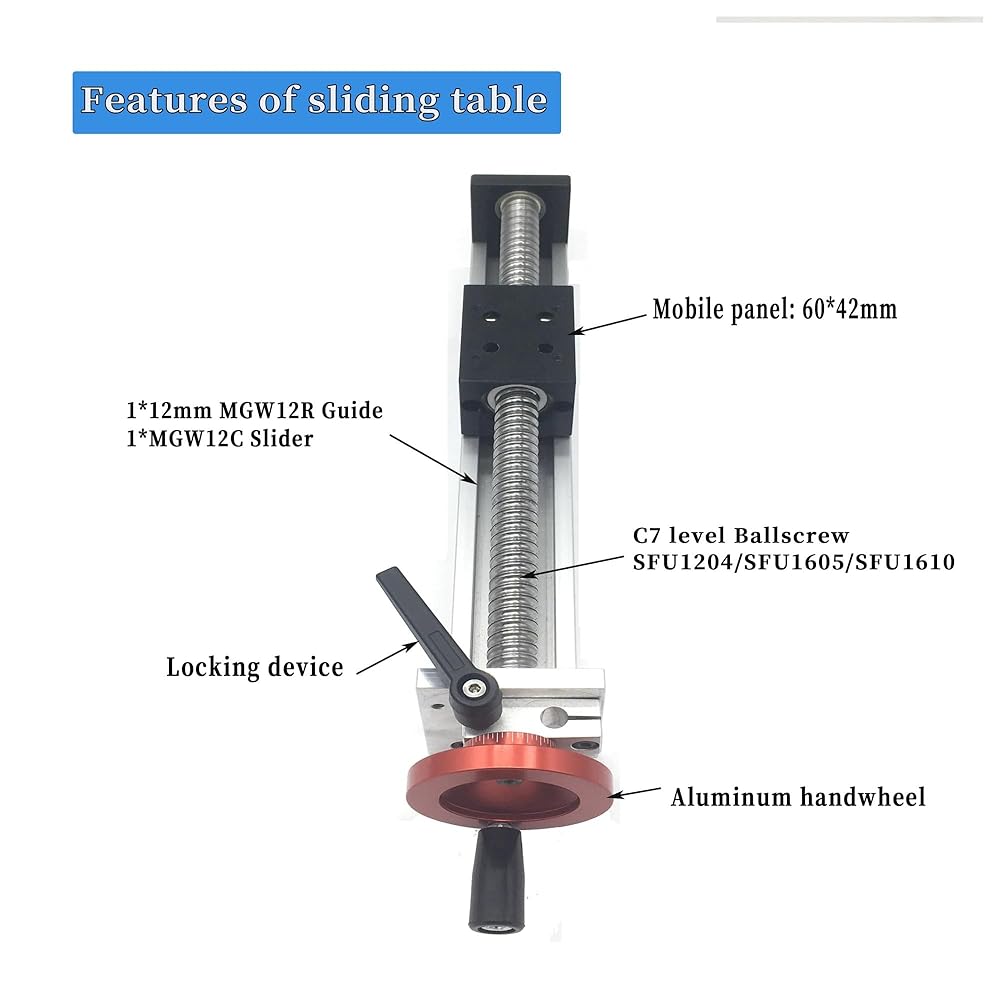

Specifications:
Model: RM-DXG6042
Guide rail width or diameter: 12mm
Ball screw accuracy: C7

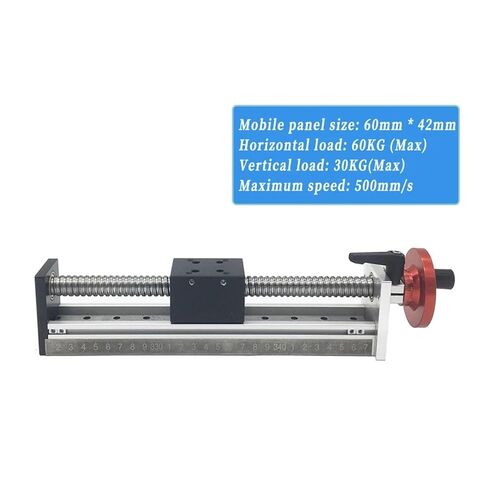

Vertical load: 30KG (max)
Horizontal load: 60KG (max)
Mobile panel size: 60mm X 42mm
Slider: MGN12H
Guide rail type: MGN12R (12MM linear guide)

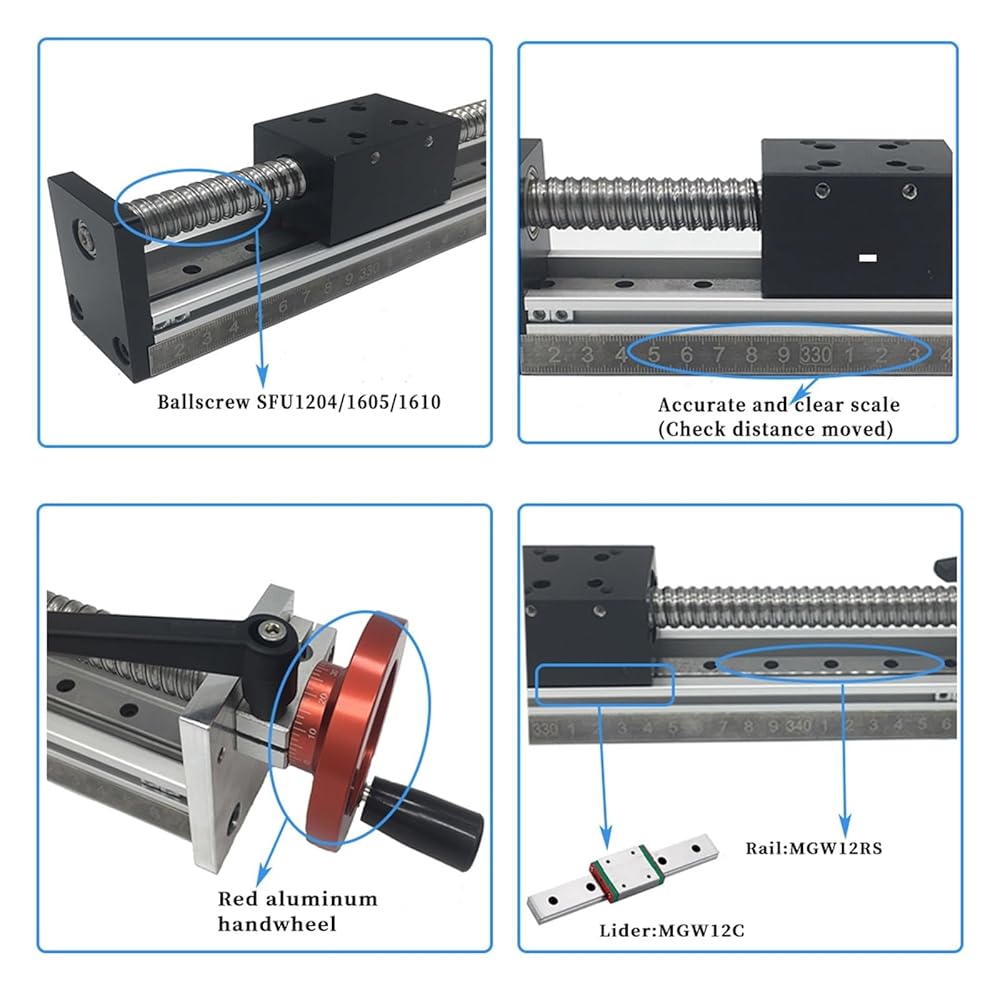

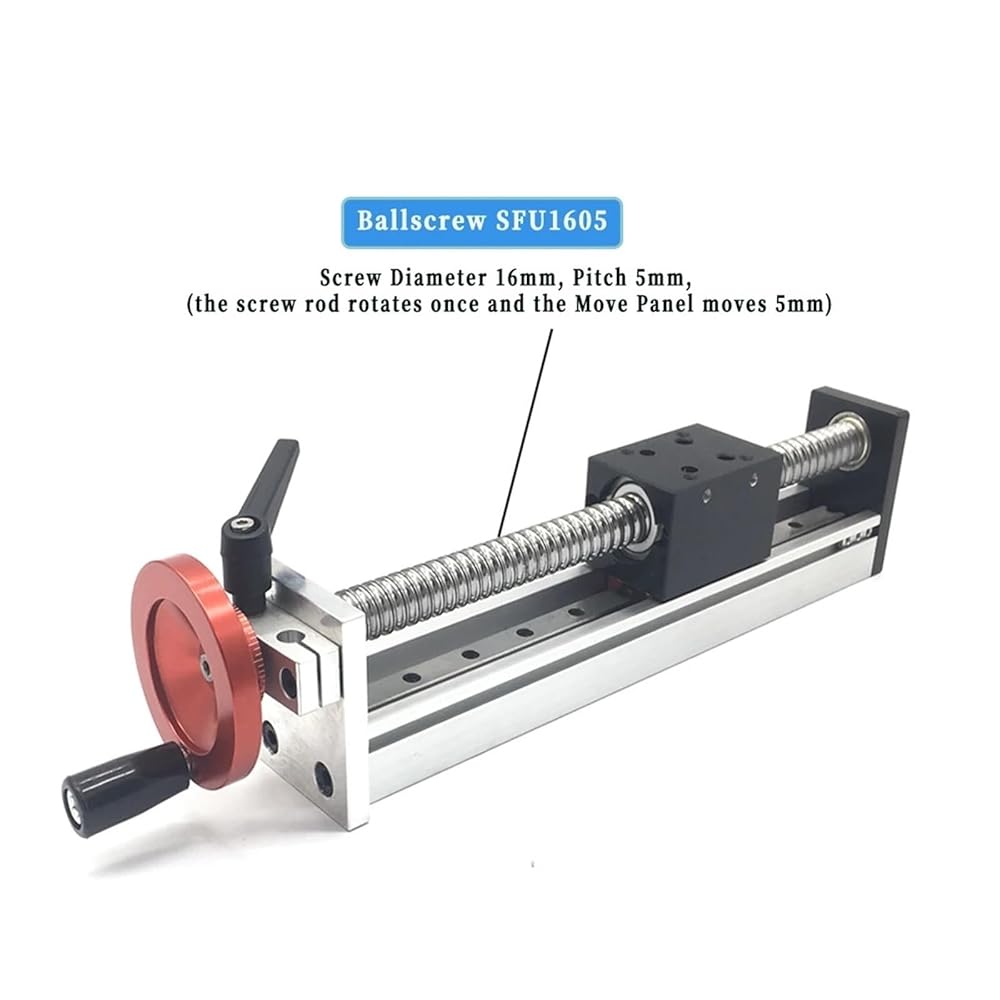

Ball screw type: SFU1605 (screw diameter 16mm, pitch 5mm, screw rod rotates once, mobile panel moves 5mm)
Effective stroke: 50mm-1000mm optional
Maximum speed: 500mm/s

Packing list:
1 X Sliding table with manual handwheel
