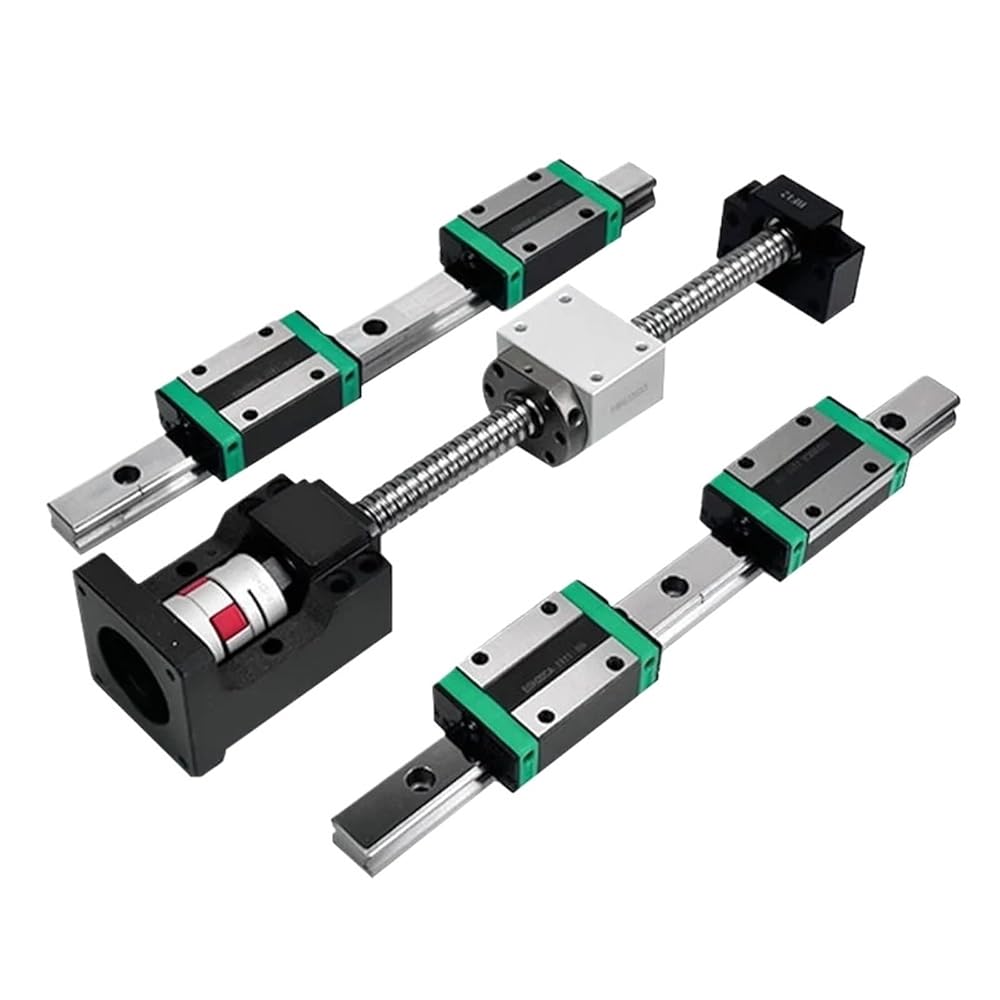

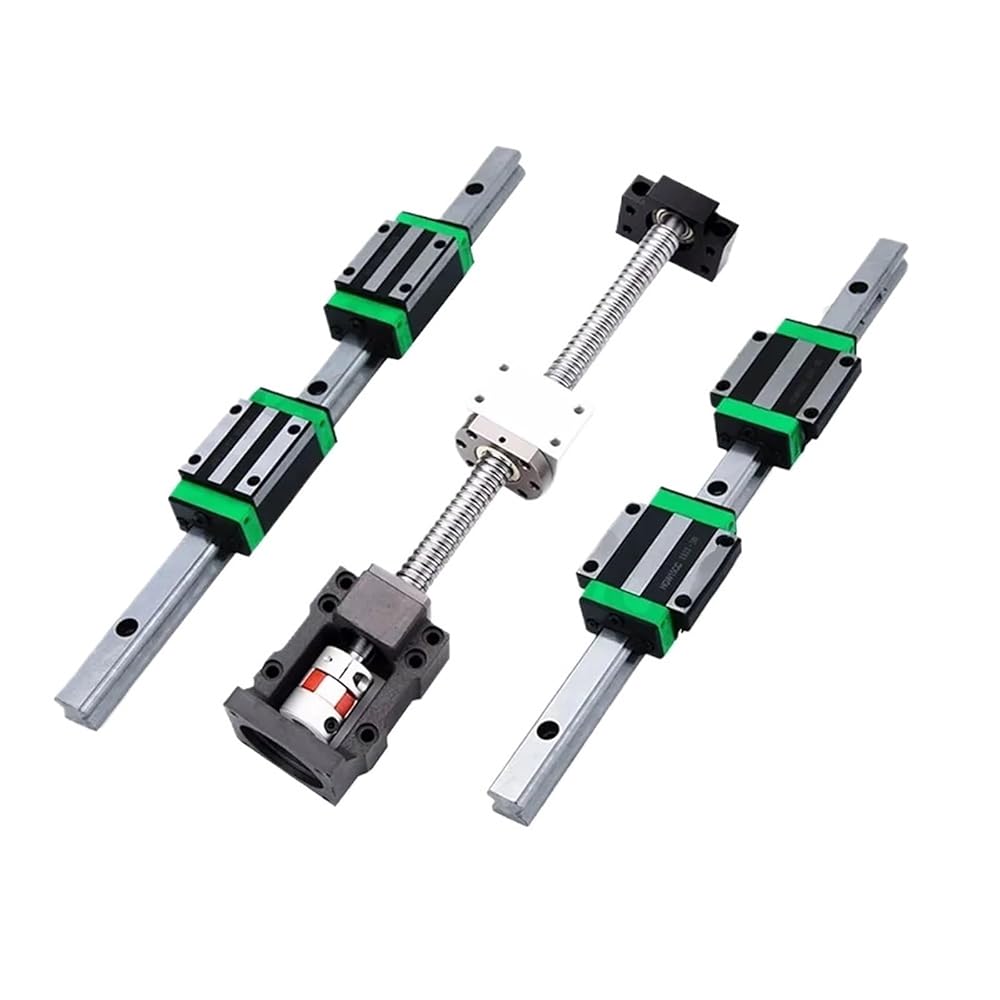

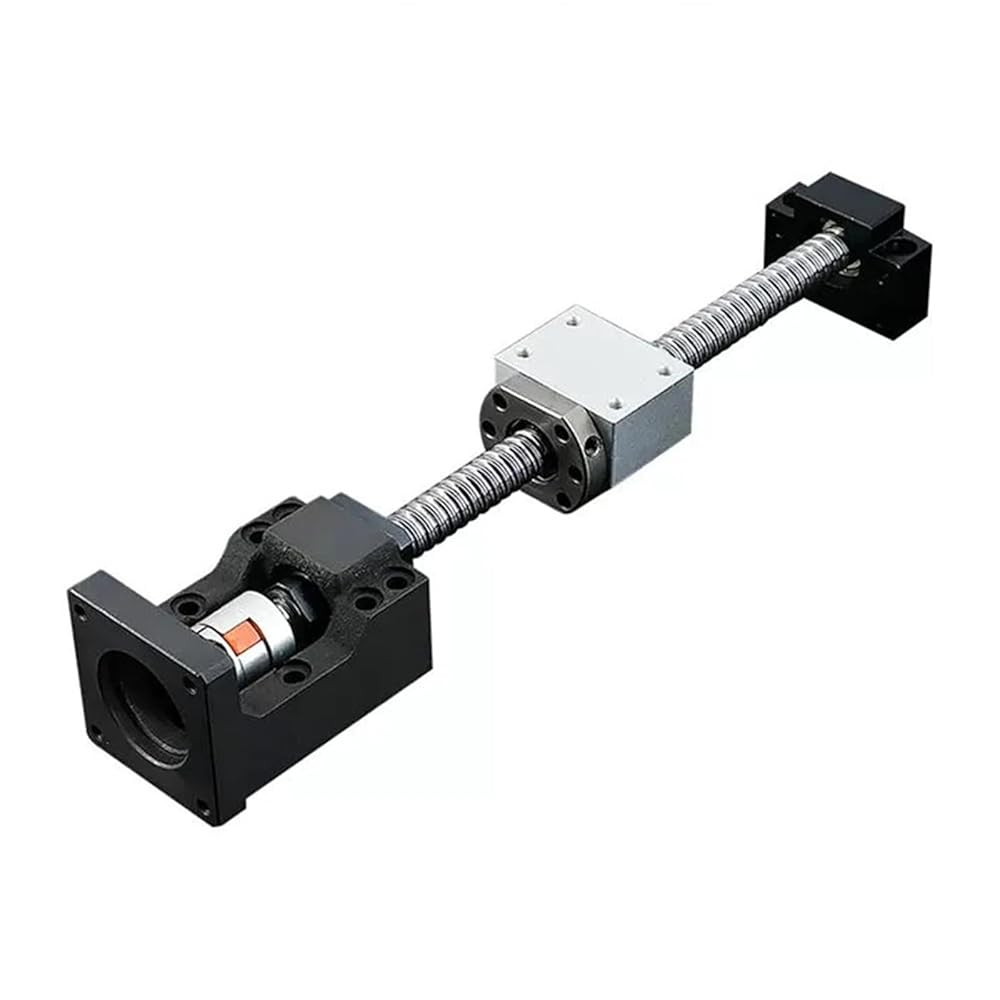

Double nut Ball Screw Control Machine 2Pc HGR20 Linear Guide+1Pc Ball Screw Set SFU2010+HGH20CA+HM15-57 L300-1000mm(300mm)

KWD 133
Brand
DGIRHBJNFKBN
Weight
3 kg
Size300MM
– 1 +

Special Features

  • 1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
  • 2. Stability enhancement, especially suitable for CNC machining centers.
  • 3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
  • 1. Large lead and high-speed movement, reduce movement time, more durable and stable
  • 2. Waist-shaped nut, metal commutator, adjustable preload
  • 3. Ultra-quiet, high wear resistance, high precision and high hardness
  • 4. Smooth and non-stuck, long service life

Description

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life
Specifications:
Model: SFU2010
Guide width or diameter: 20mm
Material: Bearing steel
Ball screw accuracy: C7

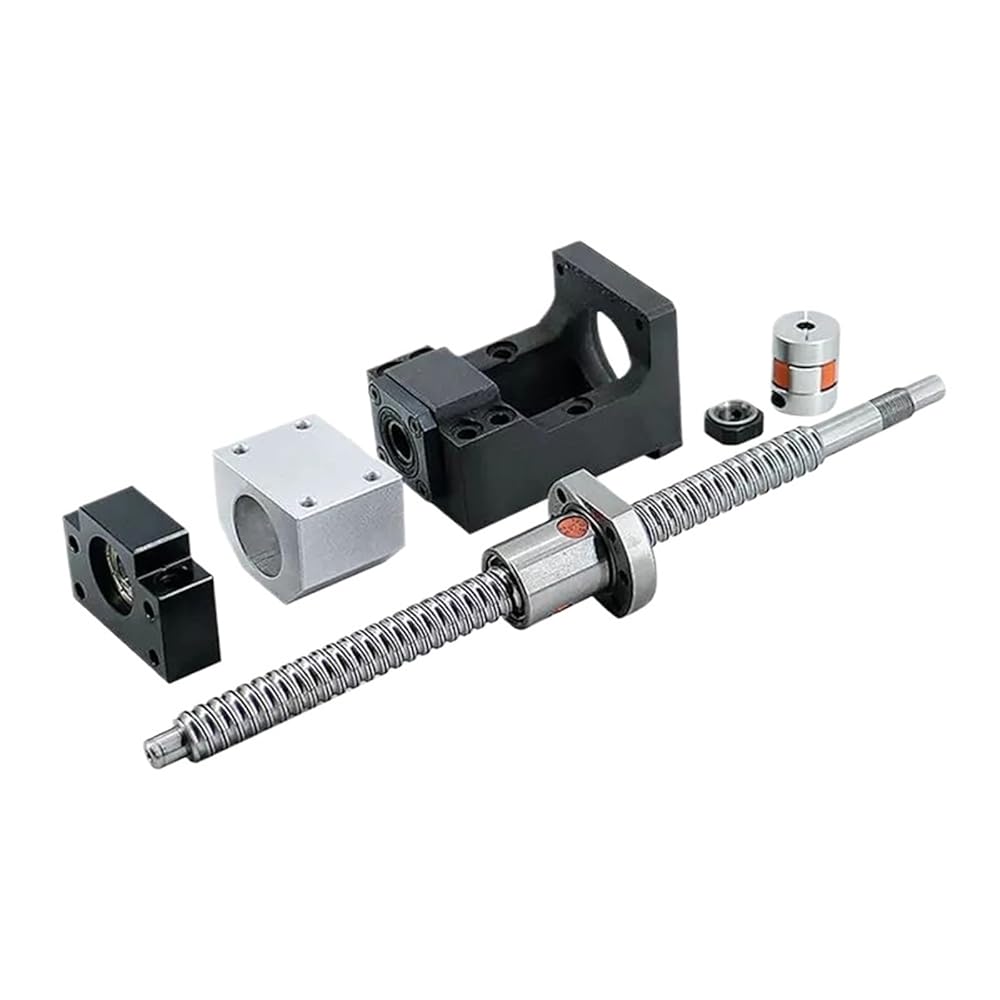

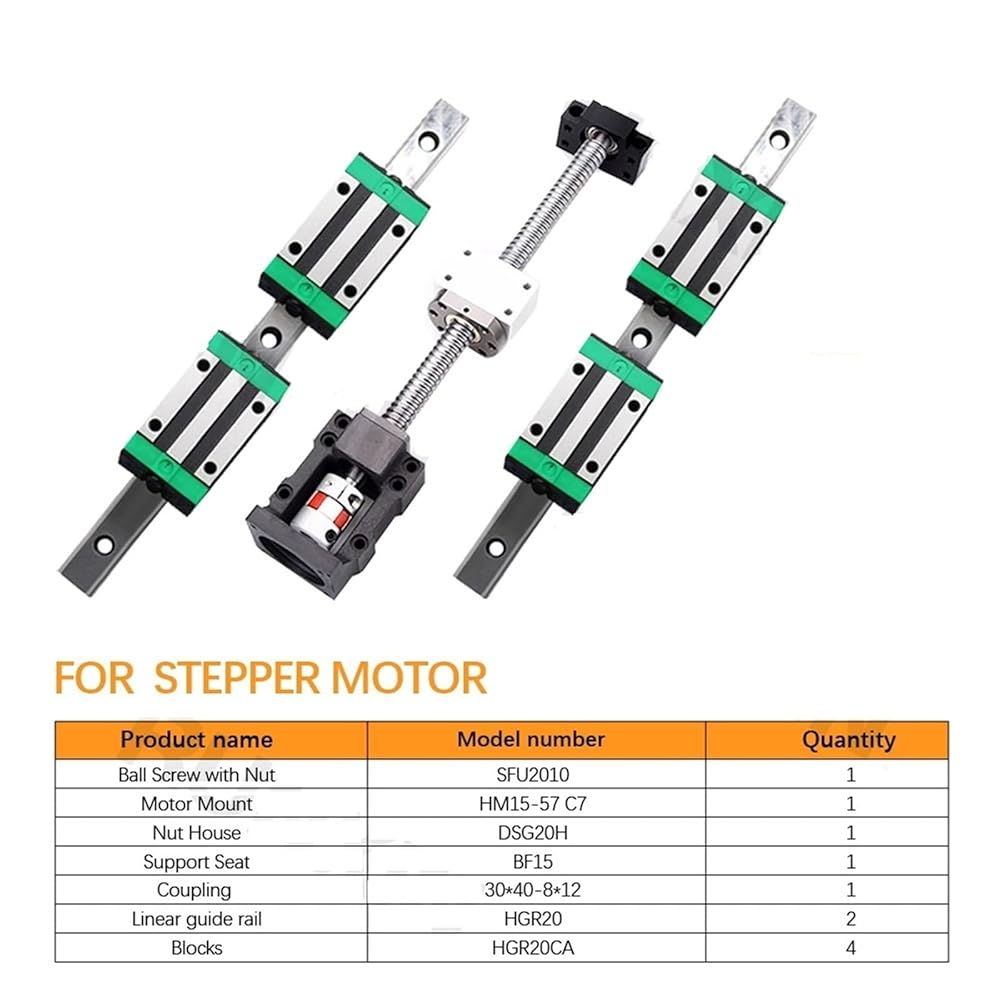

Packing list:

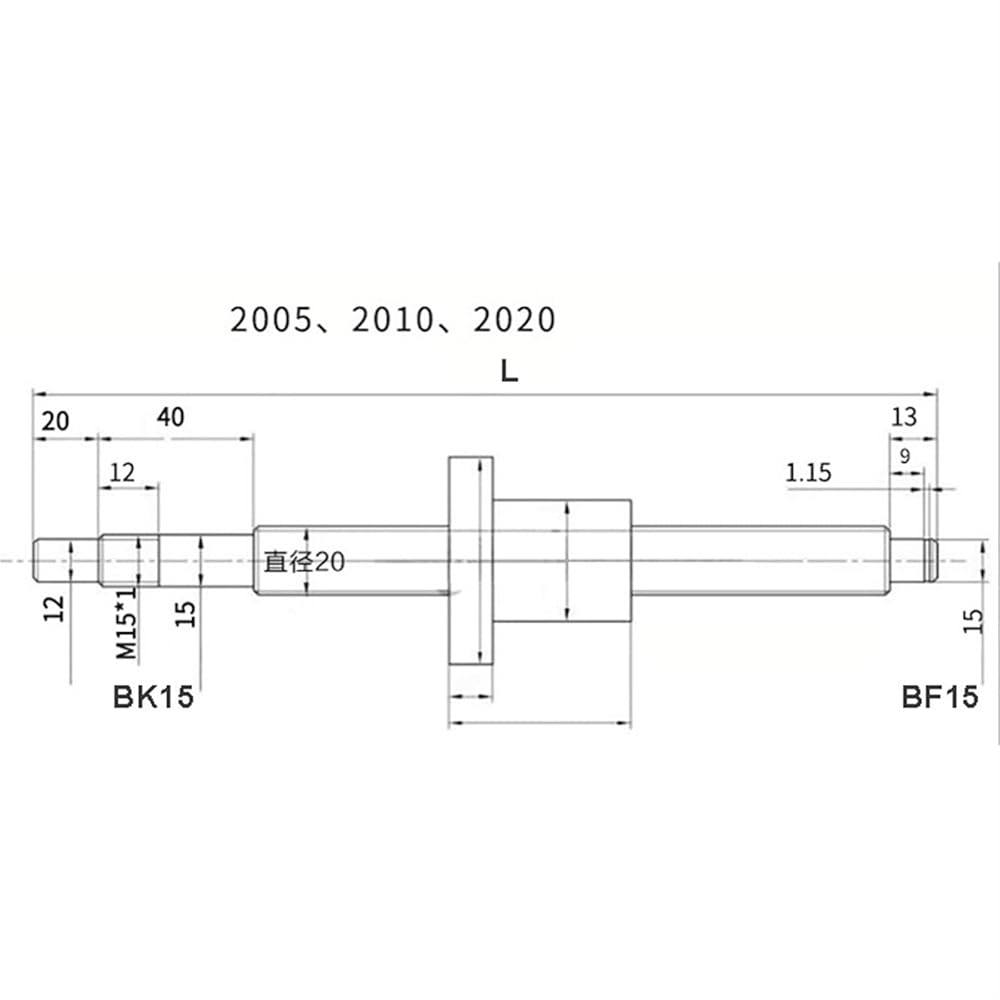

1 pcs SFU2010 ball screw with end machining, suitable for BK/BF15
1 pcs SFU2010 ball nut
1 pcs BF15
1 pcs coupling
1 pcs DSG20H nut housing
1 pcs HM15-57 C7

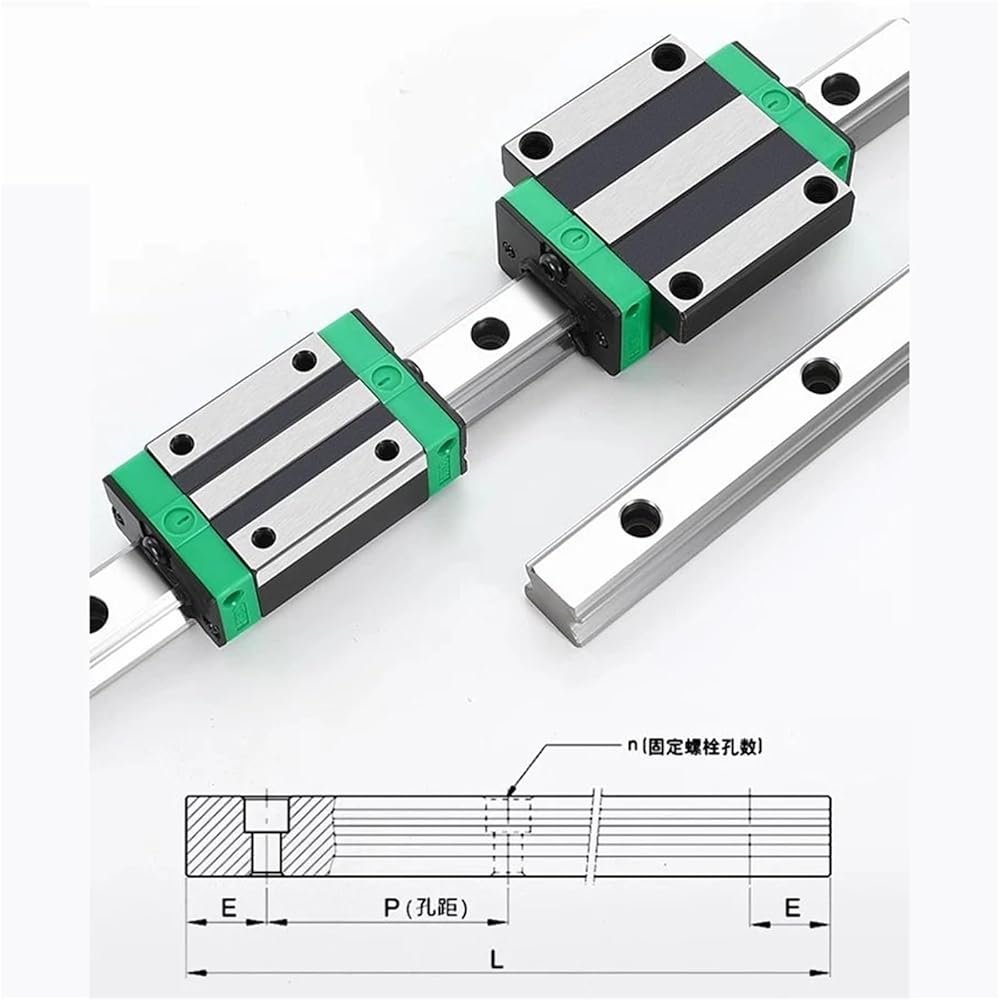

2 pcs HGR20 linear guides

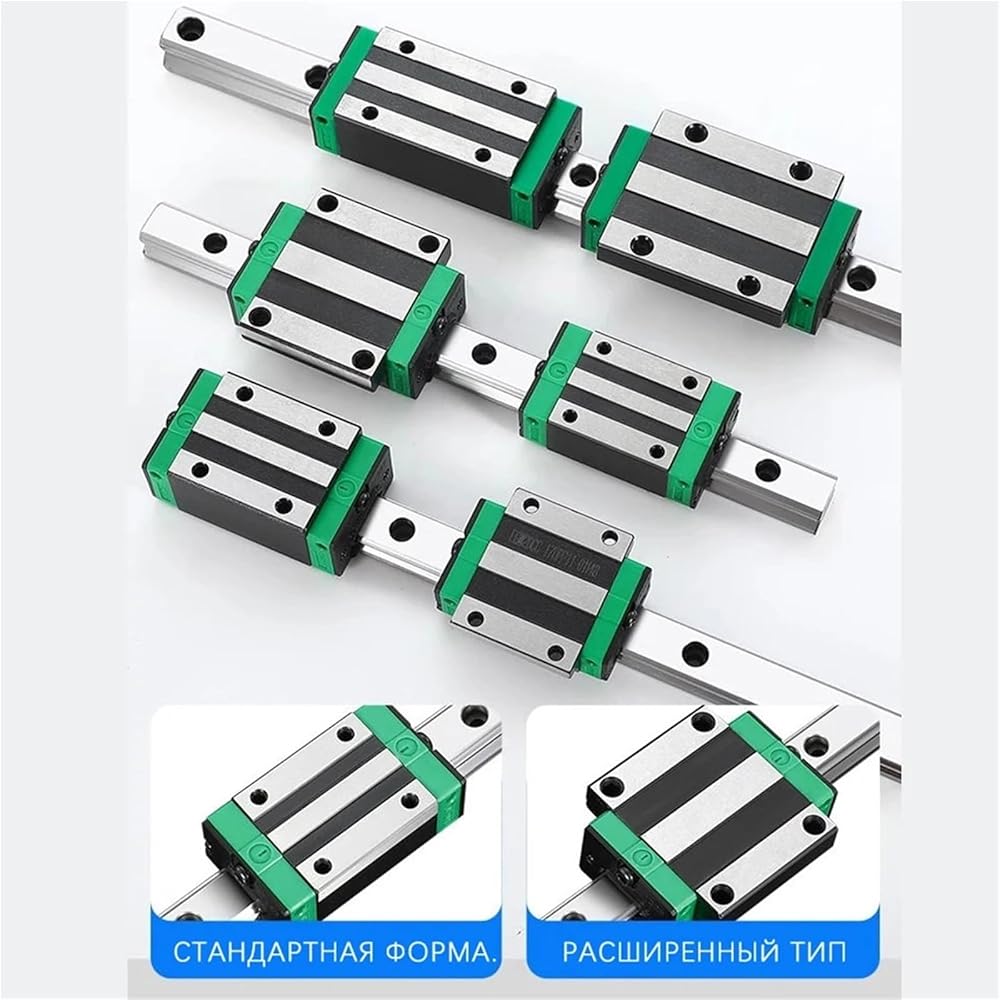

4 pcs HGH20CA blocks
Note: The above ball screws are total lengths, including machined parts.
