Radio Frequency Filters
*Filter type: Power filter
*Frequency: 0-30
*Adjustment frequency difference: 0.5(MHz)
*Insertion loss: 60 (dB)
*Output impedance: 0.2
*Installation type: installation
*Applicable voltage: AC 115V-250V
*Working frequency: 50/60HZ
*Specifications: 1. Maximum leakage current (each)
*Line to ground: 115V AC 60Hz 0.25mA
*Line to ground: 250V AC 50Hz 0.45mA
*Voltage resistance level (1 minute)
*Line to ground: 2250V DC
*Wire to wire: 1450V DC
*Power line frequency: 50/60Hz
*Rated voltage: 115/250V AC
*Operating temperature: -25-85
*Wiring : LINE end, LOAD end (terminal type )
*Installation hole distance: 75.0MM

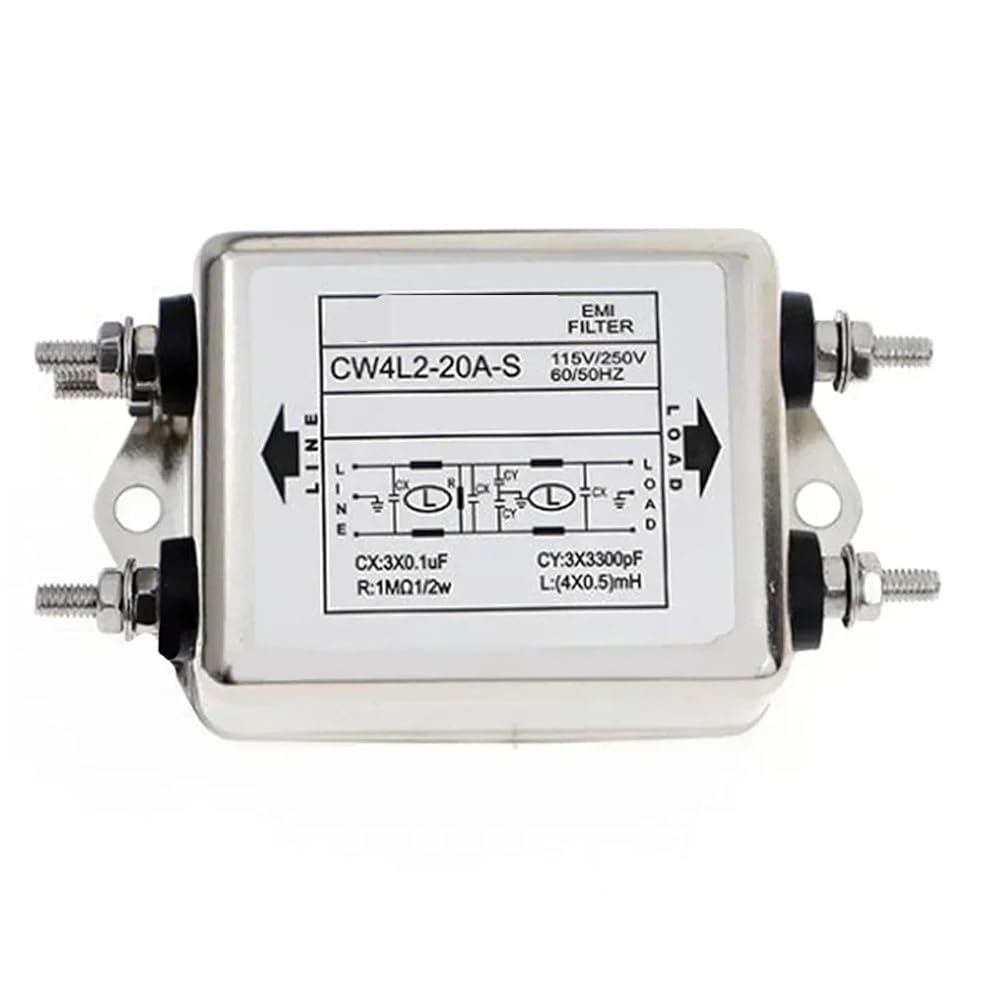

*Model: CW4L2-6A-S, CW4L2-10A-S, CW4L2-20A-S (optional)
Package Included:
1X power filter
