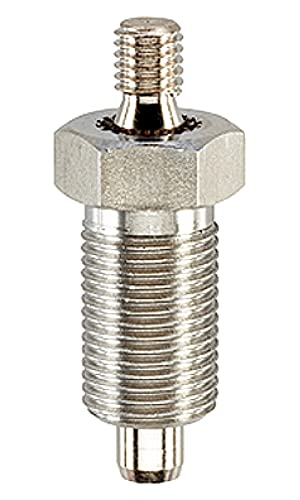

Locking bolts are used in indexing holes and serve for secure locking and precise positioning. Without additional tool insert, components can be reliably positioned or loosened. This means that locking bolts allow fast, repeatable positioning and thus ensures a high level of process reliability.
Locking bolts can be used wherever components need to be positioned or locked quickly, safely and precisely. Typical applications are machine and plant construction, fixture and tool making as well as assembly and production technology. They also ensure smooth processes in transport and packaging systems.
Material:
sleeve.
Stainless steel 1.4305.
Locking pin
Stainless steel 1.4305, nickel-plated.
Assembly
Screw length over spacer rings (EH 22120.) Adaptable.
Notes:
Button cannot be removed.
Lock nuts are to be ordered separately.
