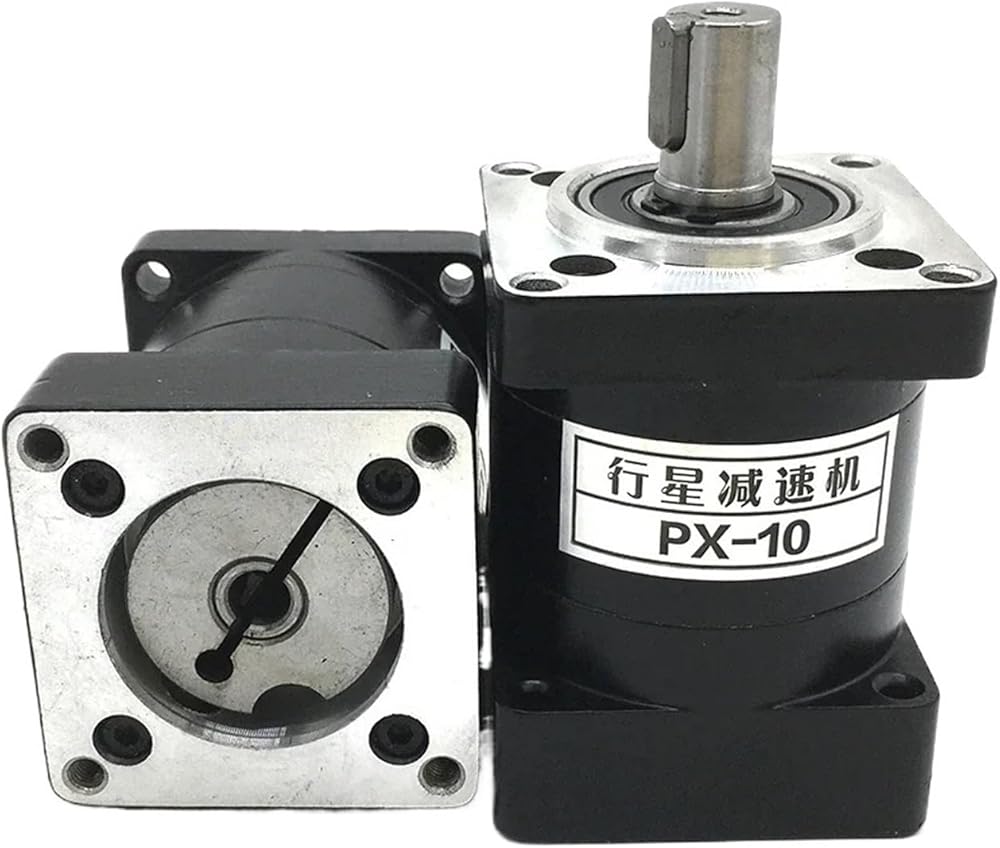

Planet Reducer Nema23 Ratio 3:1-60:1 PX57 PX60 Planetary Gearbox Gear for Nema 24 Stepper Motor Servo Motor Brushless Reducer
1x Planetary Gearbox
1x Key
4x Install screws
Technical Parameters
57PX Nema23 Reducer
Stage
Lever 1
Lever 2
Lever 3
Reduction ratio
3.25/4/5/6/10
16/24/36/40/60
64/96/144/216
Input (MM)
6.35/8
6.35/8
6.35/ 8
Output shaft (MM)
14
14
14
Keyway (MM)
5
5
5
Body length (MM)
76
90
104
Rated load (N.M)
15
30
40
Maximum load (N.M)
25
40
50
Full load efficiency (%)
95
90
85
Backlash Precision (arcmin)
15
30
50
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
Technical Parameters
60PX Nema24 Reducer
Stage
Lever 1
Lever 2
Lever 3
Reduction ratio
3.25/4/5/6/10
16/24/36/40/60
64/96/144/216
Input (MM)
8/14
8/14
8/14
Output shaft (MM)
14
14
14
Keyway (MM)
5
5
5
Body length (MM)
74
88
102
Rated load (N.M)
15
30
40
Maximum load (N.M)
25
40
50
Full load efficiency (%)
95
90
85
Backlash Precision (arcmin)
15
30
50
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
