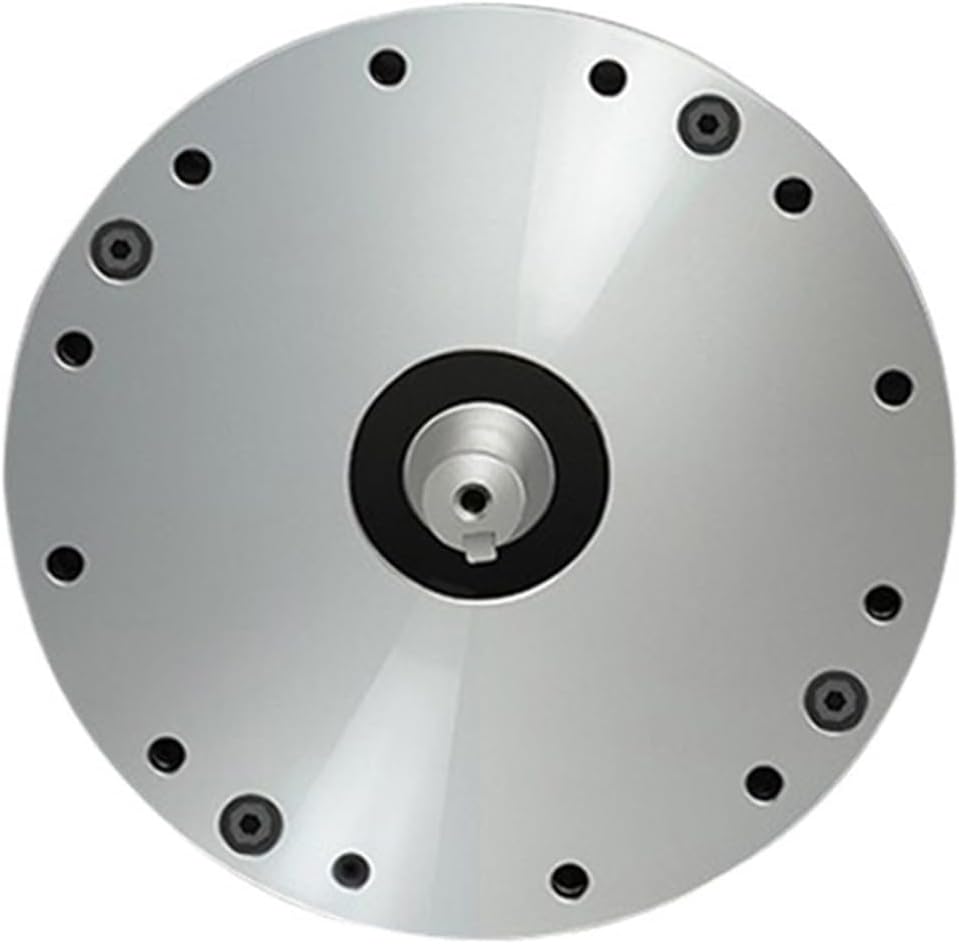

speed reducer
Gearboxes Gearheads & Speed Reducers
Note Different product models have different appearance size and weight parameters
Reduction ratio: 50
Rated Tq at input 2000r/min: 25Nm 2.5kgfm
Allowable peak Tq when starting and stopping: 56Nm 5.7kgfm
Allowable maximum average load Tq: 34Nm 3.5kgfm
Instantaneous maximum allowable Tq: 98Nm 10kgfm
Allowable maximum input speed: 6500r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
Reduction ratio: 80
Rated Tq at input 2000r/min: 34Nm 3.5kgfm
Allowable peak Tq when starting and stopping: 74Nm 7.5kgfm
Allowable maximum average load Tq: 47Nm 4.8kgfm
Instantaneous maximum allowable Tq: 127Nm 13kgfm
Allowable maximum input speed: 6500r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
Reduction ratio: 100
Rated Tq at input 2000r/min: 40Nm 4.1kgfm
Allowable peak Tq when starting and stopping: 82Nm 8.4kgfm
Allowable maximum average load Tq: 49Nm 5.0kgfm
Instantaneous maximum allowable Tq:147Nm 15kgfm
Allowable maximum input speed: 6500r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
Reduction ratio: 120
Rated Tq at input 2000r/min: 40Nm 4.1kgfm
Allowable peak Tq when starting and stopping: 87Nm 8.9kgfm
Allowable maximum average load Tq: 49Nm 5.0kgfm
Instantaneous maximum allowable Tq:147Nm 15kgfm
Allowable maximum input speed: 6500r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
NOTE: This model size is large and the product does not contain lubricating oil.
