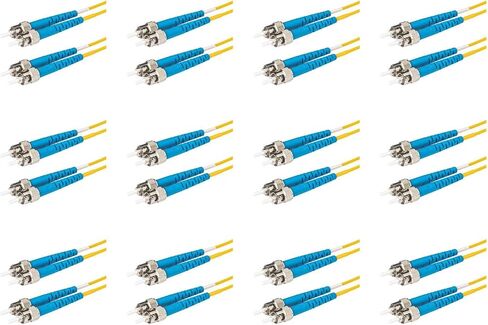

Name: SpeedyFiberTX 6-Pack 1 Meter Duplex Singlemode ST/U to ST/U Fiber Patch Cable, Corning SMF-28 9/125um Ultra Optical Fiber, OS1/OS2 Compatible, Yellow LSZH Cable Jacket
Brand: SpeedyFiberTX
Availability: InStock

Special Features

Cable manufactured with industry-leading Corning SMF-28 Ultra Optical Fiber, OS1/OS2 Compatible, Industry Standard Flammability LSZH Rating 2.0mm Zipcord Cable Jacket, Durable Plug and Play High Quality Fiber Optic Connectors
Corning SMF-28 Ultra Optical Fiber is an ITU-T Recommendation G.652D compliant optical fiber with Corning enhanced low-loss and bend fiber technologies | This full-spectrum fiber has bend performance that exceeds the ITU-T Recommendation G.657.A1 standard and still splices the same as the installed base of standard single-mode fibers such as SMF-28e+ fiber
SMF-28 Ultra Optical Fiber combines the benefit of industry-leading attenuation and improved macrobend performance, all in one fiber | This premium single-mode fiber is designed for regional, long-haul, metro, access, mobile, and fiber to the home (FTTH) applications, along with being fully backward compatible with the installed base of legacy single-mode fibers
High Quality Fiber Patch Cable for Storage Area Network and Data Networks and Connects to SFP Transceivers, Ethernet Switches and Media Converters
High Quality Guarantee: 100% Inspection and Test on Insertion Loss and Return Loss

Description

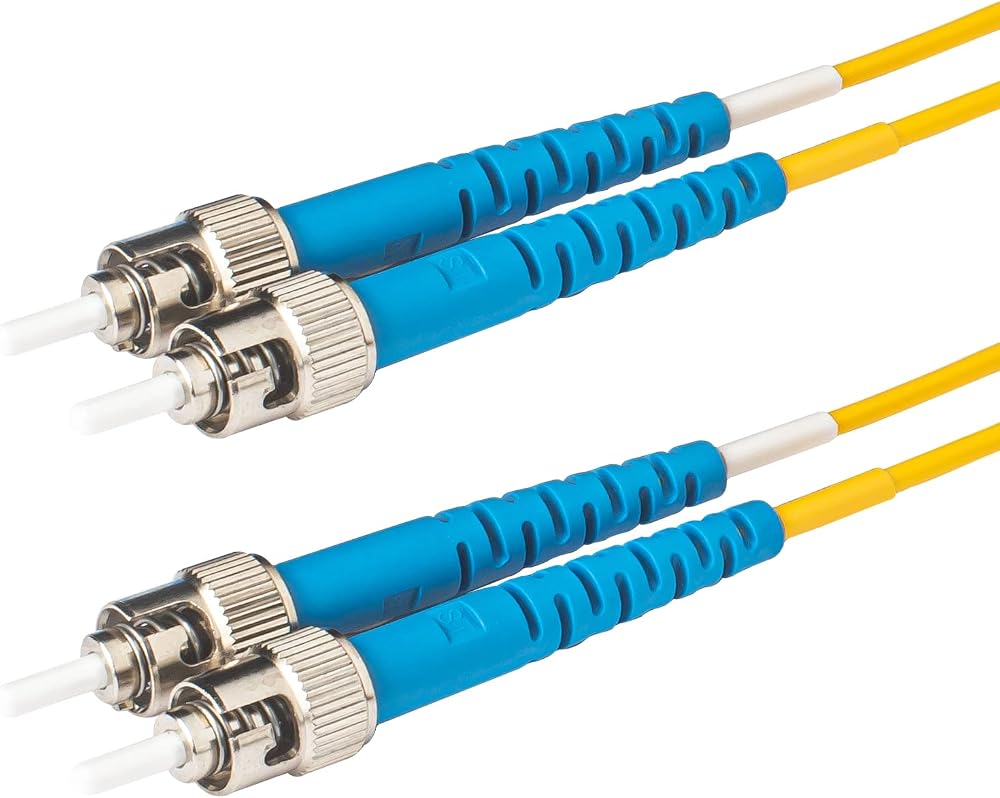

SpeedyFiberTX Singlemode Duplex Slim Fiber Patch Cable, Corning SMF-28 9/125um Ultra Optical Fiber
Specifications
Insertion Loss UPC ≤ 0.2 (dB) / APC ≤ 0.3 (dB)
Return Loss UPC ≥ 50 (dB) / APC ≥ 65 (dB)
Attenuation at 1310nm ≤ 0.32(dB/km) | at 1550nm ≤ 0.18(dB/km)
Operating Wavelength 1285nm - 1625nm
Operating Temperature -20°C to +70°C
Ferrule Material Ceramic
Compliance ITU, UL, CE, IEC, TIA, RoHS

Features and BenefitsDurable duplex connectors for easy deployment
2.0mm slim and flexible LSZH zipcord cable jacket
Every cable has length label to identify cable length for easy deployment
Easy to identify fiber channels with color-coded heat shrink tubing | Yellow to Yellow, White to White
