Relays / Phase Monitoring Relays
Specifications
Operating Voltage(Un)....: 150V-260V AC/24VDC or
110VAC/24VDC
Operating Frequency.......: 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Time(t). : 0.1sec.-60min.
Display:... : On led and Out led
Connection Type. ...: Terminal connection
Weight...... ...: Max.90gr.
Contact... .:5A/250V AC (Resistive Load)
Mounting. ..: Vertical assembled in
the panel or assembled on the din rail
Cable Diameter... .: 2,5mm²
Working Mechanism
Dimensions
Connection diagram
Theory : Time Relay
Protect Feature : Sealed
Usage : General Purpose
Contact Load : High Power

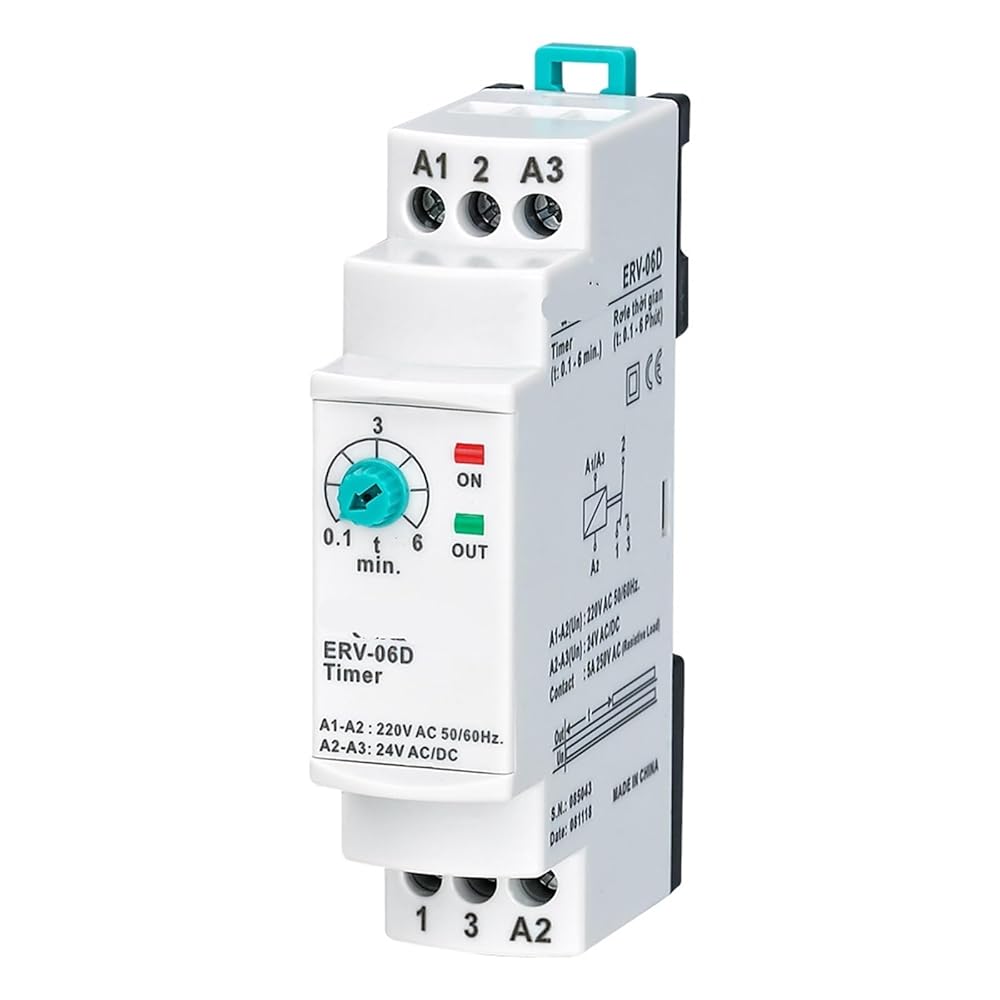

Model Number : ERV-06D
Mode : On Delay
Relay : Timer
Tpye : Time relay
