Relays / Phase Monitoring Relays
Specifications
Operating Voltage(Un). : 150V-260V or 110VAC; 24VDC
Operating Frequency. .: 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Time(t).. ..: 0.0sec, - 99hour
Display:. : 1x2 LED Display,2x LEDs.
Connection Type. .: Terminal connection
Weight.. : Max.220gr.
Contact. .:5A/250V AC (Resistive Load)
Mounting.. : Assembled on the din rail
Cable Diameter. .: 2,5mm²
Construction
Theory : Time Relay
Protect Feature : Sealed
Usage : General Purpose
Contact Load : High Power

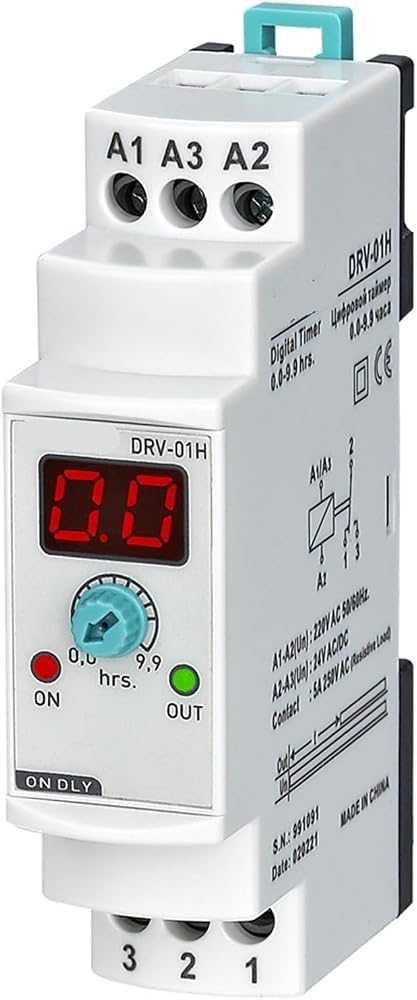

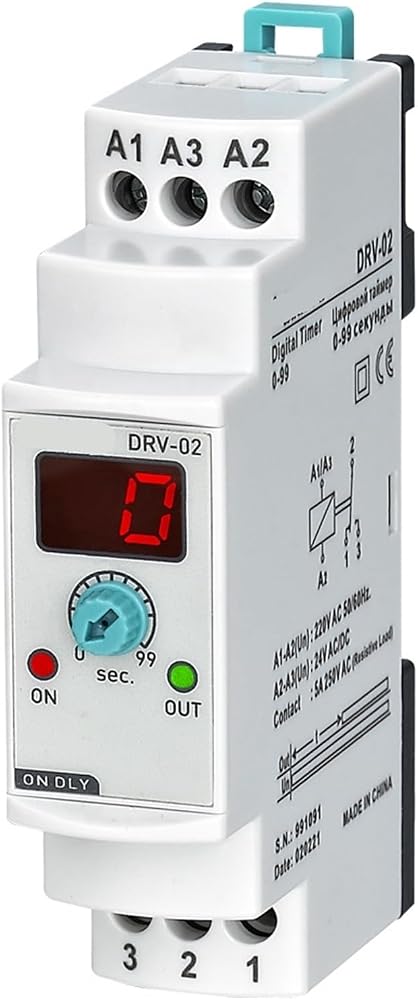

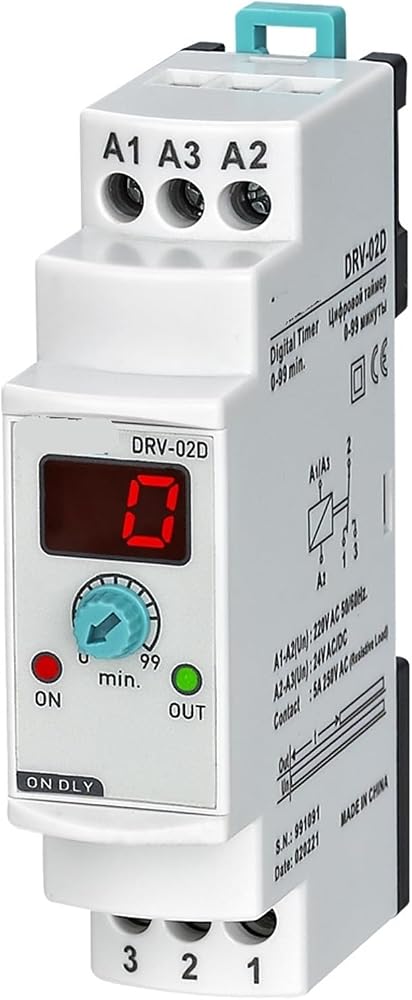

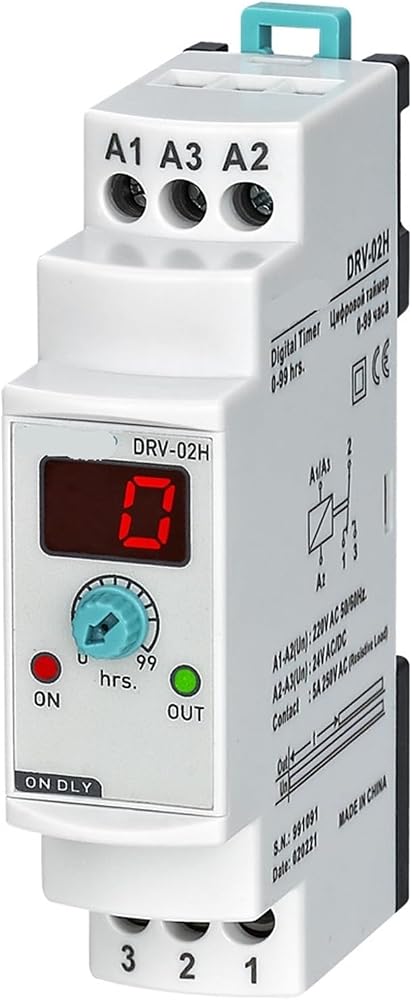

Model Number : DRV-XX
Mode : On Delay
Tpye : Time relay
Display : Digital
Accuracy : ±1%
