Relays / Phase Monitoring Relays
Specifications
Current Range : Type05) 1-6.5A
Type30) 5-30A
Type60) 5-60A
Type120) 10-120a
Type600) Use an external
CT(secondary 5A)over 60A with 05 type.
Operating Voltage(Un).: Tpye110) 110VAC
Tpye220) 90-260VAC
Tpye380) 180-460VAC
Operating Frequency : 50/60Hz
Operating Temperature: -20.....+55
Waiting(t) : D-Time 0.2-60s
O-Time 0.2-12s
Asymmetry Set : %±10
Contact : 5A 250VAC Resistive Load
Connection Diagrams..: 35mm Din Rail(D) or
Pane(P)
Power Source : AC
Theory : Thermal Relay
Protect Feature : Sealed
Usage : Protective
Contact Load : Low Power

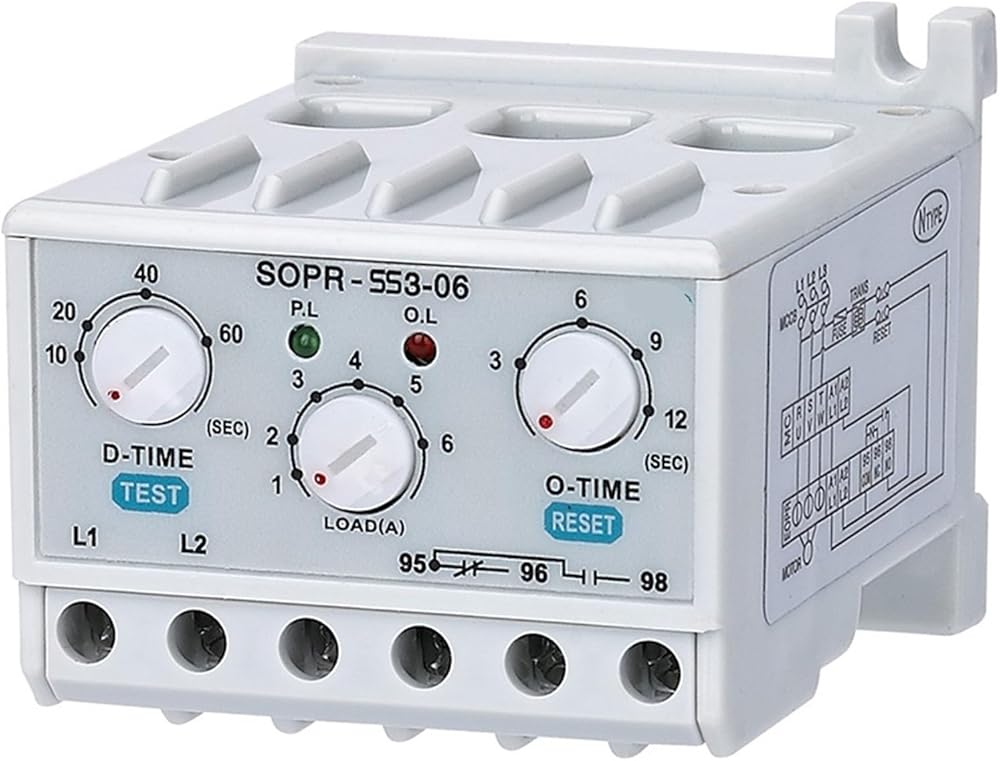

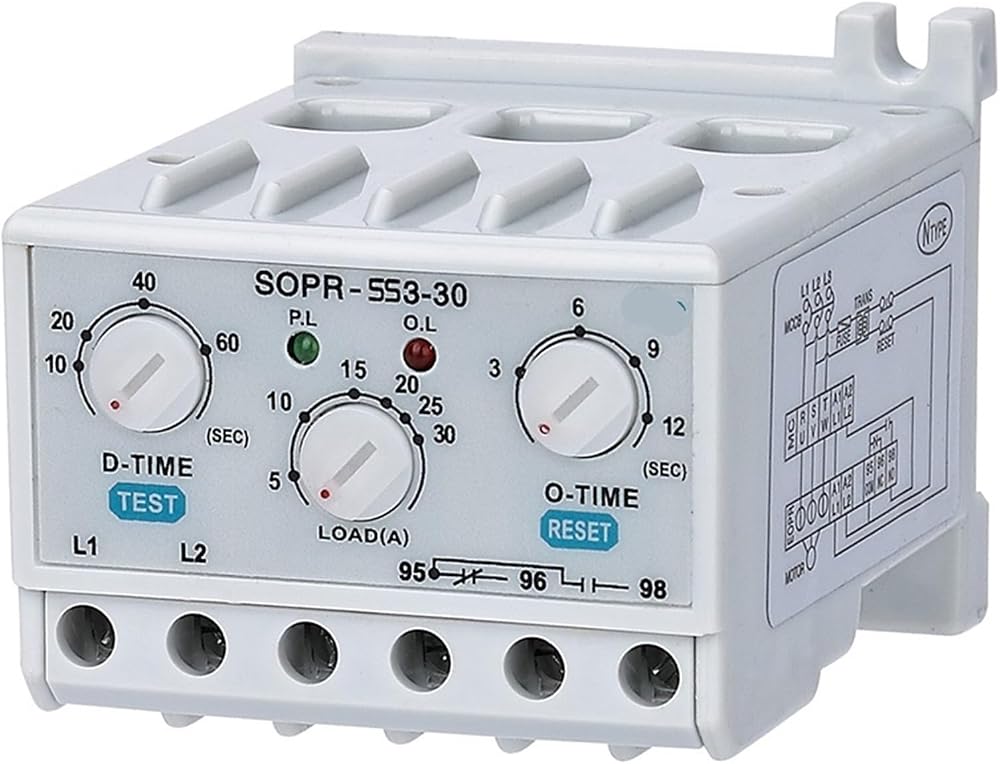

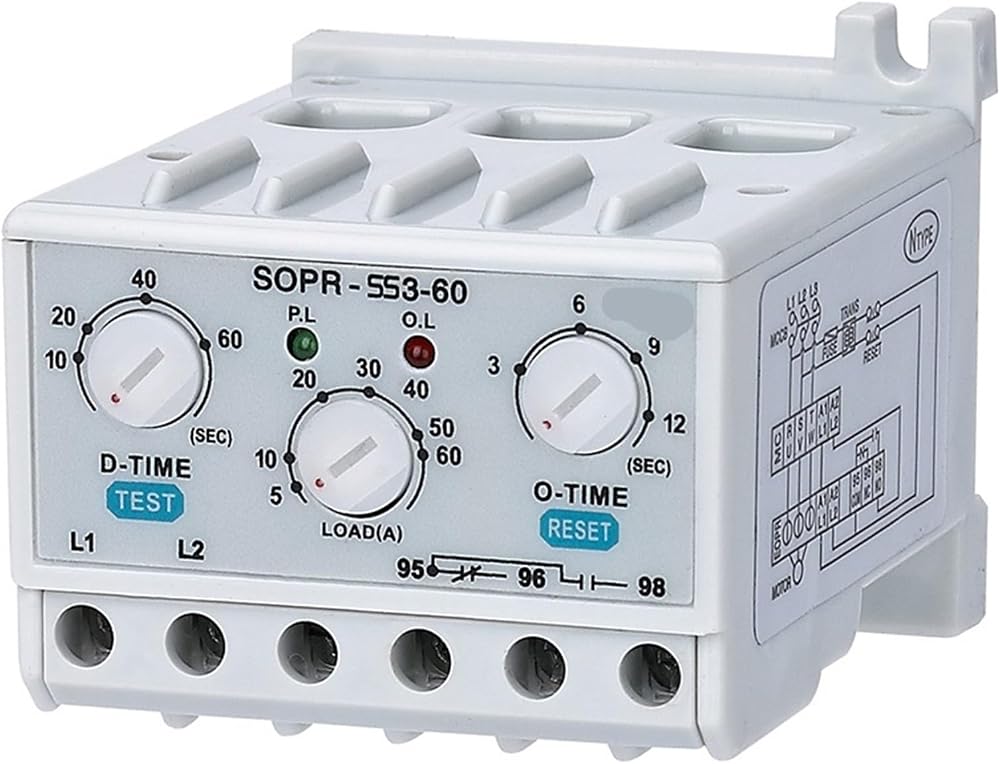

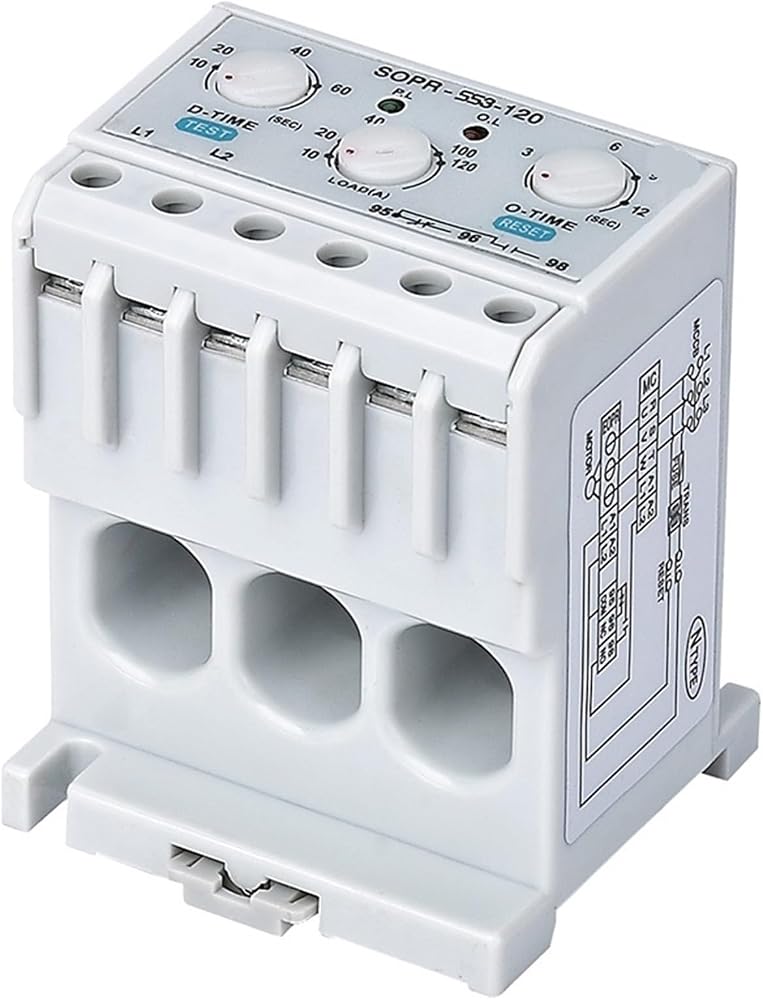

Model Number : SOPR-SS3-220
Voltage : 220V
Operating Voltage(Un) : 90-260VAC 50/60Hz
Current Range(A) : 0.5-6A / 3-30A / 5-60A / 10-120A
Main Circuit Wiring : Through Core
Relay output : 1c
Protected object : motor
Model : EOCR/SOPR/DPR/EOPR
