Relays / Phase Monitoring Relays
Specifications
Operating Voltage(Un) : 150V-260V AC/24VDC or
110VAC/24VDC
Operating Frequency : 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Time(t) : 10sec, 100sec, 10min,
100min, 10hr. and 100hours
Display: : On led and Out led
Connection Type : Terminal connection
Weight : Max.120gr.
Contact. :5A/250V AC (Resistive Load)
Mounting : Vertical assembled in
the panel or assembled on the din rail
Cable Diameter. .: 2,5mm²
Working Mechanism
Dimensions
Connection diagram
Theory : Time Relay
Protect Feature : Sealed
Usage : General Purpose
Contact Load : High Power

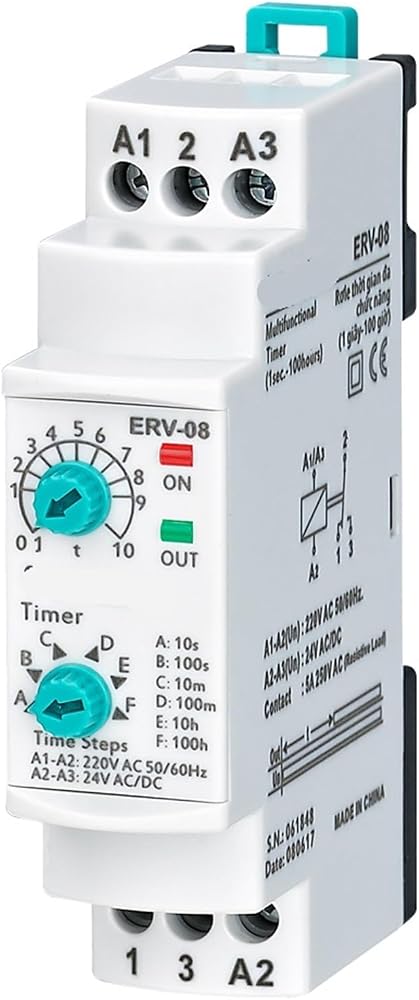

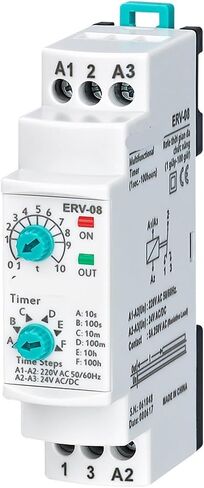

Model Number : ERV-08
Mode : On Delay
Relay : Timer
Tpye : Time relay
