-General-

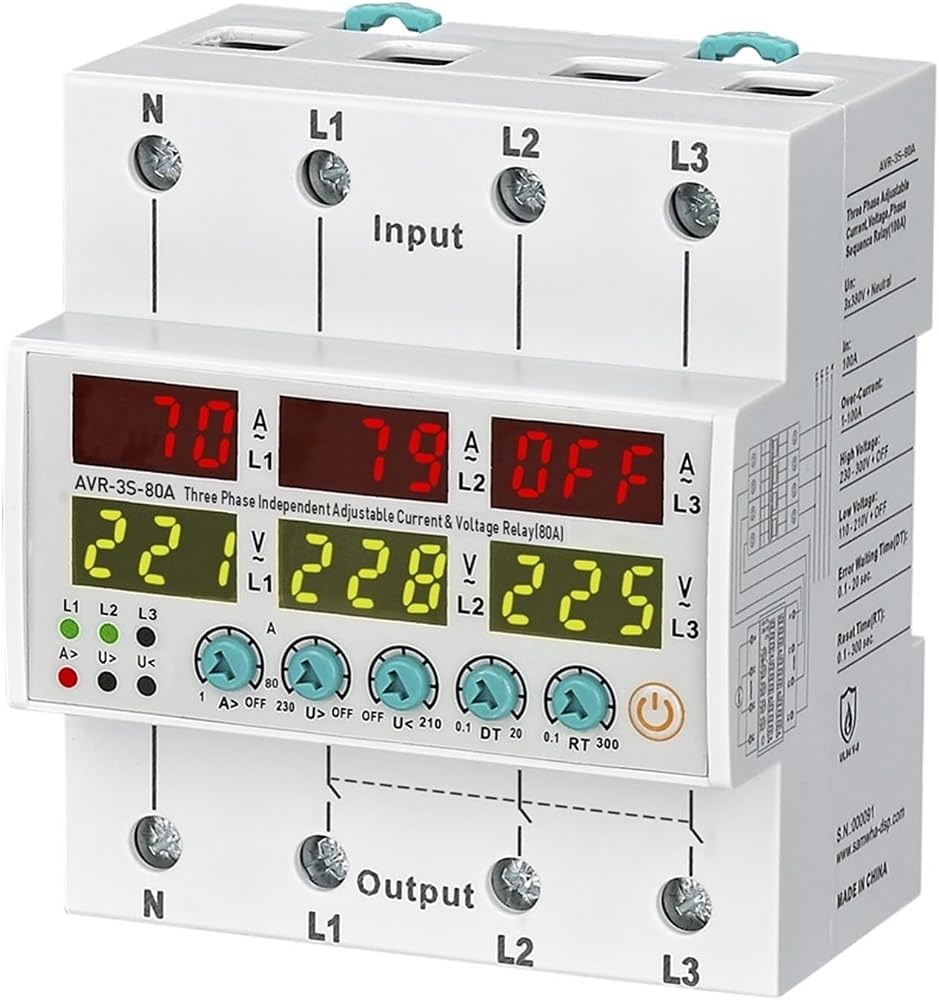

AVR Current & voltage protection relay is designed to protect devices with sensitive operating voltage currentvalues from errorsthat may arise from mains voltage and Overload
-Device Usage and Principle of Operation -
Make the connections of the device according to the connection type. Otherwise, the device may be damaged.
Specifications
Operation Voltage(Un)....: 3x380V+Neutral
Operation Frequecey.......: 50/60Hz
Operating Temp...: -20°C.....+55°C
Over-current Set(A>)...: 63A(1 - 40A);
80A(1 - 80A);100A(1 - 100A)
High Voltage Set(U>)....: 230 - 300V + Off
Delay Time.............: 0.1 - 20sec.
Reset Time.............: 0.1 - 300sec.
Display.......: 3x6 digit LED display 5Leds
Measurement Precision..: ±1%
Connecction Type...: Terminal Commection
Operating Altitude..:
