Special Features

1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
1. Stable performance, strong performance, smooth rotation.
2. Not easy to deform and wear, high precision and low noise.
3. Effective dust prevention, lubrication, precise processing size.
4. Can easily preload the rotational change and linear motion.

Description

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning
Specifications:
Model: SFU1204
Guide rail width or diameter: 12mm
Ball screw length: 250-1000mm

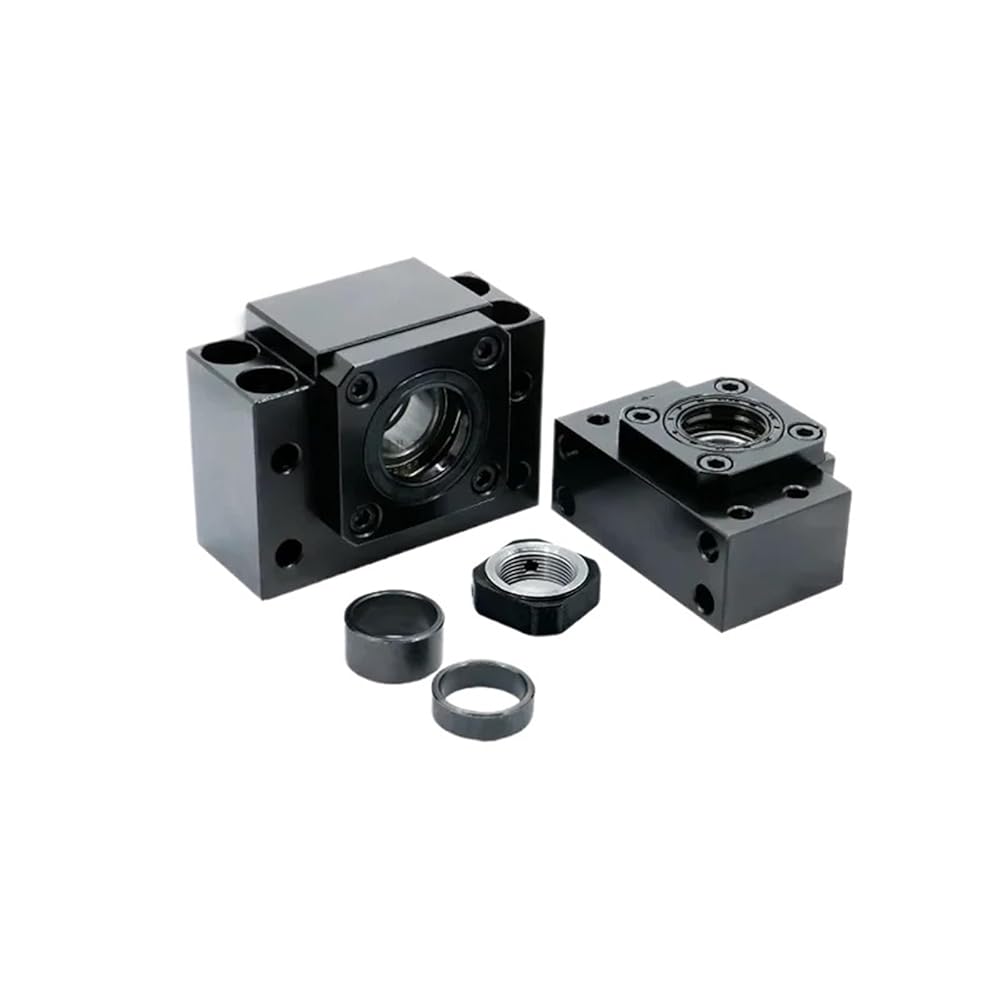

Support: BK/BF10 end support

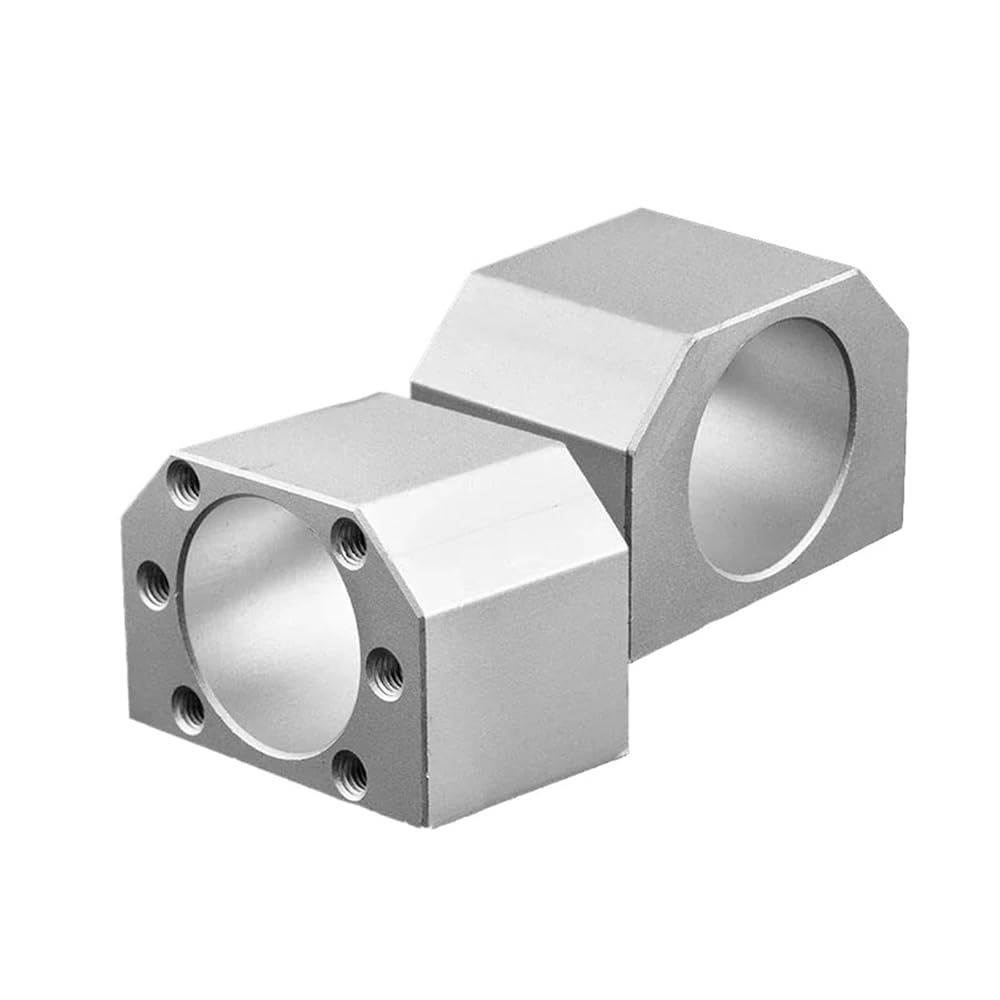

Nut housing: DSG12H
Coupling: D25L30-6.35*8mm

Description:
High transmission efficiency, high positioning accuracy, good repeatability of positioning accuracy, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light movement of the slider. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble Aluminum support rails with pre-drilled holes for easy installation.

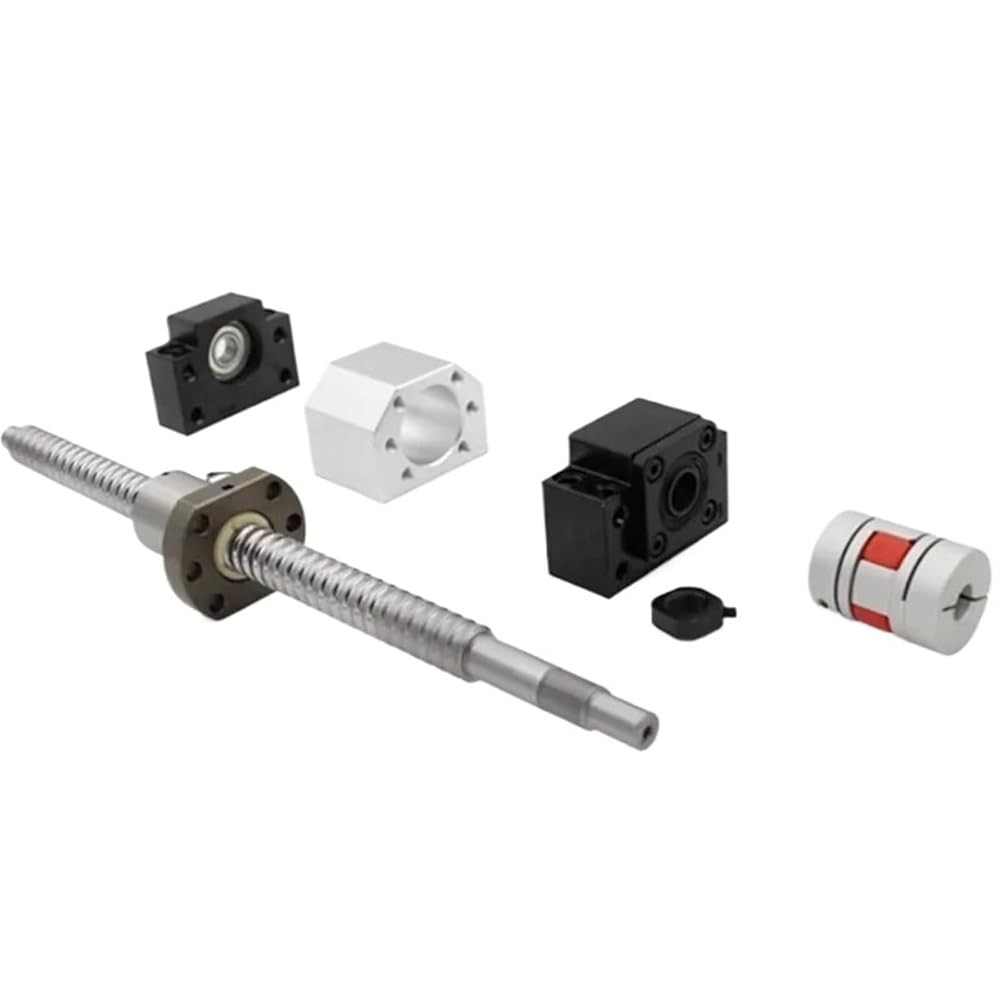

Packing list:

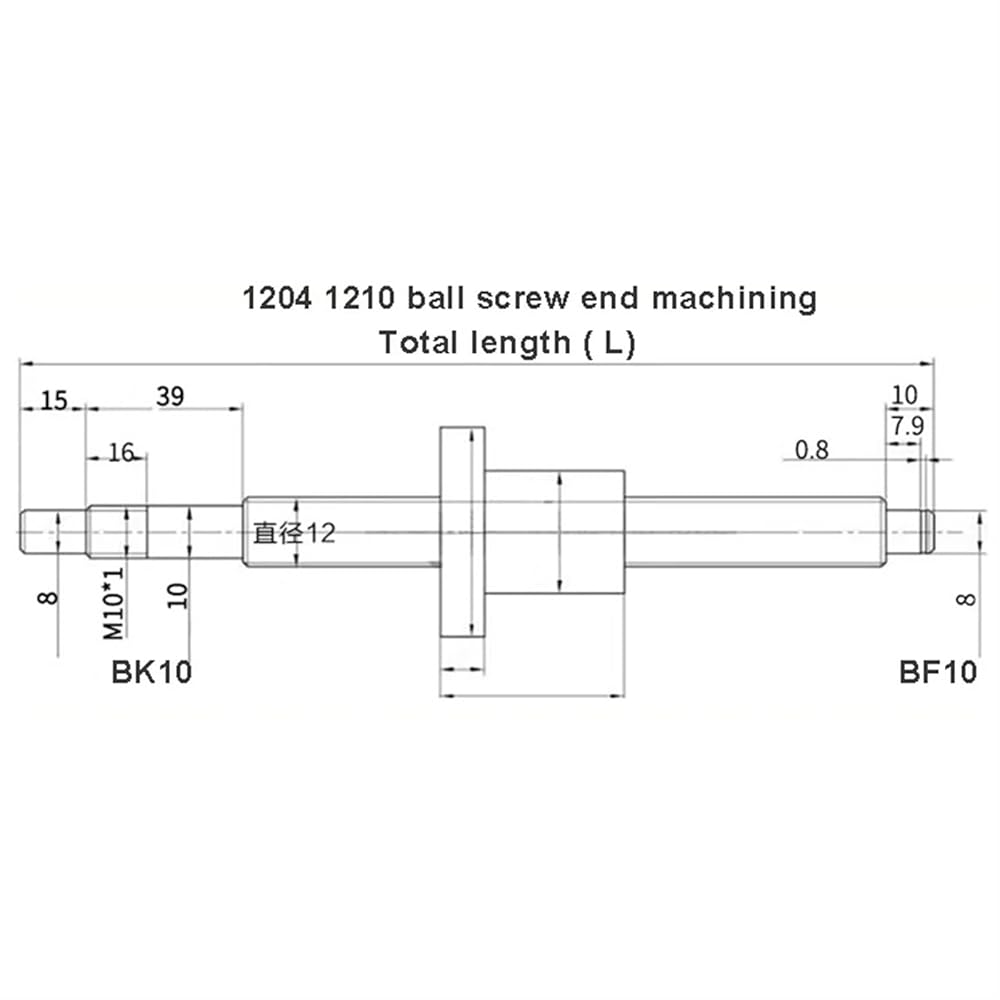

1pcs SFU1204 ball screw with end processing L250-1000mm

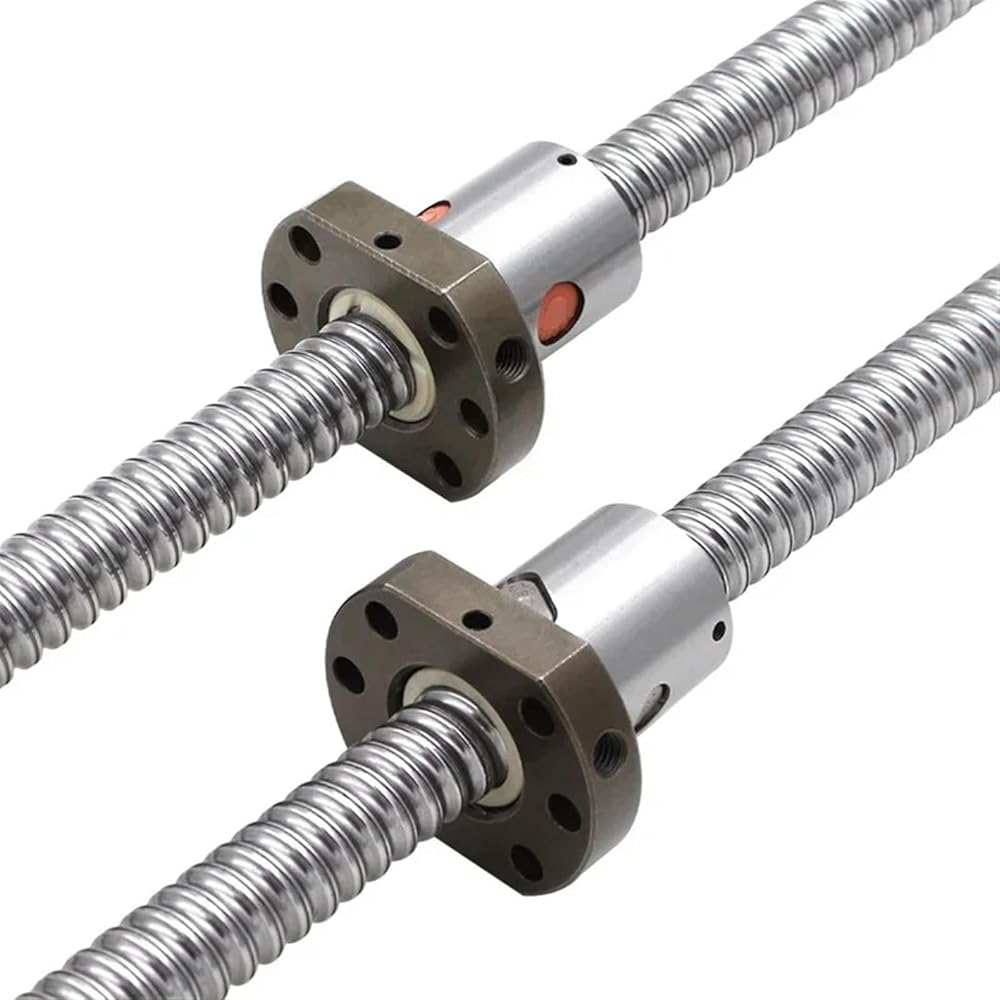

1pcs SFU1204 ball screw nut
1set ball screw bracket BK10BF10
1pcs D25L30-6.35*8mm coupling
1pcs ball nut housing DSG12H
