Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(900MM Stroke) in Kuwait

Linear Motion Ball Screw Precision Part Manual Sliding Table 50~1000mm Effective Stroke Ball Screw SFU1204 Single Line Rail Guide MGW12C Slider(50MM Stroke)

KWD 79.500
Brand
UGBHKXZDAXFD
Weight
3 kg
Size50mm Stroke
– 1 +

Special Features

  • 1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
  • 2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
  • 3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
  • 1. Precision ball screw with flange screw nut can ensure running stability and accuracy under high speed and heavy load
  • 2. 12mm linear rail slider, high precision and high stability, smooth running, wear resistance and low resistance, extending the service life
  • 3. Bearing steel is high precision, stable and more durable

Description

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning

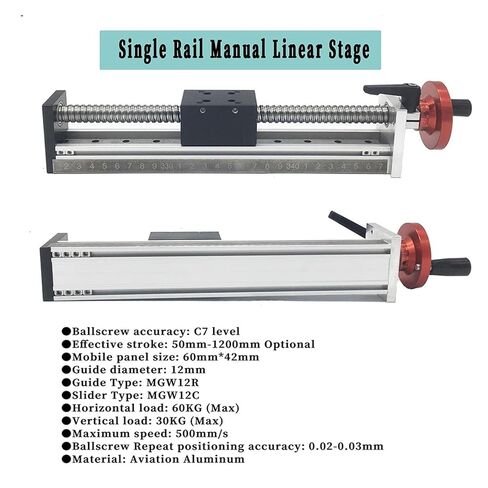

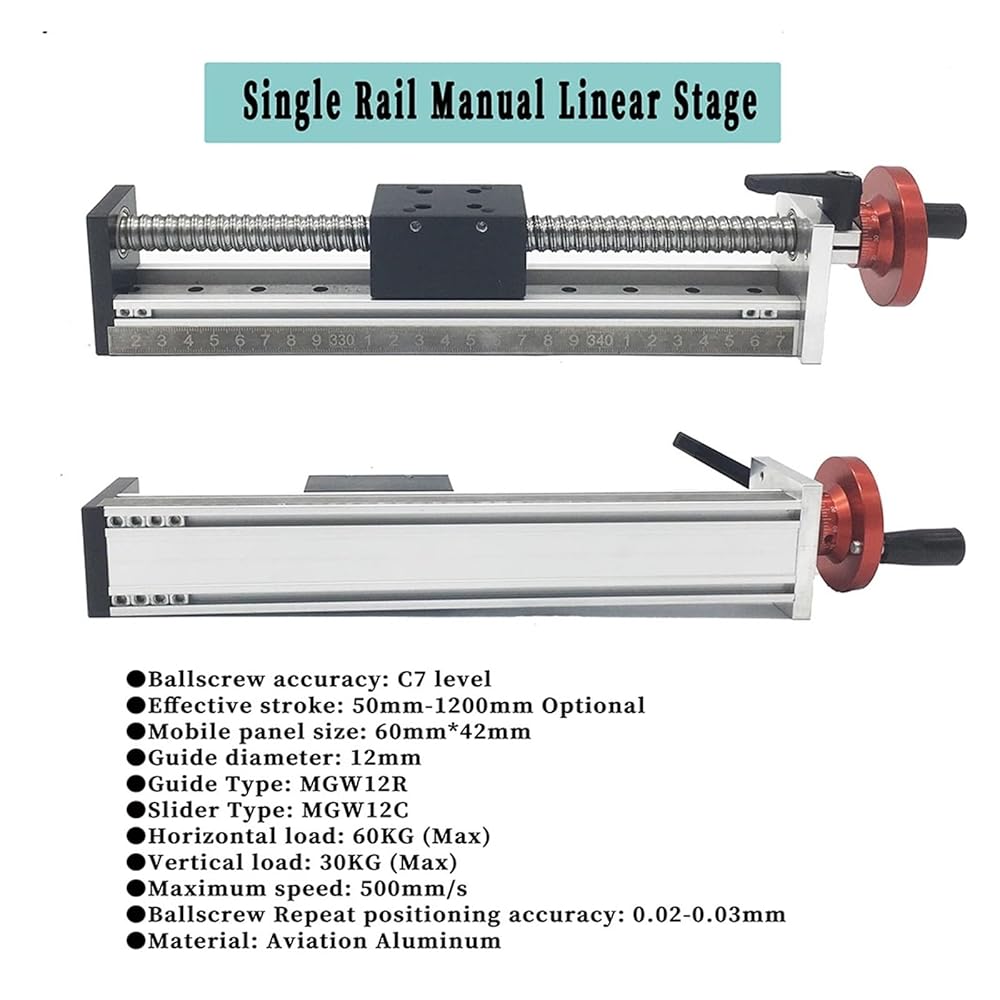

Specifications:
Model: RM-DXG6042
Guide rail width or diameter: 12mm
Ball screw accuracy: C7
Vertical load: 30KG (maximum)
Horizontal load: 60KG (maximum)

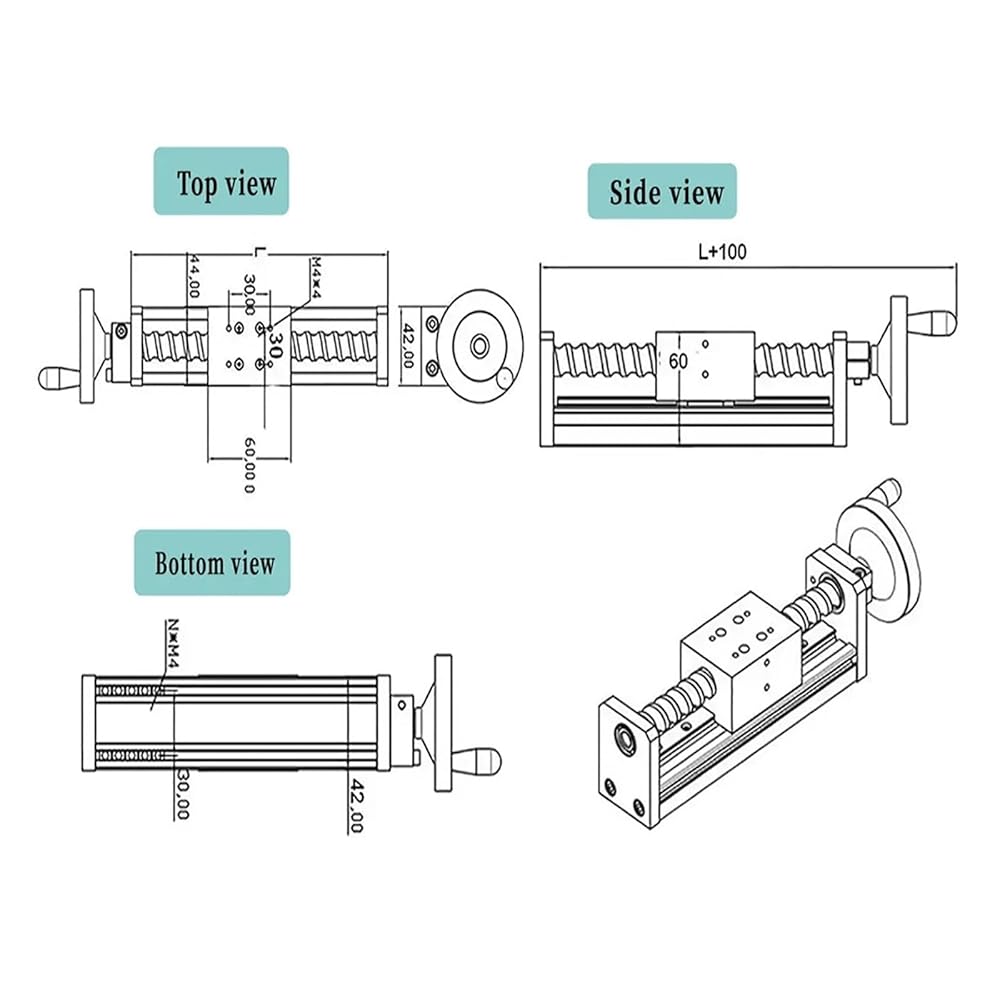

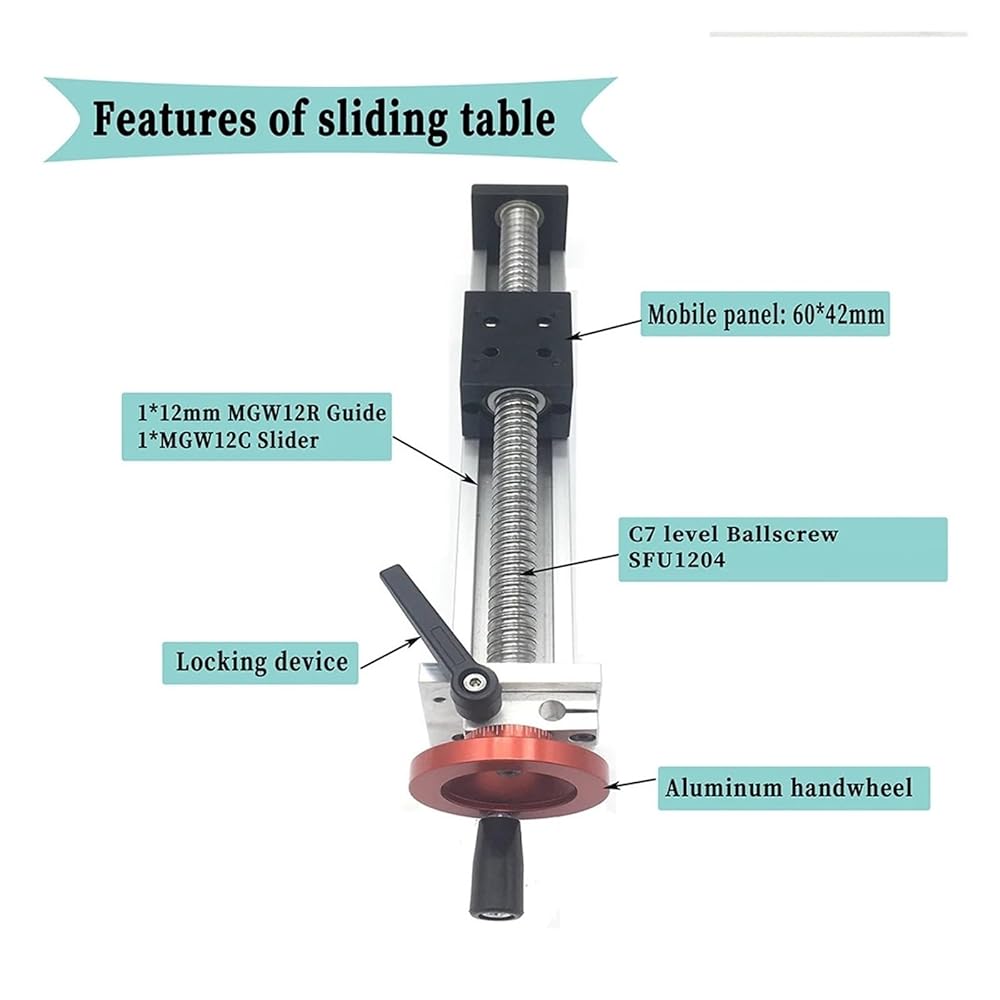

Mobile panel size: 60mm X 42mm
Slider: MGN12H
Total length of slider: effective stroke + 180mm
Guide rail type: MGN12R (12MM linear guide)

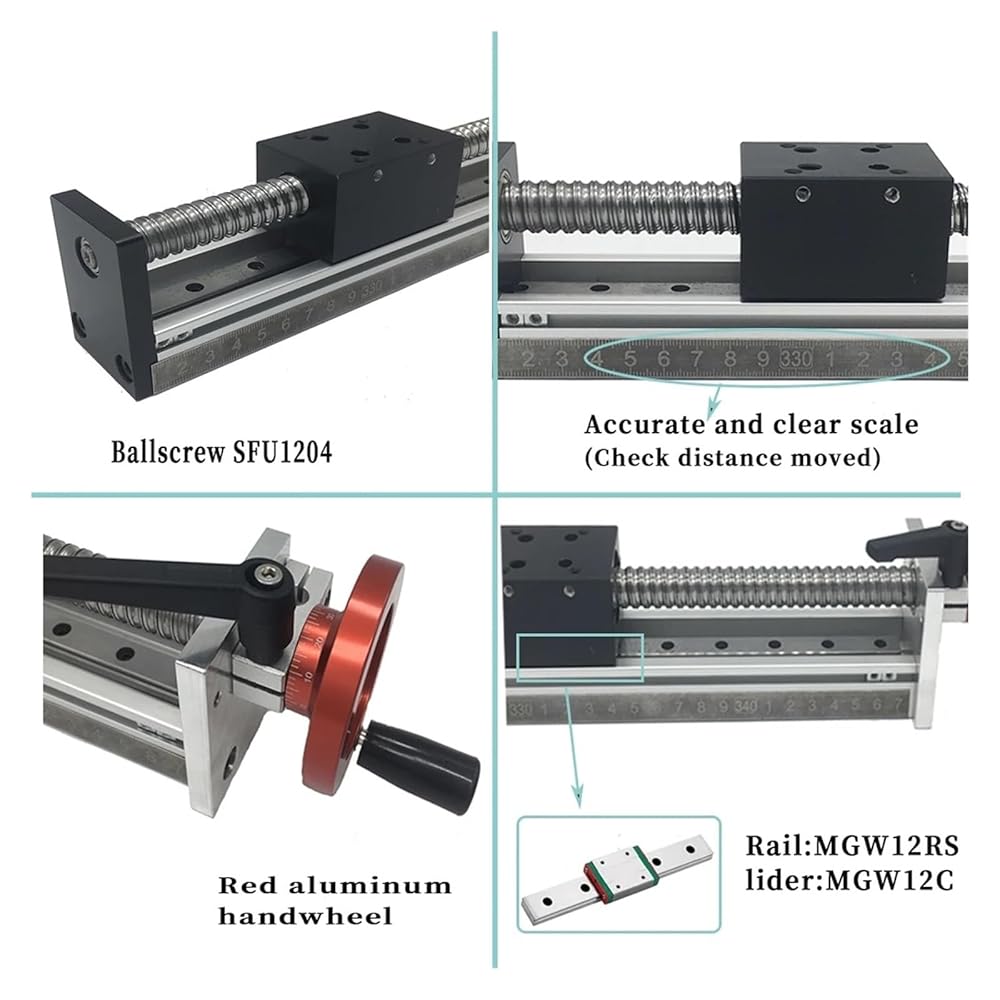

Ball screw type: SFU1204 (screw diameter 12mm, pitch 4mm, screw rod rotates once, mobile panel moves 4mm)
Effective stroke: 50mm-1000mm optional
Maximum speed: 500mm/s
Slider material: aviation aluminum

Packing list:

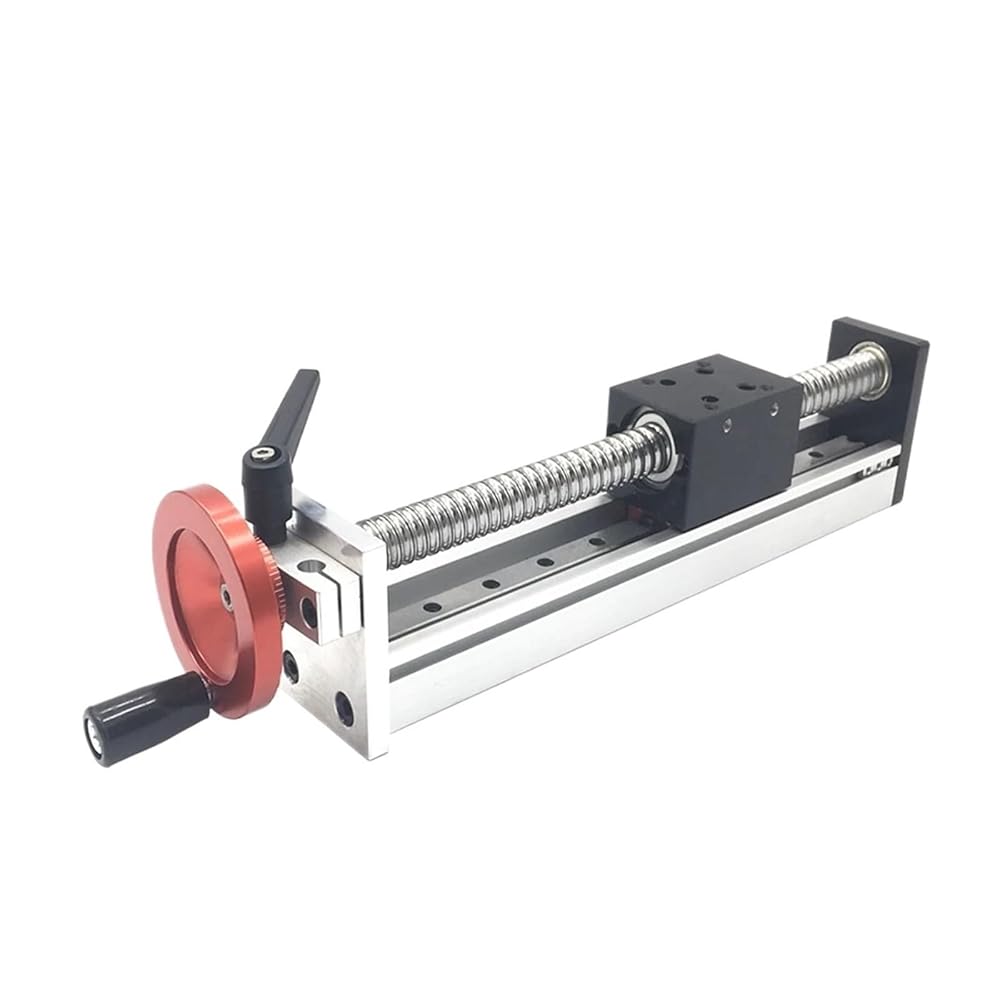

1pcs sliding table with manual handwheel
