1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning
Specifications:
Grade: C7 Rolling Type
Model: SFU Ball Screw + HGR Linear Guide Set
Model: SFU3205
Guide Width or Diameter: 30mm
Material: Bearing Steel

Description:

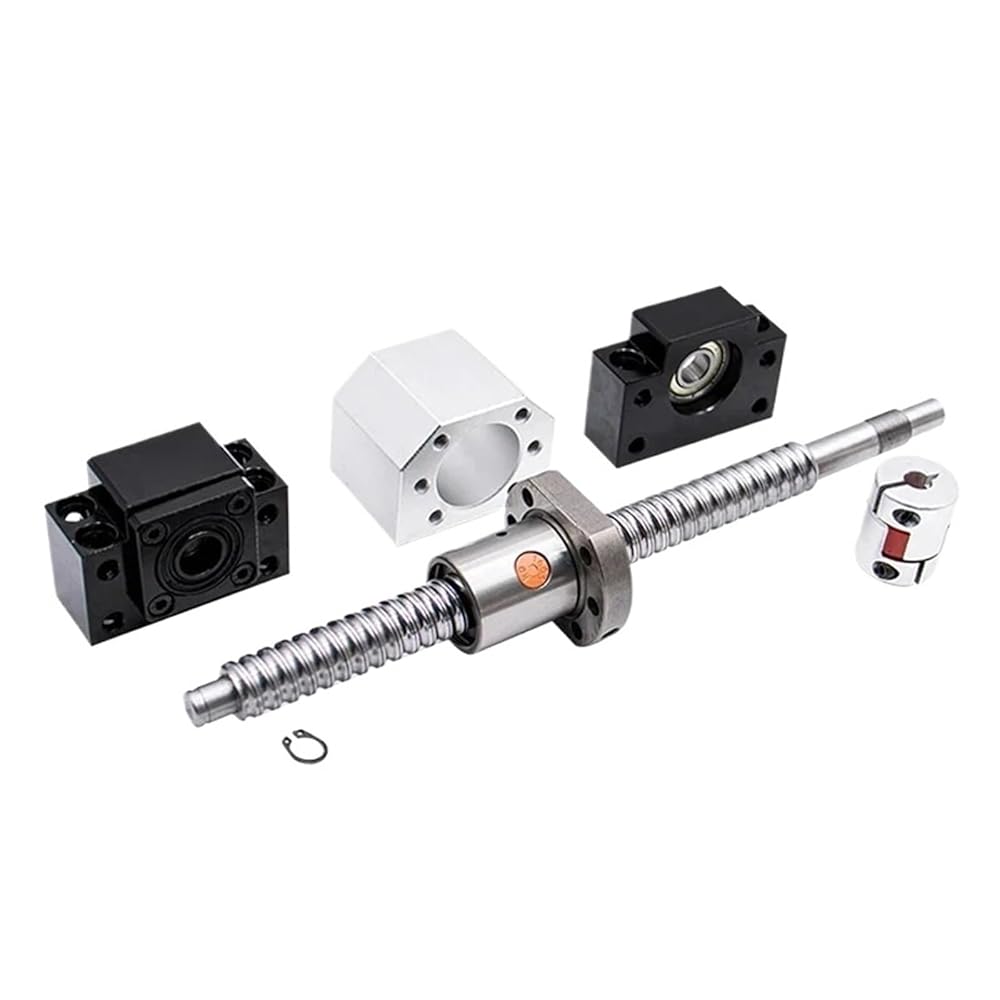

Complete Linear Guide and Ball Screw Kit: Available as a complete kit, including linear guides, ball screws and accessories.
Ball Screw Accuracy: C7, SFU3205 ball screw with C7 accuracy ensures smooth operation and high positioning accuracy.
Rail Width or Diameter: 30mm, 30mm rail width provides ample space for accurate and efficient movement, improving accuracy.
Material: Bearing Steel, Made of bearing steel, ensures durability and life of precision machining.

Packing List:
1pcs SFU3205 Ball Screw with End Processing, Suitable for BK/BF25

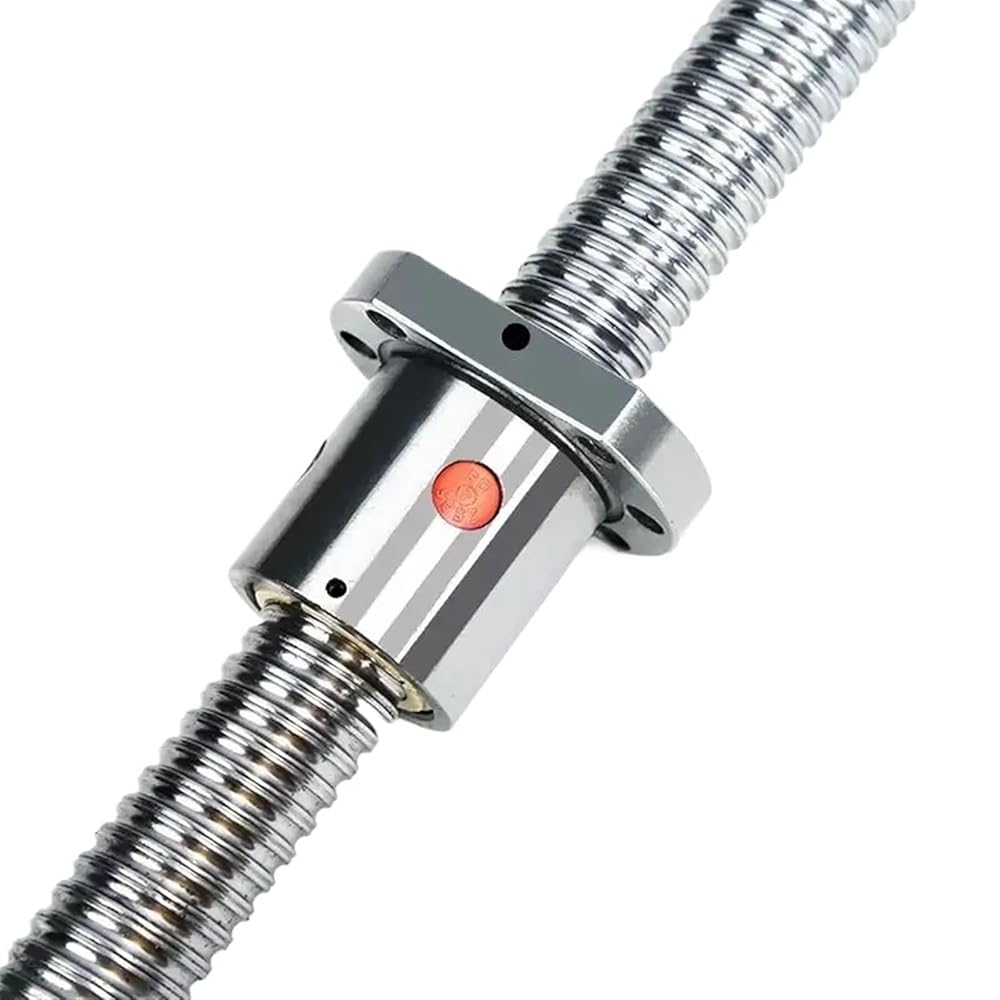

1pcs SFU3205 Ball Nut

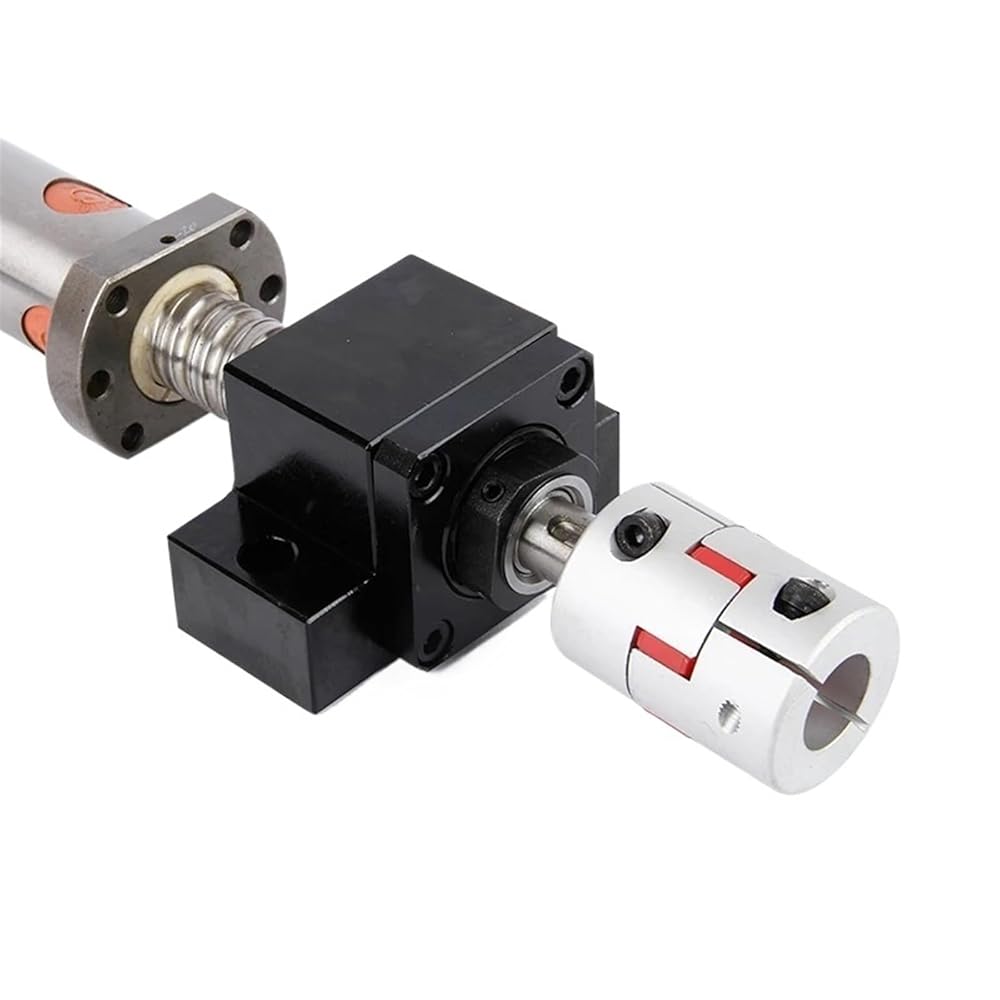

1pcs BK25+BF25
1pcs Coupling D40L66 20x14mm
1pcs DSG32H Nut Housing

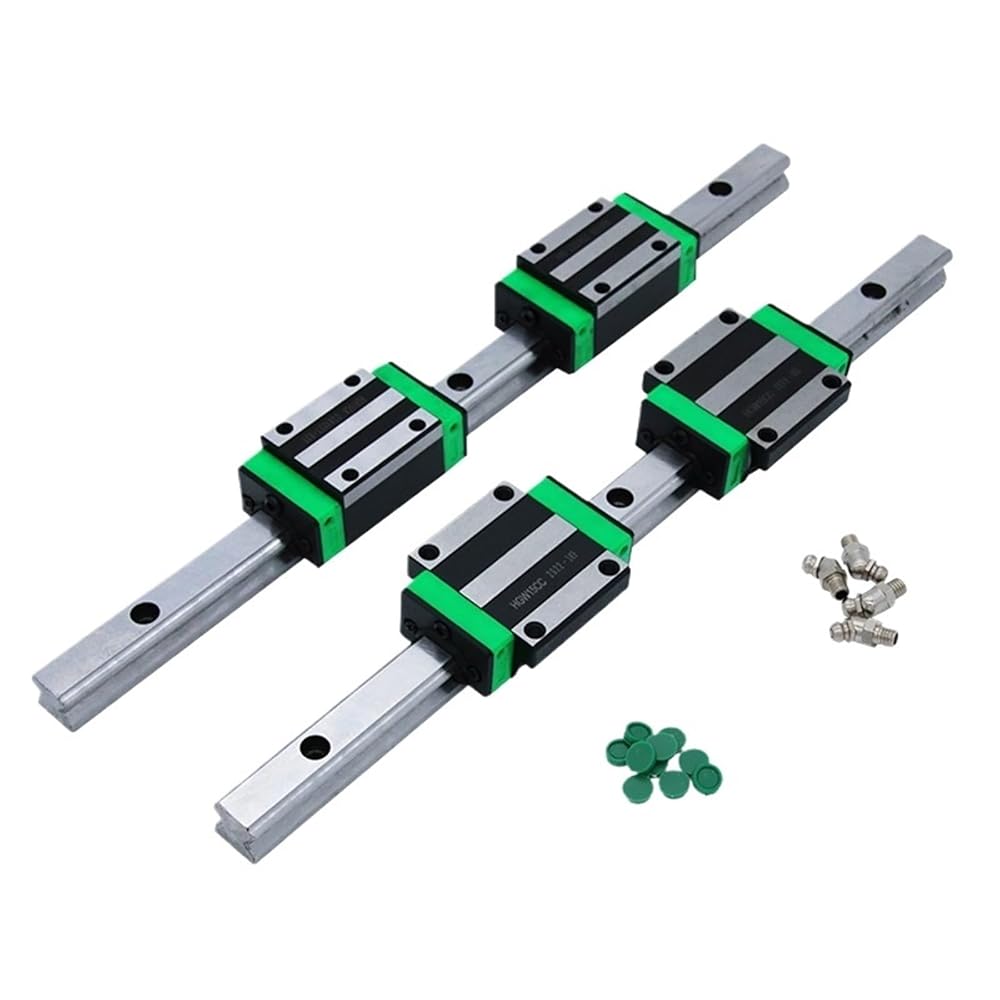

2pcs HGR30 Linear Guide
4pcs HGH30CA Block

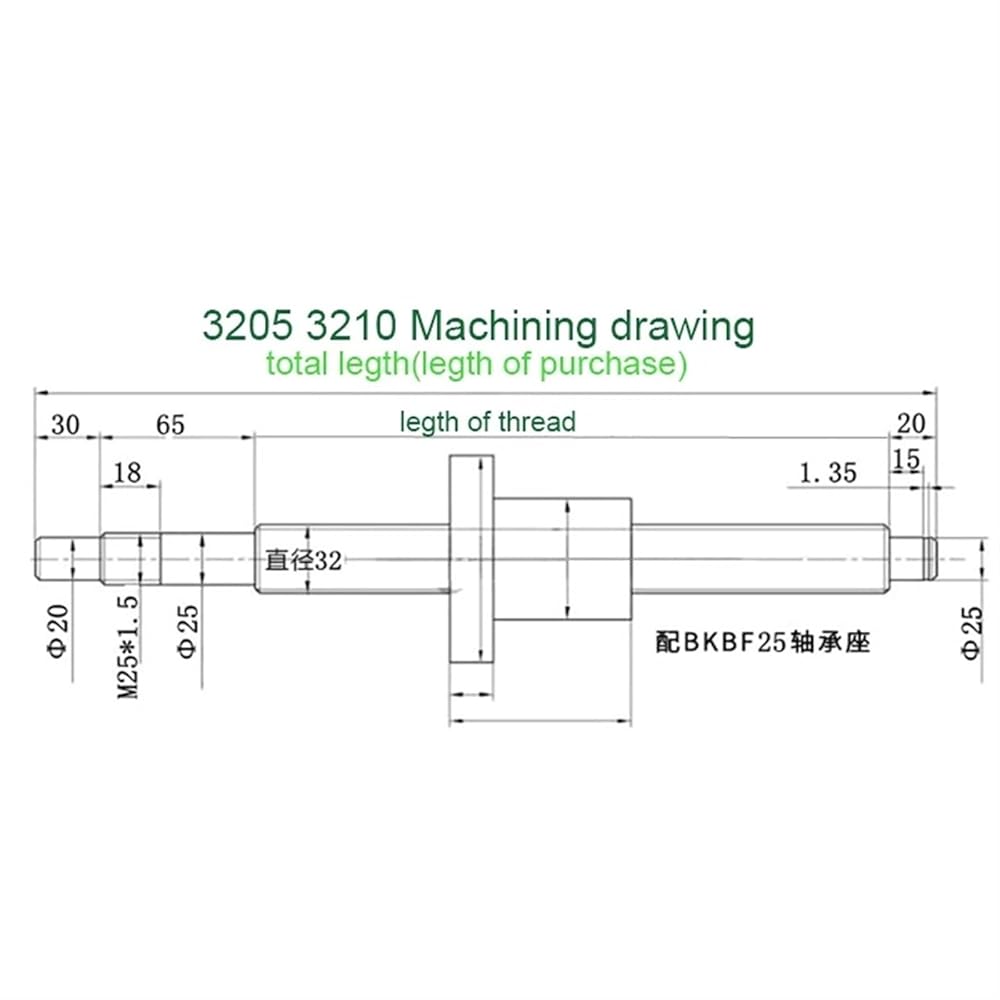

Note: The above ball screw is the total length, including the processed part.
