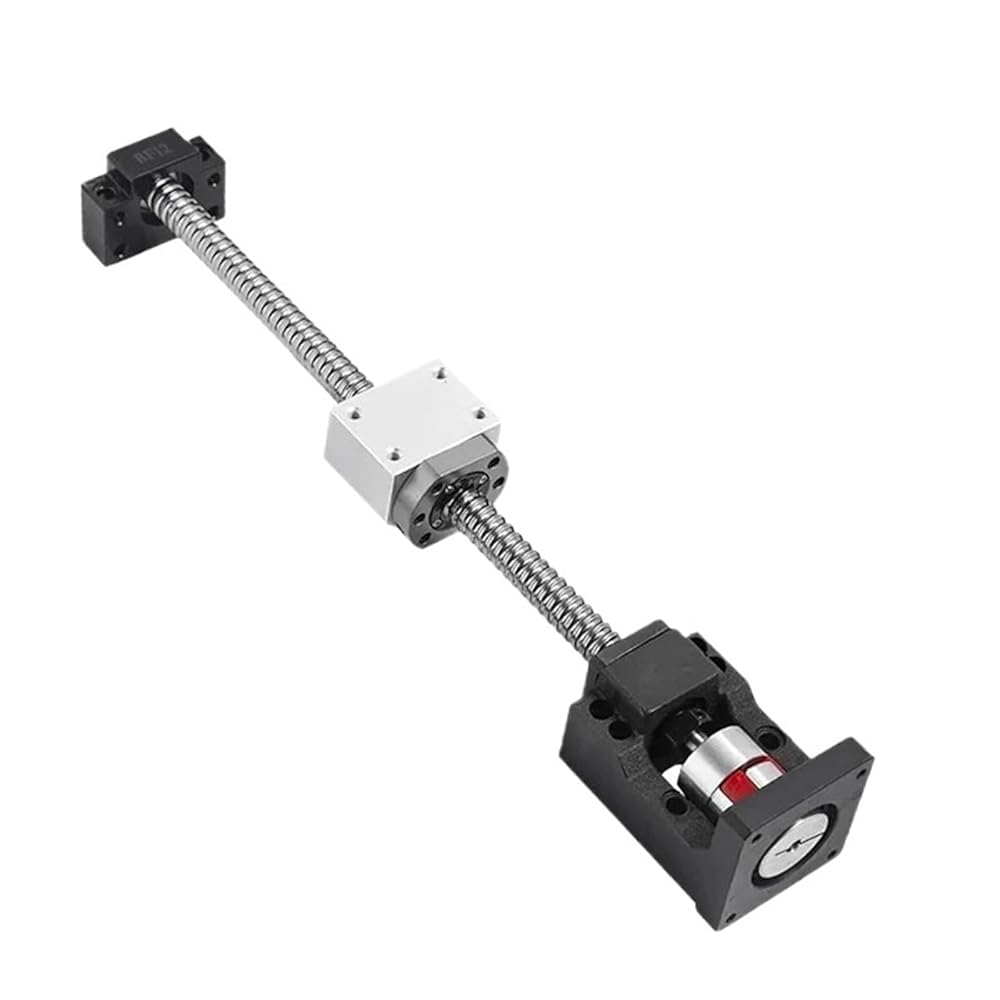

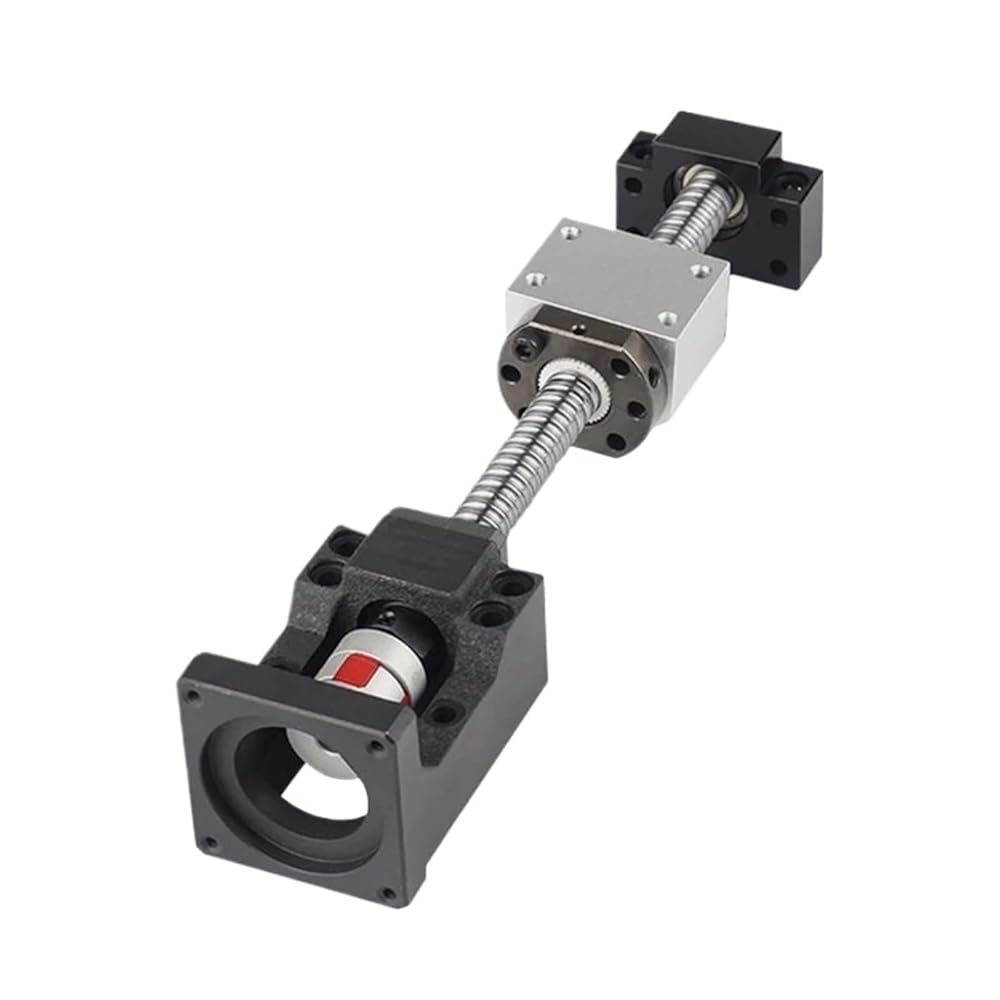

Linear Motion Ball Screw Precision Part 16mm Ball Screw SFU1610 Ball Screw 200mm-1000mm BF12+C7 HM12-60 for Nema24 Motor Seat+DSG16H+Coupler(200mm)

KWD 90.500
Brand
UGBHKXZDAXFD
Weight
3 kg
Size200MM
– 1 +

Special Features

  • 1. Low friction, low operating noise, long service life, no stick-slip effect, and low heat generation.
  • 2. Easy to install, maintenance-free, low starting torque, and accurate positioning.
  • 3. Widely used in automated machinery such as lathes, machine tools, large transmission equipment, etc.
  • 1. Low noise, high precision, fast transmission speed, selected materials, smooth sliding
  • 2. Made of high-quality bearing steel, high hardness and high precision
  • 3. High hardness, wear-resistant and efficient, low noise, rolling friction, not easy to slip, stable and low noise

Description

1. High axial force, more accurate positioning, no stick-slip effect, less heat generation, and lower drive power required.
2. Low sliding friction, resulting in longer service life, high transmission efficiency, and low noise.
3. High and more accurate positioning
Specifications:

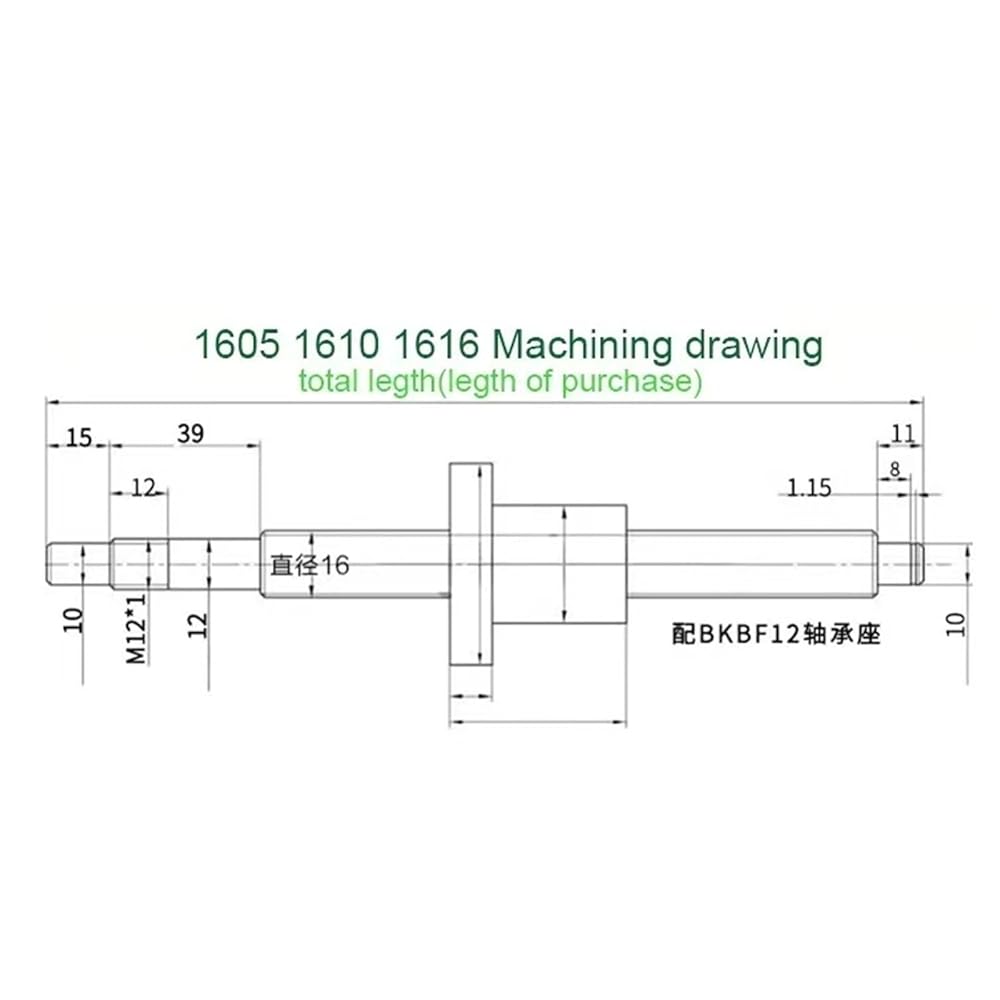

Model: SFU1610
Guide rail width or diameter: 16mm
Lead: 10mm
Screw length: 200-1000mm
Material: bearing steel
Precision: C7

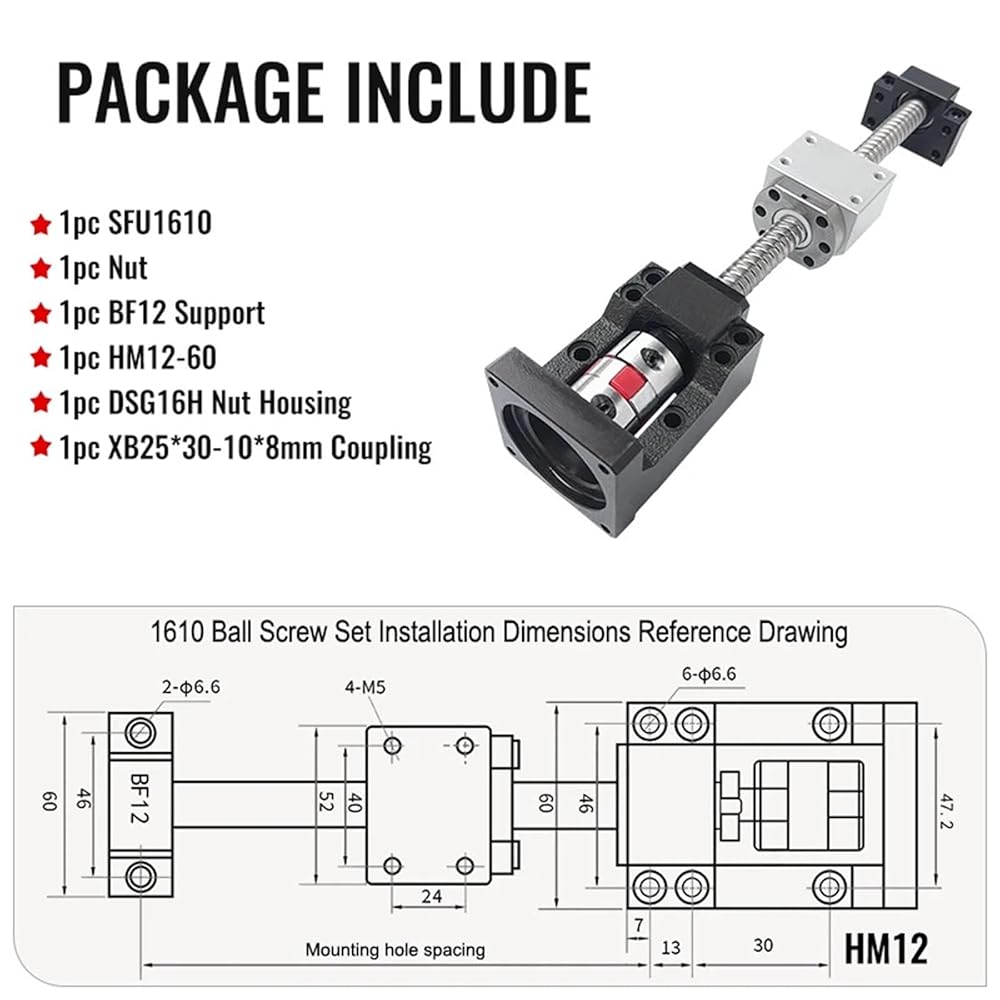

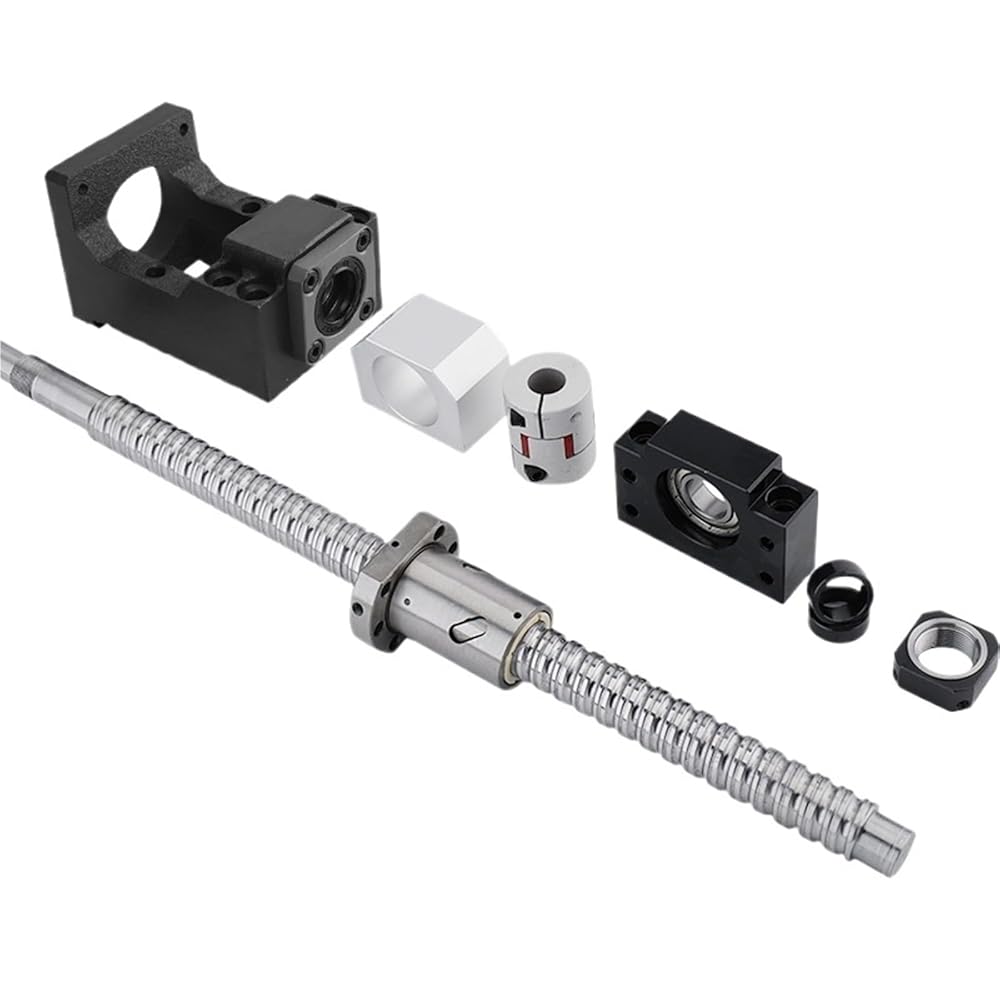

Packing list:
1pcs SFU1610 ball screw 200-1000mm

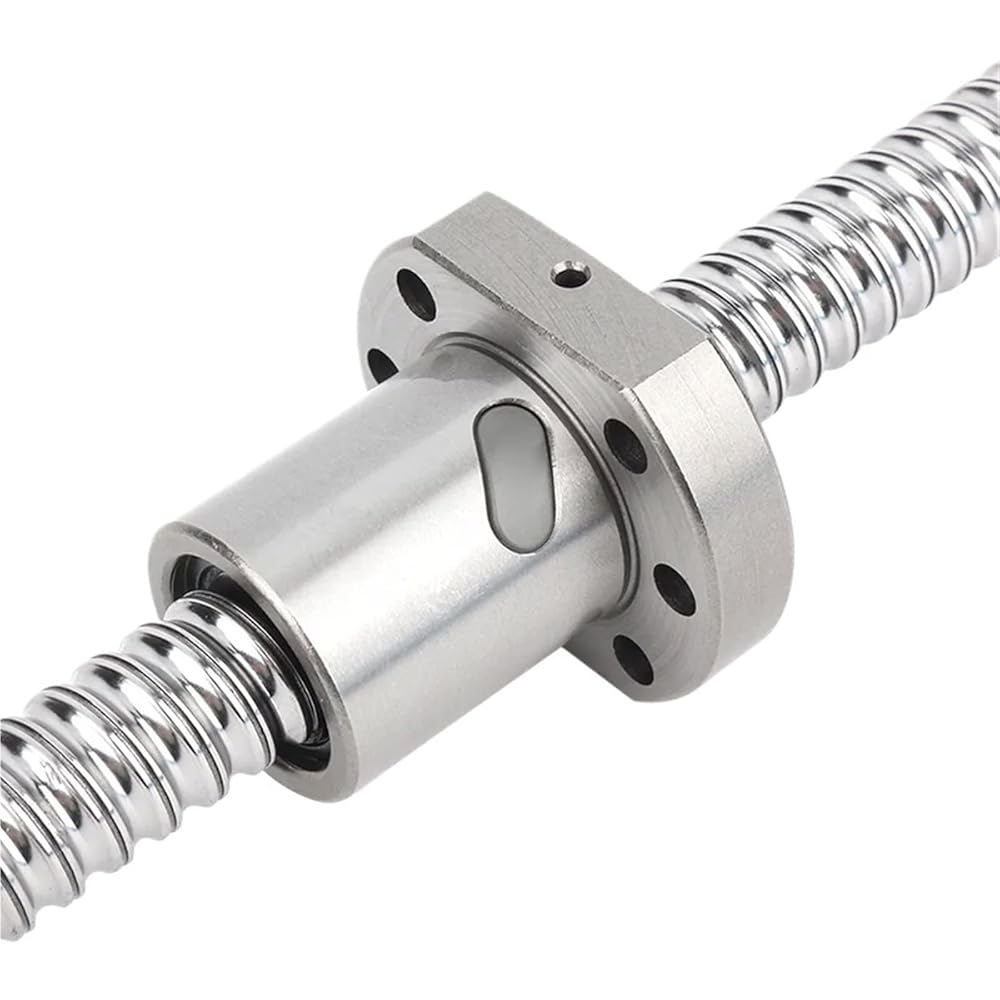

1pcs SFU1610 ball nut

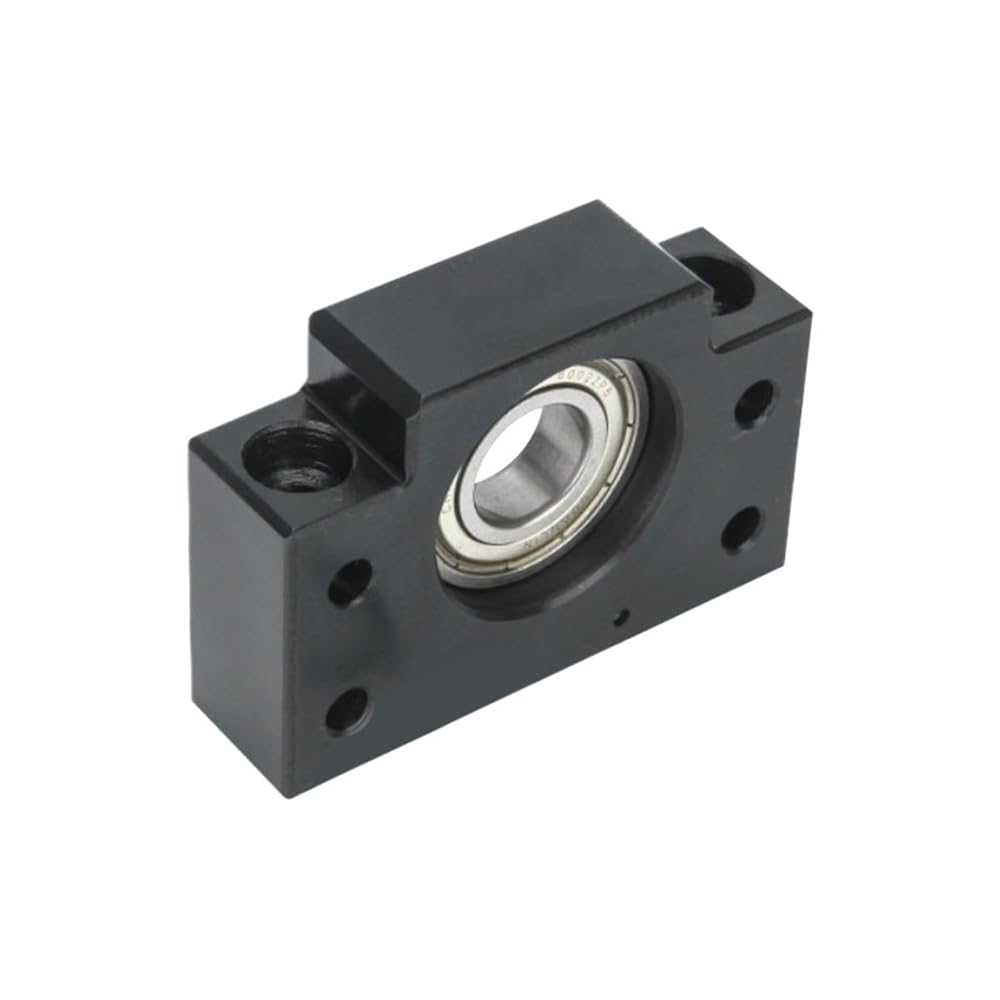

1pcs BF12 bracket

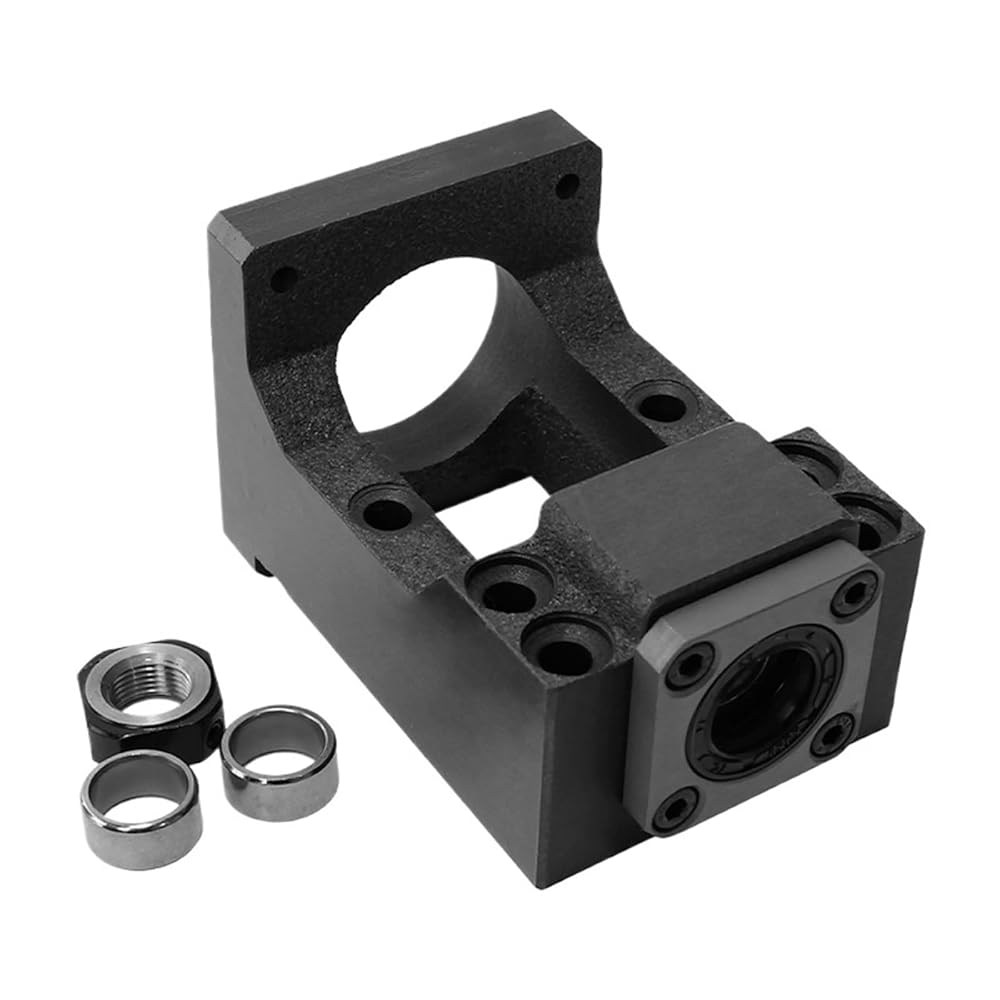

1pcs HM12-60 for Nema24
1pcs DSG16H nut housing
1pcs D25L30-10*8mm coupling
