HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter in Kuwait

HaoDuoQian LA42DWQ-22 Potentiometer,4PCS 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer Variable Speed Drive Potentiometer Inverter Converter

KWD 8
Brand
Generic
Weight
110 g
– 1 +

Special Features

  • A—10K Ohm LA42DWQ-22 22mm Rotary Potentiometer, frequency conversion and speed governing；Product Material: Wire winding.
  • B—Product name : potentiometer; model : LA42DWQ-22 B10K ; Type : rotary potentiometer；Resistance value :10k Ohm; resistance Tolerance : +/-10 %.
  • C—Rated power: 2W；Resistance deviation: ± 5%；Voltage: 220V；Adjustment method: Fine tuning；Hole size: 22mm；Temperature environment: -20~55 ° C.
  • D—Application: This panel mount 10K potentiometer is 10k potentiometer VSD VFD, used for variable speed drive inverter.
  • E—Package：4 x 10K Ohm LA42DWQ-22 22mm Rotary Potentiometer；Resistance change mode: D type (index type).

Description

Specification:
Product Name: potentiometer
Type : rotary potentiometer
Type: LA42WQ-22
Rated power: 2W
Resistance deviation: ± 5%
Voltage: 220V
Adjustment method: Fine tuning
Resistance Tolerance : +/-10 %.
Resistance: 10K Ohm
Mounting Hole: 22mm
Temperature environment: -20~55 ° C
Degree of Protection: IP65

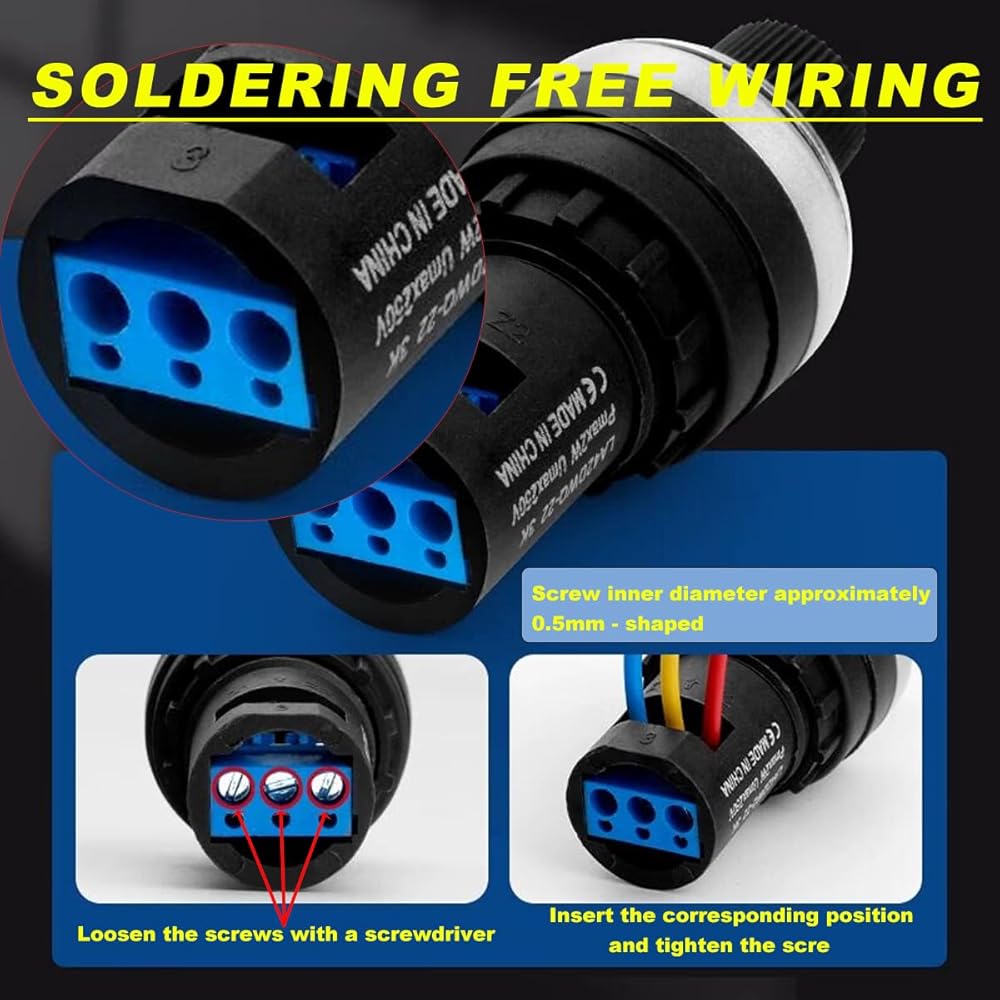

Features: screw terminals without soldering
Organizational change: D-type exponential formula

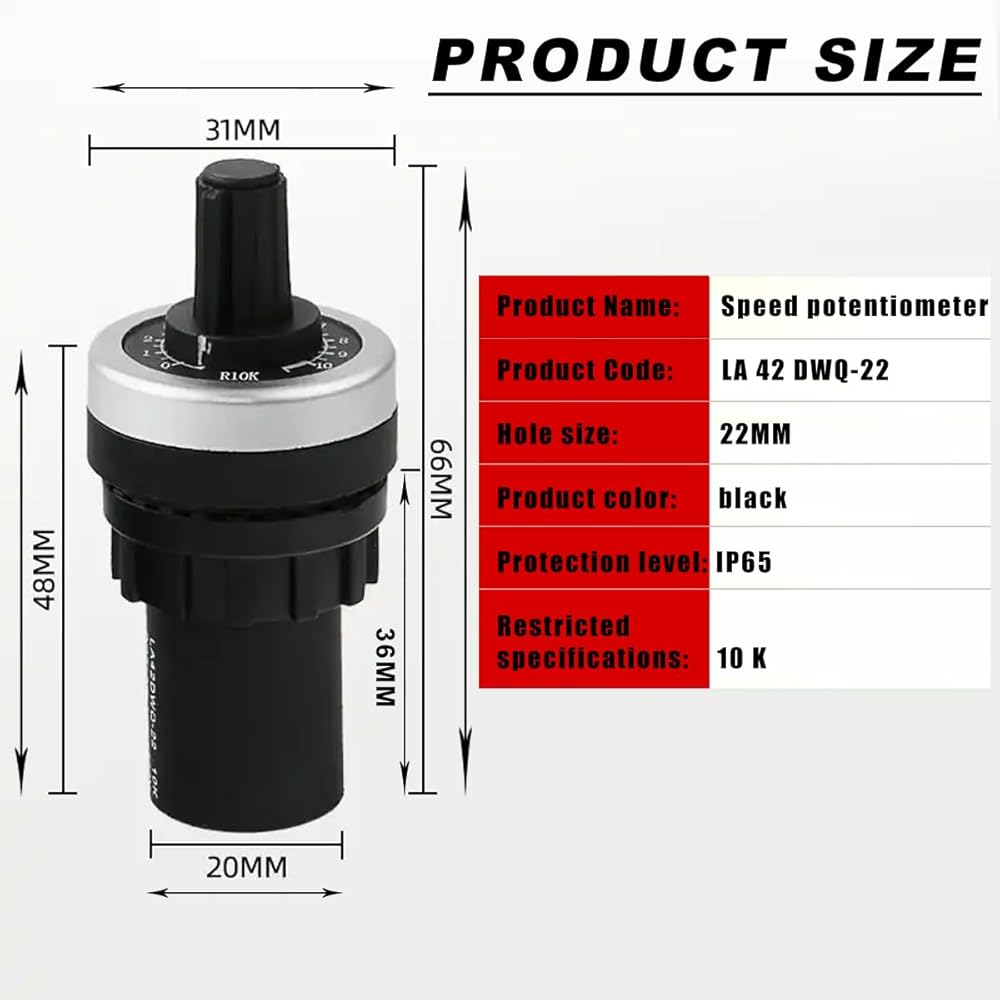

Size: approx. 65 * 30 * 30mm/2.56 * 1.18 * 1.18inches

Package Content:

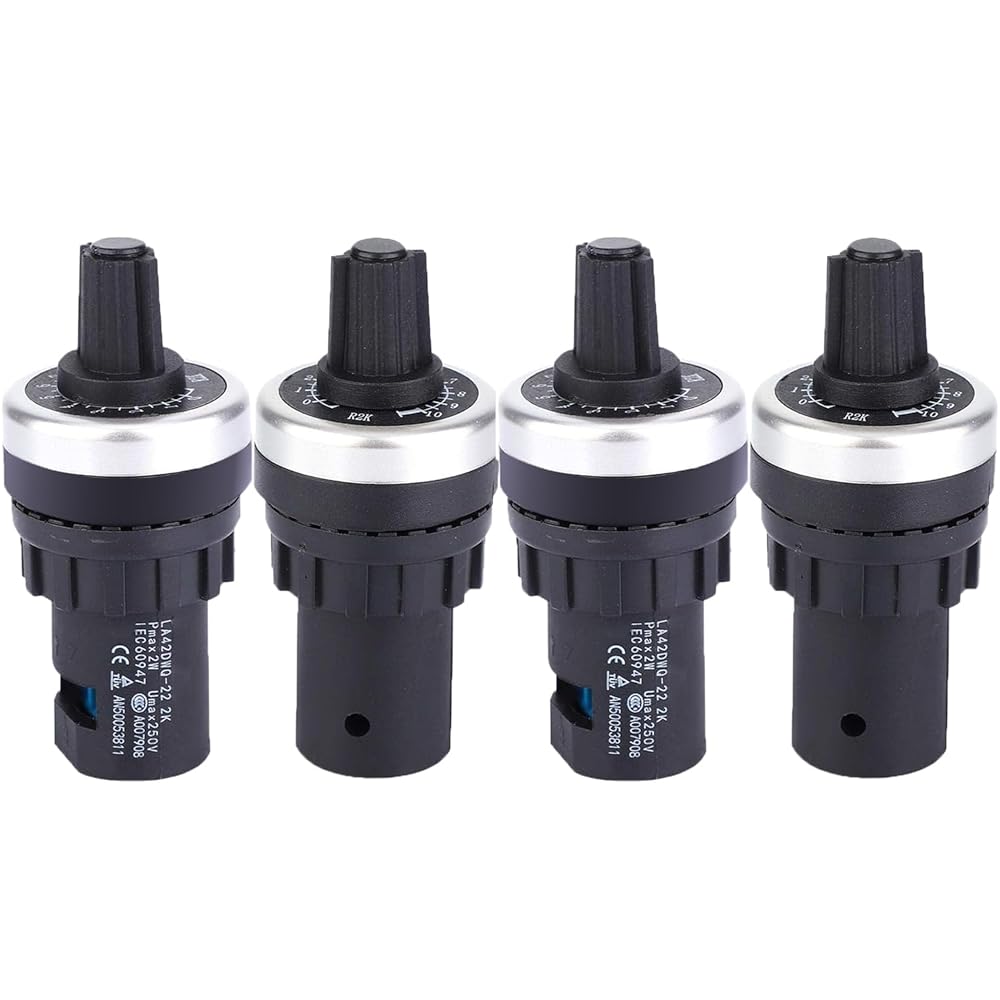

4 * 10k ohm potentiometer

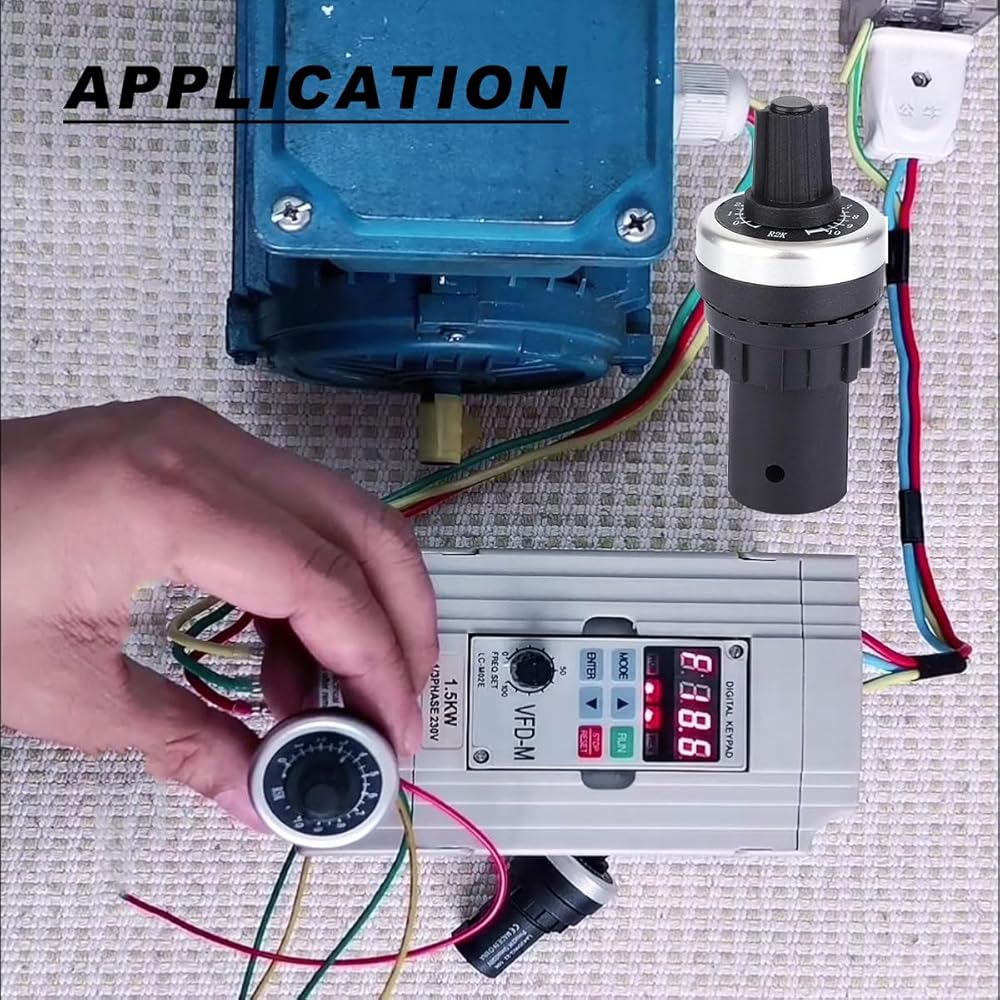

Application: This panel mount 10K potentiometer is 10k potentiometer VSD VFD, used for variable speed drive inverter.
