Cross Roller Guides

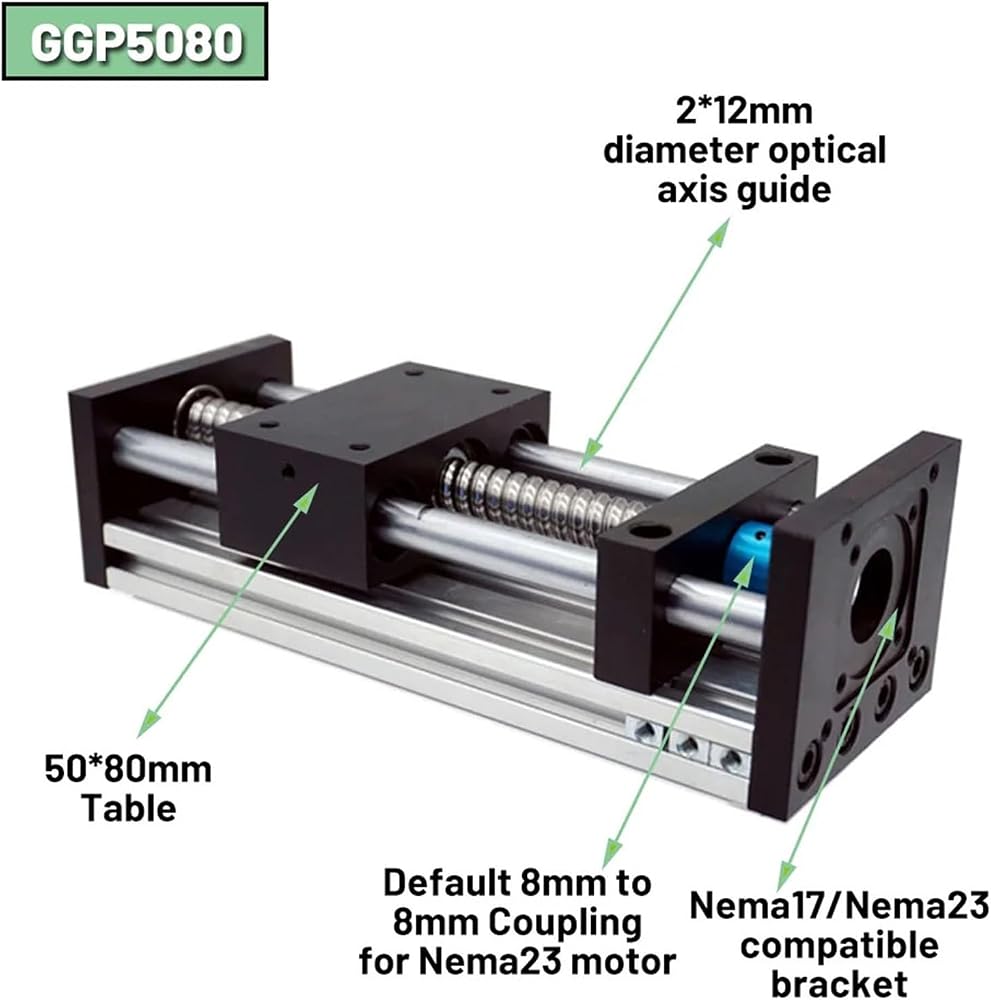

1 * Sliding Table
1* Default 8mm to 8mm Coupling
Model: GGP5080 (50*80mm table)/ GGP8080 (80*80mm table)

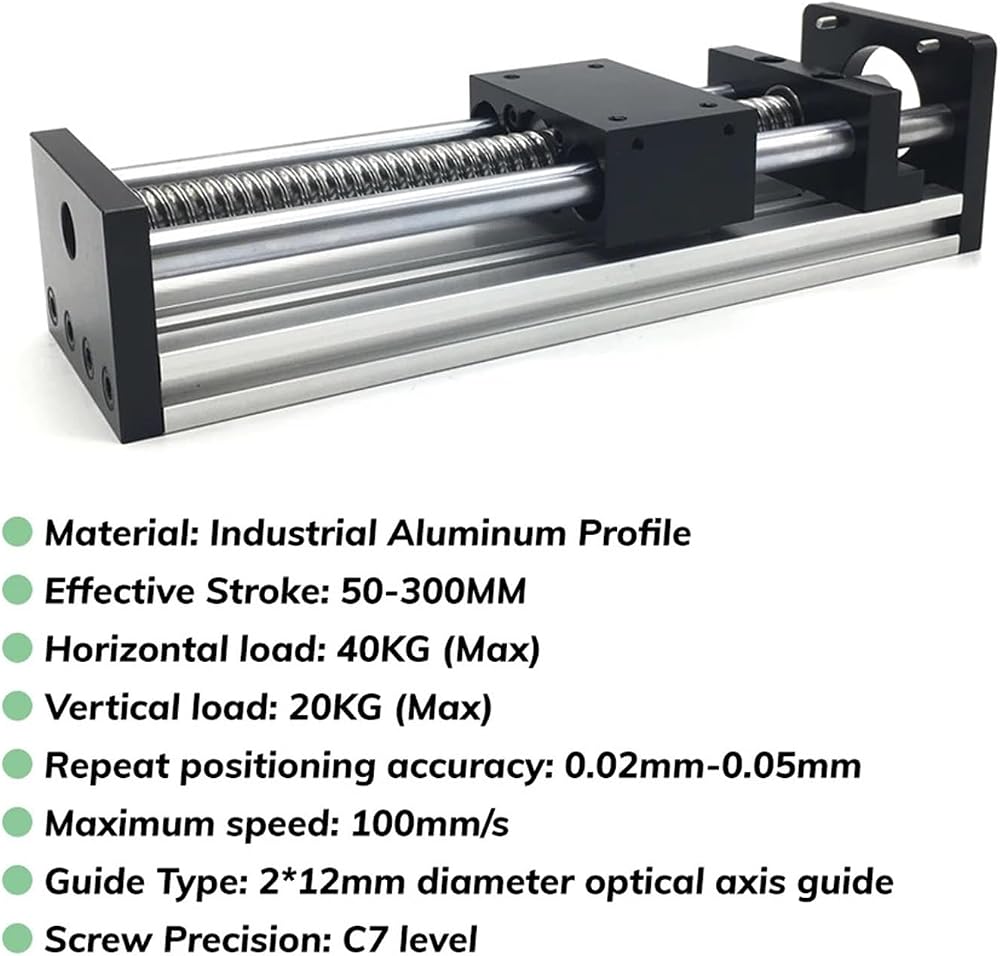

Material:Industrial Aluminum Profile
Effective Stroke: 50-300mm
Total length: Effective Stroke+120mm(GGP5080)/ Effective Stroke+120mm(GGP8080)
Horizontal load: 40KG (Max)
Vertical load: 20KG (Max)
Adapting motor: NEMA17/ NEMA23 stepper motor
Repeat positioning accuracy: 0.02mm-0.05mm
Maximum speed: 100mm/s
Guide Type: 2*12mm diameter optical axis guide
Screw Precision: C7 level
Screw Model: SFU1204/ SFU1605/ SFU1610(eg: SFU1605 Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
Model Number : GGP5080-1605-50-57/8
Guide Width or Diameter : 12mm
Slide Material : Industrial Aluminum Profile
Effective Stroke : 50-300MM
Horizontal load : 40KG (Max)
Vertical load : 20KG(Max)
Mobile panel size : 50mm*80mm/ 80mm*80mm
Adapting motor : NEMA17/ NEMA23 Stepper motor
Repeat positioning accuracy : 0.02mm-0.05mm
Maximum speed : 100mm/s
Guide Type : 2*12mm diameter Optical axis rod
Screw Precision : C7 level
Ballscrew Model : SFU1204/ SFU1605/ SFU1610
