Double nut Ball Screw Control Machine Ball Screw C7 SFU1604 SFU1610 300mm 400mm 600mm 1000mm 1200mm 1500mm with Single Ballnut BK/BF12 Ballscrew End Machined(SFU1604-300mm)

KWD 59.500
Brand
DGIRHBJNFKBN
Weight
3 kg
SizeSFU1604-300mm
– 1 +

Special Features

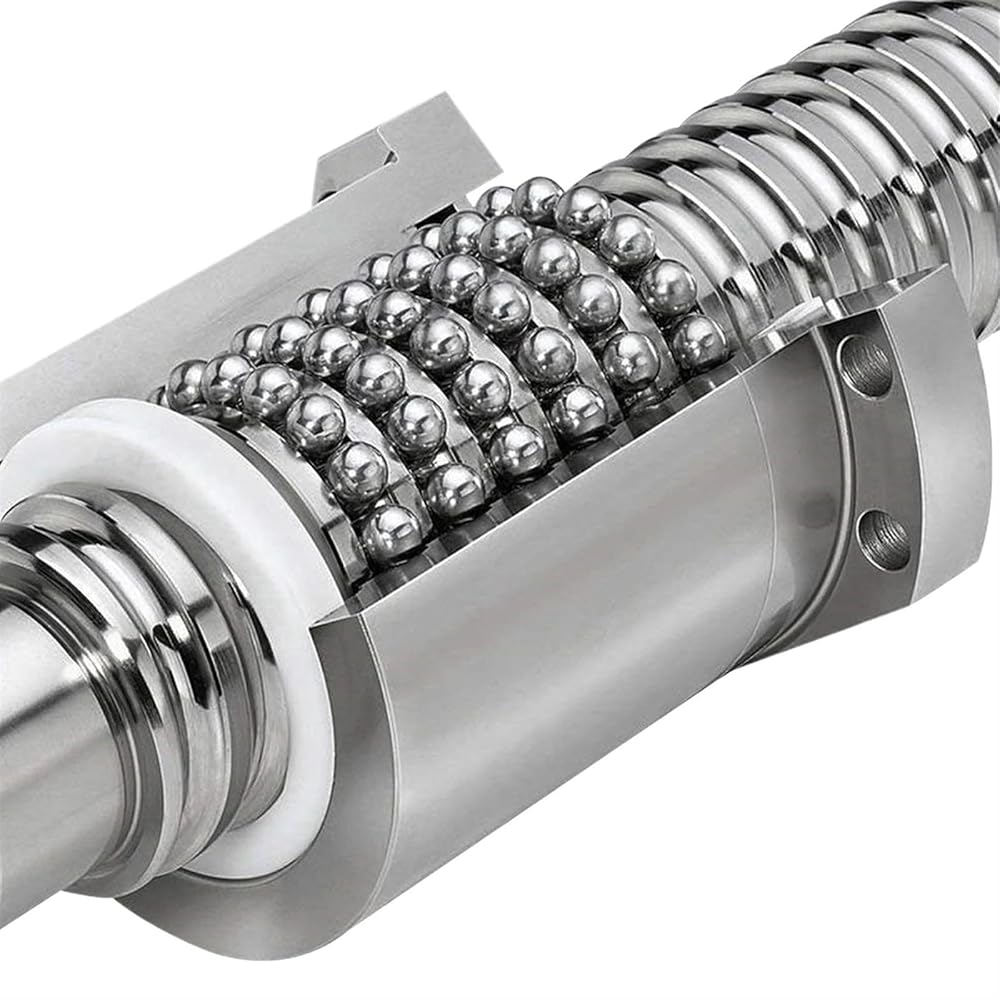

  • 1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
  • 2. Stability enhancement, especially suitable for CNC machining centers.
  • 3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
  • 1. Large lead and high-speed movement, reducing movement time, more durable and stable
  • 2. Waist-shaped nut, metal reverser, adjustable preload
  • 3. Ultra-quiet, high wear resistance, high precision and high hardness
  • 4. Smooth and non-stuck, long service life

Description

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life

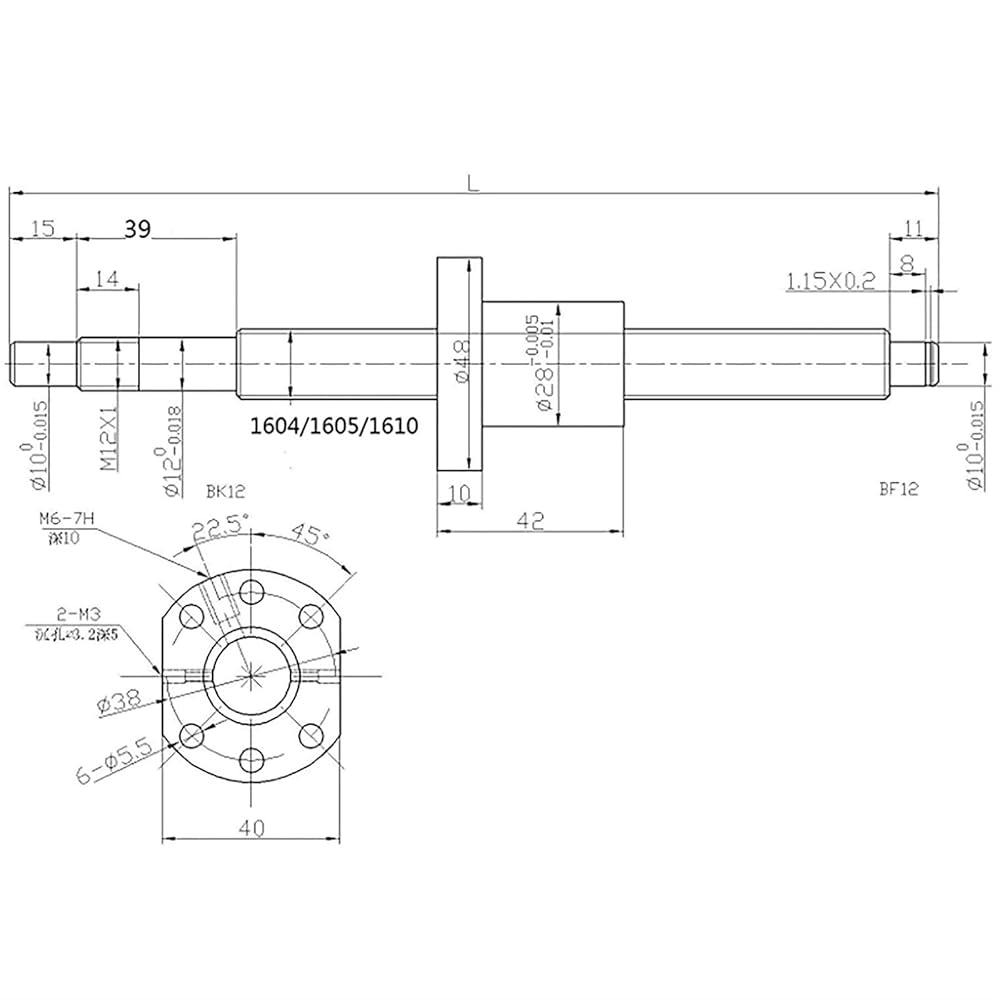

Specifications:
Product Name: End Machine Ball Screw
Precision: C7 Grade
Material: Carbon Steel
Model: SFU1604 / SFU1610
Diameter: 16mm
Pitch: 4mm / 10mm
Length: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm (total length, including end machining part)

Description:
Ball screws convert the rotary motion of the motor into the axial motion of the steering rack. They are also used in machine tools and precision assembly equipment due to their low friction resistance. High-precision ball screws are used in steppers for semiconductor manufacturing.

Packing List:
1 x SFU1604 / SFU1610 Ball Screw End Machining
1 x Ball Nut
Please note: The fixing and removal of the ball nut requires professional tools or is done by professionals, otherwise we will not be responsible if you cause any damage yourself.
