Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(400mm) in Kuwait

Double nut Ball Screw Control Machine Linear Rails 2pcs HGR20 Square Guide +SFU1605 Ball Screw Set L300-1000mm+4pcs HGH20CA Carriages Blocks for Machine(300mm)

KWD 93
Brand
DGIRHBJNFKBN
Weight
3 kg
Size300MM
– 1 +

Special Features

  • 1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
  • 2. Stability enhancement, especially suitable for CNC machining centers.
  • 3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
  • 1. Large lead and high-speed movement, reduce movement time, more durable and stable
  • 2. Waist-shaped nut, metal commutator, adjustable preload
  • 3. Ultra-quiet, high wear resistance, high precision and high hardness
  • 4. Smooth and non-stuck, long service life

Description

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life
Specifications:
Model: SFU1605 HGR20
Guide rail width or diameter: 20mm

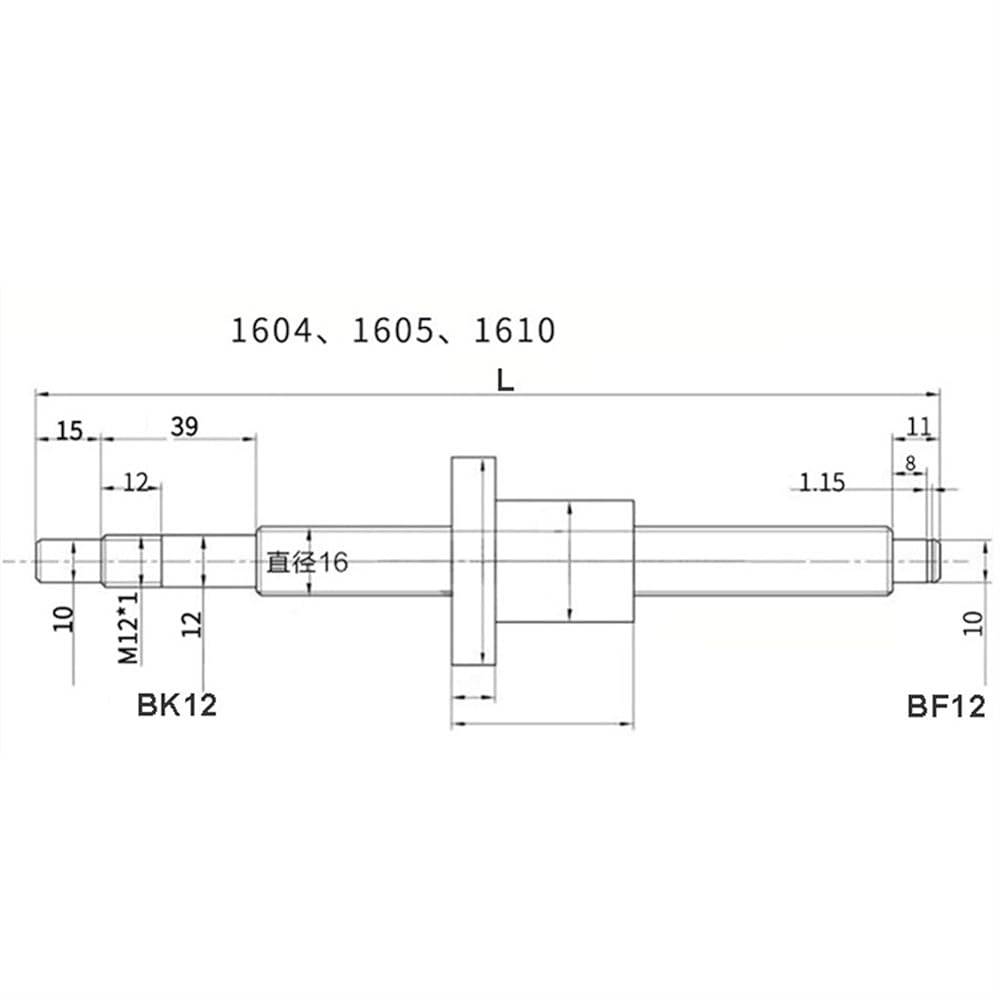

Ball screw model: SFU1605
Slider: HGH20CA
Ball screw: C7
Coupling: 25*30-8*10
Support: BKBF12
Nut: Single nut

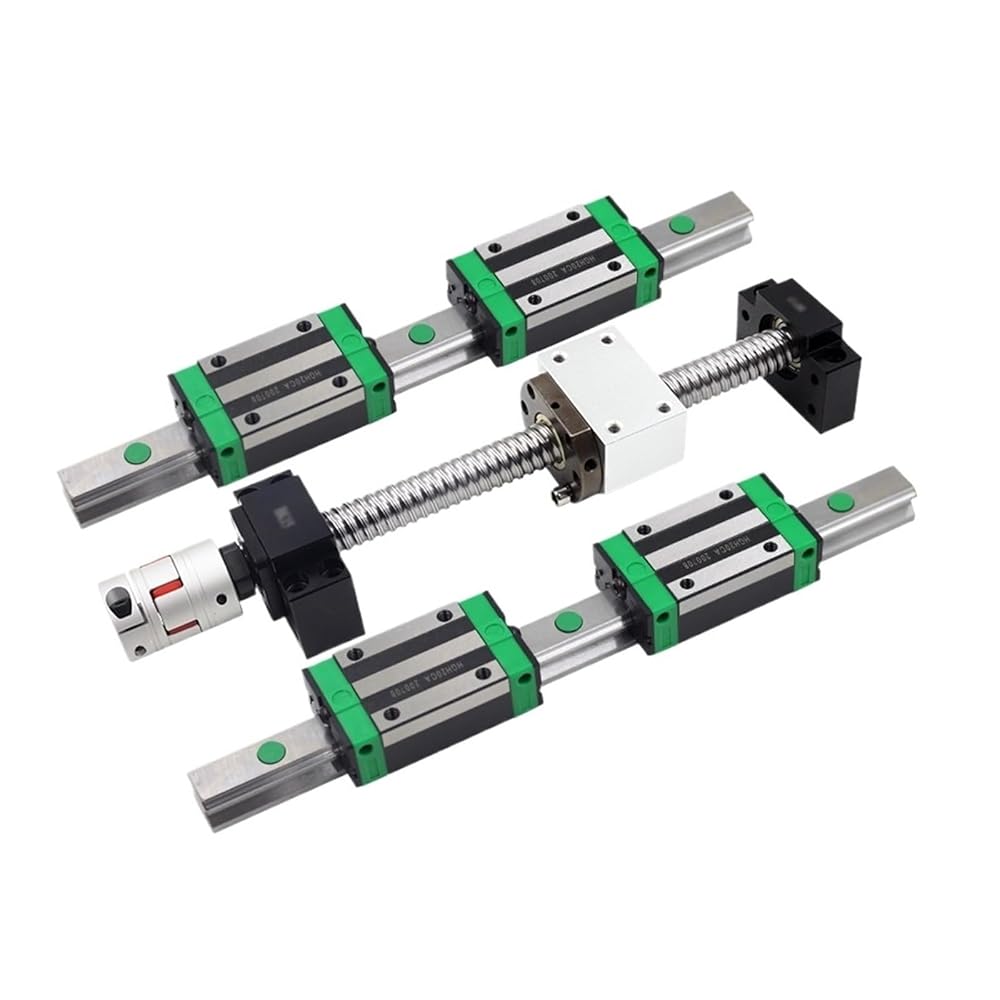

Package includes:

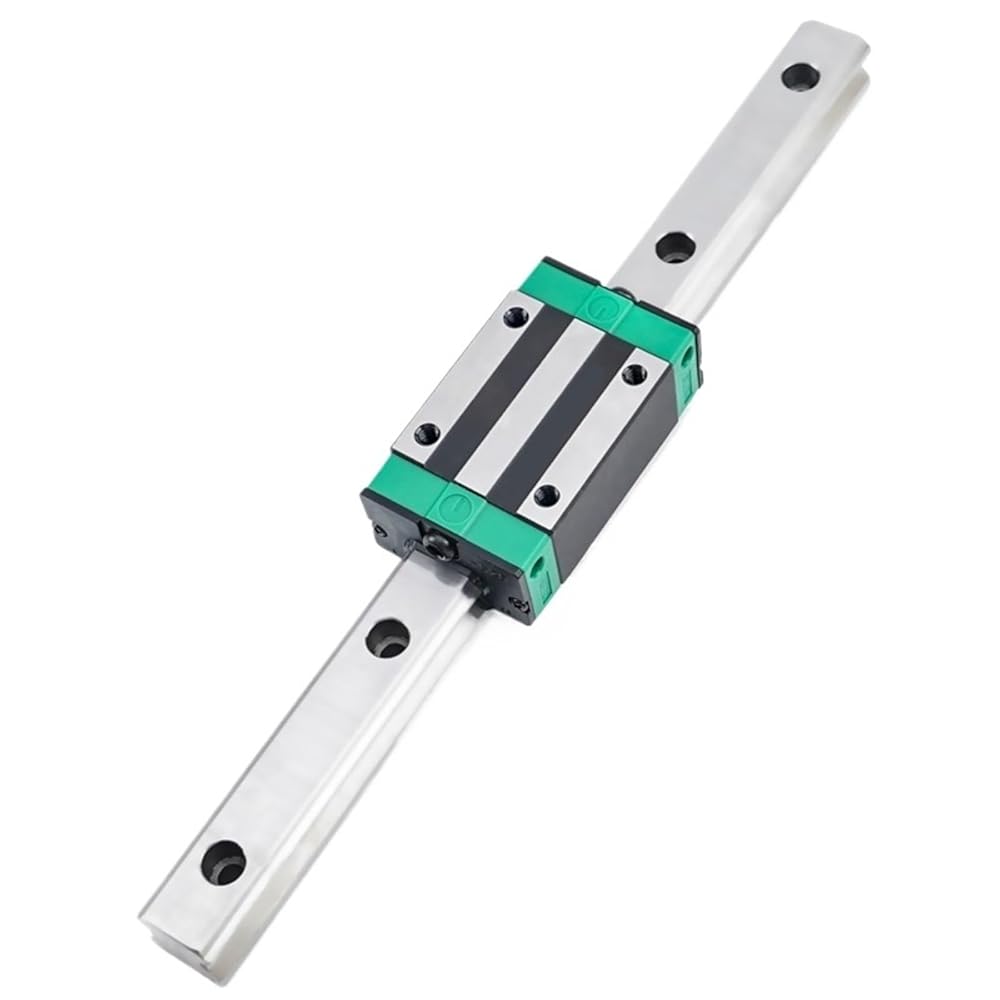

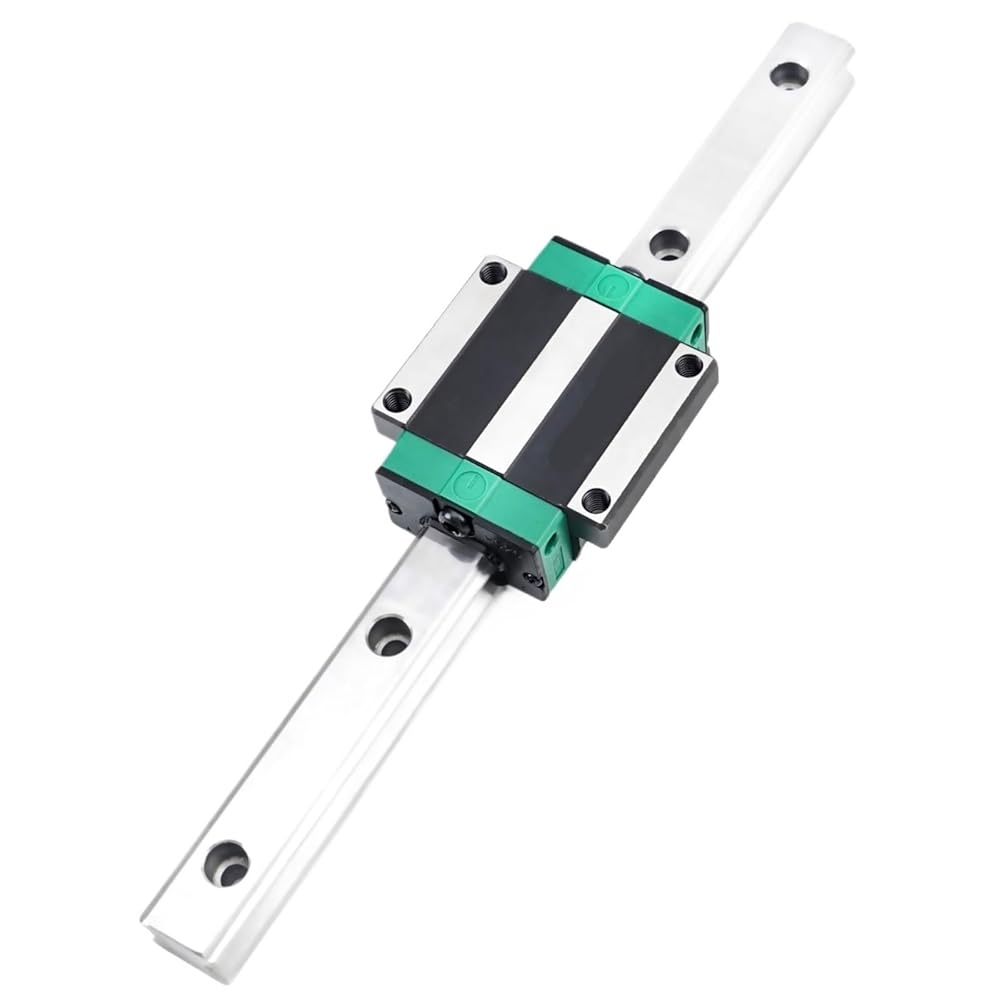

2pcs HGR20 L300-1000mm linear guides
4pcs HGH20CA

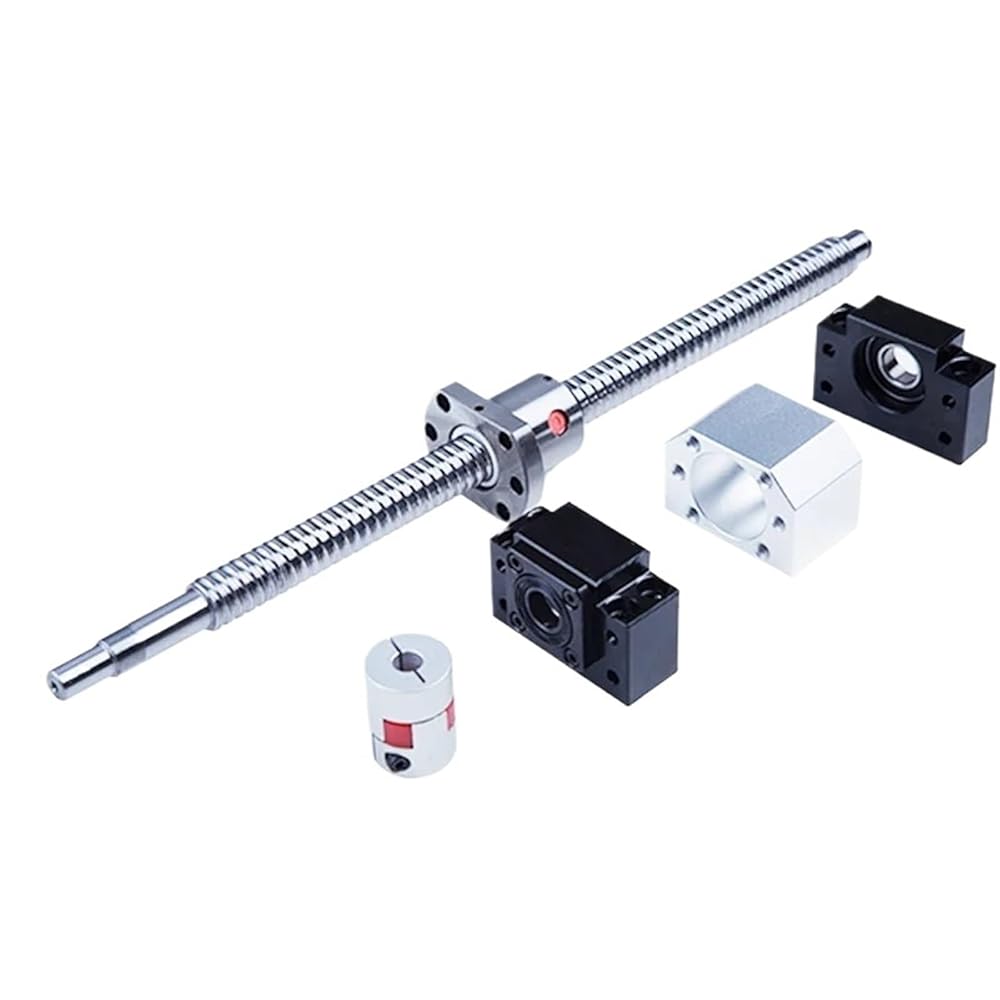

1pcs SFU1605-L300-1000mm with nut

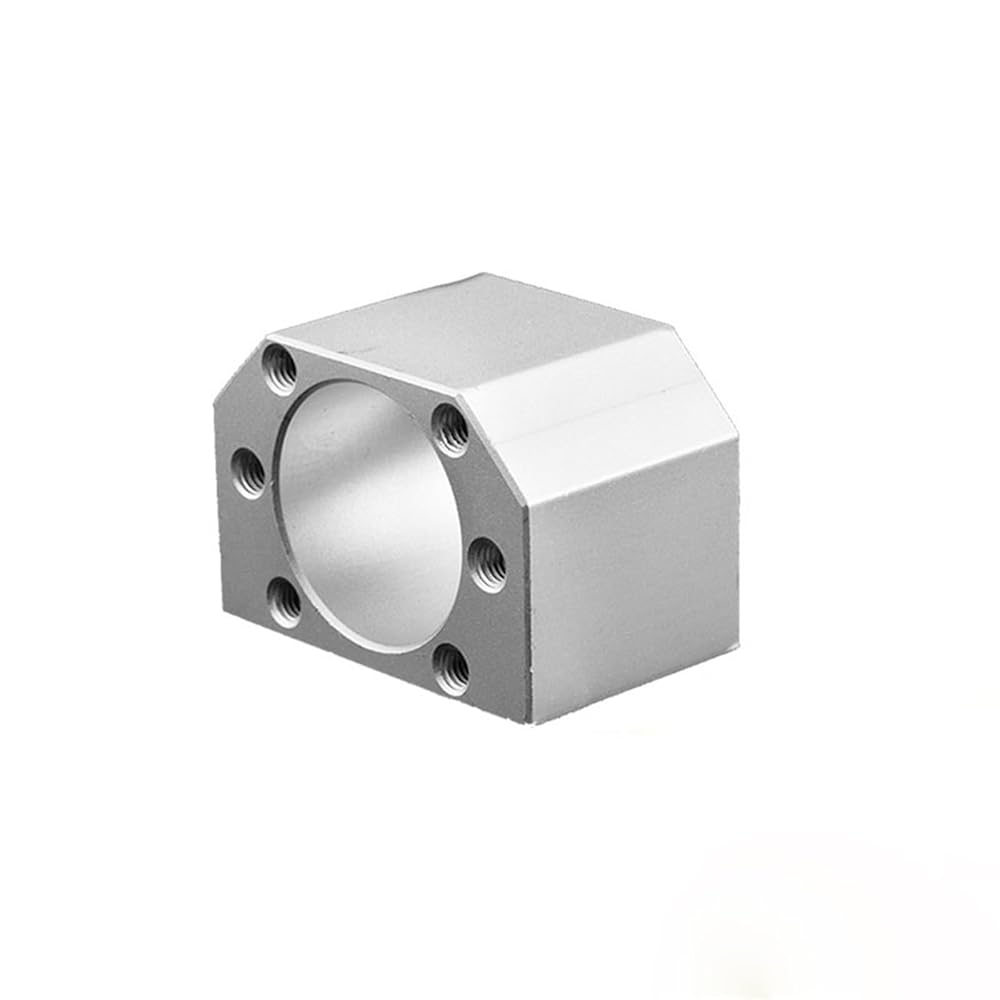

1pcs nut housing

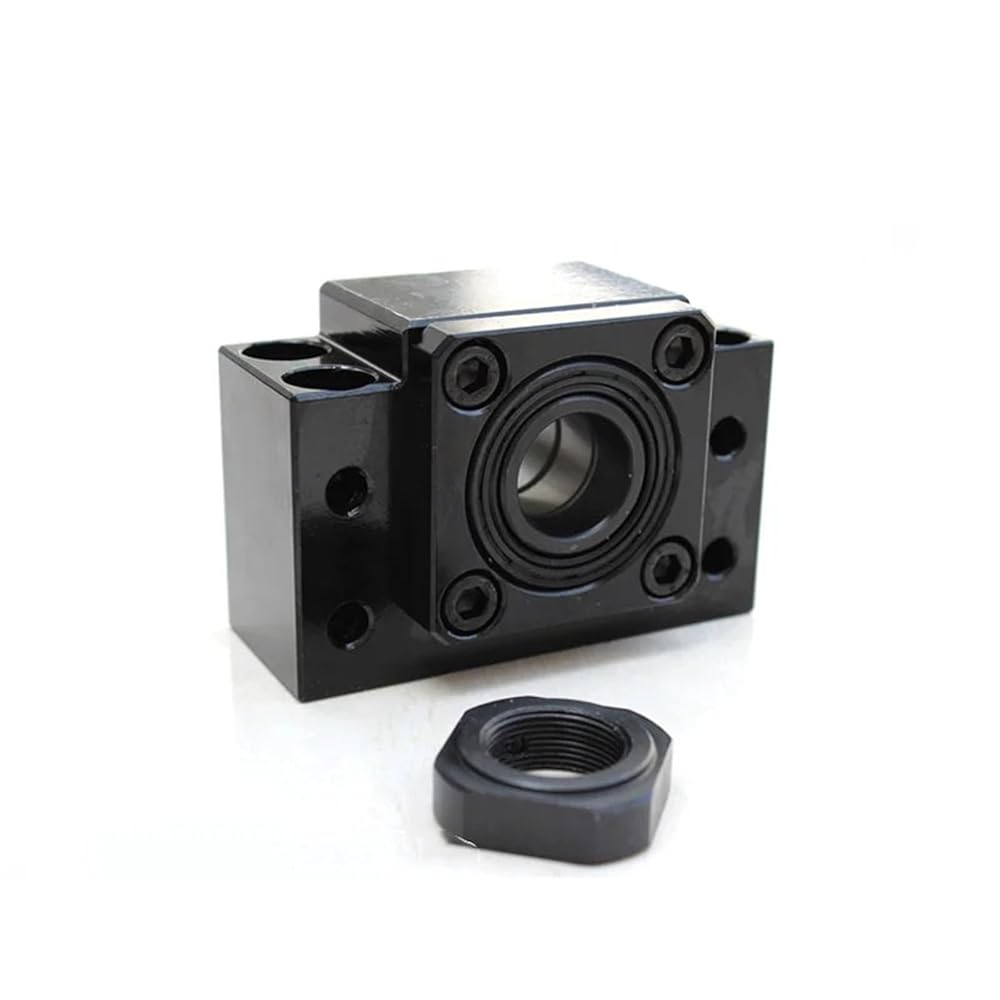

1pcs BK12 BF12
1pcs coupling
