Rotary Shafts

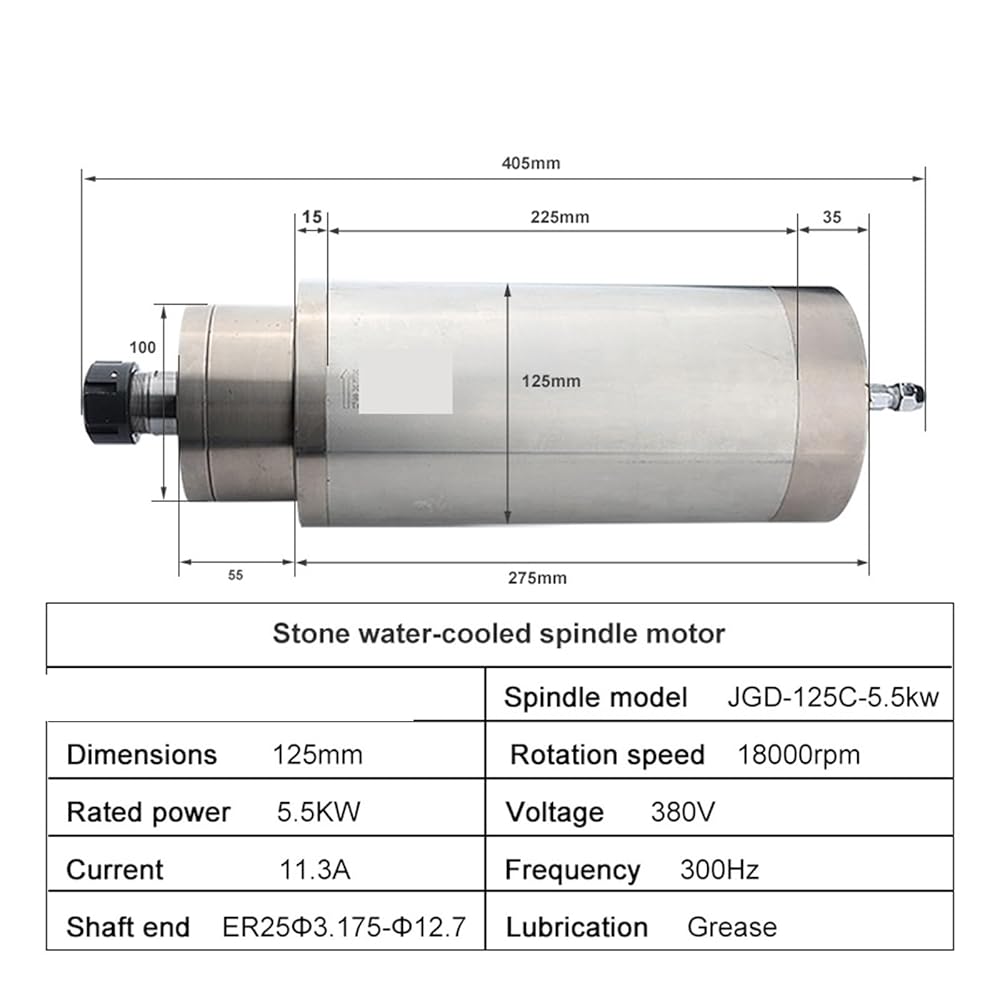

Size: 125mm (midbody diameter: 125mm x length: 405mm)
Speed regulation method: Use a three-phase output inverter to adjust the frequency of the inverter to change the spindle speed.
Cooling method: water cooling

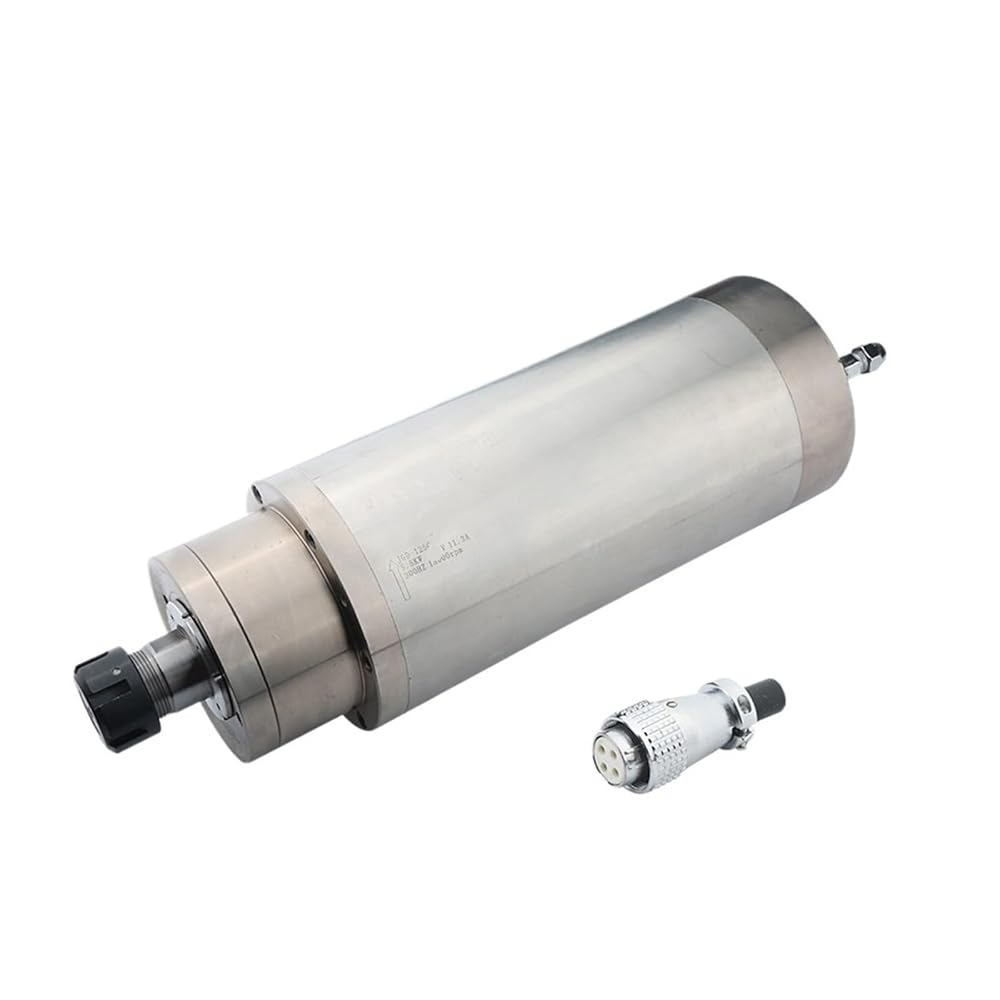

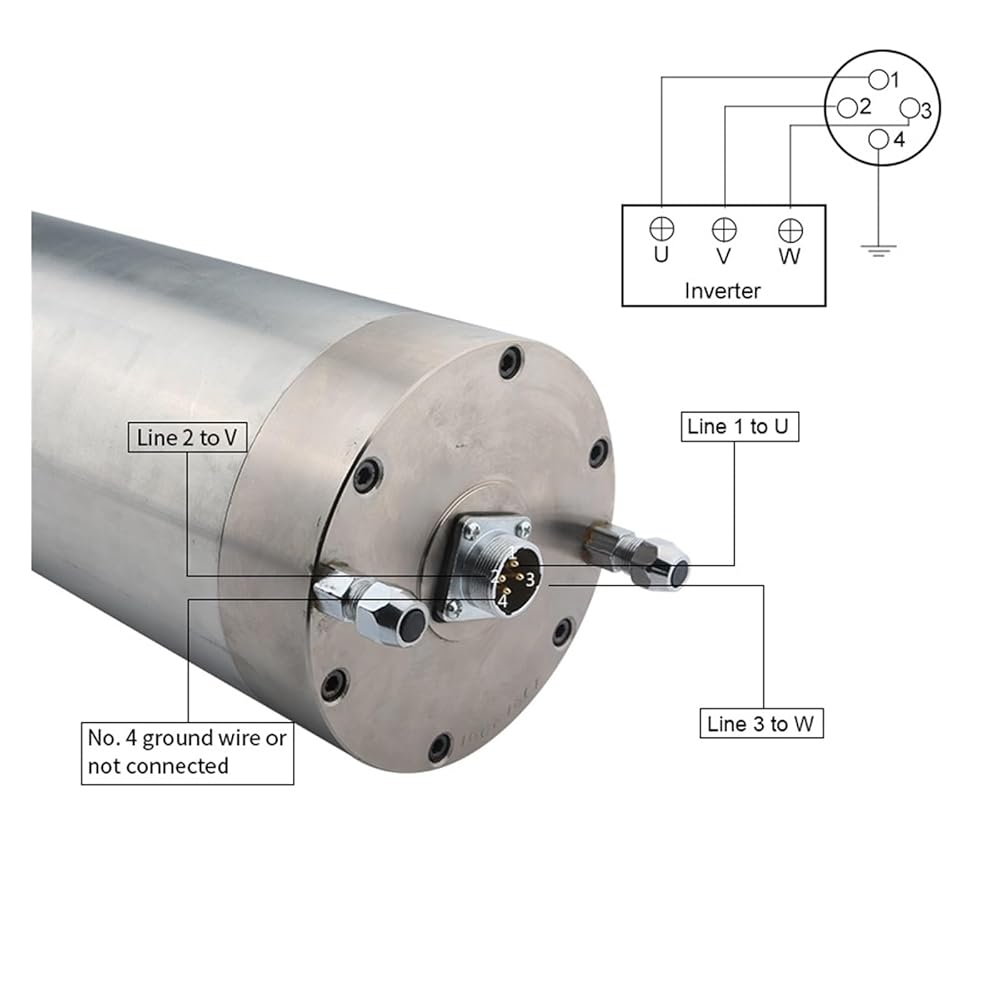

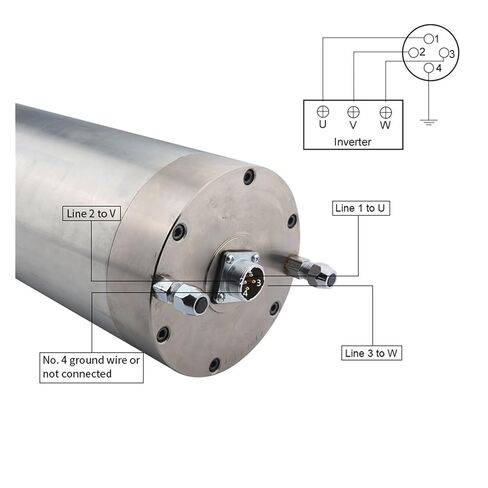

Power interface: An optional H20-4-pin waterproof aviation plug is available. Connect the aviation plugs marked "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "4" to the inverter ground.
Power: 5.5kw
Voltage: 220V/380V
Current: 11.3A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
Diameter(mm): 125
4 fully sealed angular contact bearings
Chuck: ER25
Tool diameter: 13mm, 12.7mm, 12mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)
Water-cooled ER11 chuck
