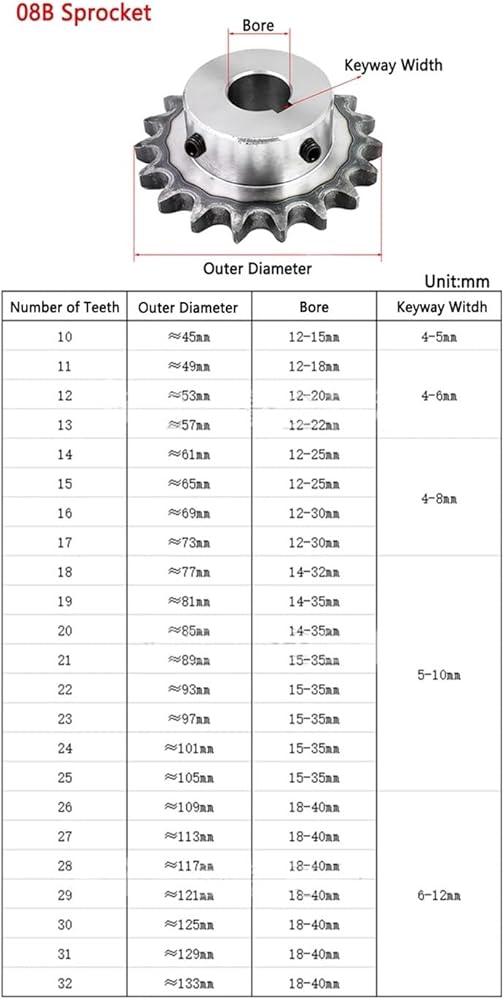

Specification:

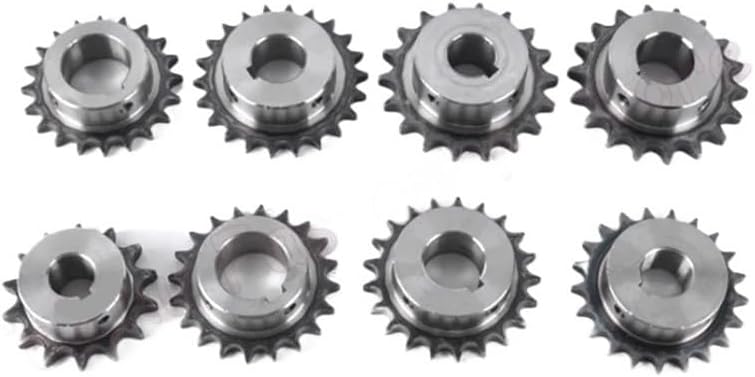

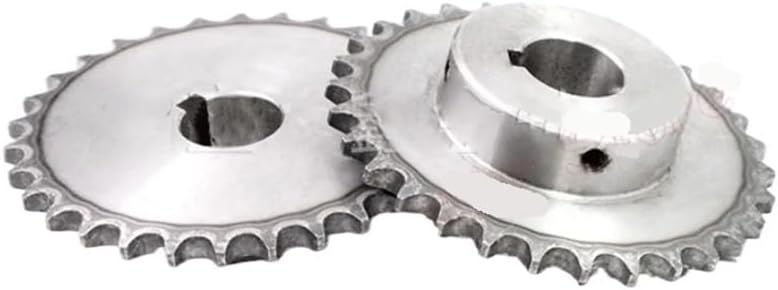

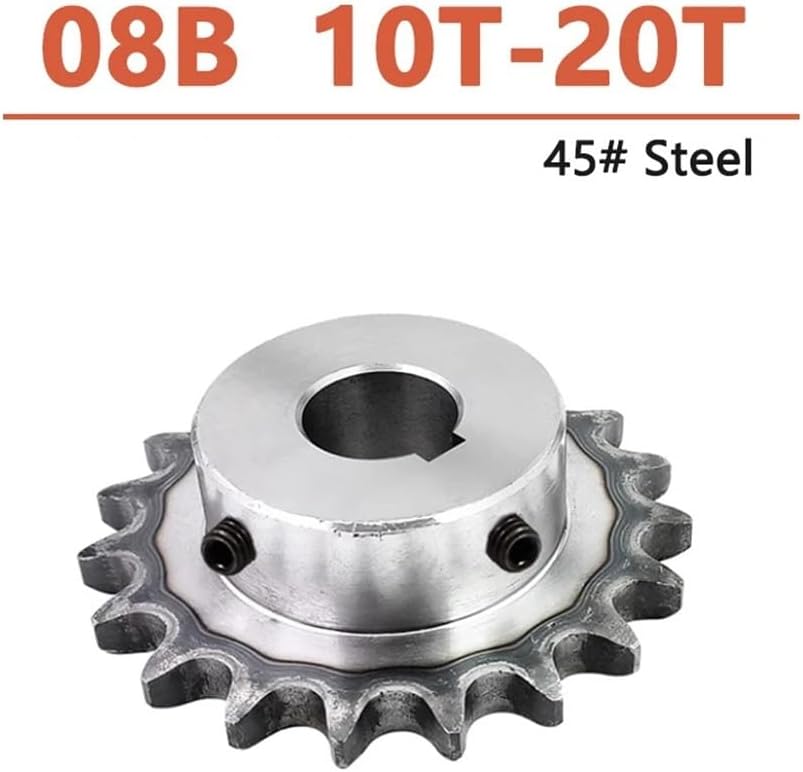

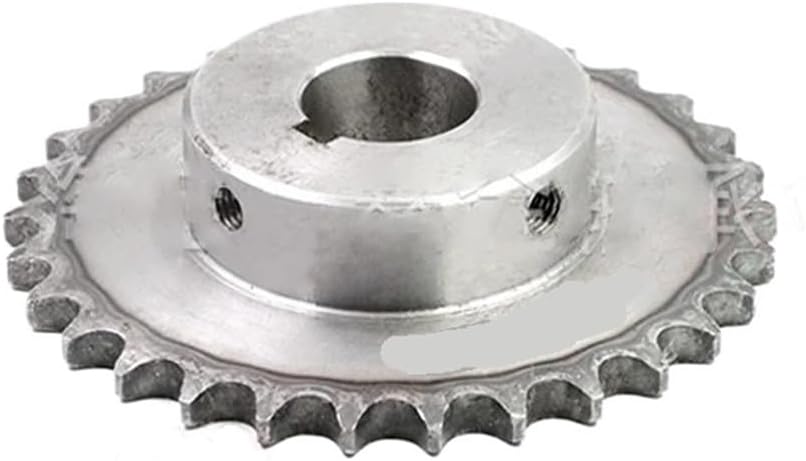

Name: 08B Industrial Drive Sprocket Wheel
Type: Sprocket with Step
Material: 45# Steel
Tooth Surface Treatment: High Frequency Quenching
Pitch: 12.7mm
Number of teeth: 10/11/12/13/14/15/16/17/18/19/20 Teeth
Keyway Bore: 10/12mm (keyway 4mm),14/15/16mm (keyway 5mm),18/19/20/22mm (keyway 6mm),24/25/28/30mm (keyway 8mm),32/35mm (keyway 10mm)
Application: Used in various mechanical transmission parts
