Power Supplies

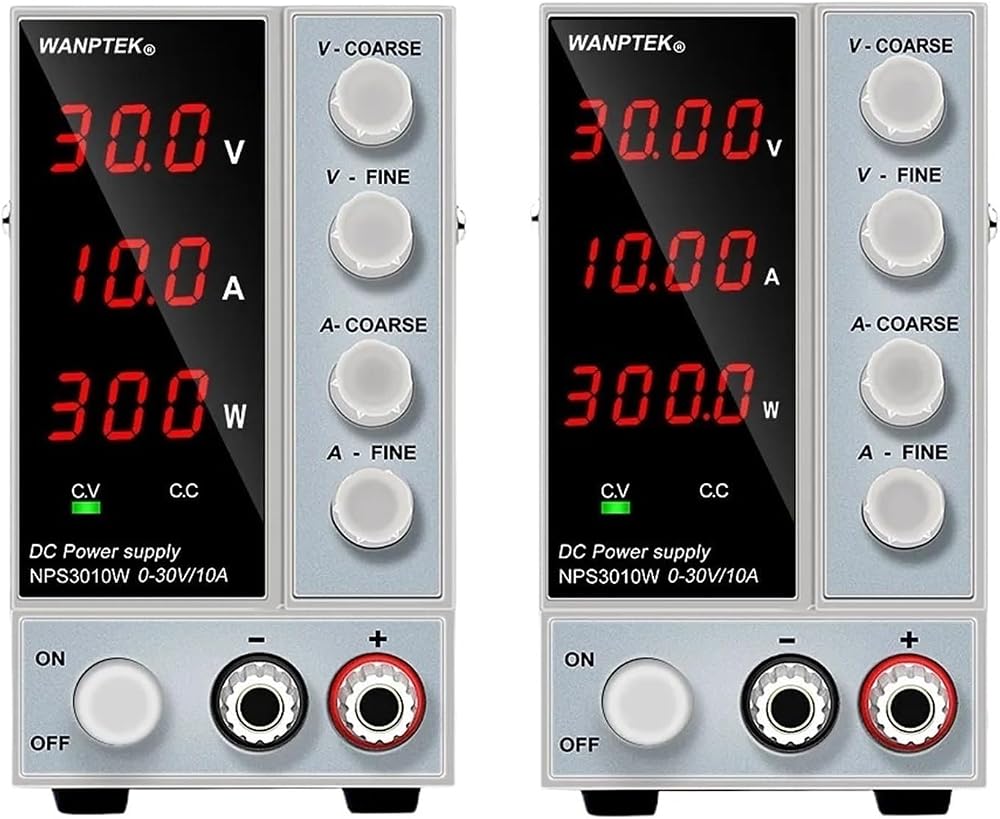

There are included 8 packages:
Three-digit display 0.1 V/0.01 A
1.NPS306W power supply with power display 30V 6A
2.NPS3010W power supply with power display 30V 10A

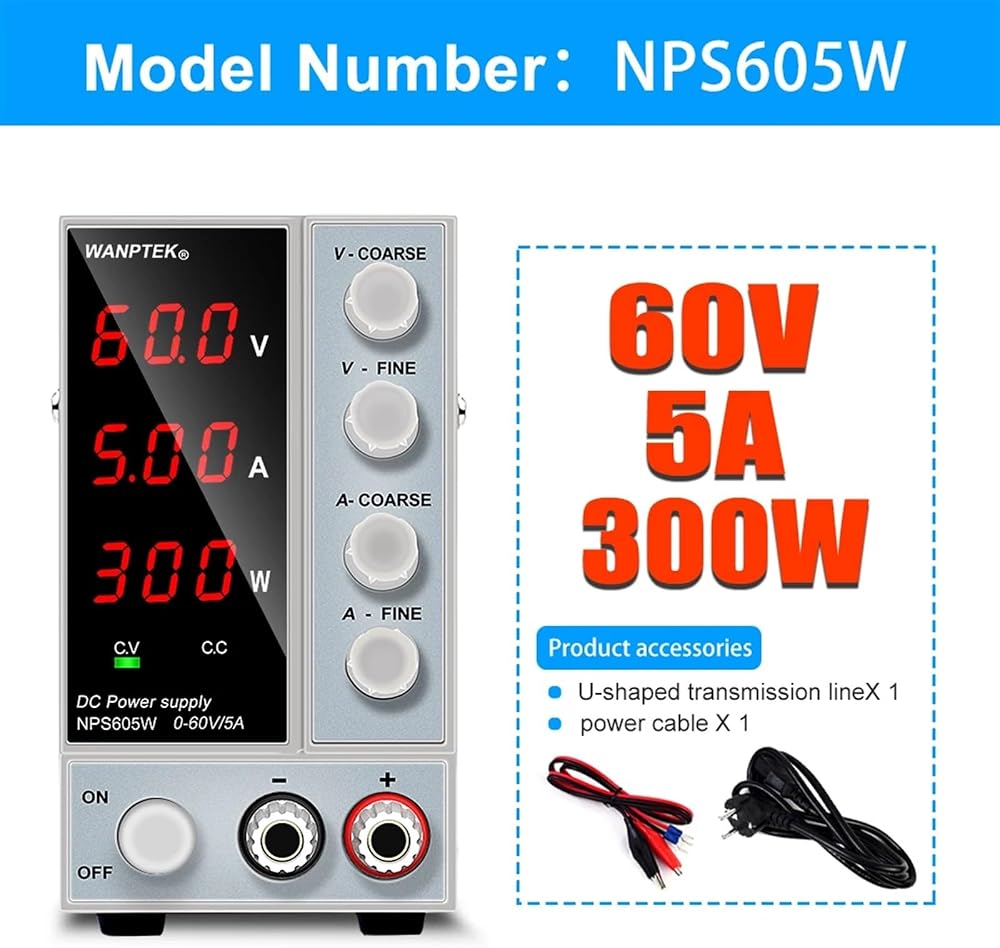

3.NPS605W power supply with power display 60V 5A

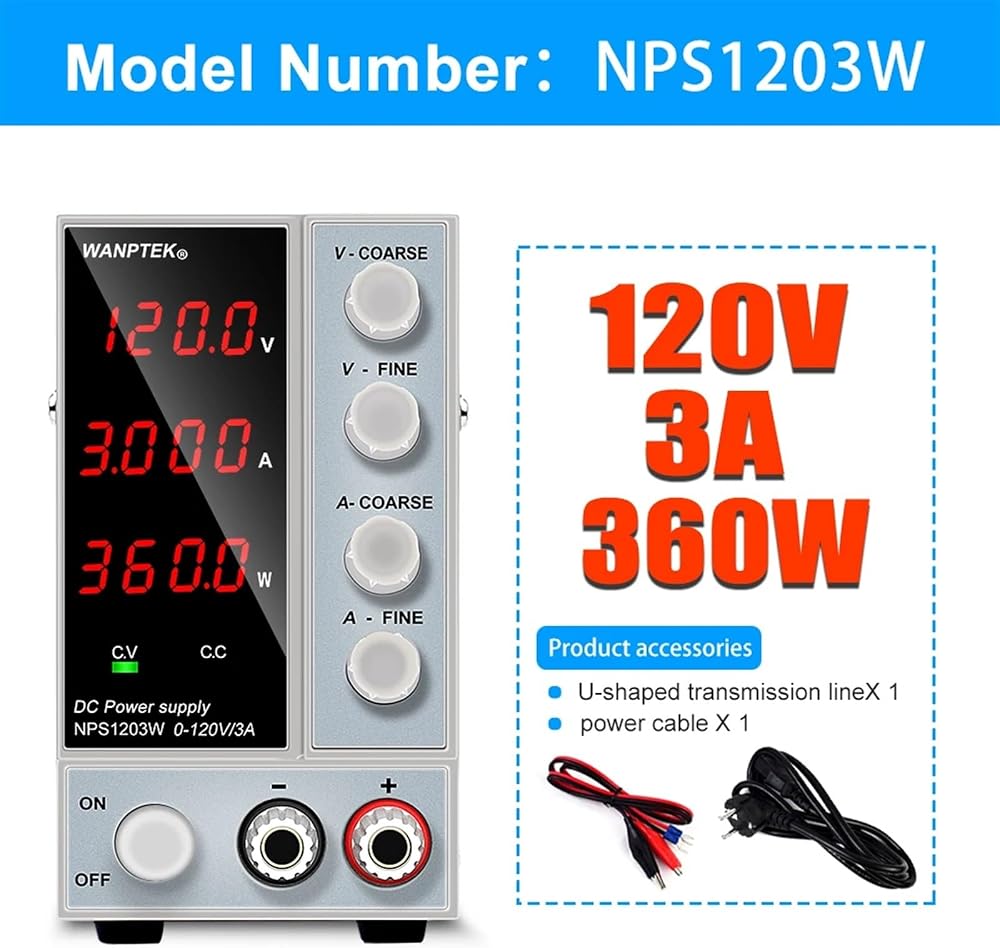

4.NPS1203W power supply with power display 120V 3A
Four-digit display 0.01 V/0.001 A
5.NPS306W power supply with power display 30V 6A
6.NPS3010W power supply with power display 30V 10A
7.NPS605W power supply with power display 60V 5A
8.NPS1203W power supply with power display 120V 3A

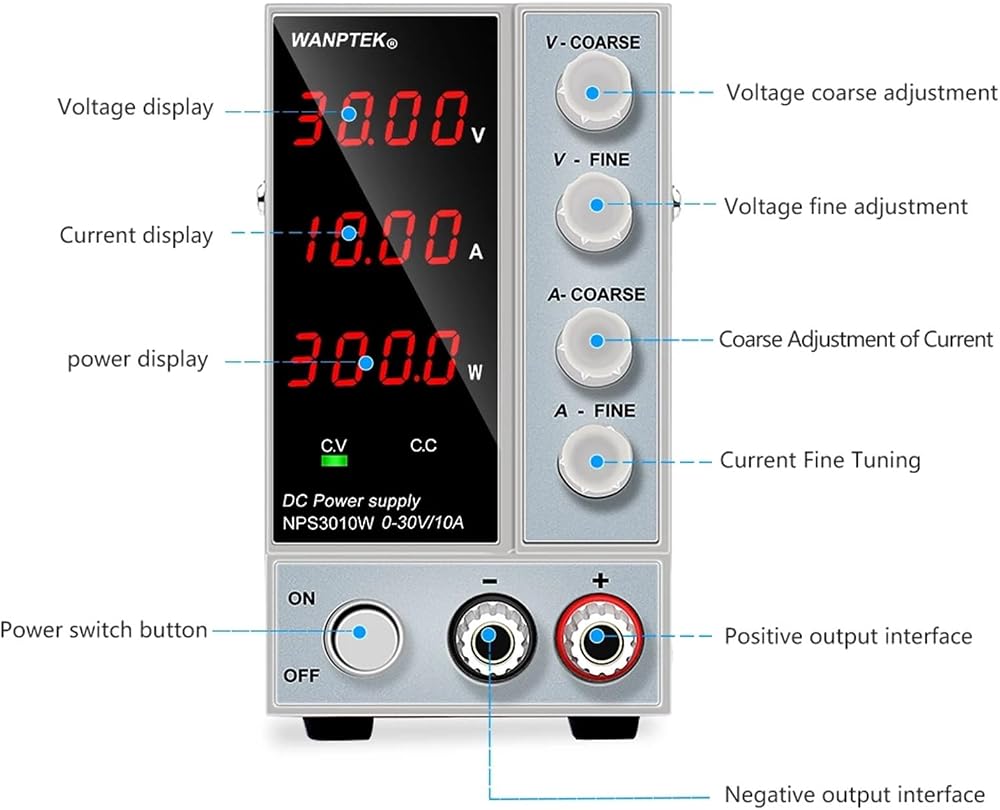

NPS-W series products include 4 models, namely NPS306W, NPS3010W, NPS605W, and NPS1203W. The body colors are available in black and off-white. This model is a miniature switching power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
INTRODUCTION:
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.

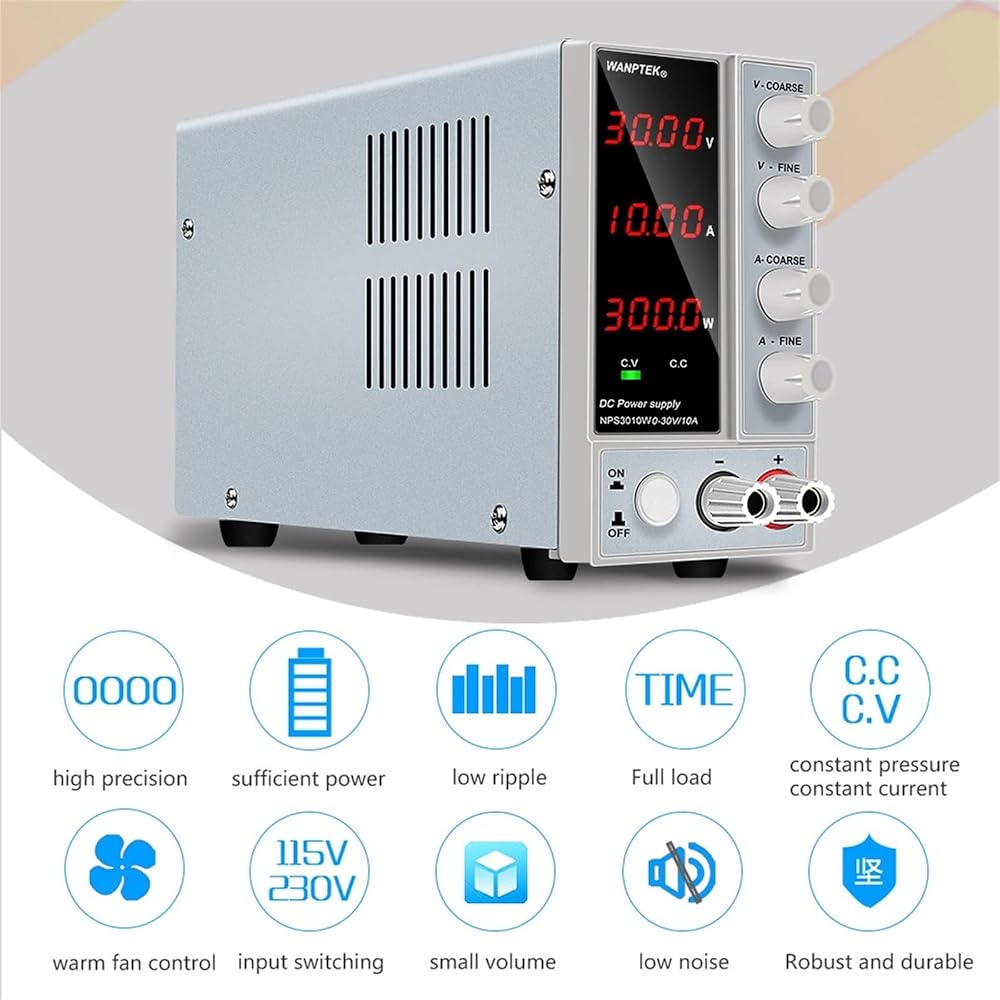

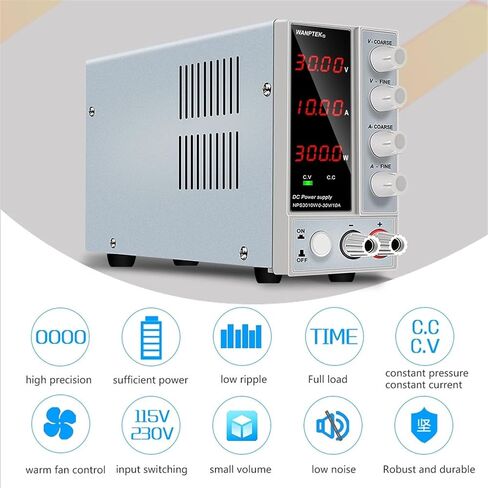

1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.
5.Three LED display of voltage, current and power, high precision.
6.Temperature controlled fan heat dissipation, low noise, long life.
7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220vcan work, rest assured to choose.
Model
NPS306W
NPS3010W
NPS605W
NPS1203W
Output Power
180W
300W
300W
360W
Output voltage
0~30V
0~30V
0~60V
0~120V
Output current
0~6A
0~10A
0~5A
0~3A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current adjustable
display
0.4 inch red threedigit display
Display accuracy:0.5%±digits
Display resolution: voltage 0.1V, current 0.01AOptional
Display resolution:voltage0.01V,current0.001AOptional
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring power supply.

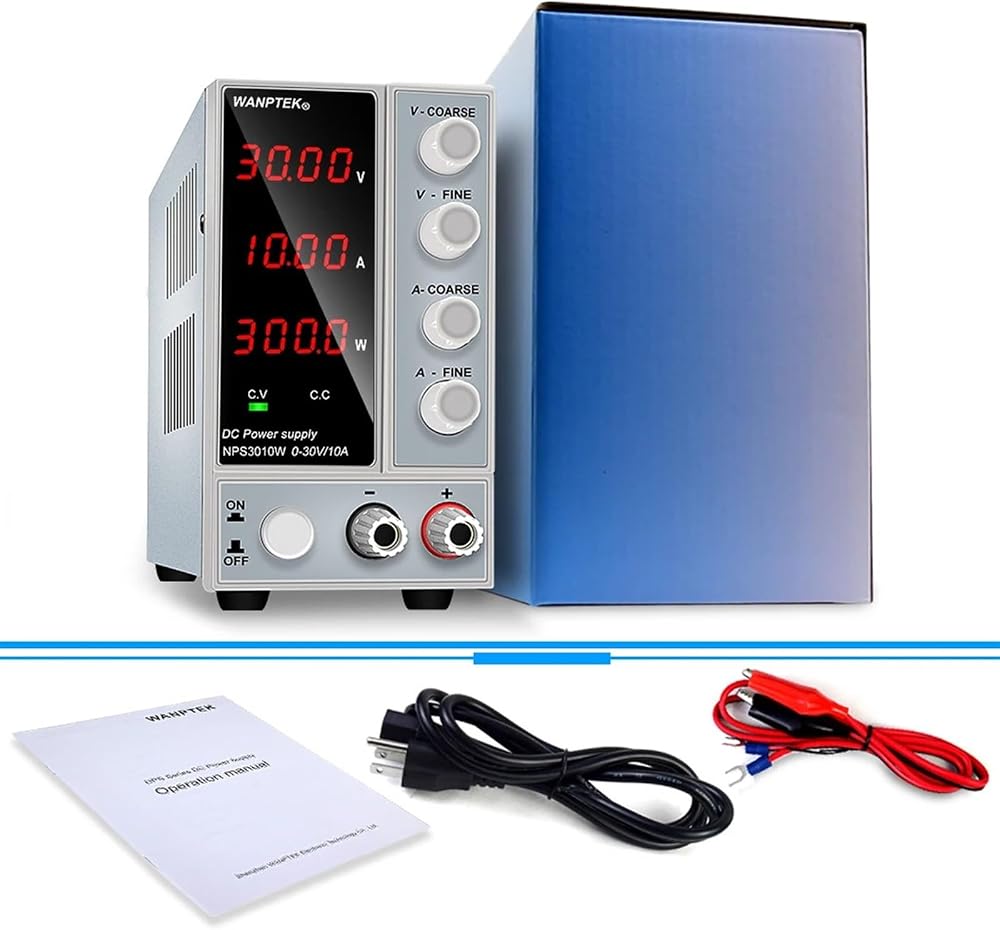

1x power supply
1x power cord (EU,US,UK,AU)
1x Test line
1xInstructions
==========
Output Power : 201 - 300W
is_customized : no
Output Current : 0-30A
Model Number : NPS306W NPS3010W NPS605W
Output Frequency : 50HZ 60HZ
Output Type : SINGLE
Features1 : power supply adjustable
Features2 : power supply regulated
Features3 : laboratory power supply
Features4 : variable
Features5 : digital power supply
Features6 : Voltage stabilizer
Features7 : Stabilized power supply
Features8 : DIY workshop power
Features9 : adjustable regulated power supply
Features10 : variable power supply
Features11 : 24 volt power supply
Features12 : ac-dc switching power supply
Features13 : for 15.6 inch portable gaming monitor pc
