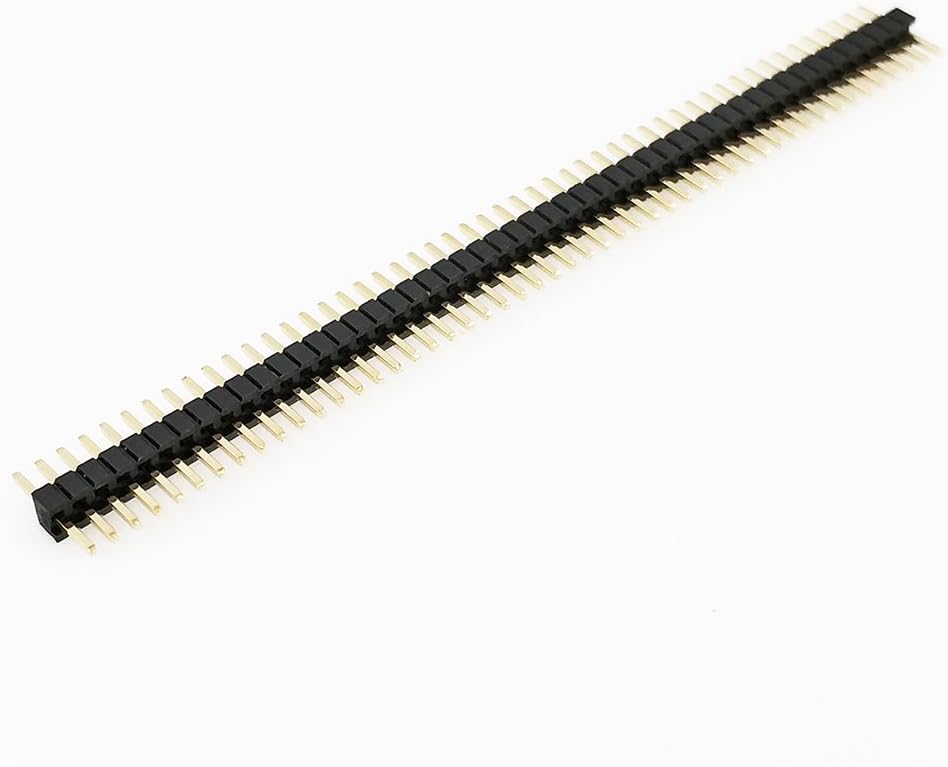

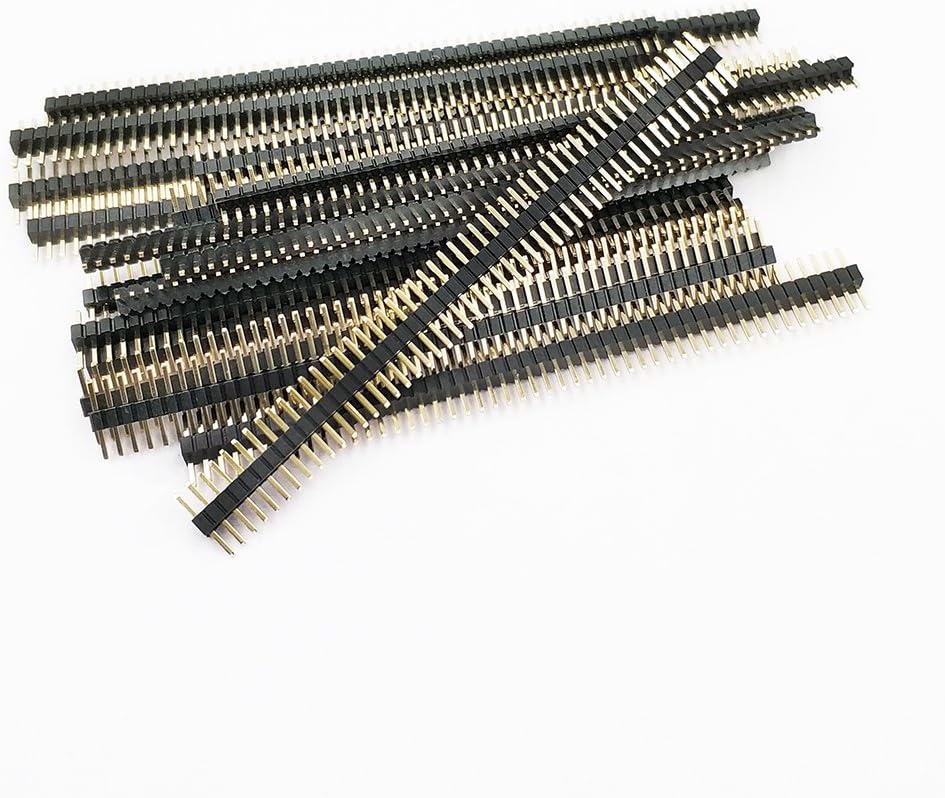

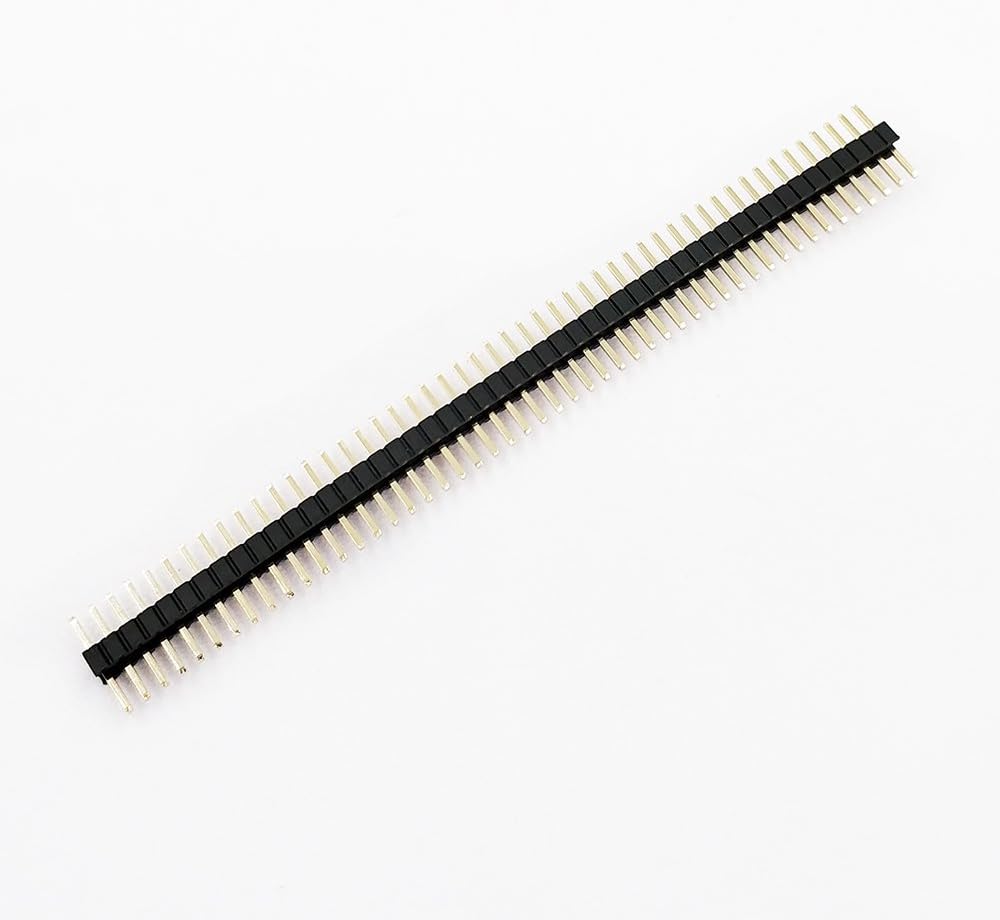

E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2) in Kuwait

2X50P Straight L7.2

KWD 4.500
Brand
E-Simpo
Weight
18 g
Pattern Name2X50P Straight L7.2
– 1 +

Special Features

  • 20pcs 1.27mm(0.05") Pin Header
  • 1X50P Single Row, Can Cut to any pin you need
  • Total Height 7.2MM Common Used Pin header
  • Straight, Not Right Angle, Not SMT
  • High Quality , Rohs, 1U Gold-plated,Don't Compare with Cheap Tin-Plated

Description

E-Simpo 20pcs 1.27mm PCB Male Pin Header Connector 0.05in Board to Board Connector Breakable Cuttable Single Row 1X50P 50Pins Straight 180D Gold plated Total 7.2MM (1X50P Straight L7.2)

Material
Contact Material: Brass
Insulator Material: Polyester(UL94V-0) standard; PBT
Don't compare with cheap price with Iron material

Plating
Contact Plating: Au or Sn over 50u Ni

Electrical
Current Rating: 3 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 1000 MΩ MIN.
Dielectric withstanding voltage: AC 1000 V
Operating Temperature: -40°C to +105°C
LCP Suitable For: IR Reflow, Wave, Manual solder
