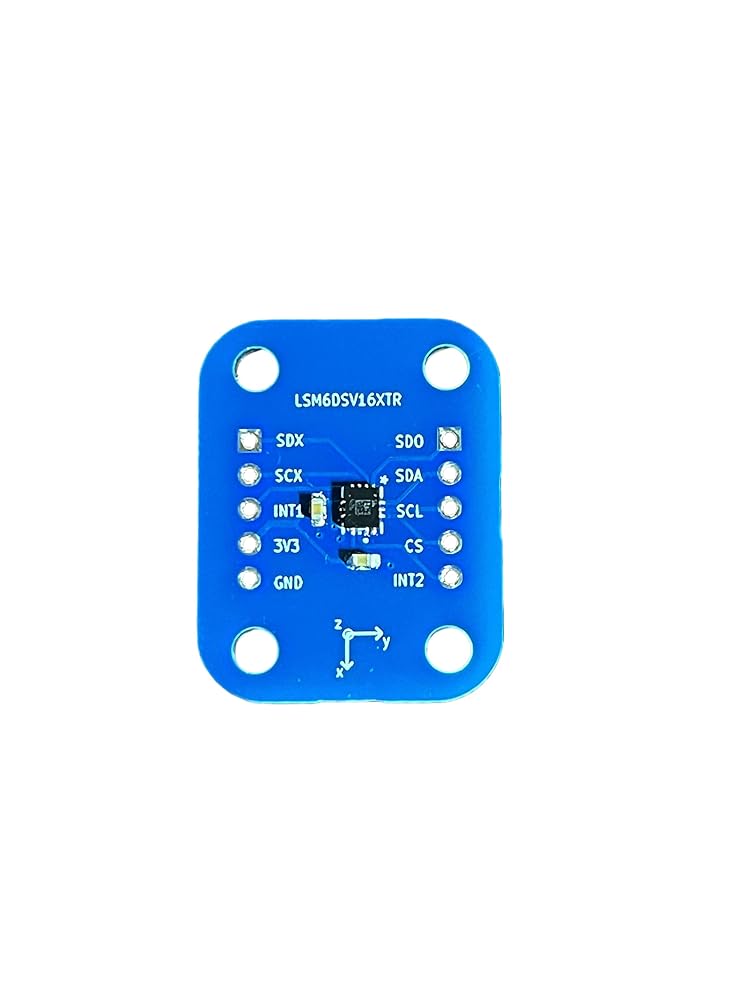

LSM6DSV16XTR 6-Axis IMU Breakout Board, Embedded Sensor Fusion, Machine Learning Core, High Accuracy 16-bit Accelerometer, Gyroscope, Temperature Sensor I2C SPI in Kuwait

LSM6DSV16XTR 6-Axis IMU Breakout Board, Embedded Sensor Fusion, Machine Learning Core, High Accuracy 16-bit Accelerometer, Gyroscope, Temperature Sensor I2C SPI

KWD 8.500
Brand
Generic
Category
Sensors
Weight
15 g
– 1 +

Special Features

  • Finite‑State Machine (FSM) and Machine‑Learning Core (MLC) – the sensor contains a programmable FSM that can process accelerometer, gyroscope or external sensor data at up to 960 Hz. It also includes an MLC with exportable features and filters for AI algorithms. MLC improves inference performance for activities like gesture recognition and human‑activity classification
  • Sensor‑fusion low‑power (SFLP) algorithm – provides on‑sensor fusion of accelerometer and gyroscope data to reduce microcontroller workload. This enables “always‑on” gesture recognition with power consumption as low as 15 µA
  • Adaptive self‑configuration (ASC) – the device can automatically adjust measurement range and sampling rate without host interventio
  • Qvar electrostatic sensor and analog hub – a dedicated Qvar channel detects changes in electrostatic charge for touch and swipe interfaces; an analog hub can digitise an external analog input.
  • Embedded motion‑detection functions – includes advanced pedometer/step detector/step counter, significant‑motion and tilt detection and standard interrupts such as free‑fall, wake‑up and 4D/6D orientation

Description

The LSM6DSV16XTR from STMicroelectronics is a third‑generation 6‑axis inertial measurement unit (IMU) that combines a 3‑axis digital accelerometer with a 3‑axis digital gyroscope. ST designed the device to be more than a raw sensor – its triple‑channel architecture processes acceleration and angular‑rate data separately for user‑interface (UI), electronic image stabilisation (EIS) and optical image stabilisation (OIS). It provides always‑on sensing with low‑power consumption and a smart FIFO buffer up to 4.5 KB. The sensor supports multiple full‑scale ranges: ±2/±4/±8/±16 g for the accelerometer and ±125/±250/±500/±1000/±2000/±4000 dps for the gyroscope An auxiliary SPI port outputs dedicated OIS data and a separate EIS channel provides low‑latency image‑stabilisation data
