100mm Effective Travel Length Double Linear Rail Guide Ballscrew SFU1605

KWD 48.500
Brand
Befenybay
Weight
2.8 kg
Size100mm
StyleSFU1605
– 1 +

Special Features

  • 【Load】High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 40kg; Vertical maximum load capacity: 15kg
  • 【Accuracy】Repeat positioning accuracy of ± 0.03mm
  • 【Speed】Speed: 0-100mm/s
  • 【Install】4pcs M5 threaded hole to fix the workpiece
  • 【Effective Travel】Effective stroke:200mm, Lead:5mm ( The lead screw moves 5mm in one turn)

Description

Stepper motor Parameter:
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Voltage:DC 24V
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring:
Red: A+
Green: A-
Yellow: B+
Blue: B-

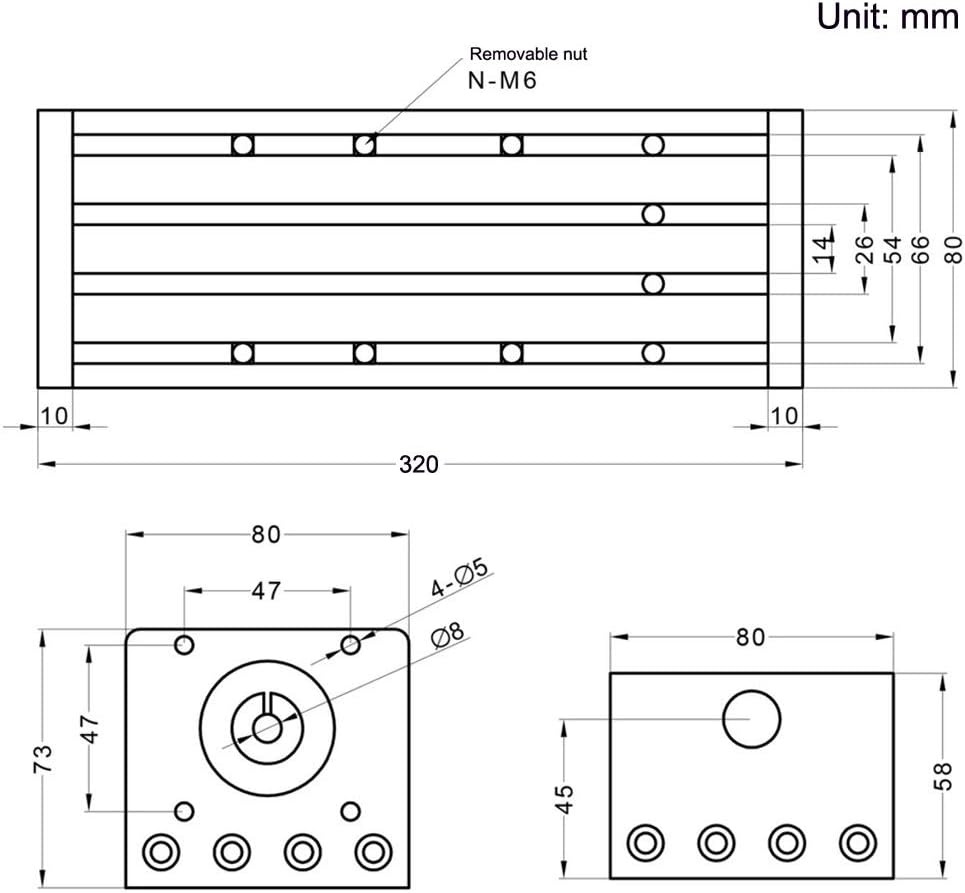

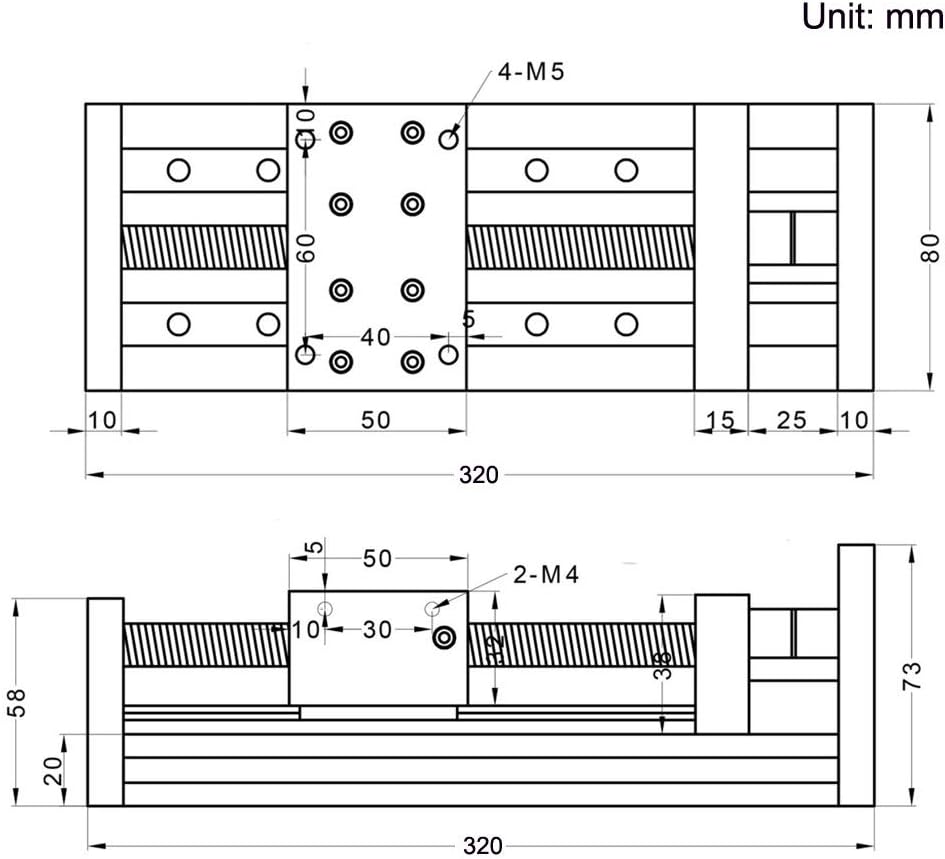

Linear Stage Actuator Parameter:
Effective Travel Length: 200mm
Total length :376mm
Type: linear system moulde
Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm)
Level ballscrew: c7
Weight: 2711g
Package Content:

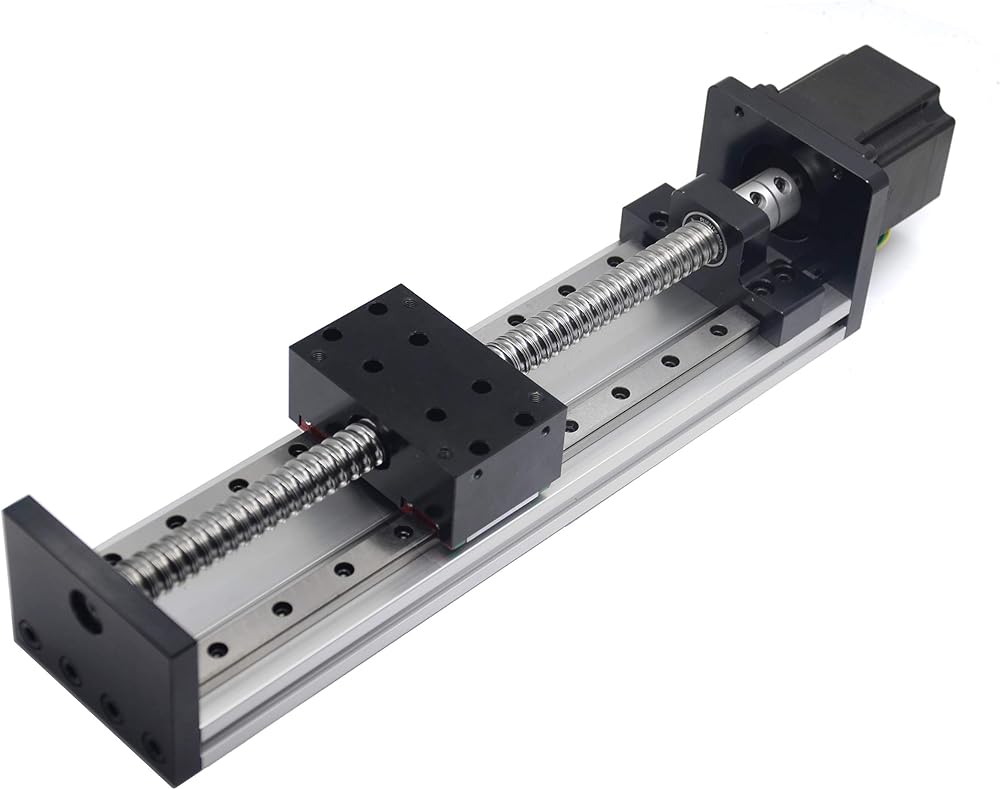

1pcs Linear Stage Actuator with NEMA23 Stepper Motor
