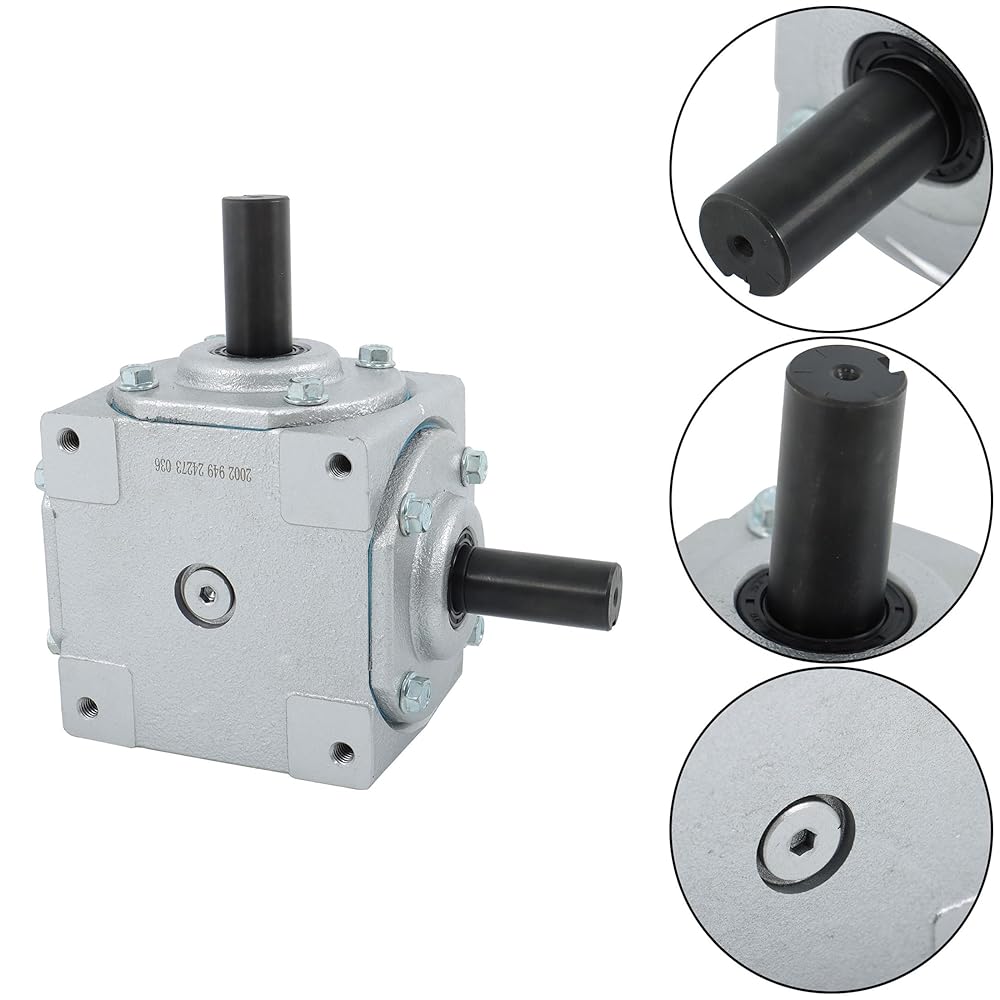

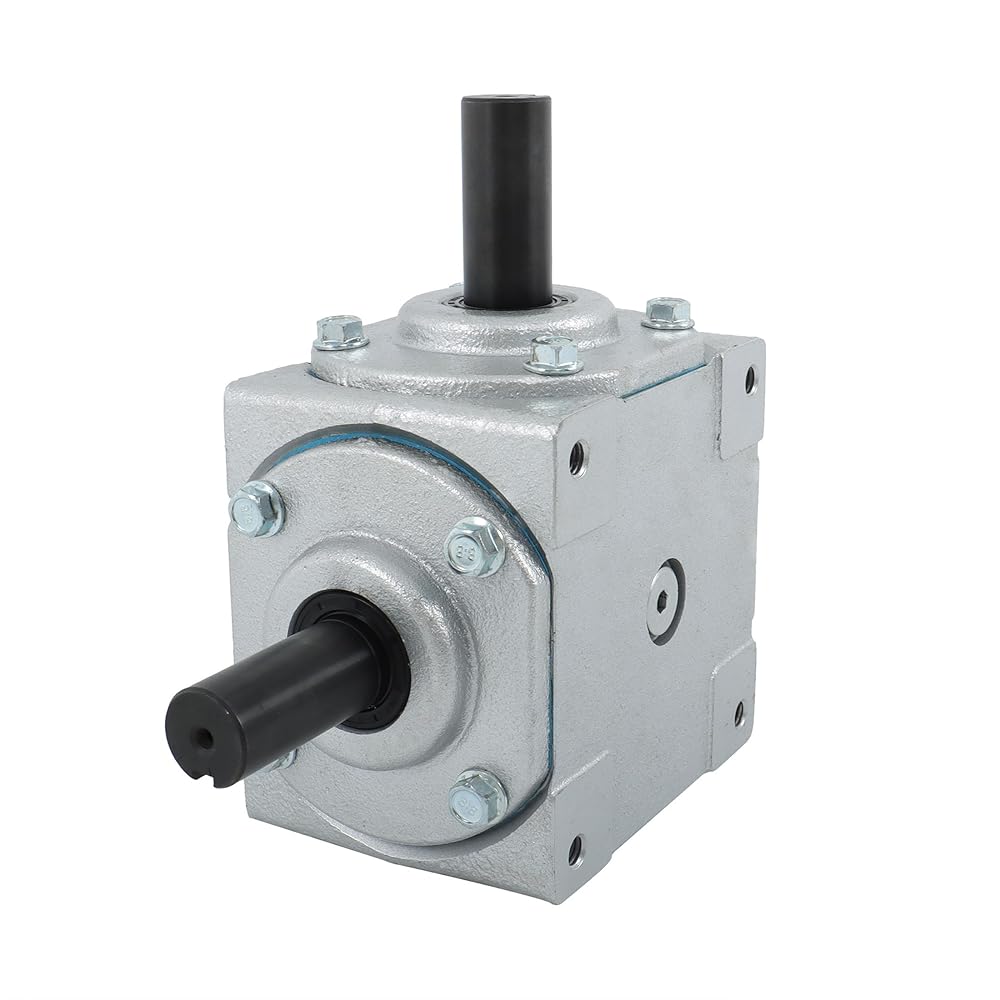

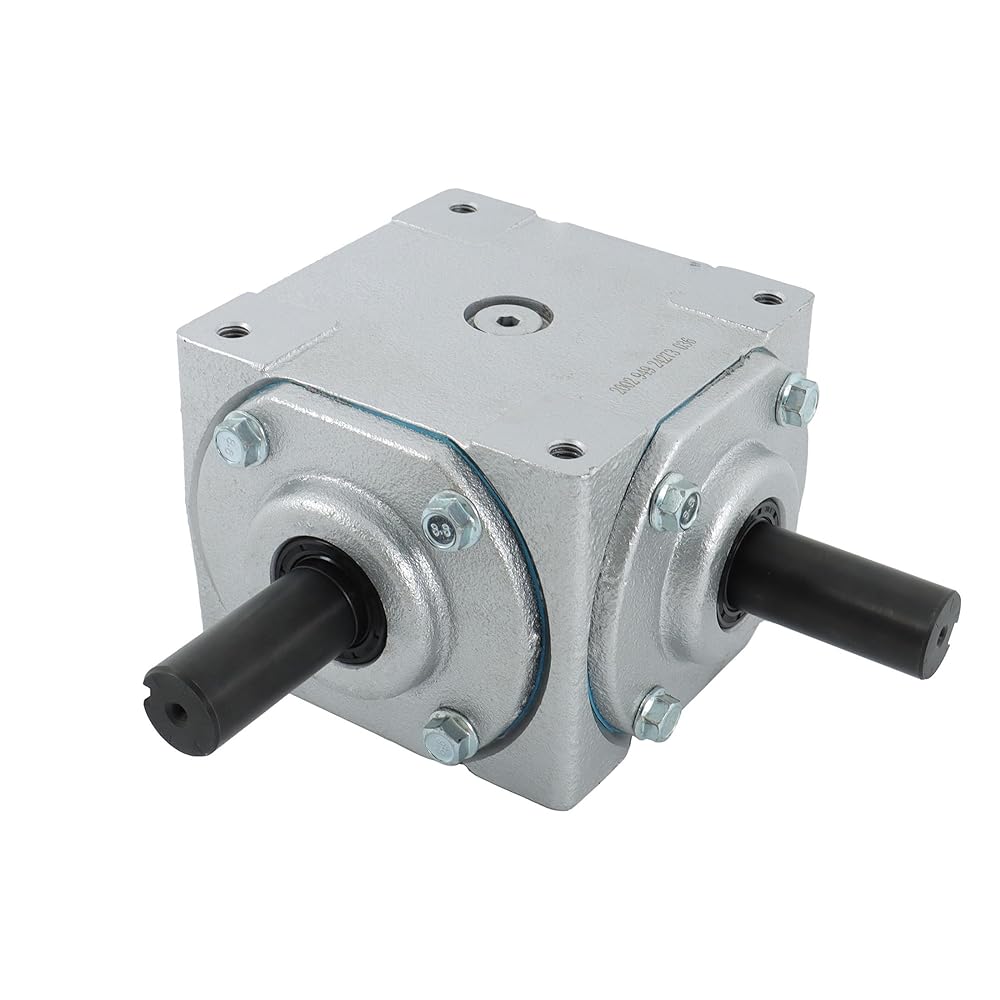

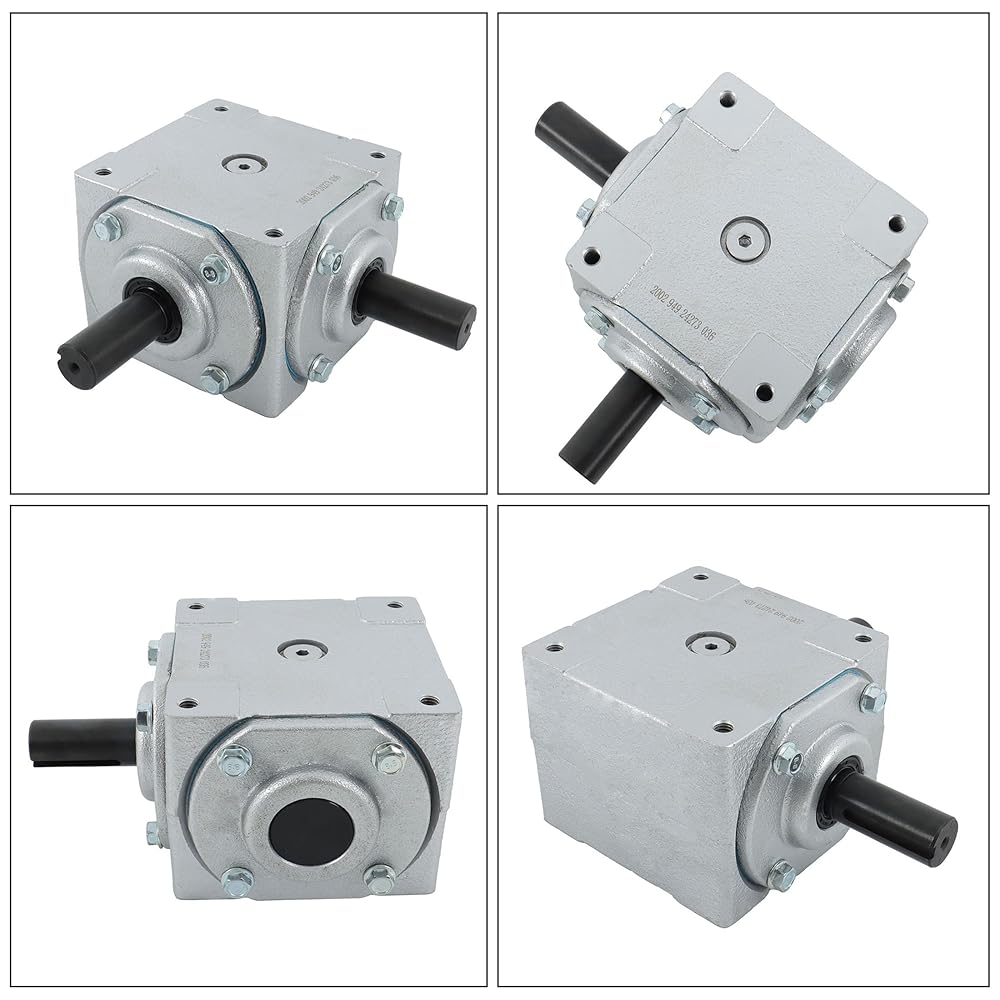

40HP Right Angle Gearbox with 2 Keyed Shafts CW/CW 1:1 for Agricultural Machinery 19455-SR-KW-KW-GR

Specification:
Size: 5-7/8 inches x 6-1/2 inches x 4-1/8 inches
Model: Replacement for 19455-SR-KW-PH-GR

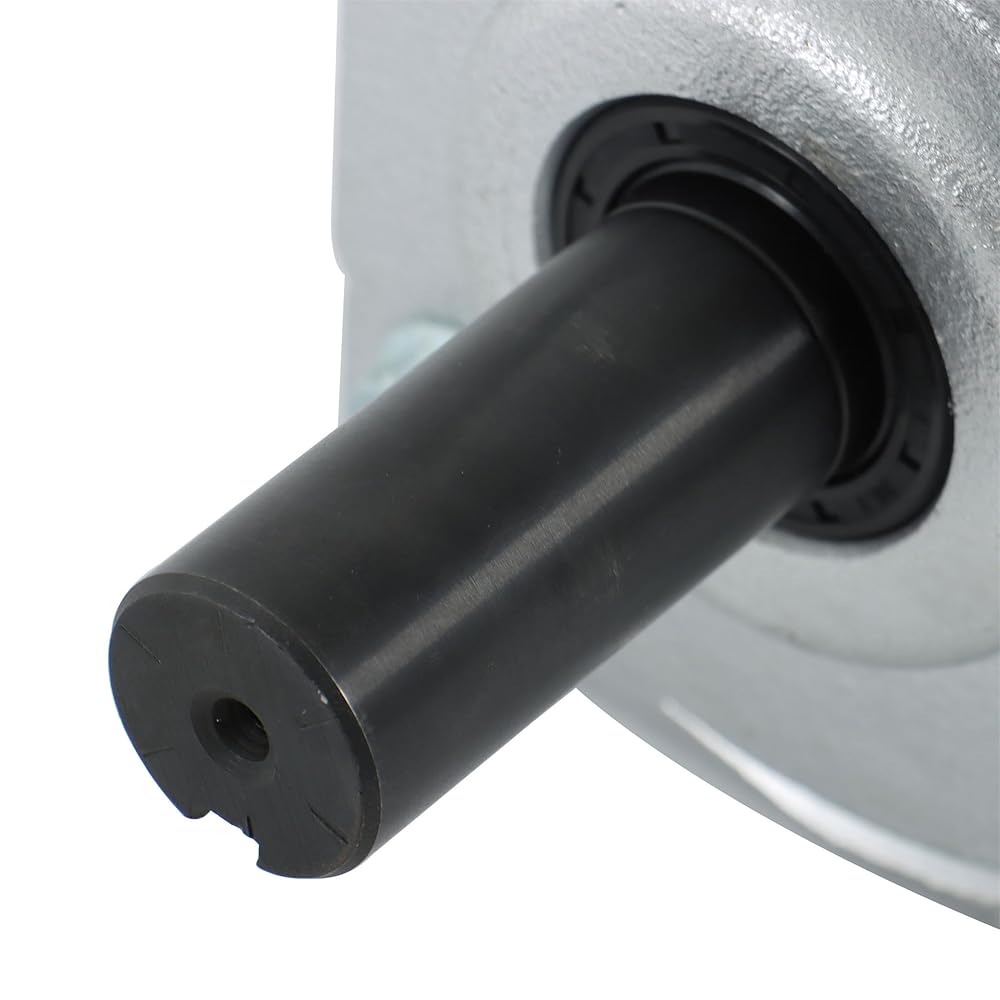

Output shaft: 1 inch diameter x 2-1/4 inch long with 1/4 inch keyway
Input shaft: 1 inch diameter x 2-1/4 inch length with 5/16 inch cross-holes
Bolt holes: 4-1/4 inch square layout with 3/8 inch threaded holes

Features:

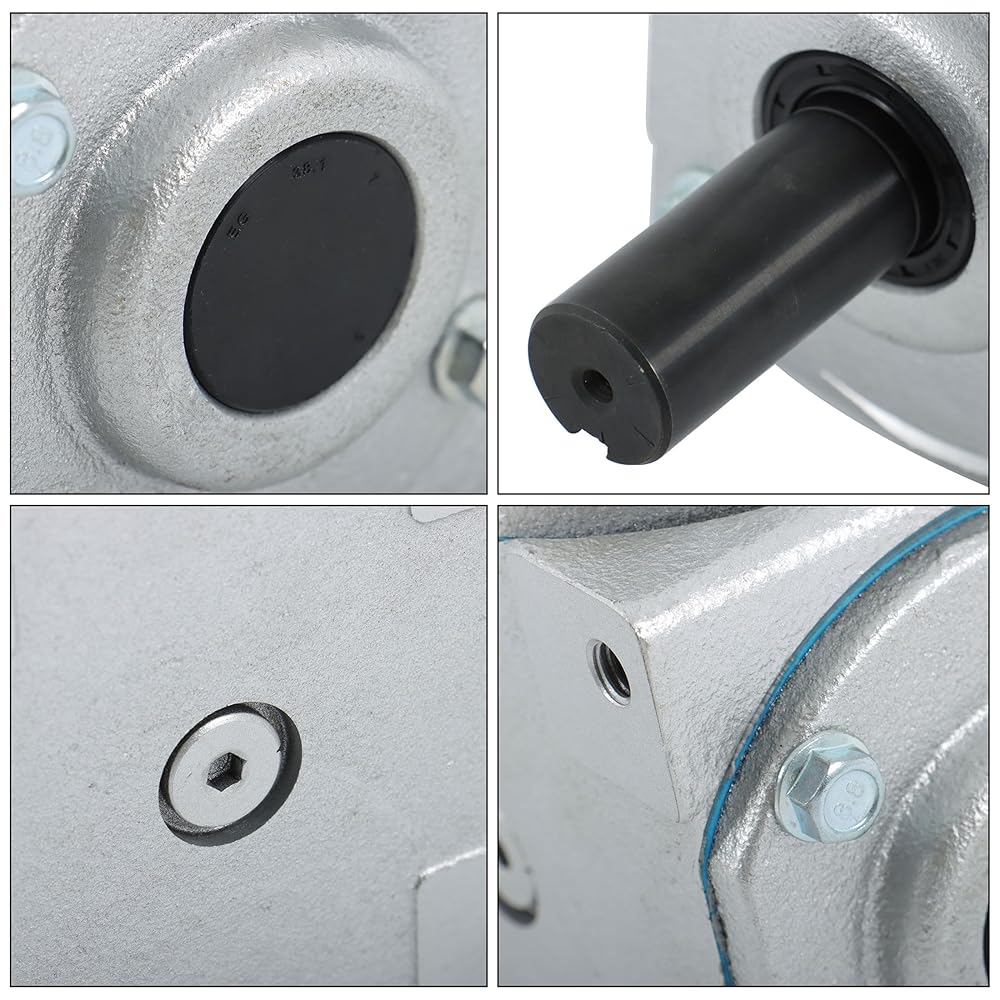

The input and output shafts are 1-inch standard diameter with pre-made keyways and cross holes, which can be directly connected to the motor, chain or pulley, and the installation requires no additional machining, saving time and labor!

The body is made of thickened cast iron, not easy to rust and vibrate, can withstand 40 horsepower high load work without pressure.

Bottom 4-1/4 inch square bolt holes, adapt to the mainstream bracket on the market, 3/8 inch threaded holes for direct fixing, firm and no wobbling.
