Rotary Shafts

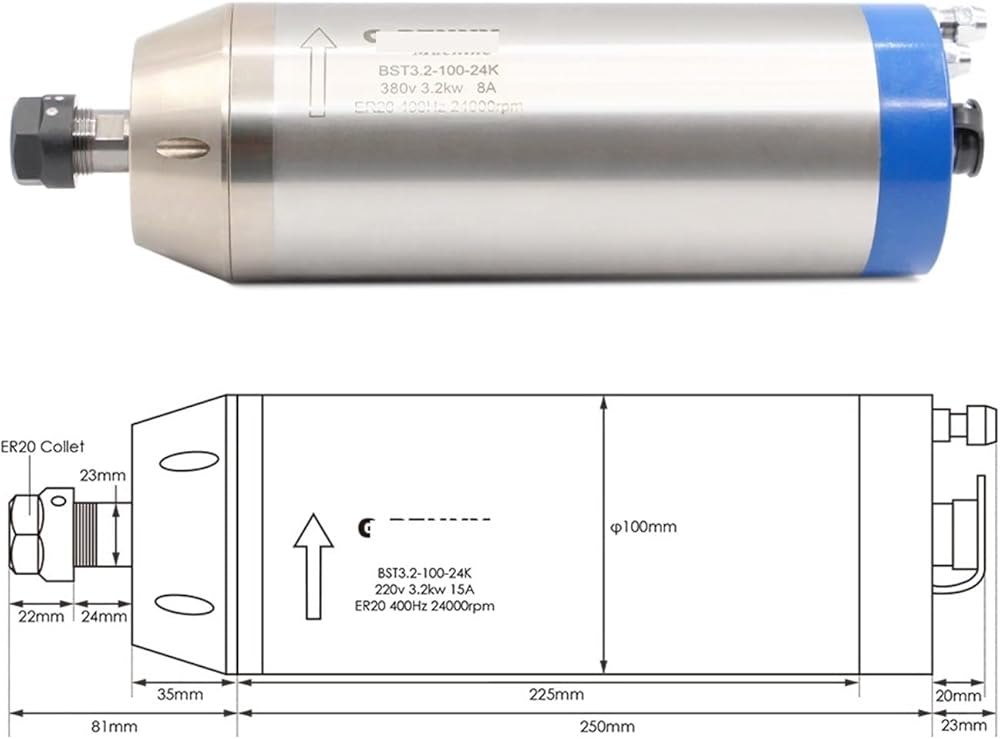

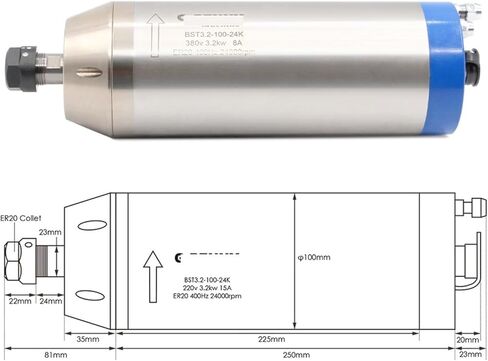

Size: 100x250mm (middle body diameter: 100mm; length: 250mm)

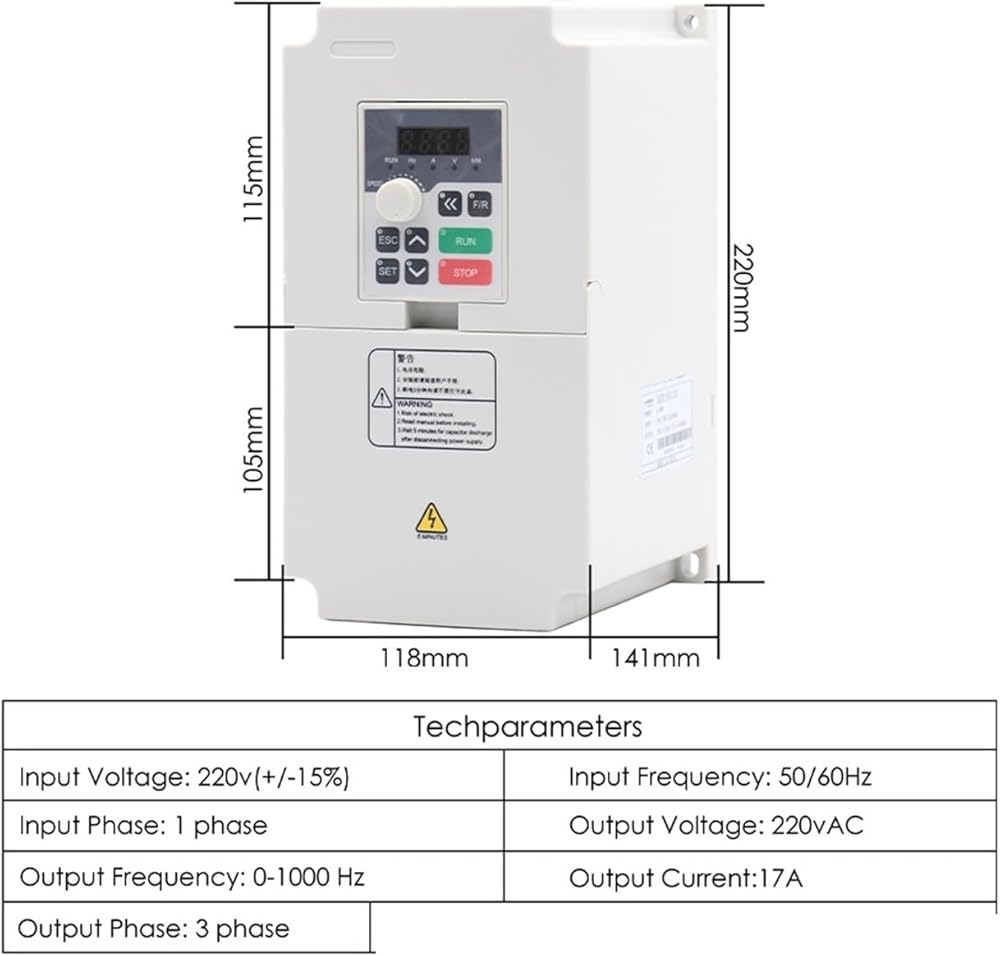

Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling

Power: 3.2kw
Voltage: 220V
Current: 15A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter(mm):100
Bearing type: 2 x 7005 P4 DT and 2 x 7003 P4 DT 4pcs fully sealed angular contact bearings

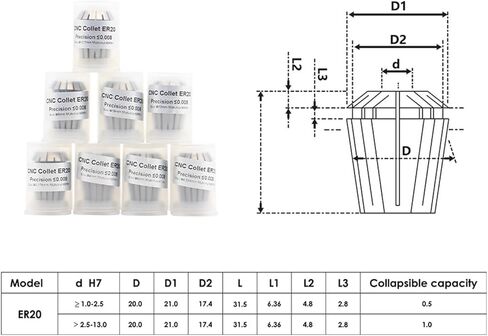

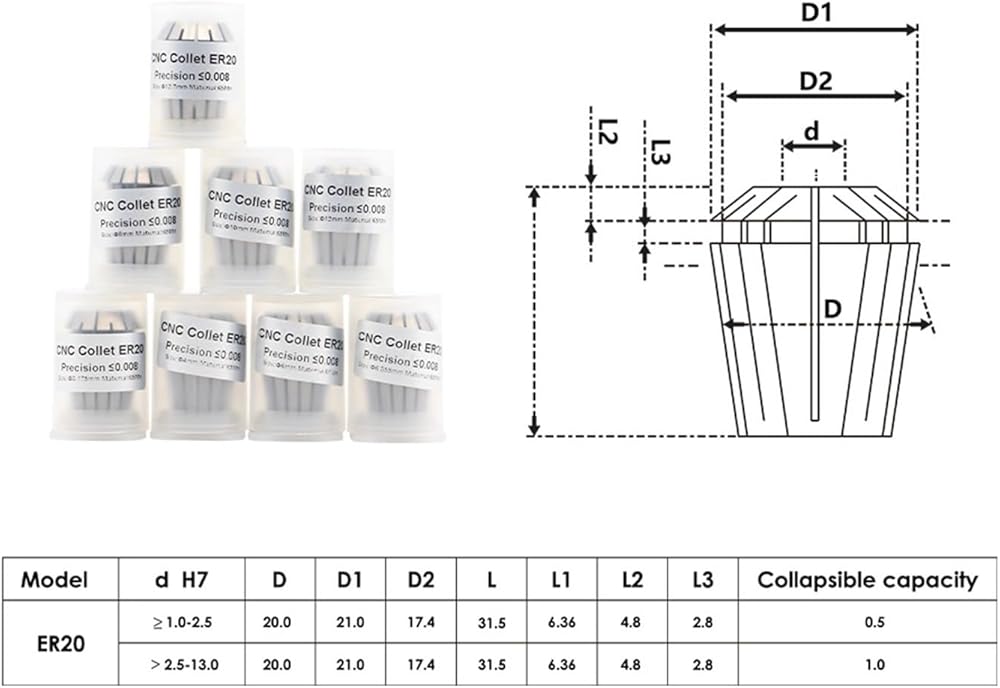

Chuck ER20
Clamp diameter 13mm12mm127mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm) water-cooled ER20 clamp
