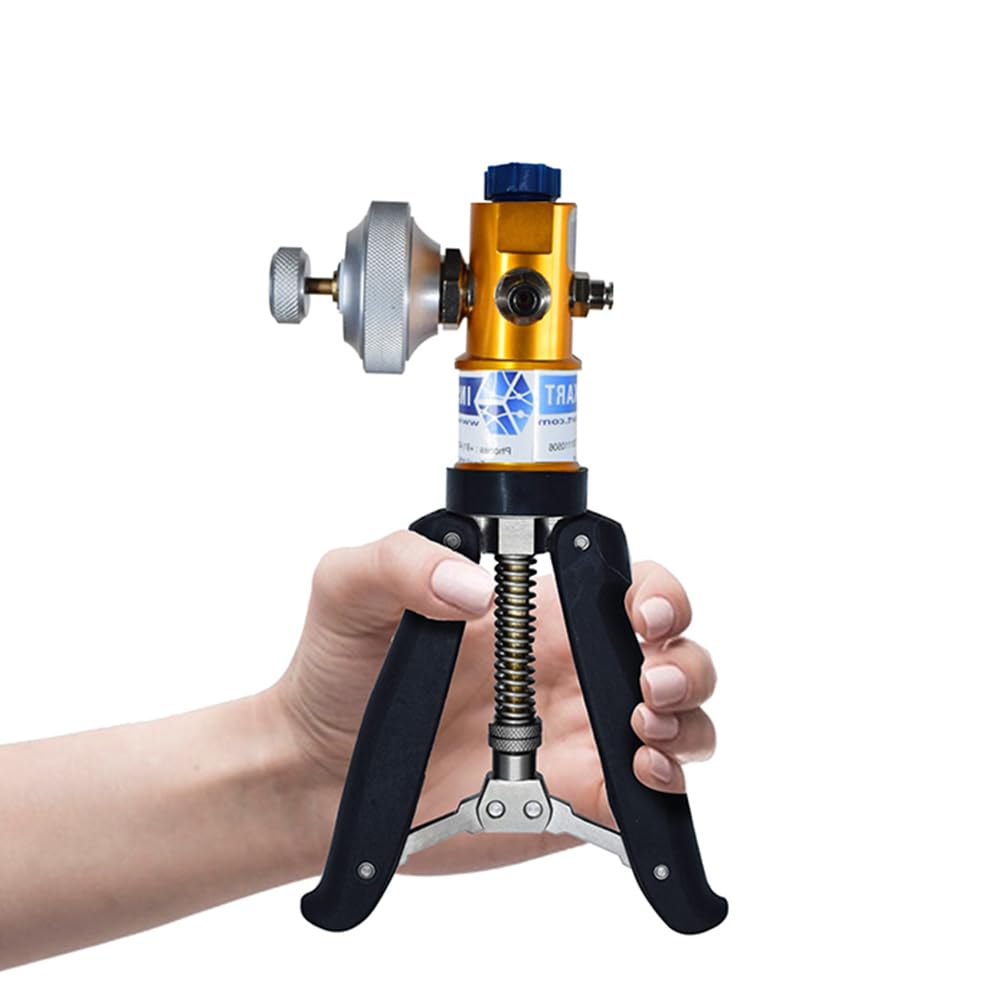

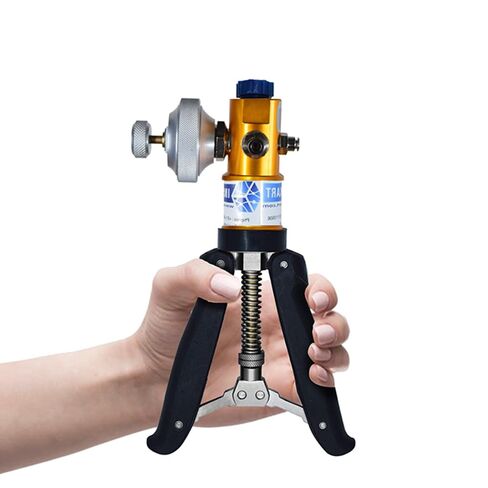

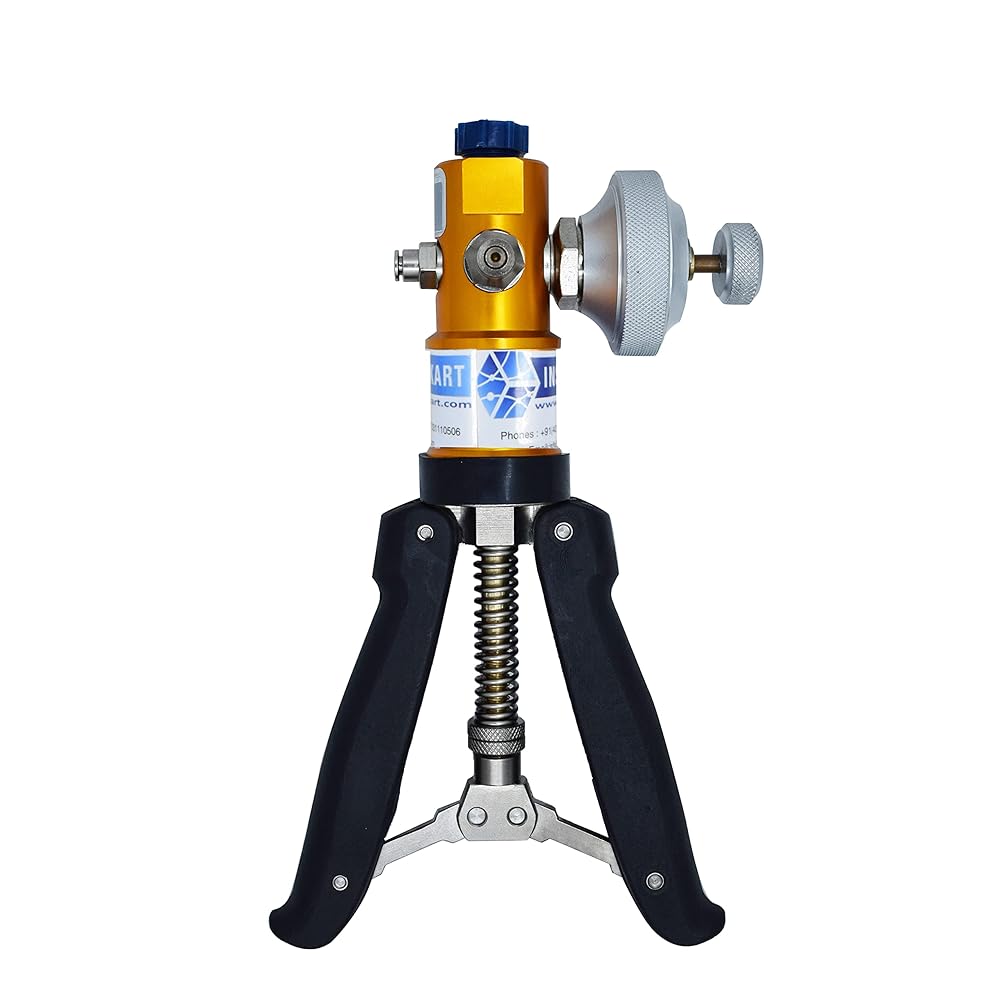

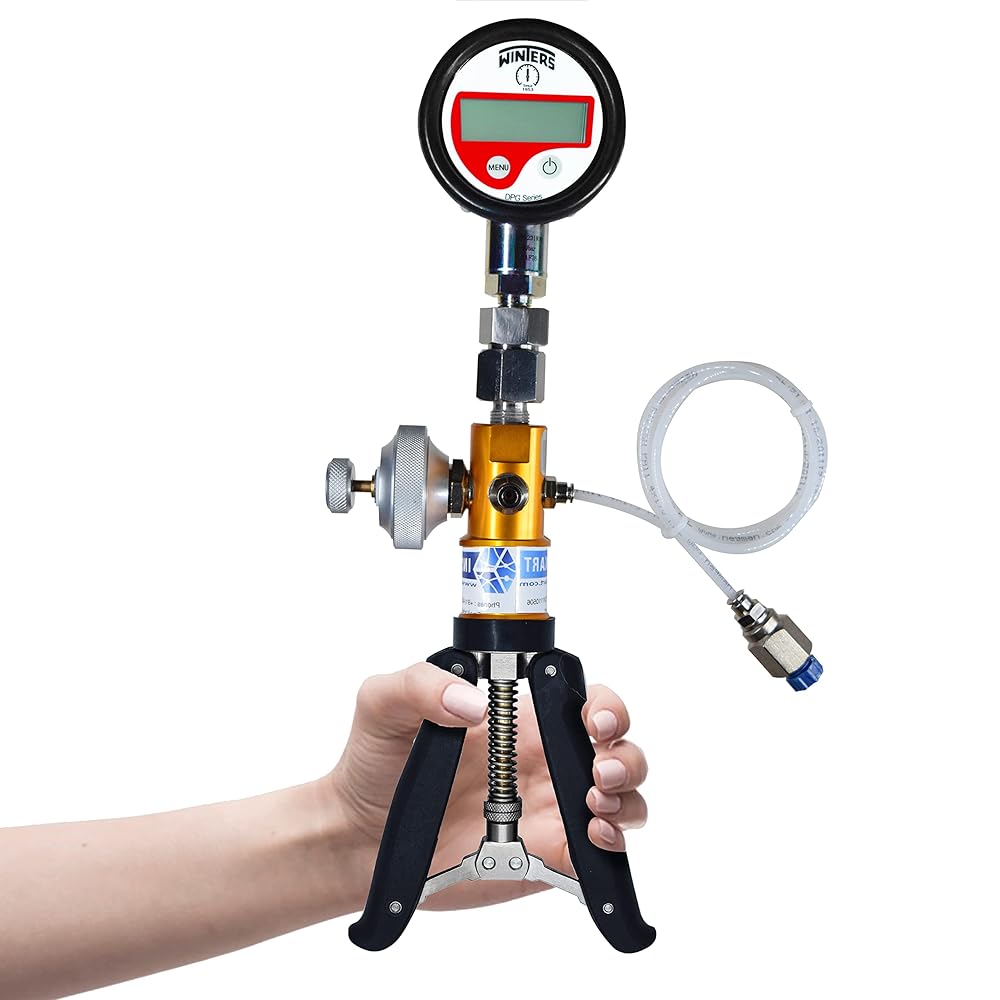

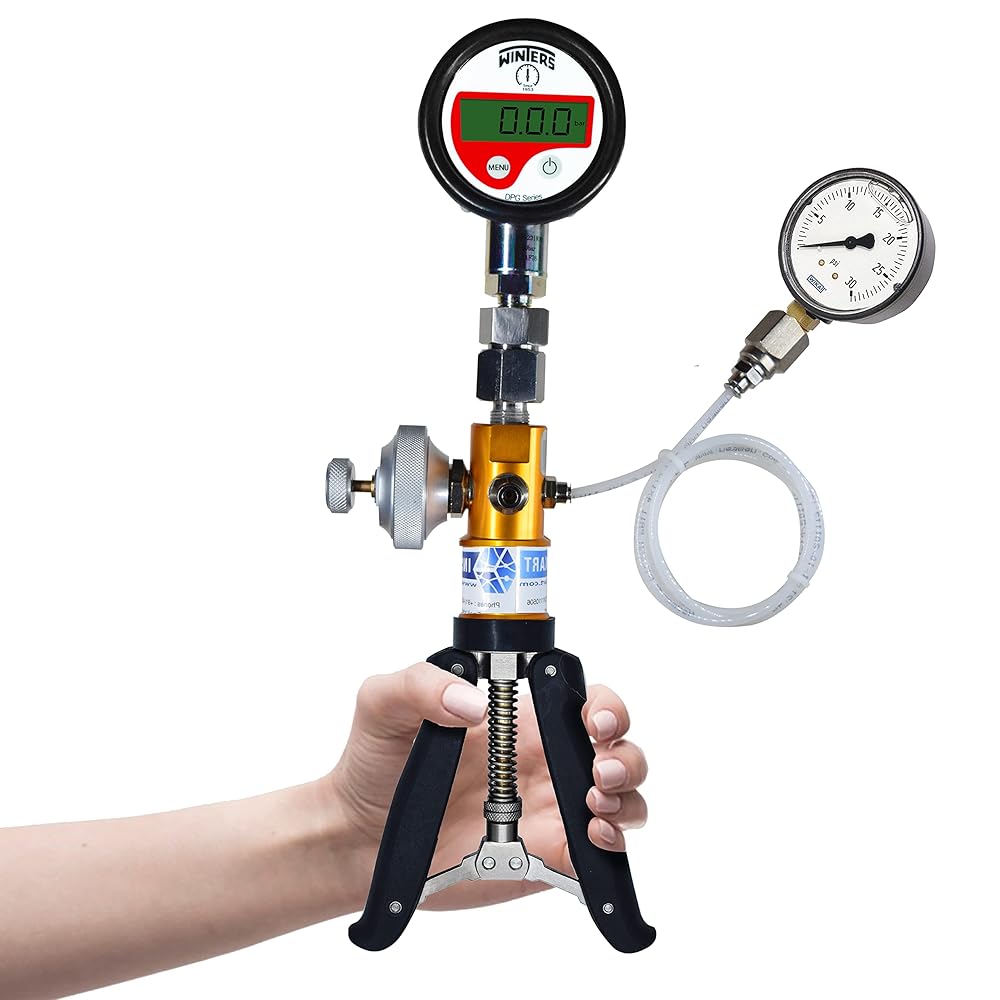

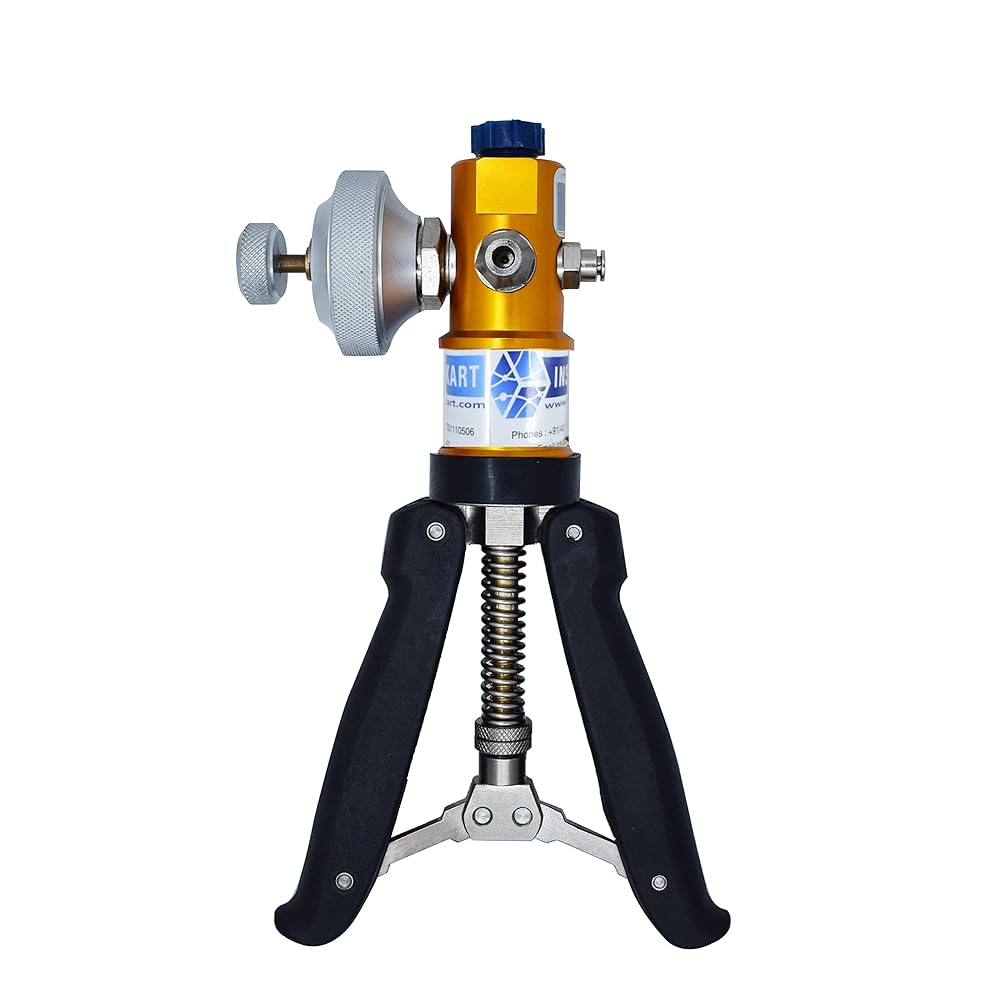

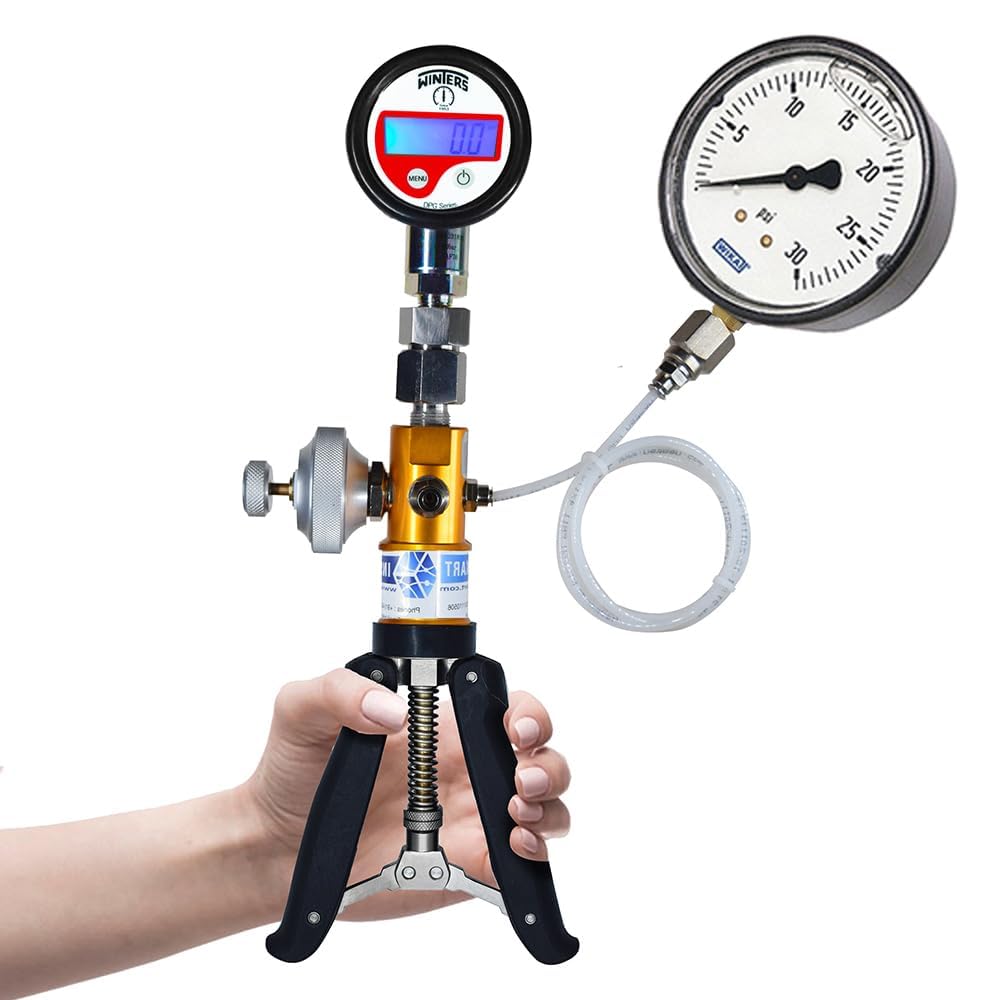

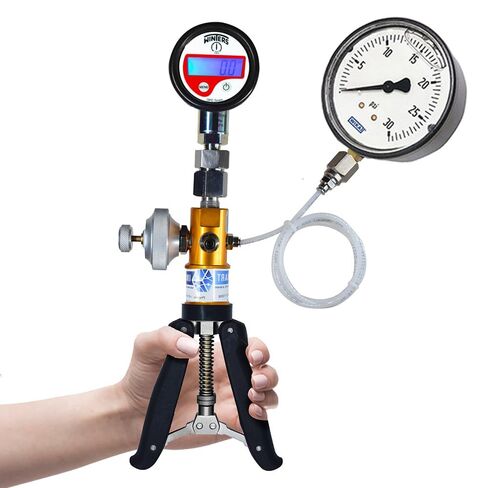

Hand Pump Calibrator with Pressure and Vacuum Gauge (Range: -1 to 25 Bar) for Calibration Labs, Field Calibration Model: AI-DPI-2200 (Range: -13 to 435 PSI)
Model: AI-DP1-2200 | Measuring Parameters: Pressure and Vacuum | Vacuum Range: Ambient to -0.9 Kg/Cm² |
Pressure Range: Ambient to 30 Kg/Cm² (30 Bar) 430 PSI | Material Of Construction: Aluminium and Stainless Steel; Weight Approx. 1.5 Kgs.
Master Gauge Range: -1 to 25 Bar | Accuracy : ±0.5% | Case Size 2.5" (63mm) | Case Material ABS (IP64) | Rubber Boot Silicone rubber (IP65)
Operation Mode : Continuous pressue reading | Response Time : ±3 Hz display refresh rate | Proof / Burst Pressure : 200% / 300% FS | Operating Temperature : 14°F to 122°F / -10°C to 50°C | Storage Temperature: -4°F to 167°F / -20°C to 75°C | LCD Display 2" x 3/4" (48mm x 16mm) | Connection 1/4" NPT 304SS | Sensor 316L welded, Piezo
Operation Life 1 million cycles | Power Supply 2 x AAA battery (1.5V) | Battery Life 2yrs (auto shut-off mode) | Power Mode Auto or manual shut-off | Display Digits 4 digits to 5,000 psi | Pressure Unit Selection psi, bar, kg/cm², MPa
Supply Scope: 1 Unit of AI-DPI-2200 Pressure and Vacuum Calibrator, 1 Unit of Master Gauge (Range: -1 to 25), 3 Nos Reducers (1/4", 1/2", 3/4") and Instruction Manual. | Applications: Calibration Labs, Field Calibration, Pressure Gauge Calibration, Pressure Transmitter Calibration.

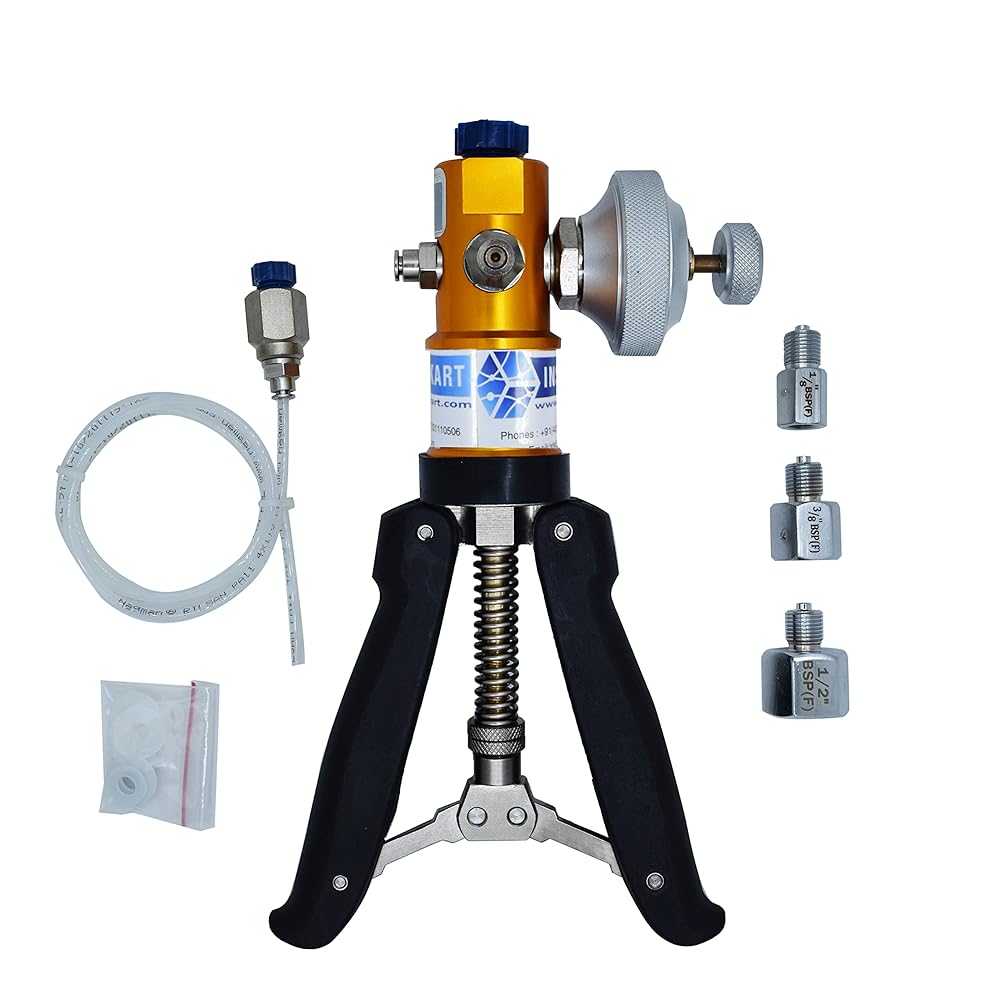

Hand Operated Pneumatic Pressure and Vacuum Pump Calibrator for Calibration Labs, Field Calibration and Pressure Transmitter Calibration (AI-DP1-2200 Only Hand Pump)
