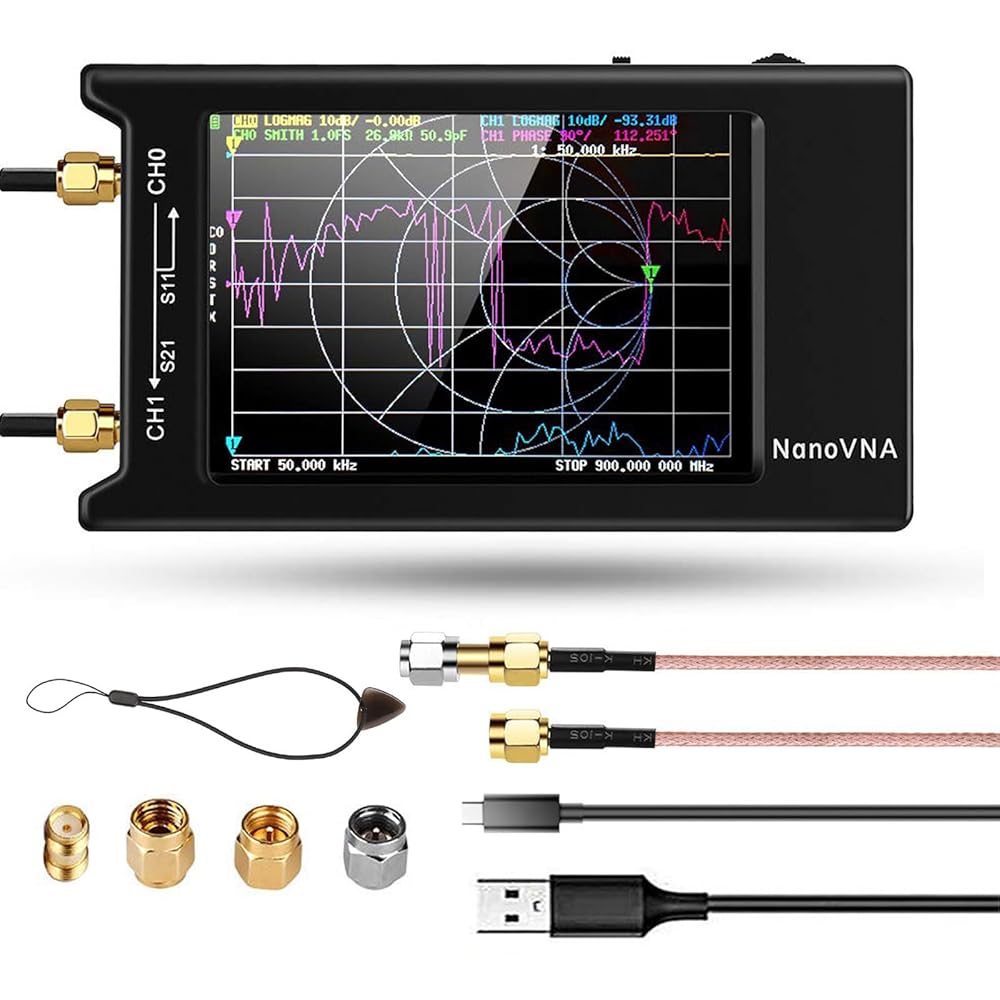

NanoVNA-H4 Vector Network Analyzer 10k-1.5GHz with 4"Touchscreen for Antenna Analyzer HF VHF UHF Standing Wave Measuring S Parameters Voltage Standing Wave Ratio Phase Delay Smith Chart

KWD 25.500
Brand
SDRGEEK
Size4-Inch
– 1 +

Special Features

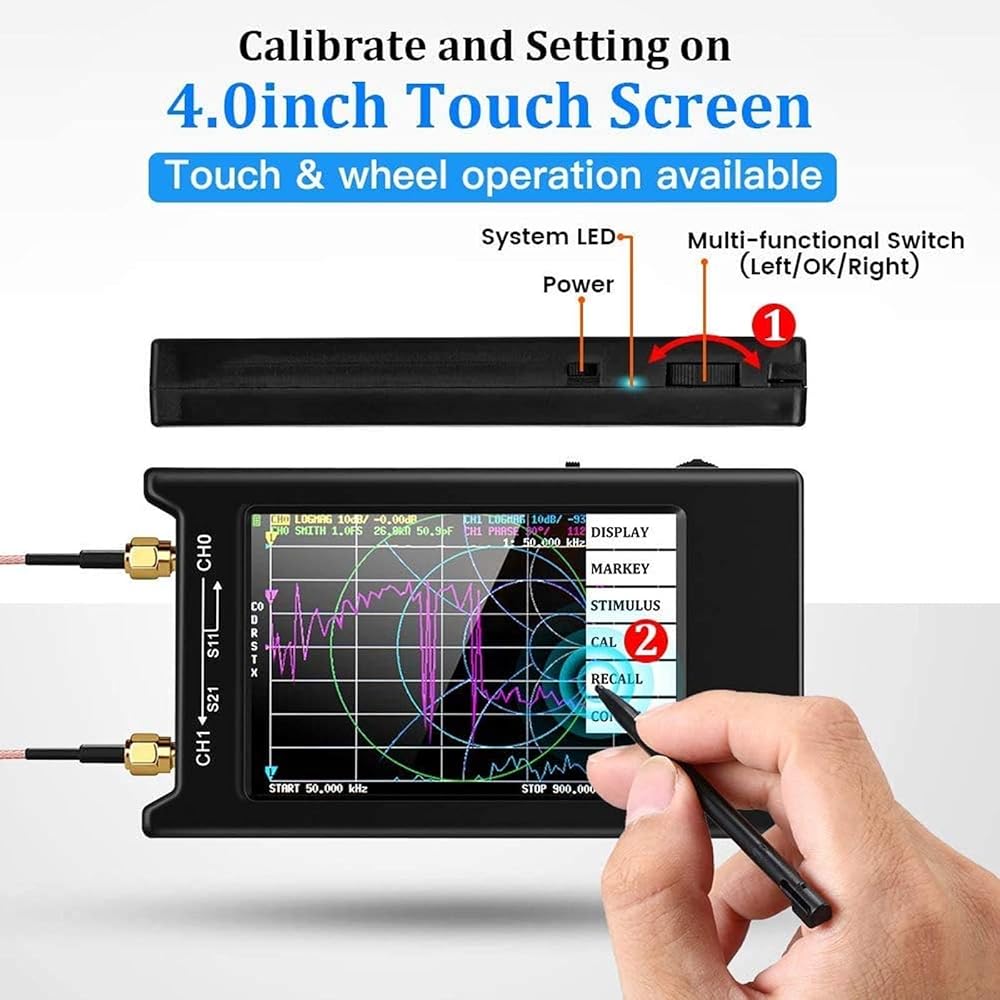

  • 【Compact DIY Vector Measurement】 This Nano VNA H4 is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered.

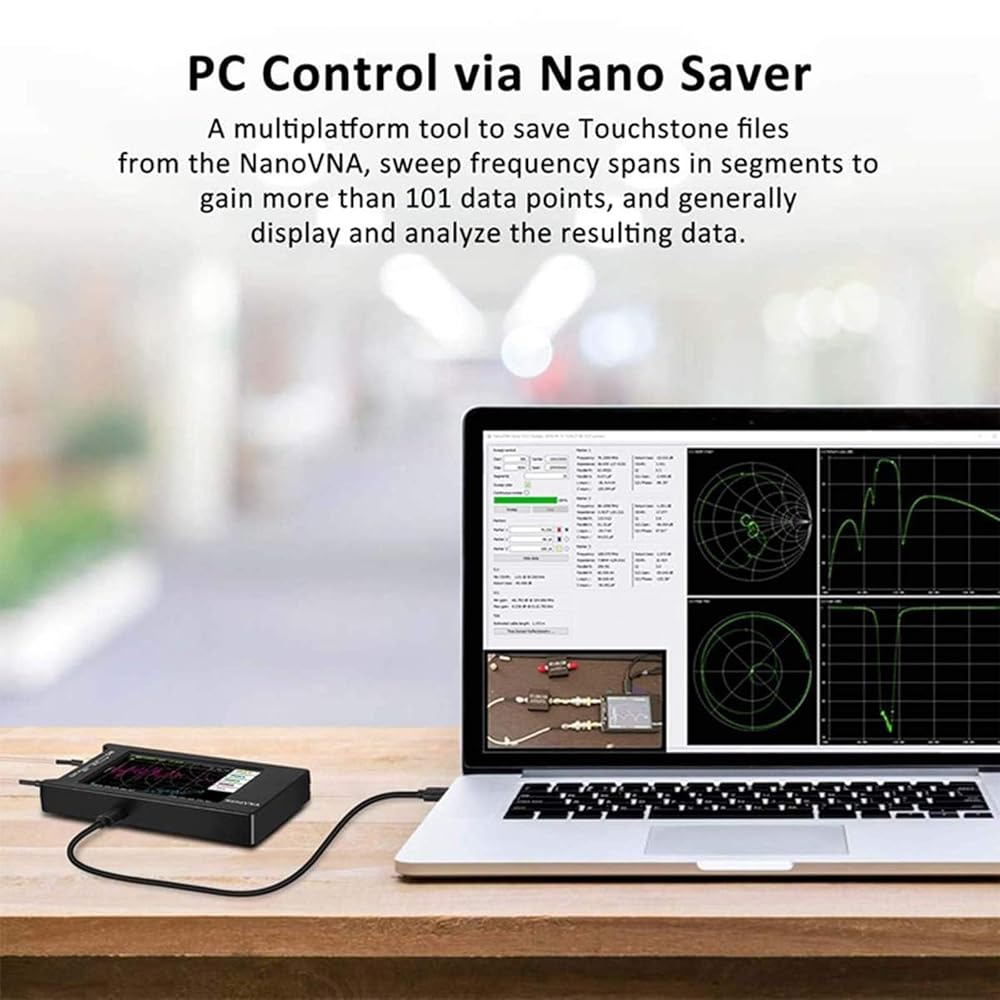

  • 【Support Windows System】You also could connect the PC computer if you download the "NanoVNA Saver"software.It's very convenient to store files on your computer to check it.
  • 【Antenna Performance Measurement 】The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring.

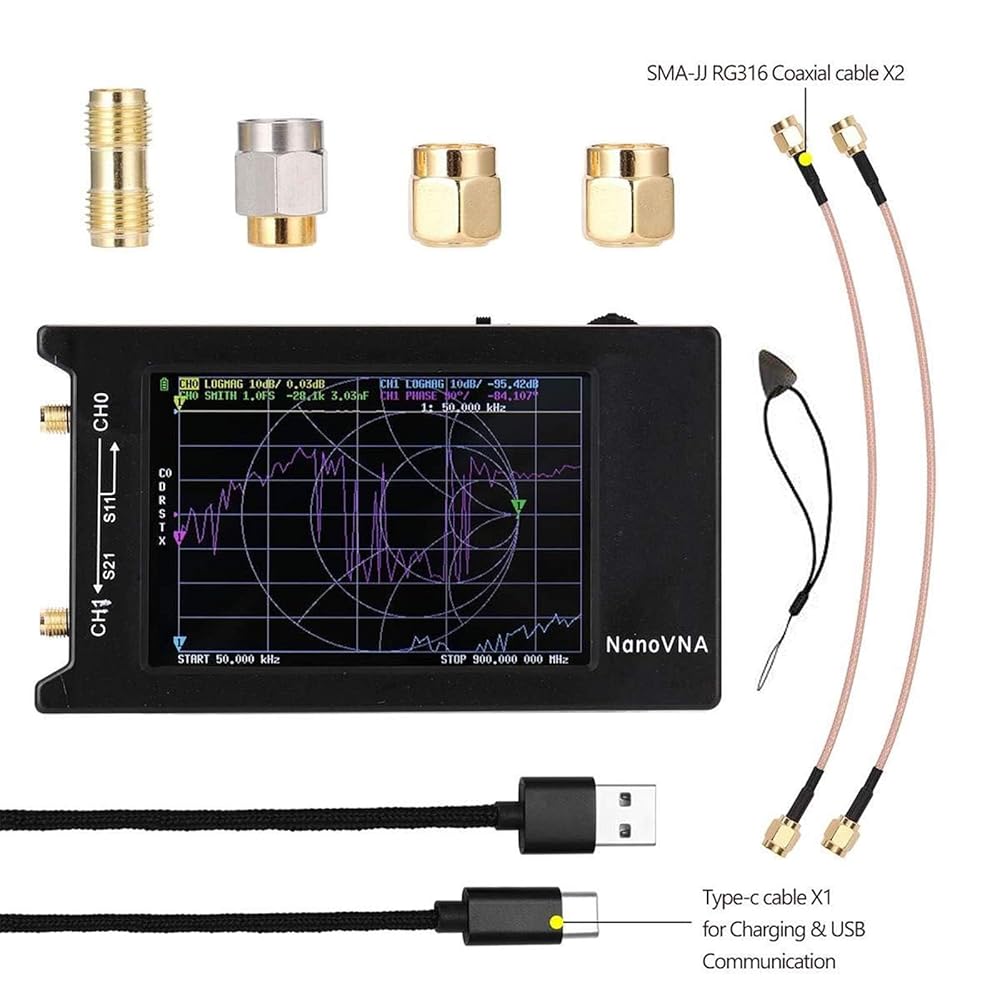

  • 【More Accurate Auxiliary Functions】For improve the NanoVNA accurate,the metal shield reduce the external interference.And comes with the calibration kit to stay the accuracy of the initial value of the machine.
  • 【Wide Application】You could use this antenna nanovna to measure HF VHF UHF standing wave etc.It has a powerful function such as measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and so on.

Description

Specification:

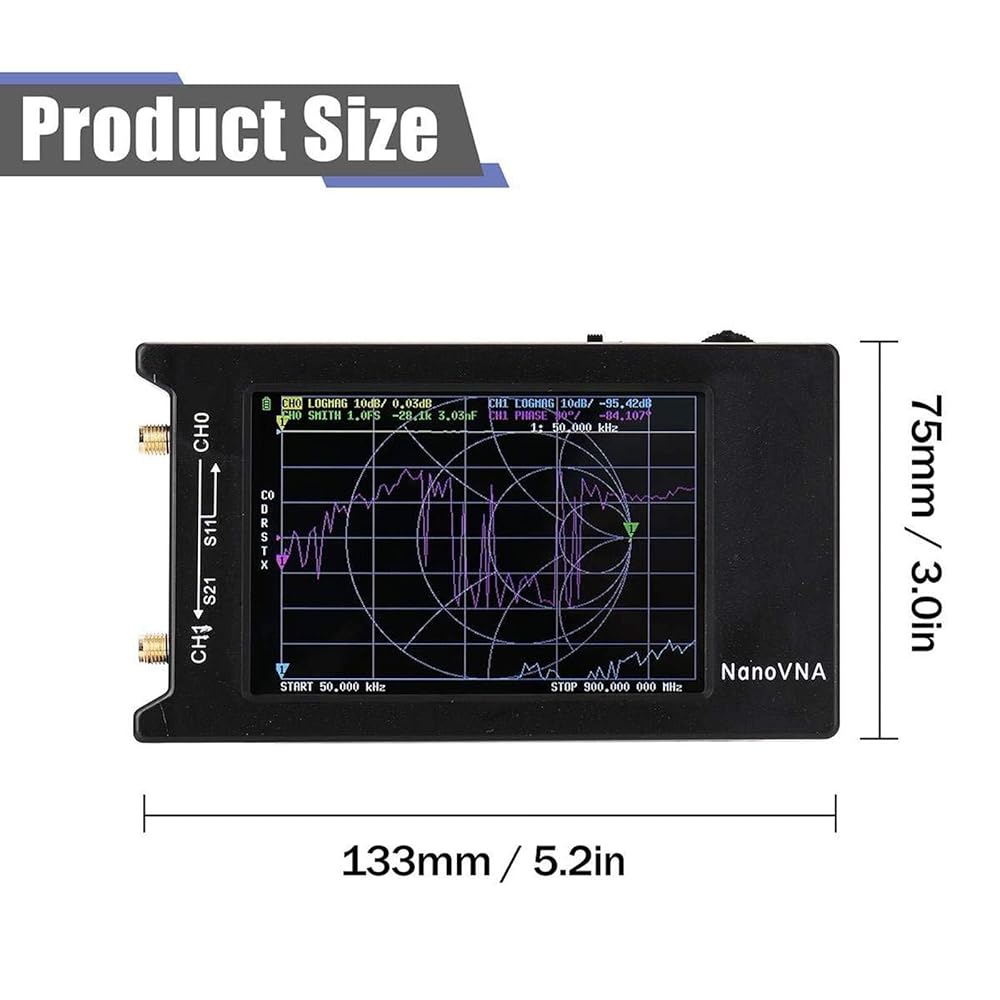

ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)

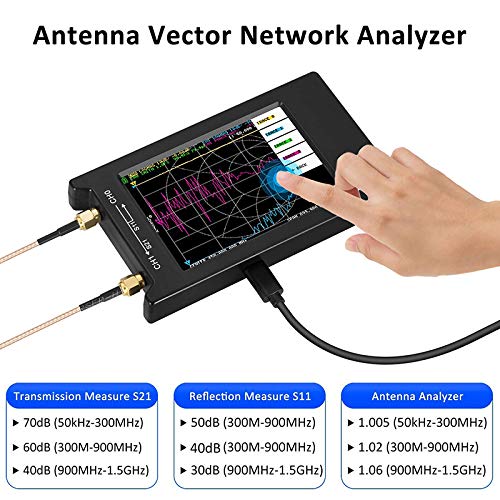

Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: USB interface: USB-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance: Frequency Stability:
