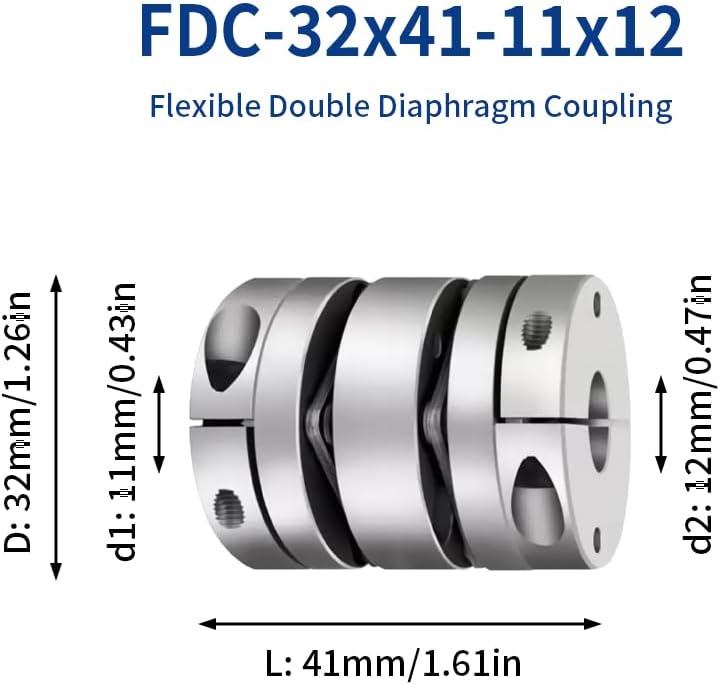

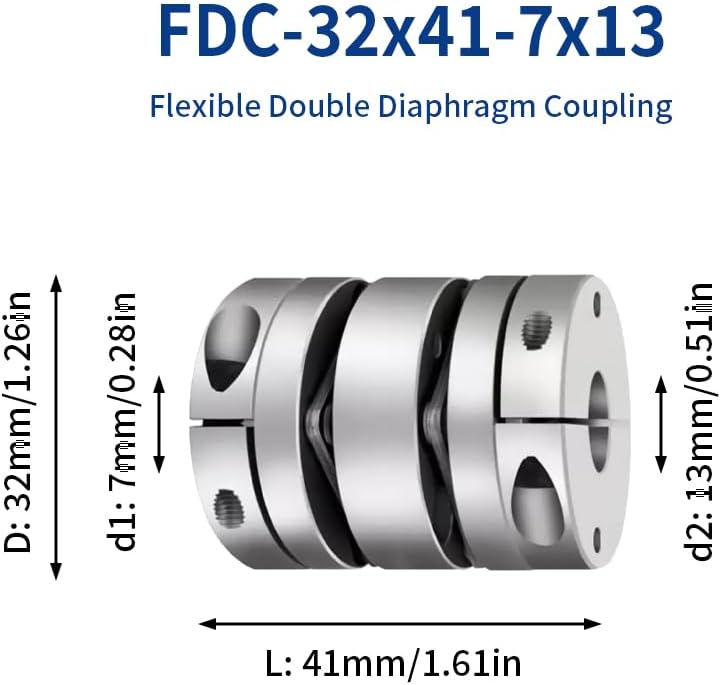

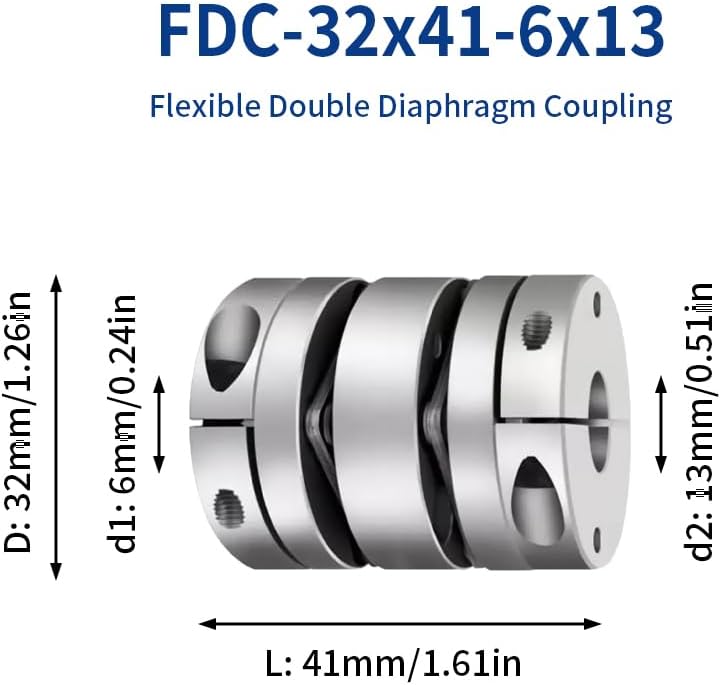

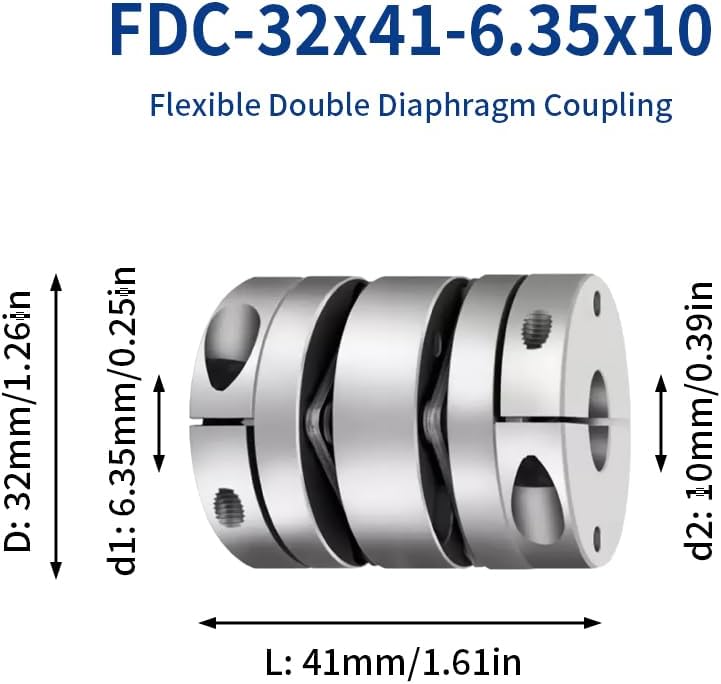

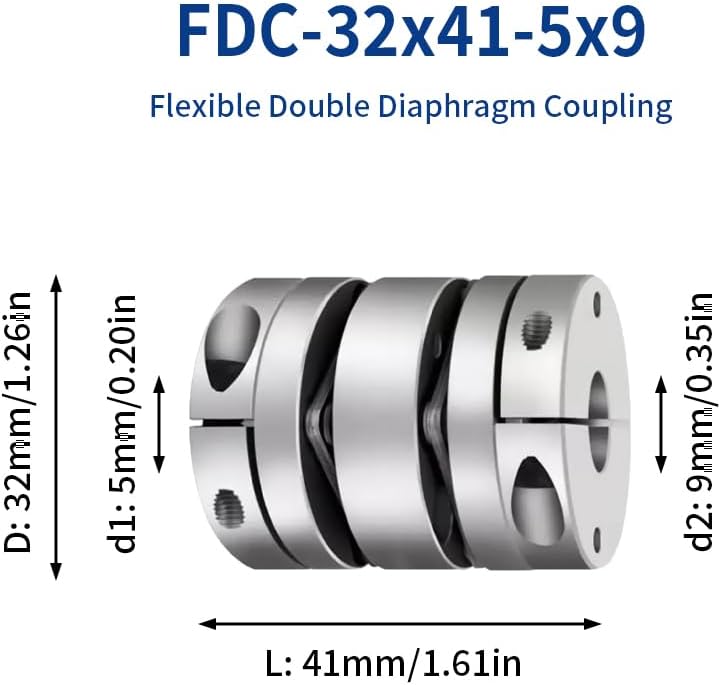

Size: Total Diameter 32mm/1.26inch Length 41mm/1.61inch, Bore Diameter 7mm to 13mm/0.275inch to 0.51inch
Material: Shaft coupler body material is aluminum alloy, sturdy, high torque bearing, diaphragm material is stainless steel, high efficient vibration damping, anti-abrasion
Performance: Flexible diaphragm coupling can effectively reduce stress and vibration in the transmission process, effectively compensate for axial misalignment, suitable for high torque transmission
Wide Range of Usage: Flexible diaphragm coupling is suitable for servo motors, step motor, 3D printer, DIY encoder, CNC router machine, screw driving and machine platform, etc.
More Models: BORDSTRACT offers a wide range of couplings including rigid couplings, flange couplings, flexible plum couplings, single and double diaphragm couplings and more can be found with us!
Description
Specification:
Product Name: Flexible Diaphragm Coupling
Type: Double Diaphragm
Total Diameter 32mm/1.26inch Length 41mm/1.61inch
Bore Diameter 7mm to 13mm/0.275inch to 0.51inch
Material: Aluminum Alloy, 304 Stainless Steel
Shaft locking Type: Clamp-On
Bore: Through
Package List: 1 x Double Diaphragm Coupling
