ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait ELING 110mm 2 Gauge Set Speedometer GPS 200km/h with Tachometer 0-8000RPM with Total Mileage 4in1 Multi-Function Gauge Fuel Level Water Temp. Oil Pressure 0-10Bar Voltmeter 12V for Auto RV Boat in Kuwait

Black+Black 0-120km/h 0-10Bar

KWD 55
Brand
ELING
ColorBlack+black
Size0-120km / h 0-10Bar
– 1 +

Special Features

  • Gauge Set-2in1 Multi-Function Gauge, 4in1 Multi-Function Gauge. Red backlight

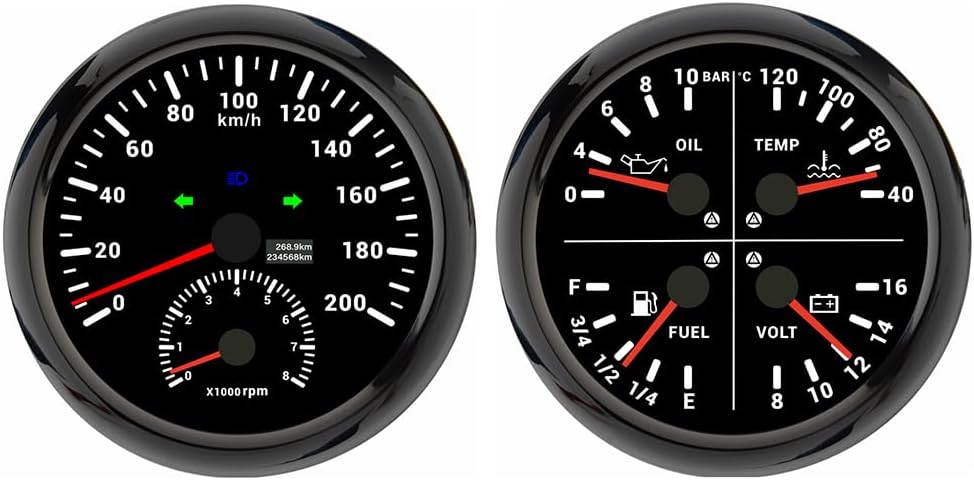

  • Gauge Set-GPS speedometer indicating range: 0-200KM/H, Tachometer indicating Range: 0-8000 RPM, Fuel Level Gauge indicating Range: E-1/2-F, Water Temperature Gauge indicating Range: 40-120℃, Oil Pressure Gauge indicating Range: 0-10Bar, Voltmeter indicating Range: 8-16V.
  • Gauge Set-GPS Speedometer's signal: GPS signal, Tachometer's signal: Pulse signal, Fuel Level Gauge's Signal: 0-190ohm/240-33ohm, Water Temperature Gauge's Signal: 301-22ohm, Oil Pressure Gauge's Signal: 10-184ohm.

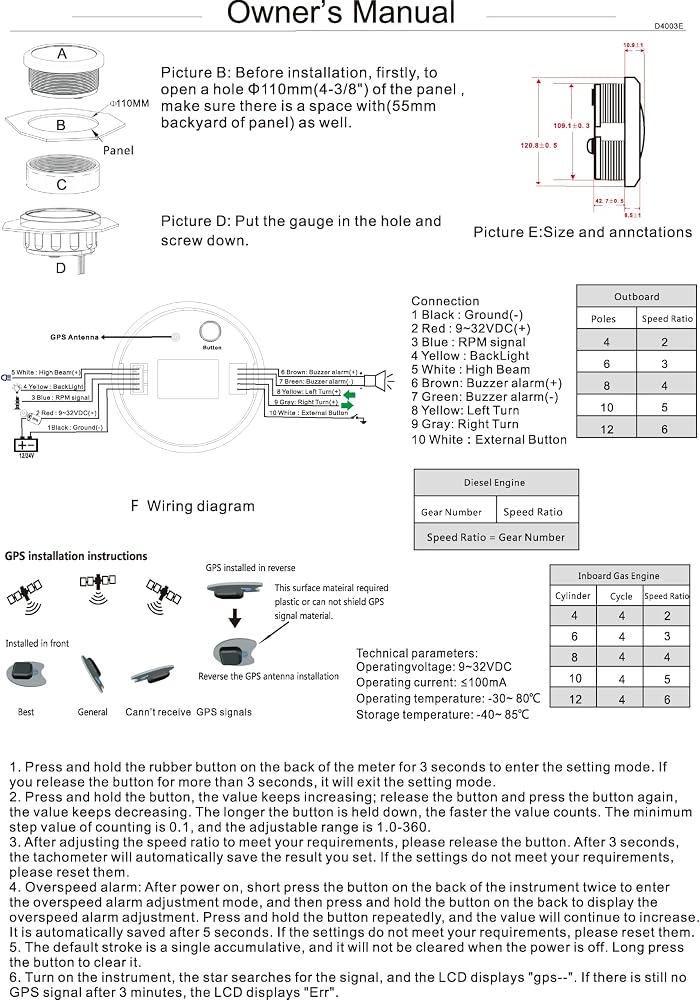

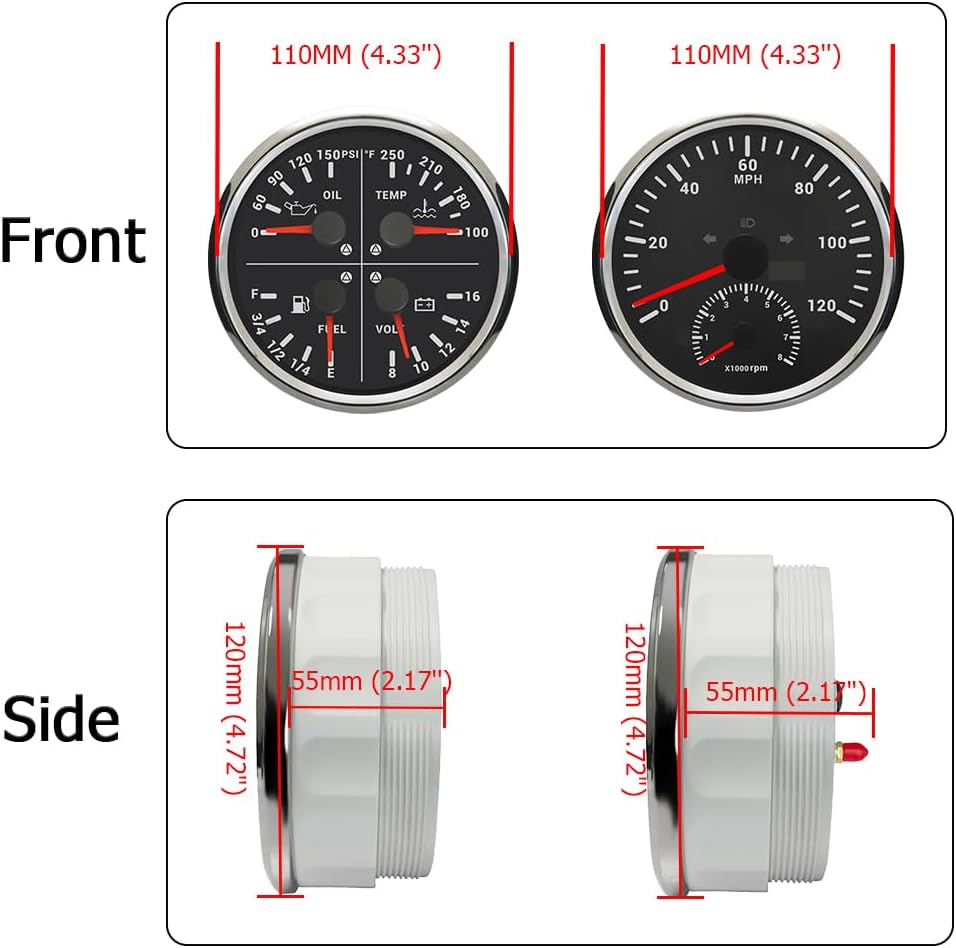

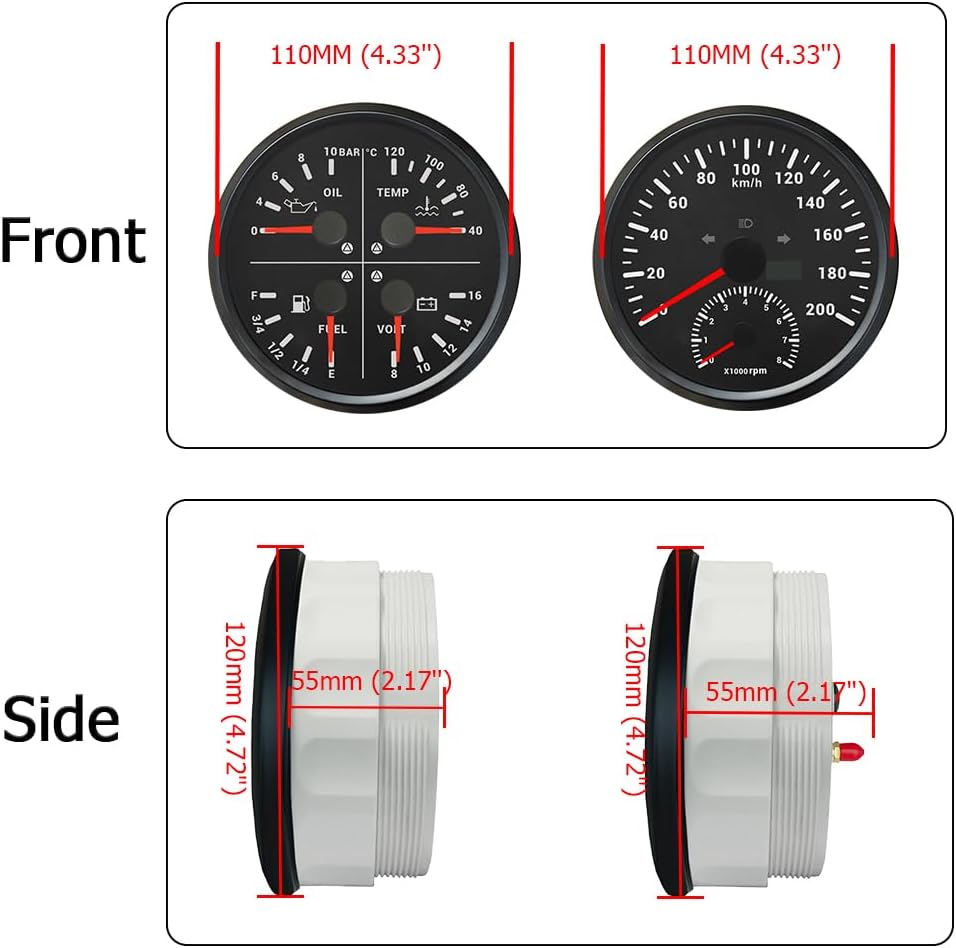

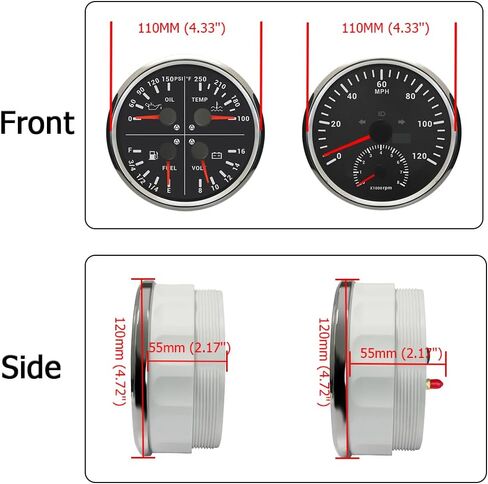

  • Installtion: Cut an 111 mm (4 3/8") hole in the panel and allow a clearance of 55mm behind the panel to fit the gauge. Put the gauge in the hole and screw down.
  • For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.

Description

Product Features:
-Suitable for all vehicles, boats and off-road vehicles
-Speedometer signal comes directly from the satellite signal receiver (GPS Antenna), don't need other speed sensor. Tachometer needs to get rpm signal.

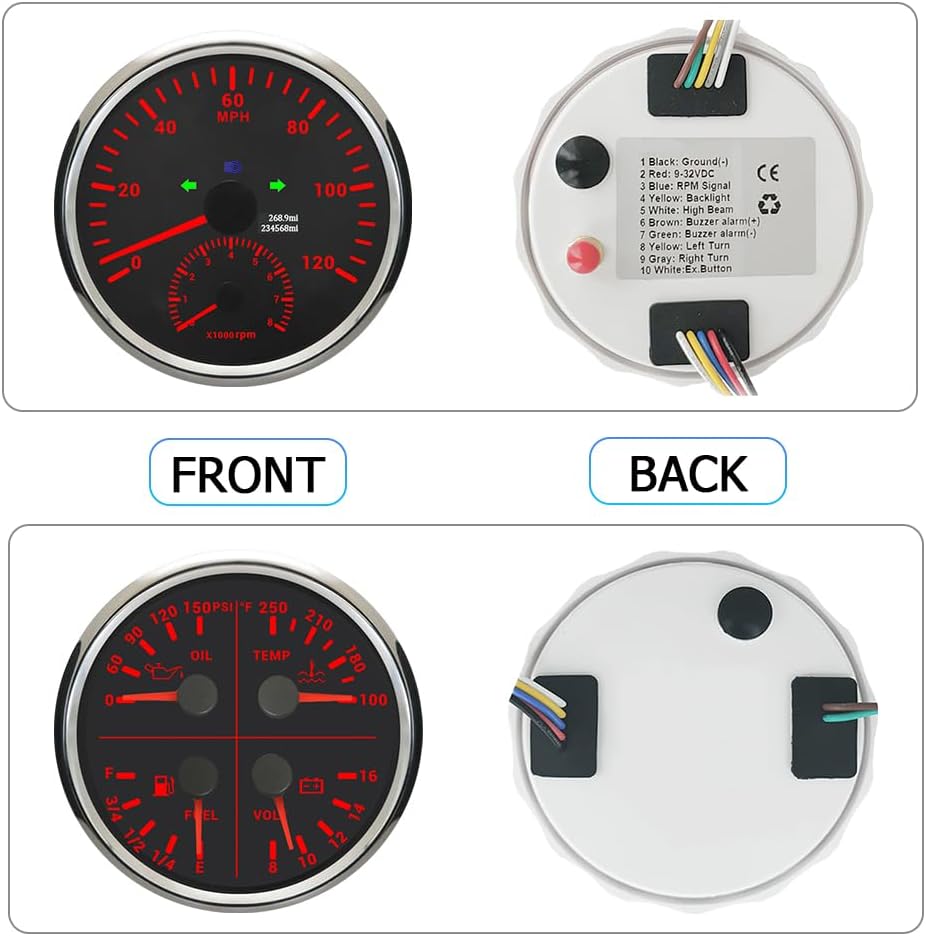

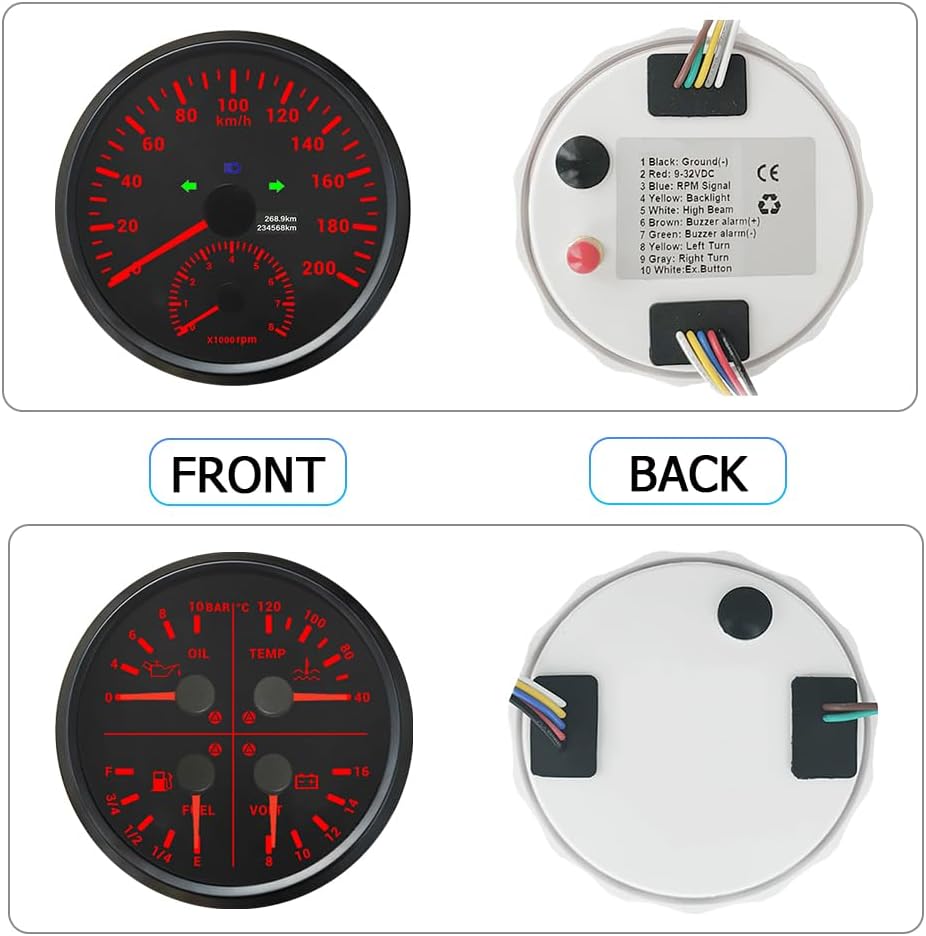

-The LCD display clear display total mileage, and with indicating light(high beam, turn left, turn right)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Reverse polarity protection and anti-fogging performance
-No Stationery Drift
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-Using a stepper motor drive pointer, accurate display of the fuel level, water temp., oil pressure, voltage.
-With curved glass (with anti-fogging function)

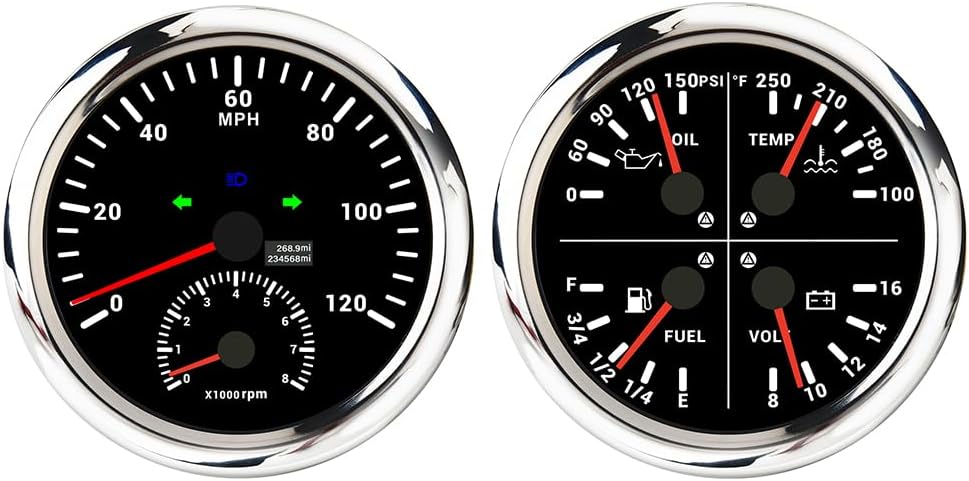

2in1 Multi-Function Gauge
Technical Data:
-Fixing dimension: 110mm
-Indicating Range:
GPS Speedometer:0-200KM/H
Tachometer: 0-8000RPM
Tripmeter: 0-999.9km
Odometer: 0-999999km
-Working Voltage: 12VDC/24VDC
-Backlight: Red

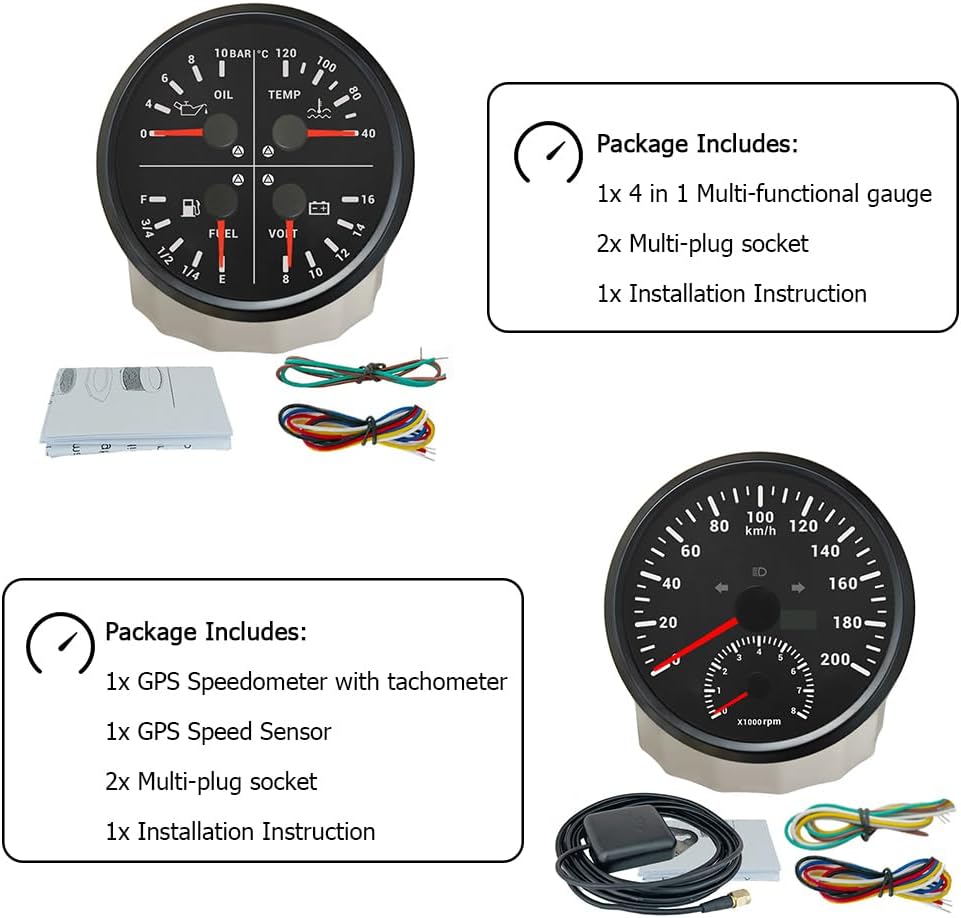

Package Includes:
1x 2in1 Multi-Function Gauge
1x GPS Speed Sensor
2x Multi-plug socket
1x Installation Instruction

4in1 Multi-Function Gauge

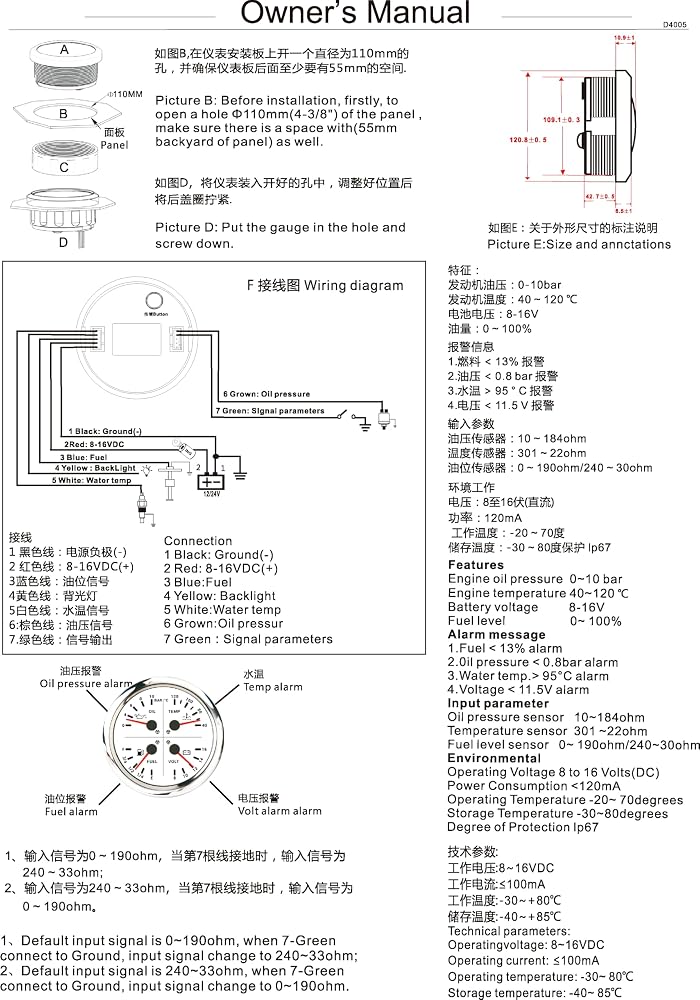

Technical Data:
-Fixing dimension: 110mm
Oil Pressure Gauge: 0-10Bar (signal: 10-184ohm)
Water Temperature Gauge: 40-120℃ (signal: 301-22ohm)
Fuel Level Gauge: E-1/2-F (signal: 0-190ohm/240-33ohm)
Voltmeter: 8-16V
-Working Voltage: 12VDC
-Backlight: Red
-4in1 Multi-Function Gauge's alarm:
Fuel LevelWater temperature>95°C
Oil pressureVoltage -Sensors need to be purchased separately

Package Includes:
1x 4in1 Multi-Function Gauge
1x GPS Speed Sensor
2x Multi-plug socket
1x Installation Instruction
