Video
Analog Video Input: BNC×1
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P @30fps
CVBS video signal input supported
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
H.264 Compression Standard: Baseline Profile/Main Profile/High Profile
Bit rate Type: VBR/CBR
Bit Rate: 64Kbps ~ 8Mbps

Resolution 5MP (2592×1944), 4MP (2560×1440), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240
Main Stream: 5MP/4MP/1080P/720P/D1
Sub Stream: 720P/D1/CIF
Third Stream: D1/CIF/480×240

Audio
Two-way Audio: Take up the above audio input
Image Setting: Saturation, hue, brightness, contrast, wide dynamic range, sharpness, defog, NR, image mirror, image flip, etc., adjustable through client or web browser
ROI: 8 ROI, each region can be set up separately

Interfaces
Network: 100M RJ45
Audio: 1CH 3.5mm audio input; 1CH 3.5mm audio output
Video: 1CH BNC video input
Storage: 1 micro SD card slot, up to 256G
Alarm: 8CH alarm input; 4CH alarm output

Function
Remote Monitoring: Web browser/NVMS2.0/NVR/mobile APP
Online Connection: up to 8 users, Supports multi-stream real-time transmission

Network Protocol: multiple
Interface Protocol: ONVF
Storage: Network remote storage; micro SD card storage
Smart Alarm

Intelligent Analytics
Video exception detection
Perimeter protection
Statistics: target counting by line/area (human/motor vehicle/non-motor vehicle classification)
Face detection: face detection, face capture
Other events: abandoned/missing object detection, heat map

General Function: Watermark, IP address filtering, video mask, heartbeat, illegal login, corridor pattern

PoE: Yes, IEEE802.3af

Others
Power Input: DC12V/PoE

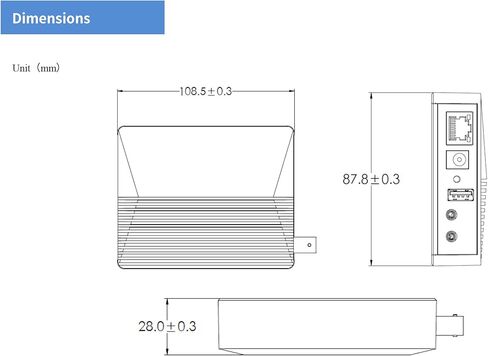

Dimensions (mm): Server: 108.5 × 87.8 × 28.0
Weight (net): Approx. 271.4 g
Installation: Wall mounting
