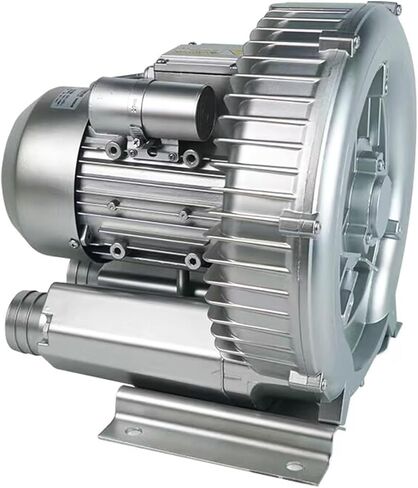

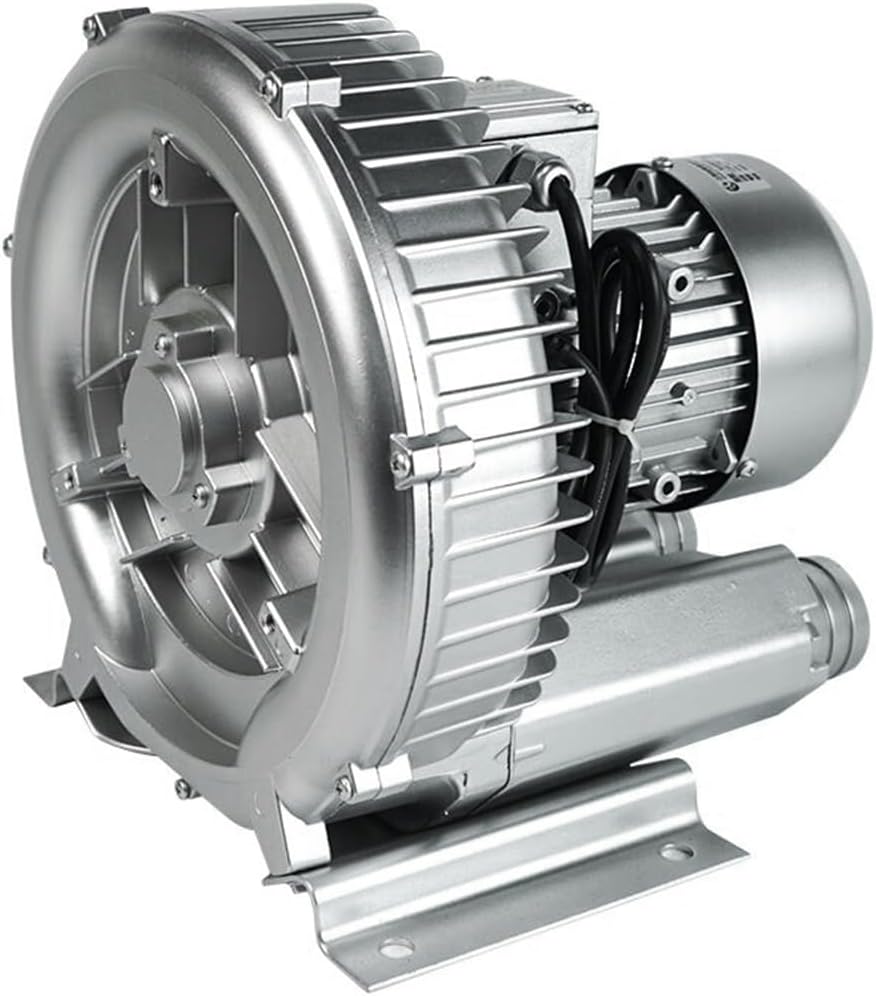

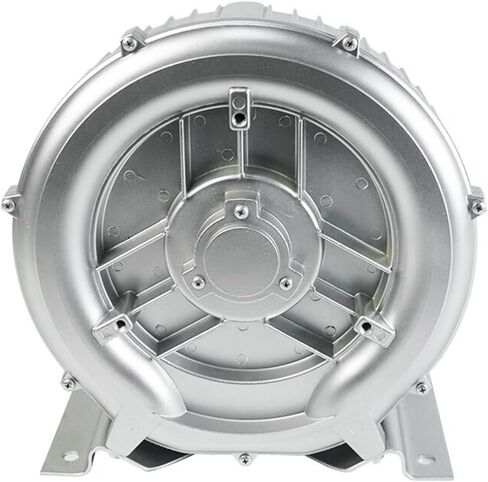

Model Number:
2LG510-7AA21 2LG5107AA21
Ideal for industrial air blowing, vacuum systems, and material handling

Key applications:
Air Supply/Exhaust: Pneumatic conveying, drying, and ventilation.
Vacuum Operations: Packaging, printing, and medical device suction.
Aeration: Wastewater treatment and aquaculture oxygenation.
Dust/Chip Removal: Industrial cleaning and CNC machine extraction.
Compact, oil-free design for continuous duty in manufacturing, labs, and environmental systems.

Specifications：
Input / Output Ports: 2" BSP
Electrical Input: 110-120V AC Single Phase
Maximum Rated Airflow (60 Hz): 255 m^3 / hr (150 CFM)
Maximum Rated Pressure (60 Hz): 200 mBar (2.9 PSI)
Maximum Rated Vacuum (60 Hz): 190 mBar (-2.75 PSI)
Net Weight: 21 kg (46.2 lbs)
Motor Power @ 60 Hz: 1.75 kW (2.3 HP)
FLA @ 110/120V: 12.95A
Noise: 70 dBA
Product Size：
Length: 335mm
Width: 325mm
Height: 340mm
Outer diameter of air duct: G2
Positive hole spacing: 270mm
Side hole distance: 140mm
