Description:

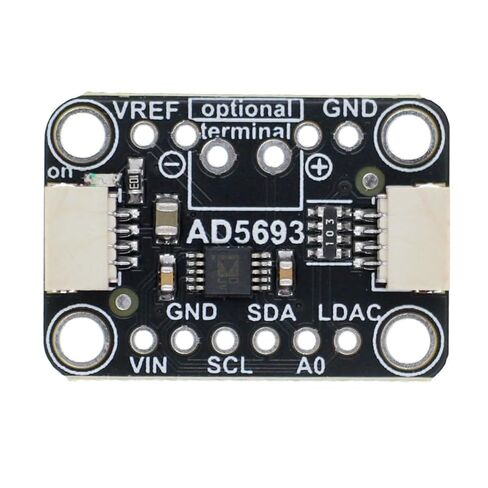

1>. The AD5693R splitter board is a 16 bit DAC with an I2C interface and a temperature compensated 2.5V internal reference, enabling compact high-precision output.

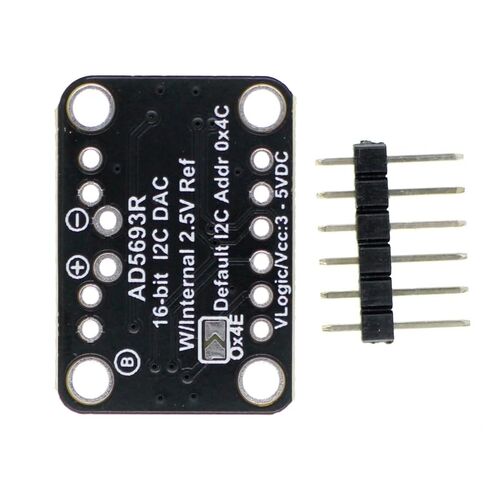

2>. We have disconnected the ADDR/A0 pin so that you can connect two DACs on a I2C bus. Simply pull up the A0 pin (or turn off the jumper on the back) to prevent conflicts.

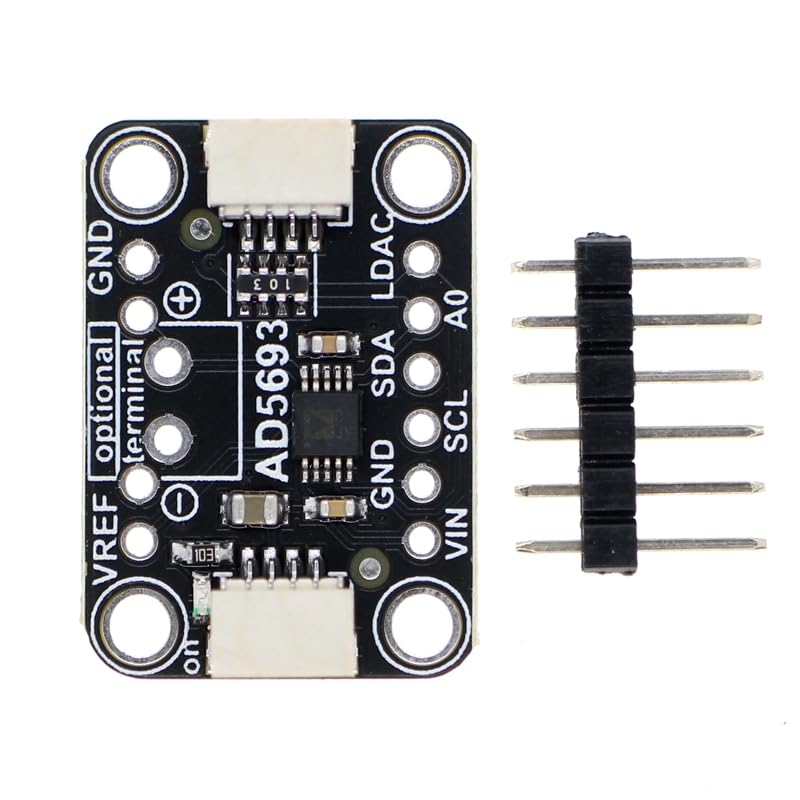

3>.It also includes a 6-pin connector for breadboards. Can be used in conjunction with 3.3V or 5V logic, and you can set the maximum output value to 2.5V or 5V (2xVref).
4>.If you use 3.3V power supply, you will be able to set the output range to 2.5V or Vin.

Feature:
1>.16Bit DAC
2>.High conversion efficiency
3>.Easy to Use

Parameter:
1>.High relative precision (INL): Maximum +/-2 LSB at 16 bits
2>.Low drift, 2.5 V reference: 2 ppm/°C (typical value)
3>.Optional range output: 2.5 V or 5 V
4>.Total unadjusted error (TUE): +/-0.06% of the maximum FSR value
5>.Misalignment error: +/-1.5 mV (maximum)
6>.Gain error: +/-0.05% of the maximum FSR value
7>.Low burr: 0.1 nV sec
8>.High driving capability: 20 mA
9>.Wide operating temperature range: -40°C to+105°C
10>.Size: 28*10mm

Package:

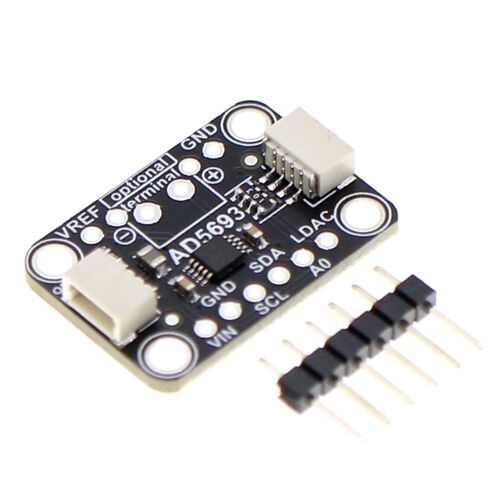

1>.1pcs AD5693R 16Bit DAC Converter
