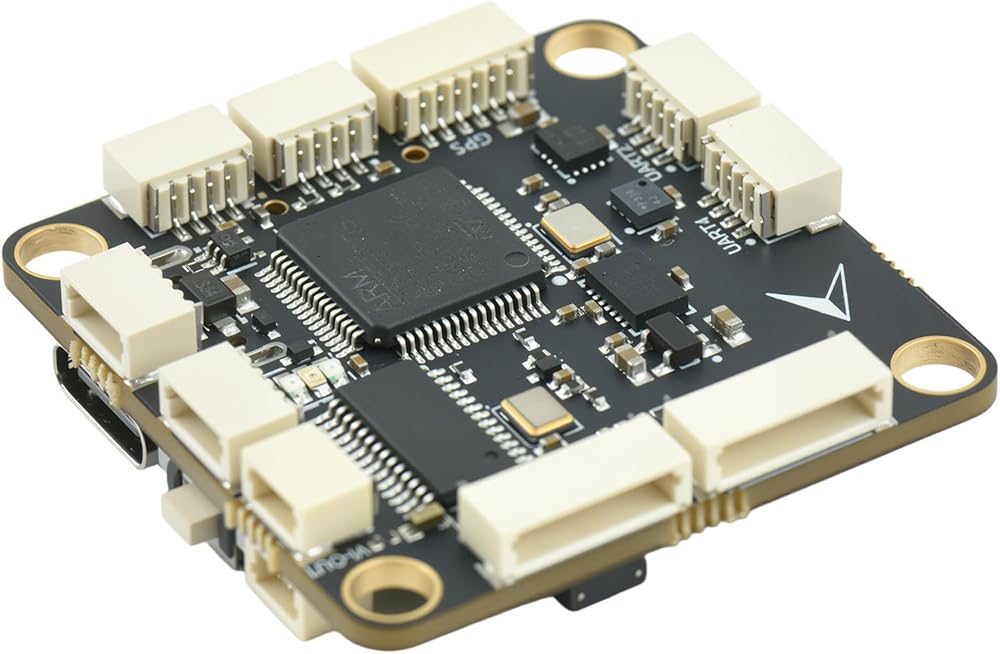

AERO SELFIE F405 30x30 FC Supports INAV/Ardupilot, BMI088 IMU, Compatible with O3/O4 Air Unit, 6 UART, 10 PWM, 5V/9V BEC, MicroSD, 2–6S LiPo Ideal for FPV Drones

KWD 15
Brand
AERO SELFIE
Category
Controllers
Weight
9 g
ColorV2.2 (BF, APM)
– 1 +

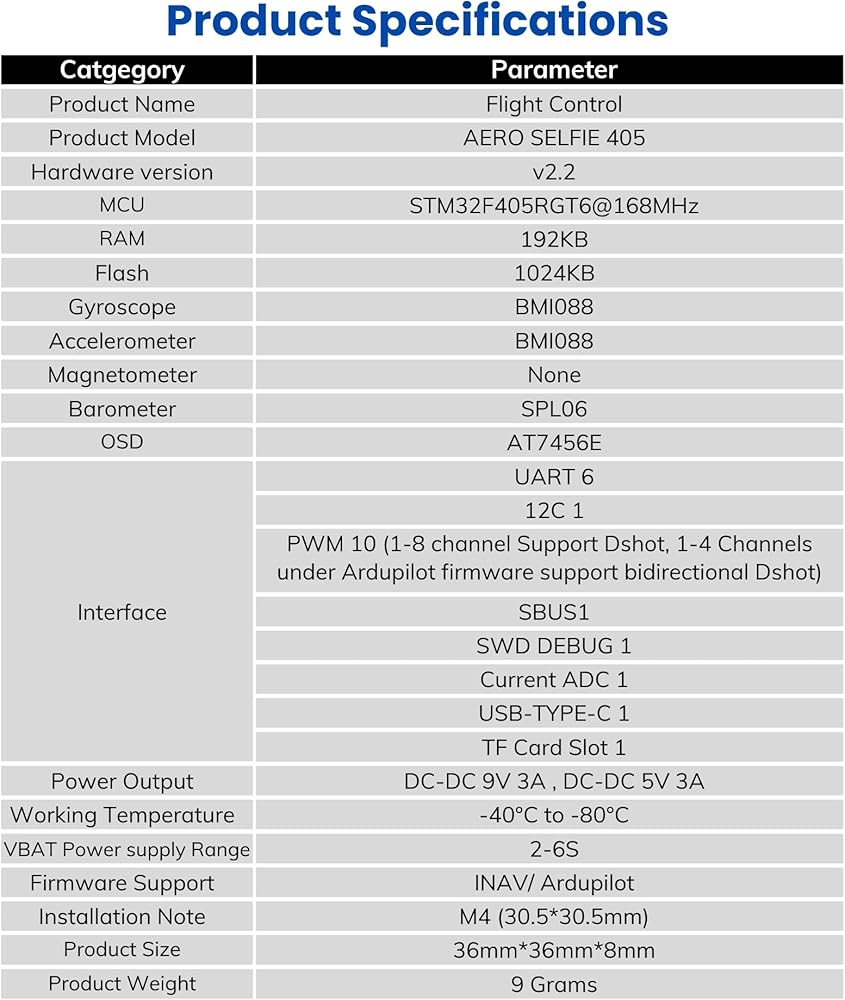

Special Features

  • High-Performance IMU Sensor: Equipped with the Bosch BMI088 6-axis IMU for exceptional stability and vibration resistance, ensuring precise flight control ideal for FPV and long-range applications.

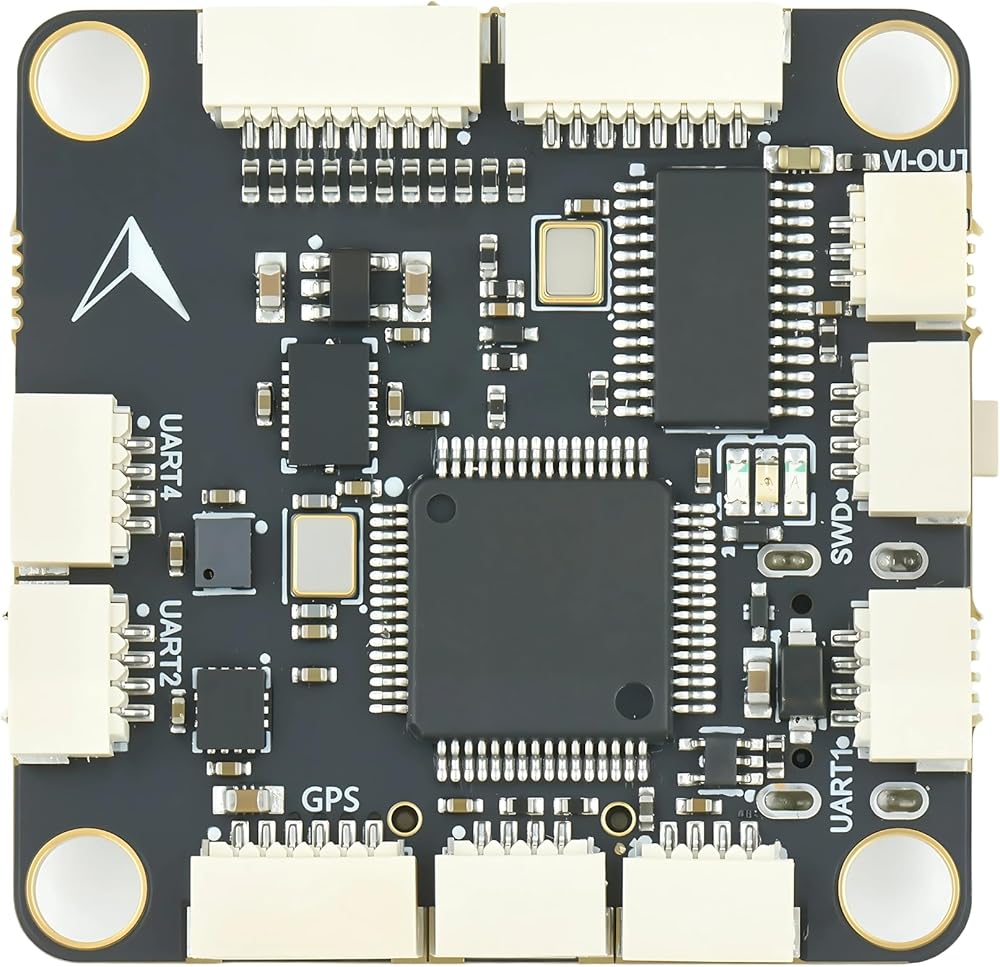

  • Robust Processing Power: Features an STM32F405 processor running at 168MHz with 1MB flash memory, delivering superior performance for advanced flight dynamics and control.

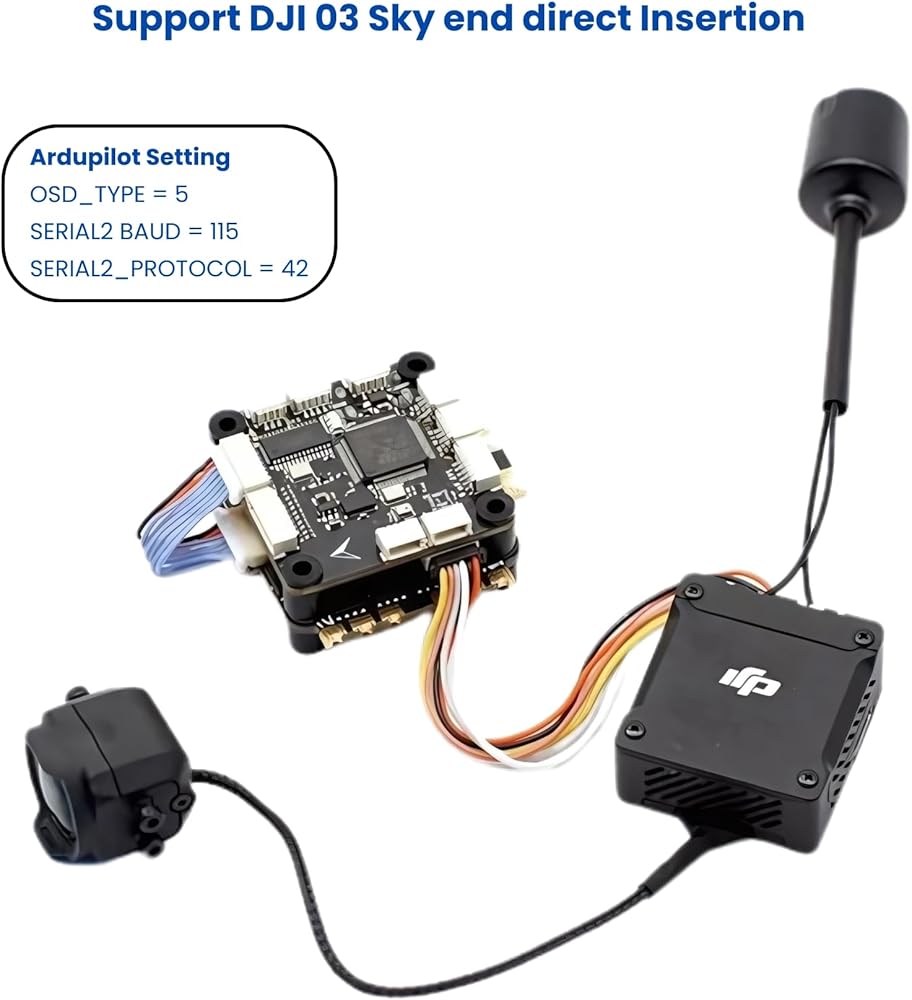

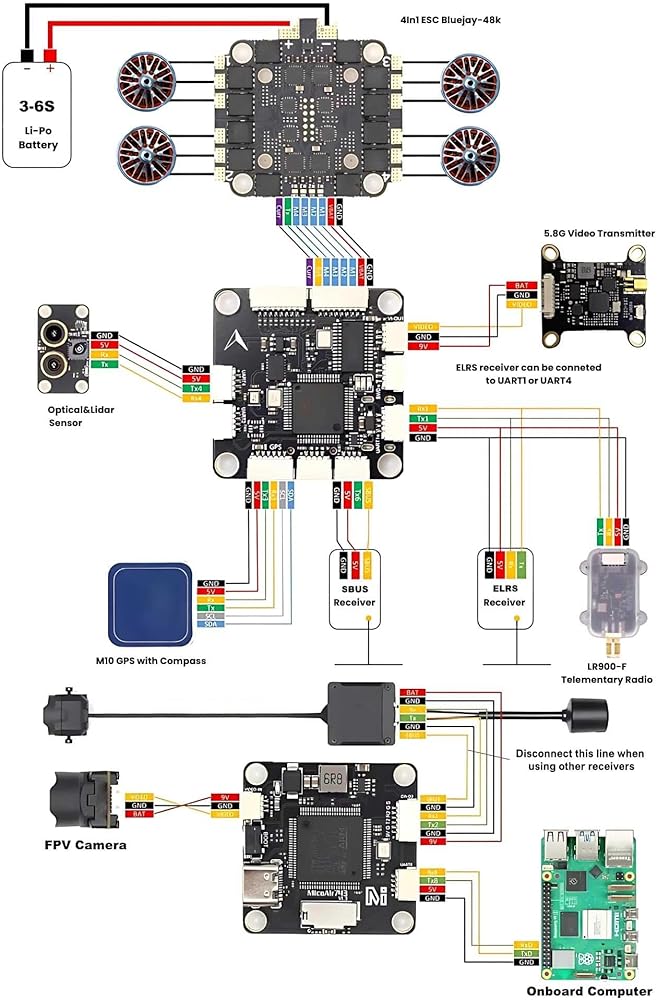

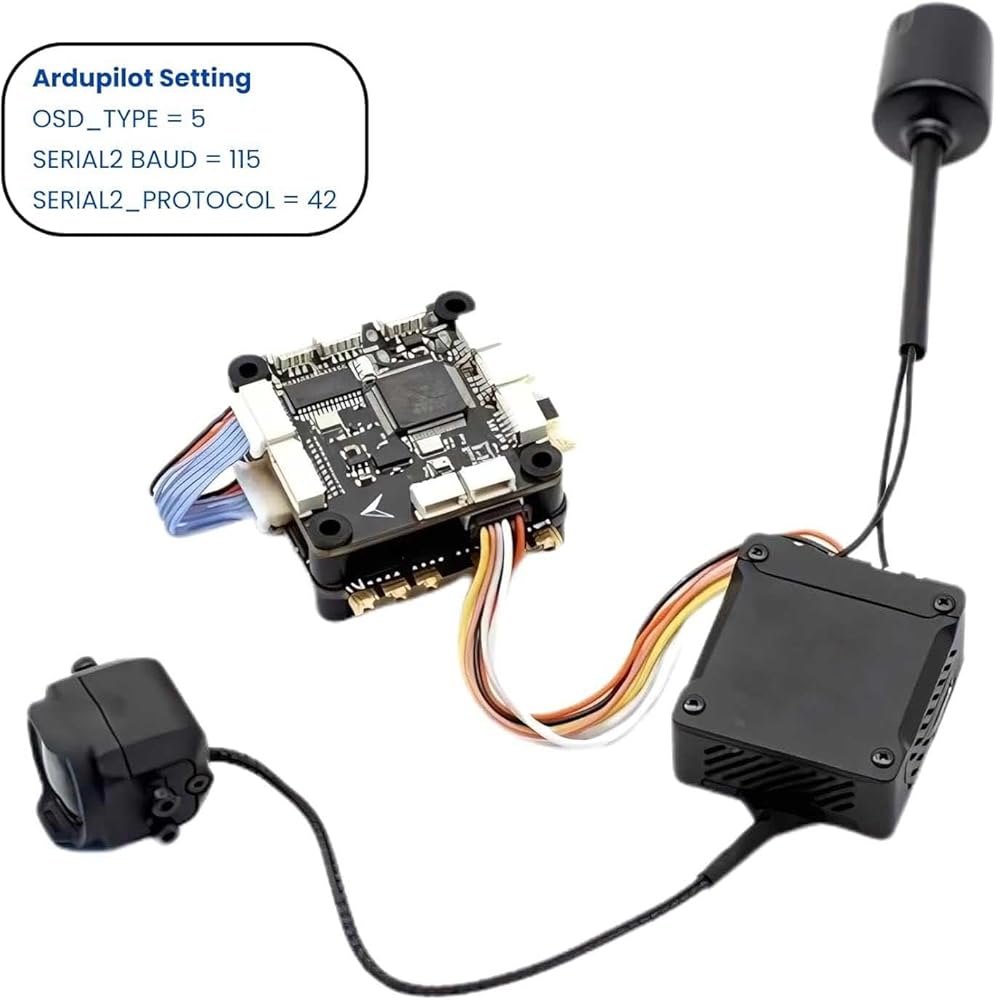

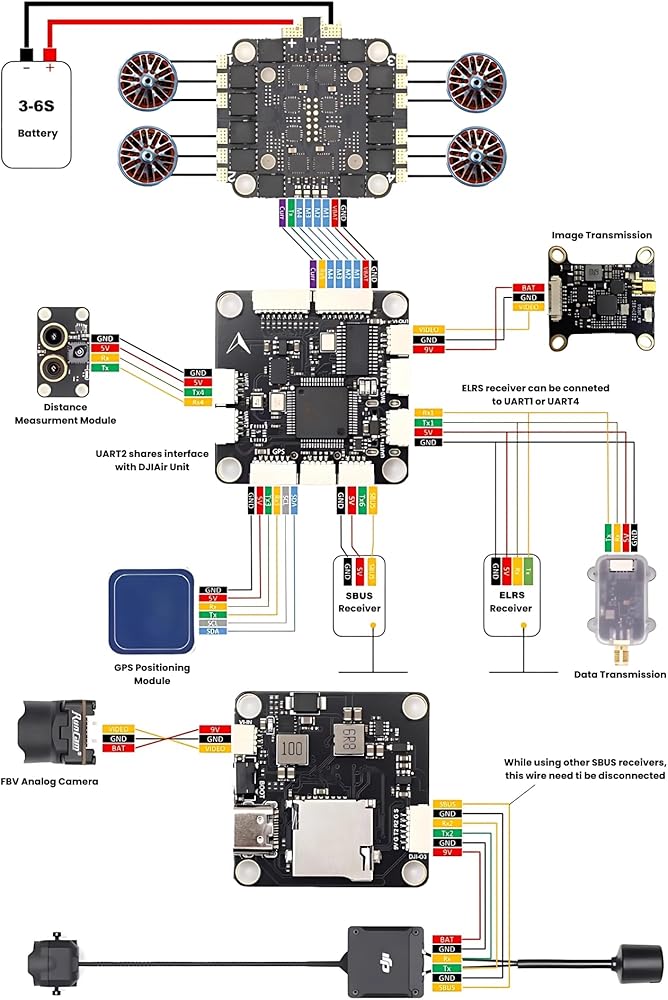

  • Versatile Connectivity Options: Offers 6 UART ports and 10 PWM outputs, supporting a wide range of peripherals, including DJI O3 Air Unit, GPS, and telemetry systems.
  • Dual DC-DC BEC Outputs: Provides 5V 3A and 9V 3A power outputs to efficiently power receivers, cameras, and video transmitters without compromising performance.

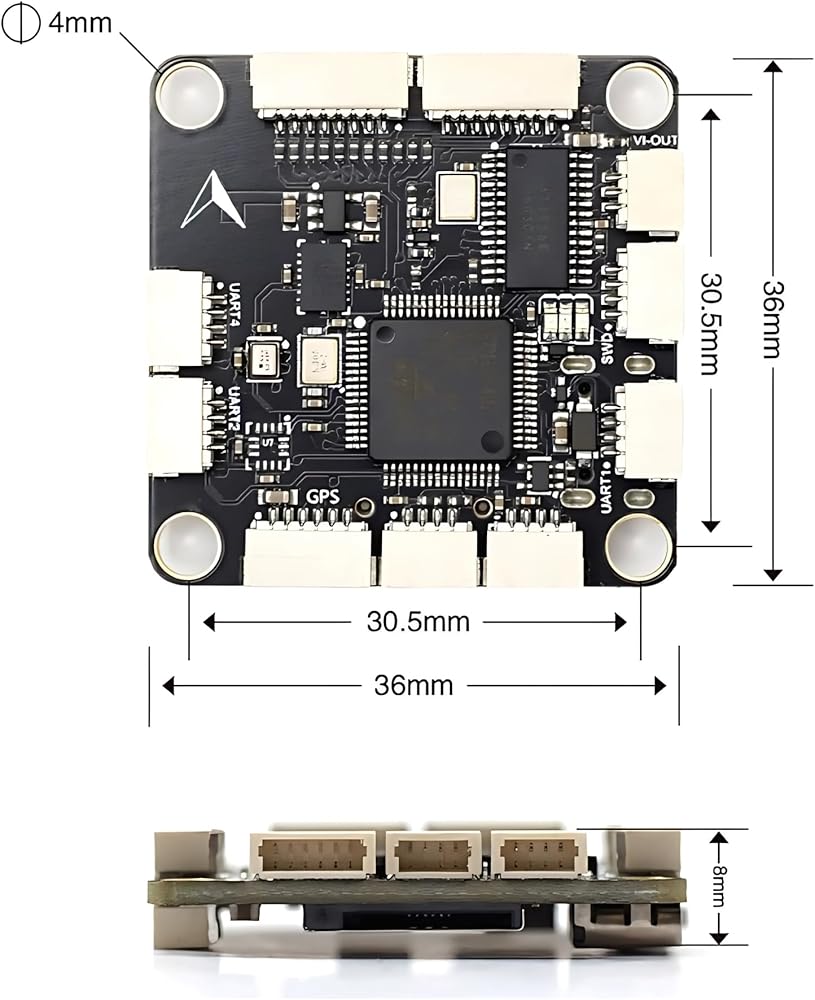

  • Compact and Durable Design: With dimensions of 36mm x 36mm x 8mm and weighing just 9g, this flight controller is lightweight and designed for reliable operation in extreme temperatures (-40°C to 80°C).

Description

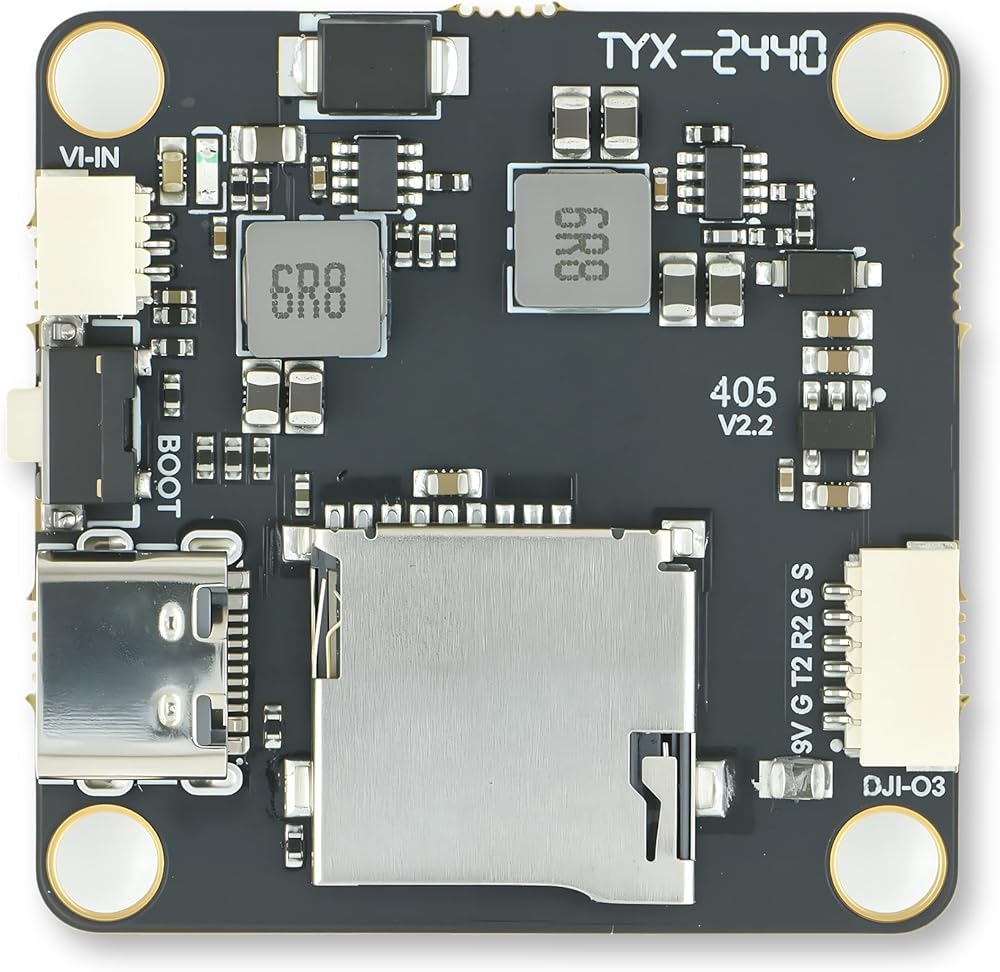

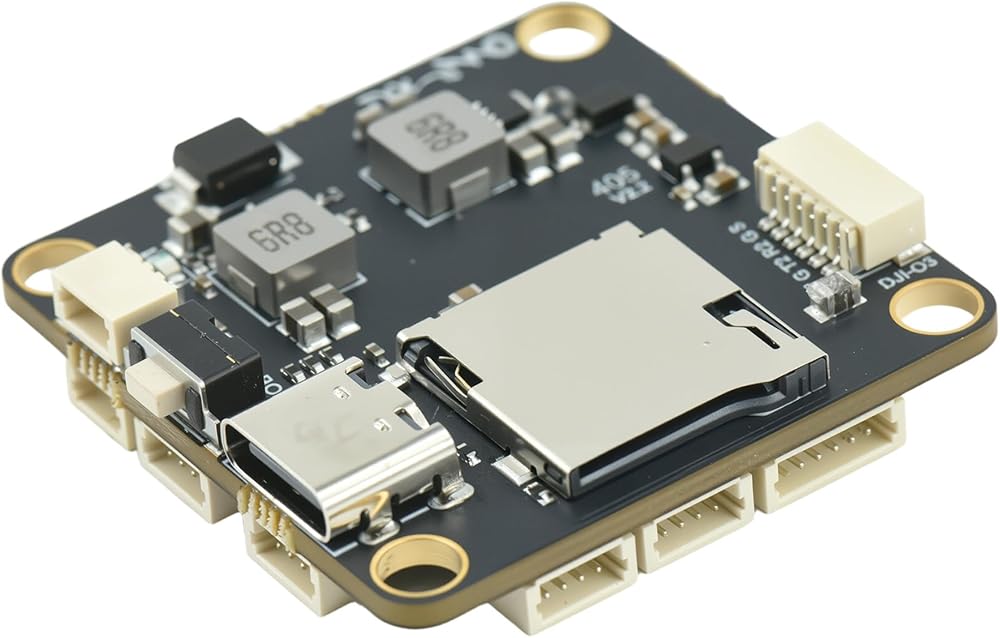

The AERO SELFIE F405 v2 is a high-performance, cost-effective flight controller designed for FPV and long-range drones, supporting Ardupilot and INAV firmware. Powered by the STM32F405 processor and equipped with the advanced BMI088 IMU sensor from Bosch, it delivers exceptional stability, vibration resistance, and precise control. With an SPL06 barometer, AT7456E OSD chip, 6 UART ports, 10 PWM outputs, dual BEC power outputs (5V 3A, 9V 3A), and MicroSD slot, it ensures seamless connectivity and reliable power for peripherals. Compact at 36mm x 36mm x 8mm and weighing only 9g, the AERO SELFIE F405 v2 is optimized for diverse drone setups, providing top performance and versatility in a lightweight, durable design.
