Special Features

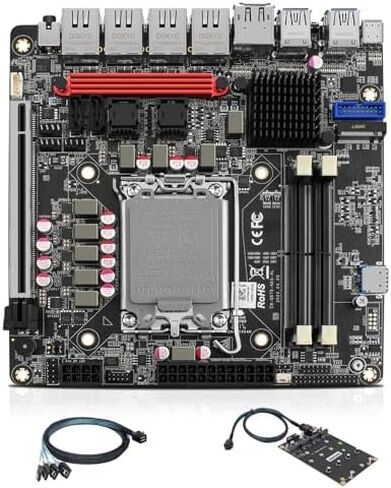

LGA1700 Socket: Q670 6-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 6.7" x 6.7" mini-ITX form factor, basic TDP is 65W, up to 125W, and it supports Windows 10/11, Linux
4 i226 2.5GBE Ports: This Q670 4 LAN NAS motherboard has 1* i226-LM 2.5GbE port (LAN1) and 3* i226-V 2.5GbE ports (LAN2/LAN3/LAN4) for use in professional network security firewall appliances. Besides, i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system
Large Capacity: 2* SO-DIMM DDR5 slots (non-ECC), Default support 5600MHz backward compatible, RAM supports up to 64GB, 6* SATA3.0 (SATA1-SATA2 is native, the other 4* SATA3.0 can be extended by the SFF8643 adapter cable), 6* M.2 NVMe (1* M.2 NVMe 2280/22110 (PCle4.0 x4), 1* M.2 NVMe 2280 (PCle4.0 x4), and the other 4* M.2 NVMe (PCIe3.0 x1) can be extended by the SFF8643 4NVMe adapter backplane), stable and ultra-fast transfer speed
Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4a ports at 4K@60Hz, and it has PCIe5.0 x16 slot which can be inserted into the expansion of network cards, graphics cards, etc. In addition, resistor jumping to support splitting it into 2 x8 signals to support PCl-E protocol expansion cards
High Productivity: 1* Type-C (USB3.2 Gen2 * 2 20Gbps rate, supports 15W power supply, doesn't support display output), 4* USB 3.0 (Gen2 10Gbps), 1* 2-in-1 audio interface, and 1* on-board M.2 E Key slot (supports PCIe signaling and CNVI protocol wireless NIC)
NOTE: The Q670 motherboard is compatible with LGA1700 series processors cooling fan and requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up. For user manual, please leave a msg to the seller.

Description

Notes:

1. This Q670 6-Bay NAS 4* 2.5G LAN motherboard supports vPro function, but this vPro function requires a combination of motherboard chip, BIOS, NIC chip and CPU.
For motherboard chip, it requires Q670 & W680;
For BIOS, it requires special settings;
For NIC chip, it requires i226-LM;
For CPU, it should be i5 1x500 or above, and Integrated graphics is required.

2. The default memory support for the 12th Gen. processor is 4800Mhz only, and the default support for the i7 13th Gen. processor and above is 5600Mhz.

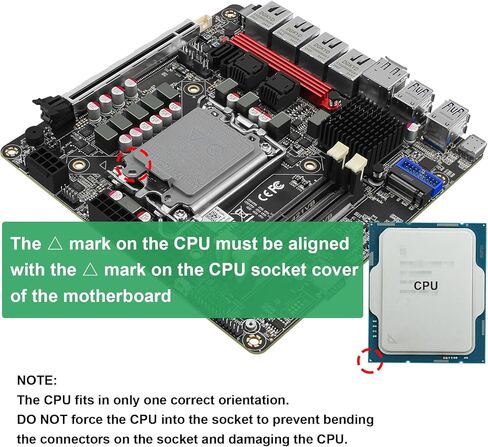

3. Cooling Fan is compatible with LGA1700 coolers.
