Tip: KVM USB port, only can recognize the mouse and keyboard, but can't be recognized hard disk and USB flash disk etc.

Specification:
1.Support video resolution:1920x1080P@60Hz, 3840x2160P@30Hz, compatible backwards.
2.Optical interface: single LC.
3.Suitable fiber: Universal single-mode and multi-mode.
4.Wavelength: 1310nm/1270nm
5.Transmission distance: Single-mode up to 0.62Miles(10Km). Multi-mode up to 1000 Feet (300m).
6.Compliance with HDMI2.0 and HDMI1.4 standard.

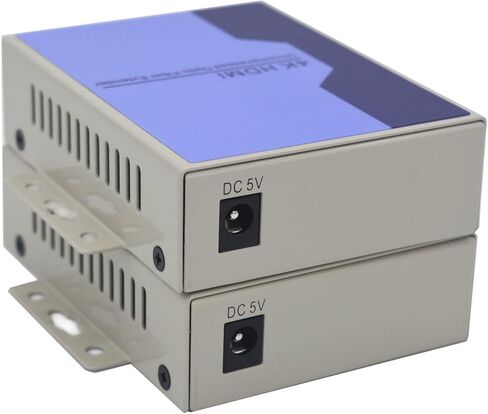

7.Power supply: AC100V~240V, DC5V2A.
8.Size: 125mm(L) x 90mm (W) x25mm (H)
9.Weight: 0.7Kg/set (with package)
10.Mean Time Between Failure (MTBF): ≥100,000 hours

Working environment:
1.Working temperature: -20 ℃ -50 ℃
2.Humidity range: 0-95%,
3.Storage temperature: -40 ℃ -80 ℃

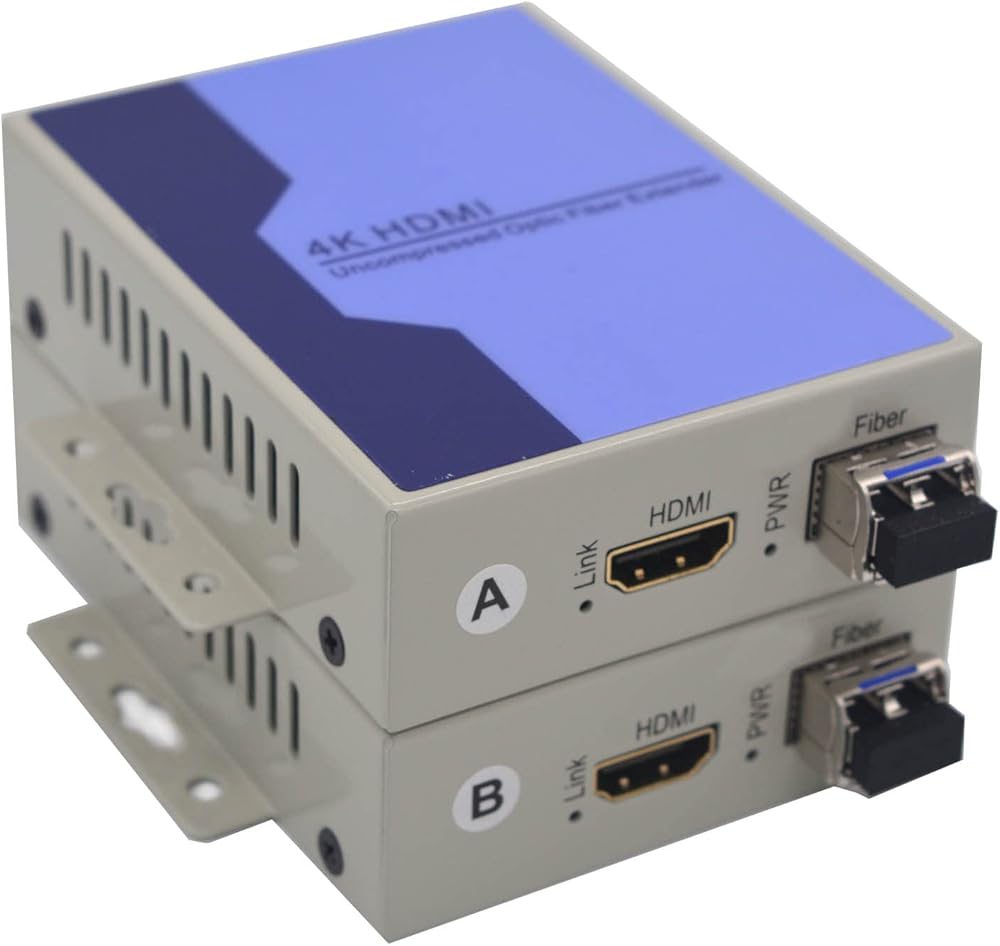

LED Indicated lights:
Link light: TX: turn on when connect to video. RX: when connect to fiber optic.
PWR light: Power light, Turn on when connect to power. Turn off when no power.

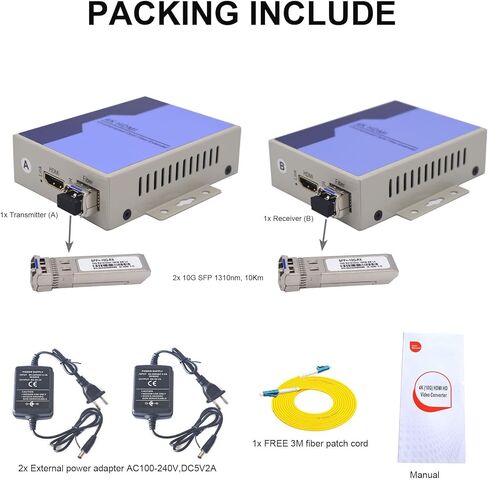

Package include.
1 x 4K HDMI Transmitter.
1 x 4K HDMI Receiver.
2 x 10Gbps SFP optical module.
1 x 3M LC/LC fiber patch cord
2 x External power adapter (US standard)
1 x Manual.
