Home / ACEBOTT / Single Board Computers
Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait Easy-Plug ESP32 Expansion Board, ESP32-IO Sensor Expansion Board, for ESP32 Development Board (QA017) in Kuwait

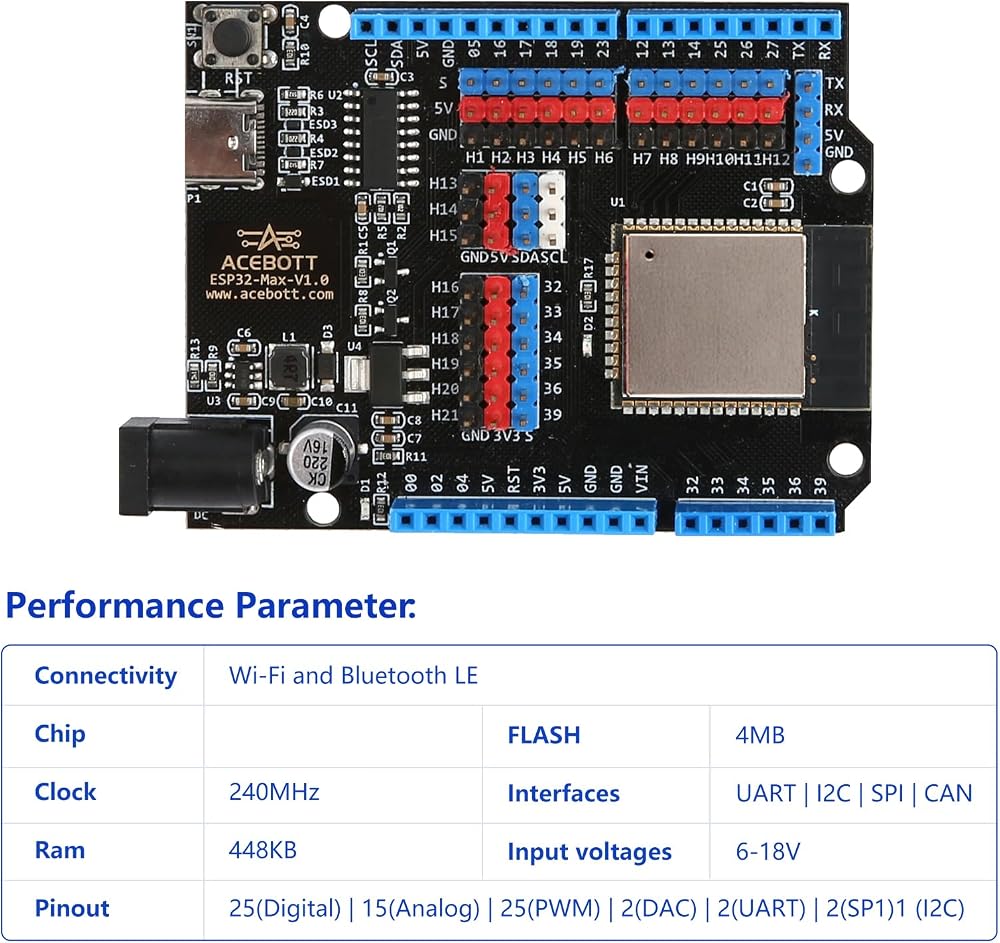

ESP32 Development Board Max V1.0

KWD 6.500
ColorESP32 Development Board Max V1.0
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • ACEBOTT-ESP32-Shield-V1.0 is an expansion board for the ESP32-Max-V3.0 controller board. The expansion board uses a standardized connection method, which simplifies the hardware connection process, reduces the user's wiring work, reduces the possibility of errors, and better helps developers improve project development efficiency

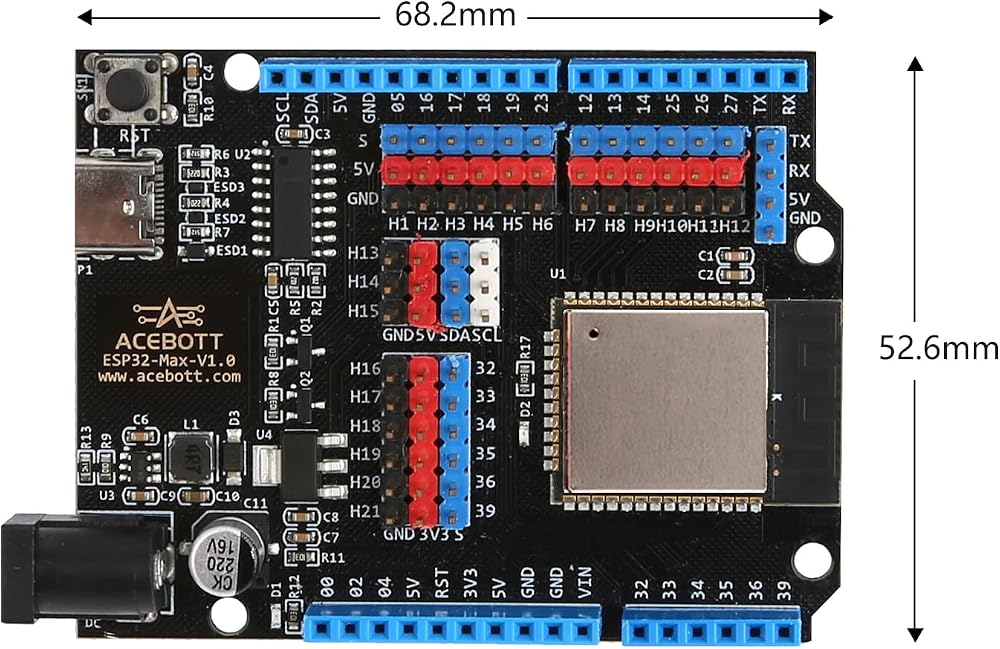

  • ESP32-IO sensor expansion board size: 68.1mm*52.1mm; weight: 22.1g
  • ESP32 expansion board composition description: Eight 3-pin digital pins for connecting 5V sensors/modules Six 3-pin analog pins, four of which are connected to 5V sensors/modules and two are connected to 3.3V sensors/modules One 4-pin digital pin (two signal pins, one power supply, and one GND) One 4-pin digital pin (three signal pins and one GND) Two rows with ESP32-Max-V3.0 pin interfaces Two I2C pins Two servo interfaces One serial port 1 power interface
  • It comes fully assembled, no soldering required；1 power interface (maximum input voltage 15V output current 3A); operating temperature 0~70℃
  • What You Get: 1 ACEBOTT ESP32 expansion board

Description

ESP32-Shield-V1.0 expansion board for the ESP32-Max-V3.0 controller board
