50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait 50PCS Micro Limit Switch Normally Open Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Curved Handle) in Kuwait

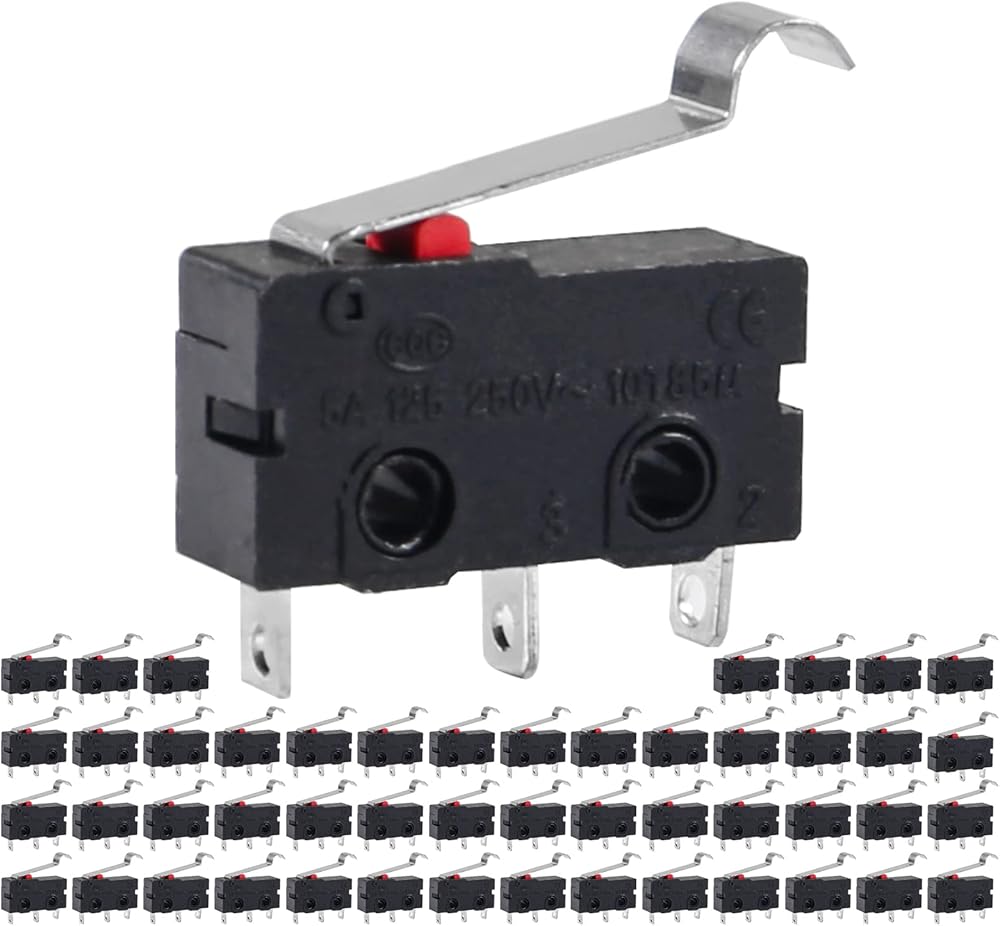

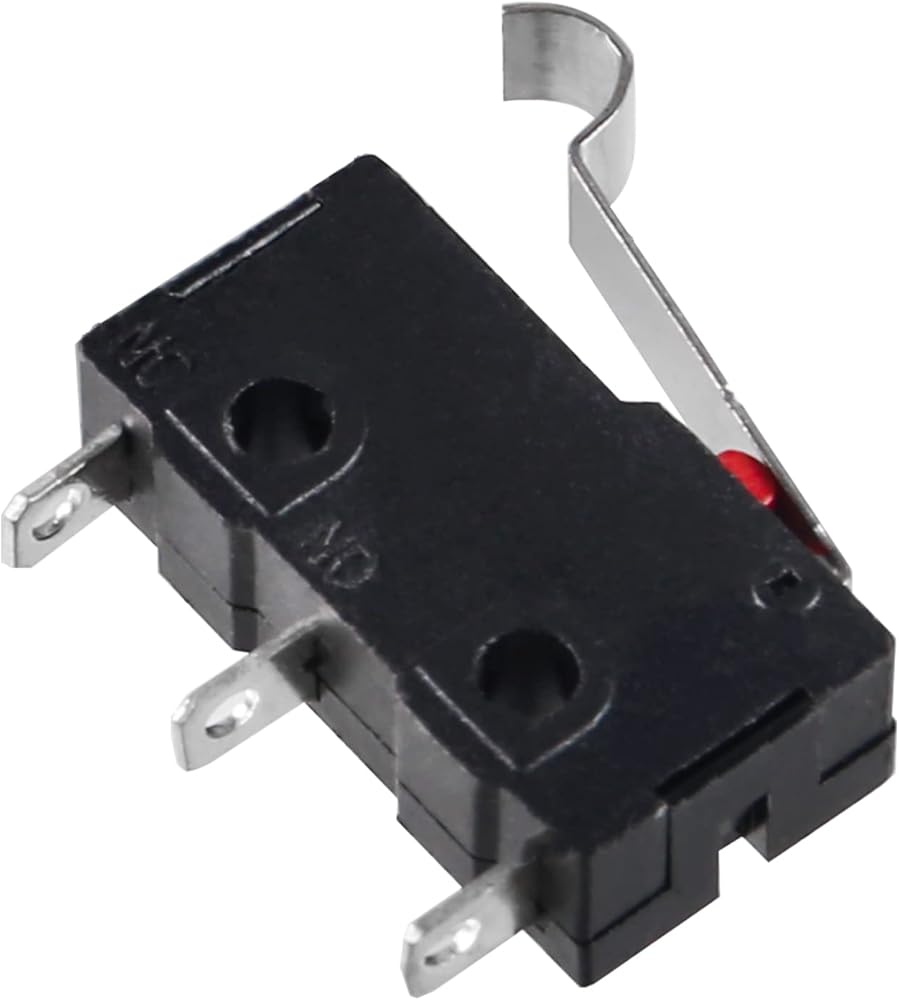

50PCS Micro Limit Switch Normally Open and Close Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch with Roller Lever Arm Black (with Balls)

KWD 5
Brand
Diitao
Weight
10 g
Sizewith Balls
– 1 +

Special Features

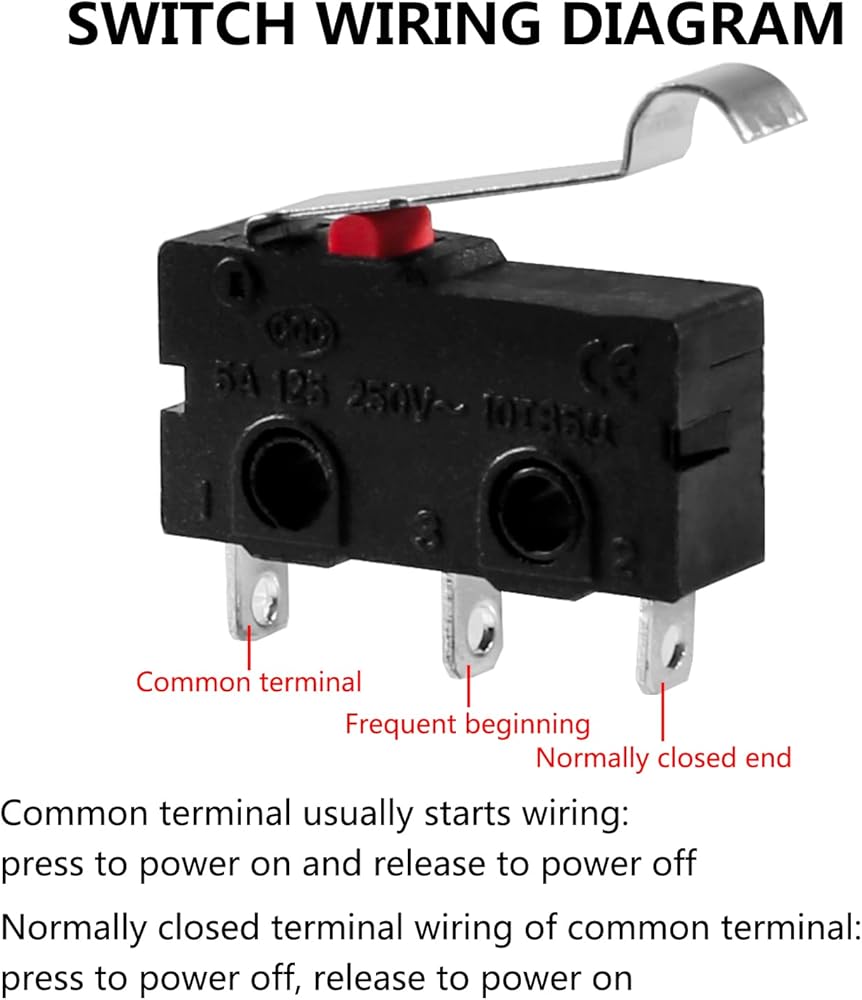

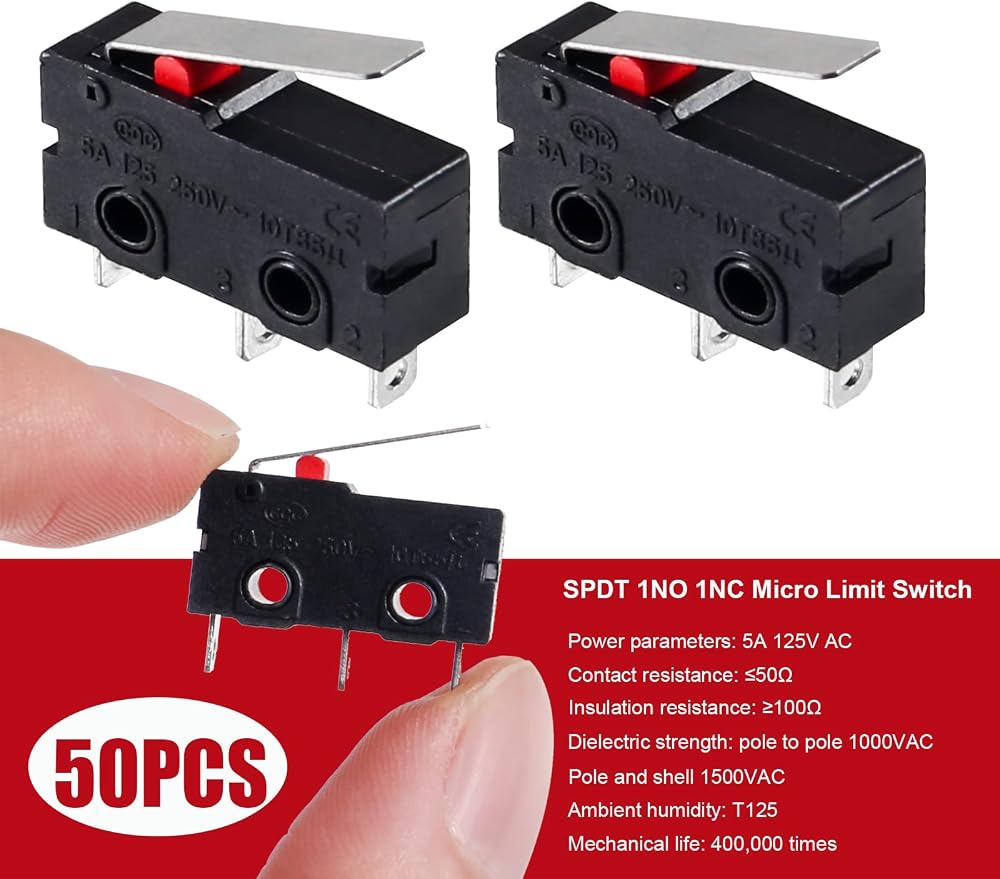

  • Limit Switch Voltage & Current:AC 250V 5A;Poles:SPDT;Contact Type:1NO + 1NC;Terminals:3 Terminal.
  • Actuator Action:Momentary;Actuator type:Hinge Lever;Configuration:1NO,1NC(SPDT)Terminals;

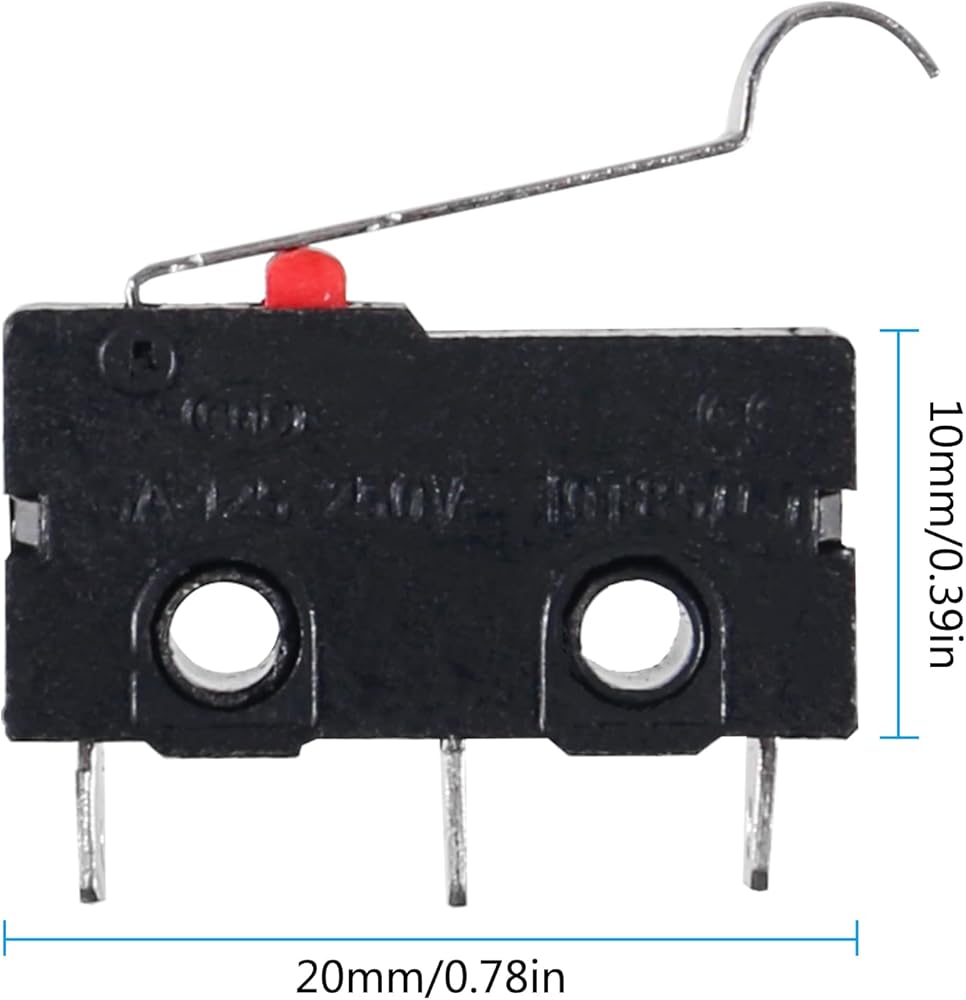

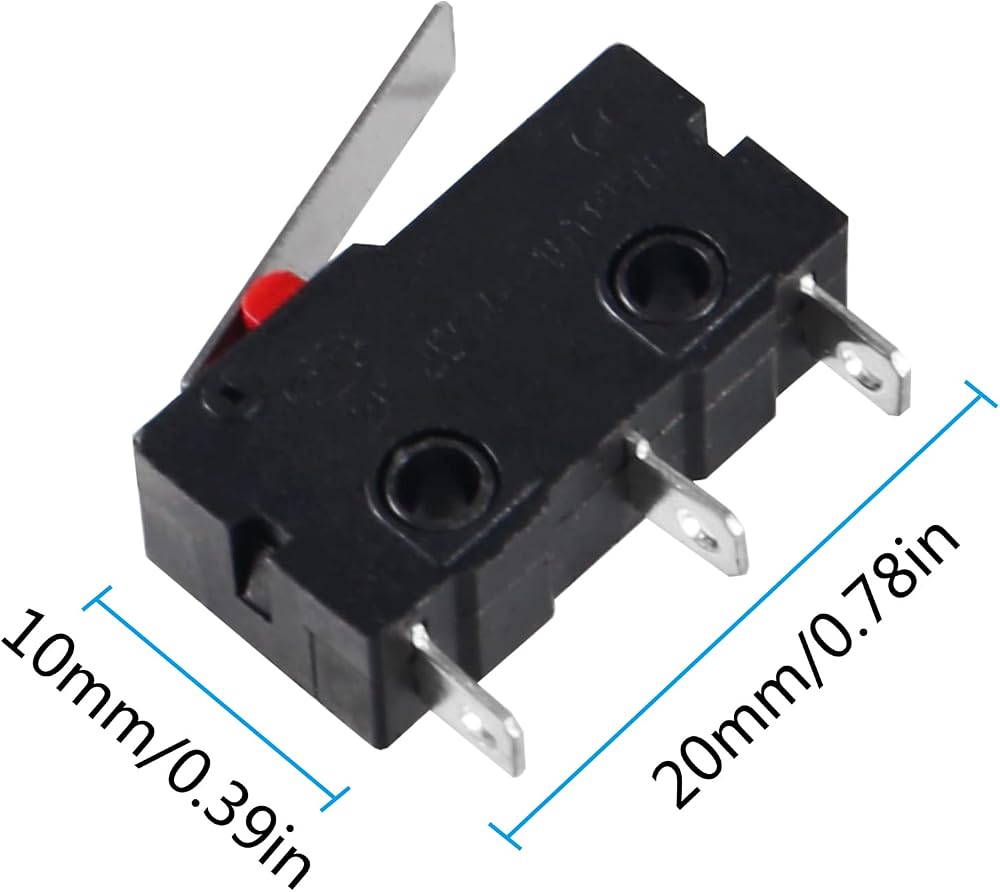

  • Overall Size:20 x 6.5 x 13.5mm / 0.79" x 0.26" x 0.53" (L*W*H);Mounting Hole Dia.:2mm/0.08";Mounting Hole Spacing:9.5mm/0.37";Pin Pitch 7.2 x 9mm/0.28" x 0.35".
  • Application: Widely used in automotive electronic products, toys, household appliances, audio, communication equipment, testing instruments, power tools and so on.

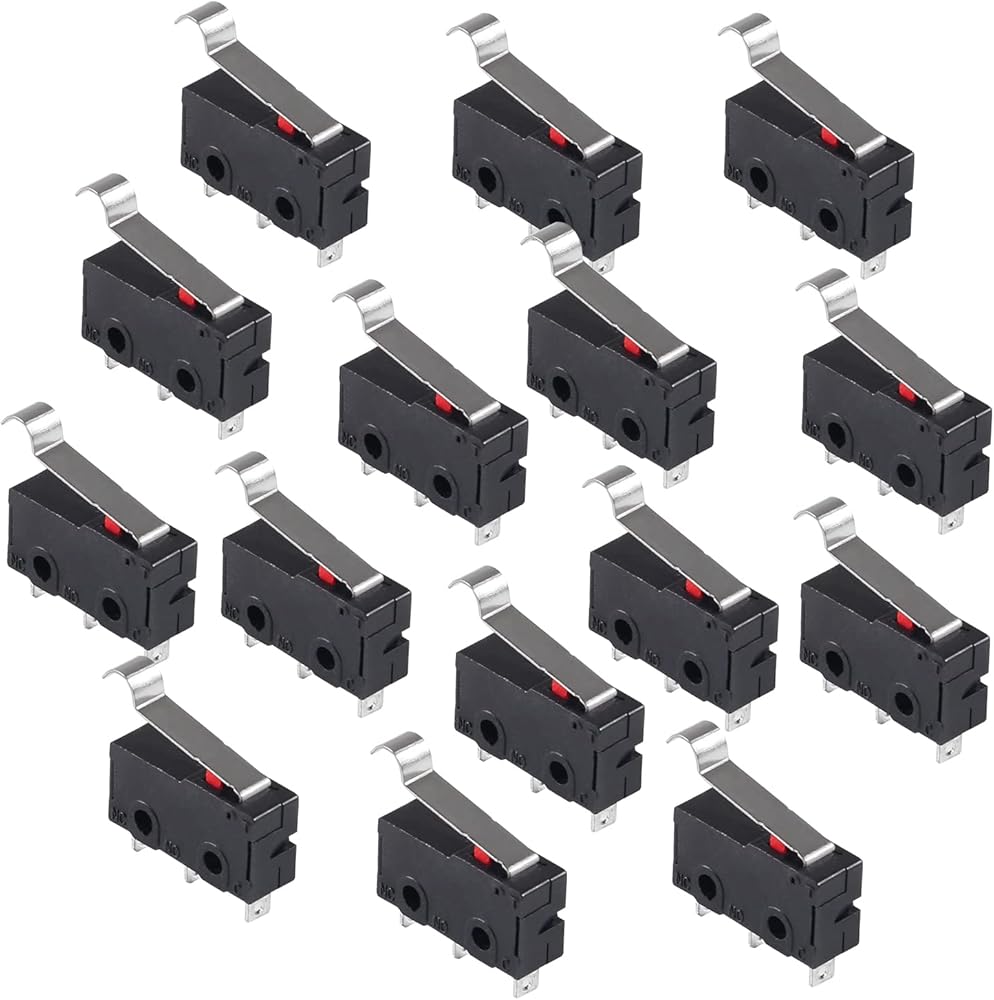

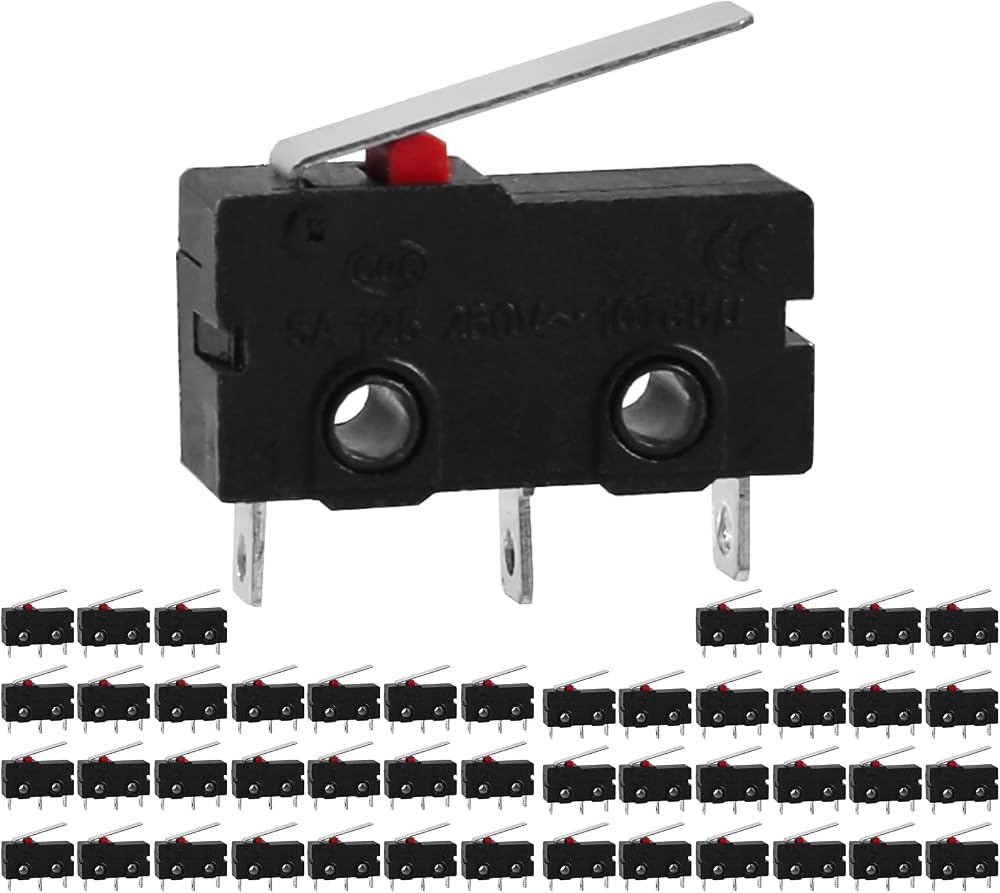

  • Package Content : 50 x Micro Switch.

Description

Feature：

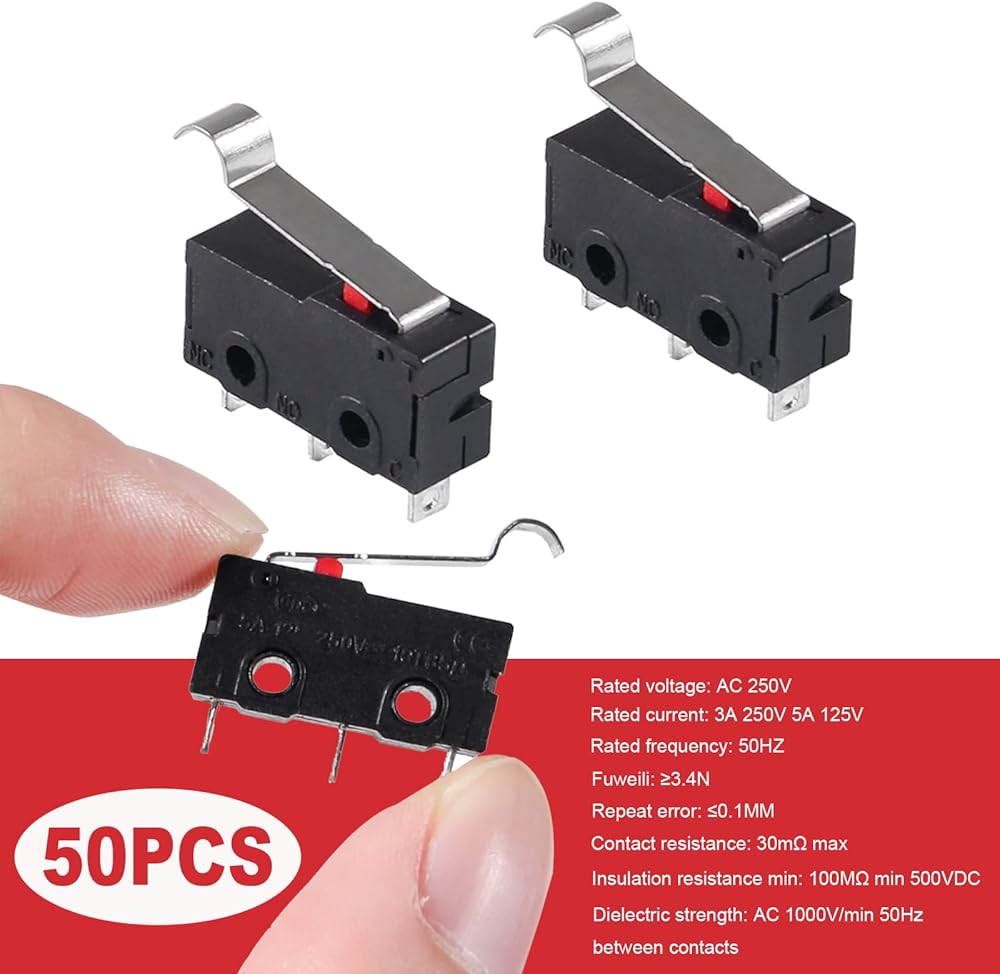

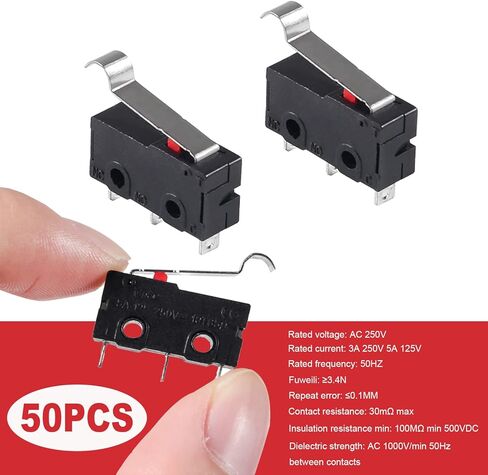

Rated voltage: AC 250V
Rated current: 3A 250V 5A 125V
Rated frequency: 50HZ
Fuweili: ≥3.4N
Repeat error: ≤0.1MM

Contact resistance: 30mΩ max
Insulation resistance min: 100MΩ min 500VDC
Dielectric strength: AC 1000V/min 50Hz between contacts
(VAC) AC 1500v/min 50Hz between terminal and ground

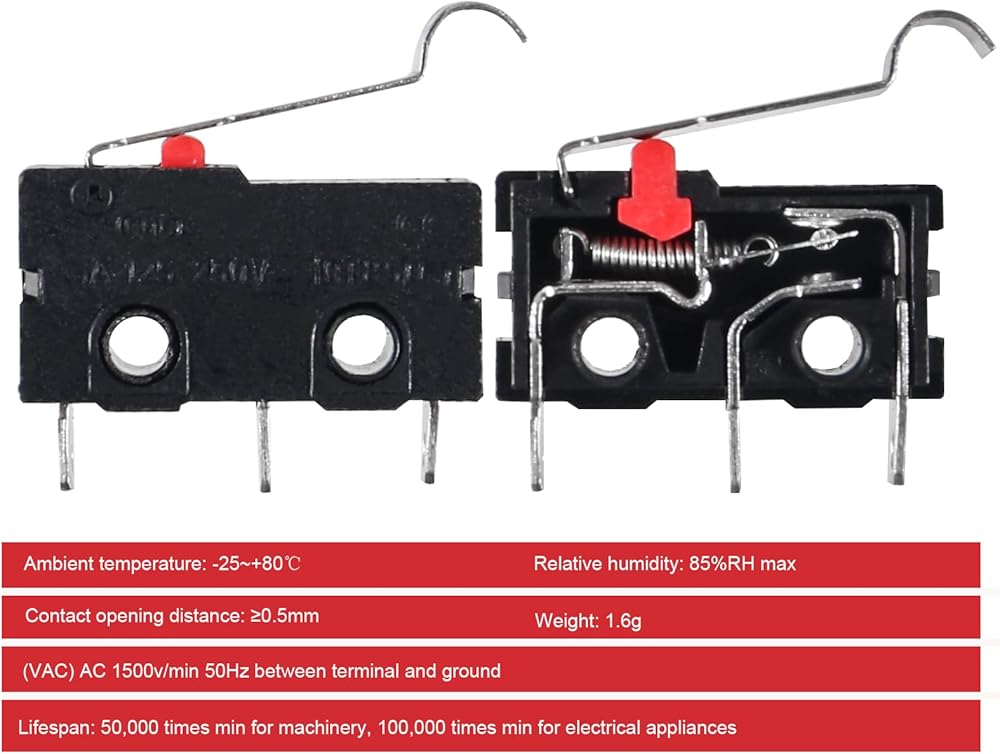

Ambient temperature: -25~+80℃
Relative humidity: 85%RH max
Lifespan: 50,000 times min for machinery, 100,000 times min for electrical appliances
Contact opening distance: ≥0.5mm
Weight: 1.6g

The instantaneous switch has small size, high sensitivity and fast connection or disconnection.

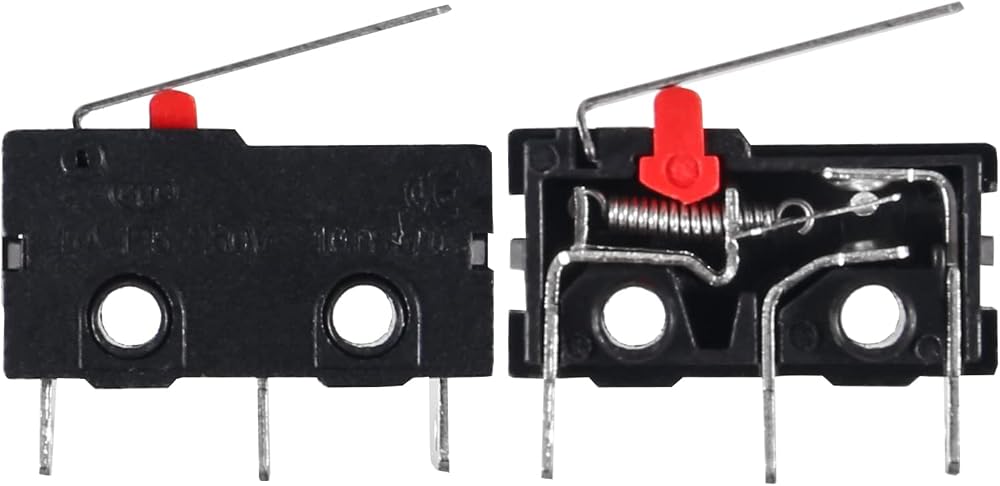

Microswitches work with external mechanical force transfer elements (through pins, buttons, rollers, etc.) and are designed to control the movement of mechanical parts. Used in automotive electronic products, communication equipment, test instruments, audio, toys and other equipment.

Package included: 50 x Micro switches
