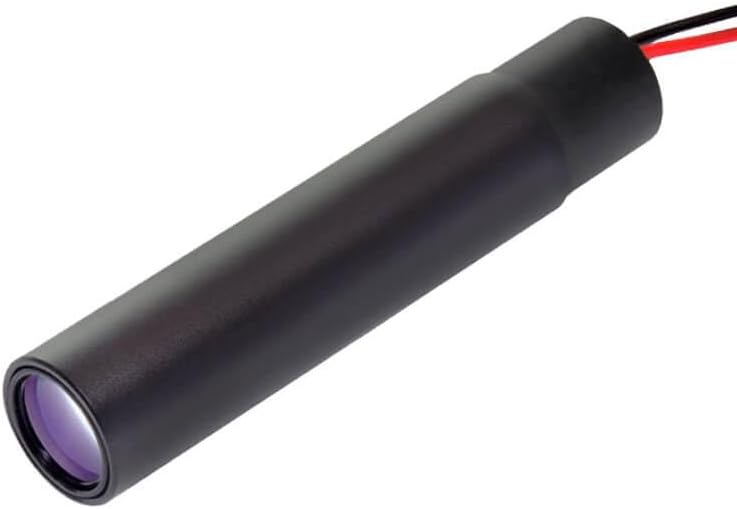

Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait Laser Module VLM-635-17 LPT (Circular Laser Module, Ultra-Far Range Red Laser, Class II) in Kuwait

Ultra-Far Range Round Dot Laser Module VLM-635-17 LPT, for Long-Range Alignment, Positioning, Measuring, and Pointing. Wavelength: 635nm, Divergence <0.1 mrad, Ø13×50 mm, Laser Power Class 2

KWD 37
Brand
Quarton
Weight
15 g
– 1 +

Special Features

  • Circular Laser Module. Ultra-Far Range Round Dot Laser for long range alignment, positioning, measuring, survey instrument and pointing. Perfect Round Dot less than 3/4 inch at 100 yards / 22mm at 100 meters.
  • Wave length: 635±10nm. Output power: Class II – less than 1mW. 3~5 VDC operation. Beam Divergence (Half Angle) : <0.1 mRad. Dimensions: D13 x 50 mm (D0.511 x 1.96 inches).
  • Diffraction Limited Lens to achieve a near-collimated Laser system, which can be sighted Ultra-Far distance range.
  • Anodized aluminum housing provide insulated housing. This module has integrated optic, laser diode, and APC driver circuit.
  • APC Driver Circuit enables the Laser output power safe and constant. Glass-base hybrid lens provides Ultra-Far range Round Dot Laser. Please notice: laser modules are not supposed to be sold with any power source, power supply, or wiring terminals. Because modules are simply components, and it means that you have to wire it to your own power source by yourself.

Description

SPECIFICATION:
Dimensions: Ф13 x 50 mm (Ф0.511" x 1.96")
3~5 VDC operation.
Operating current (Iop): Output aperture: 8mm.
Beam shape: Round.

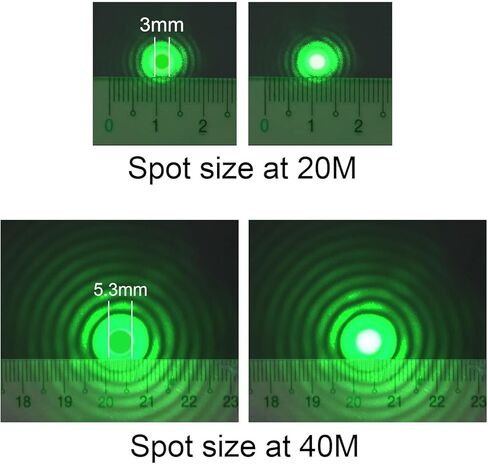

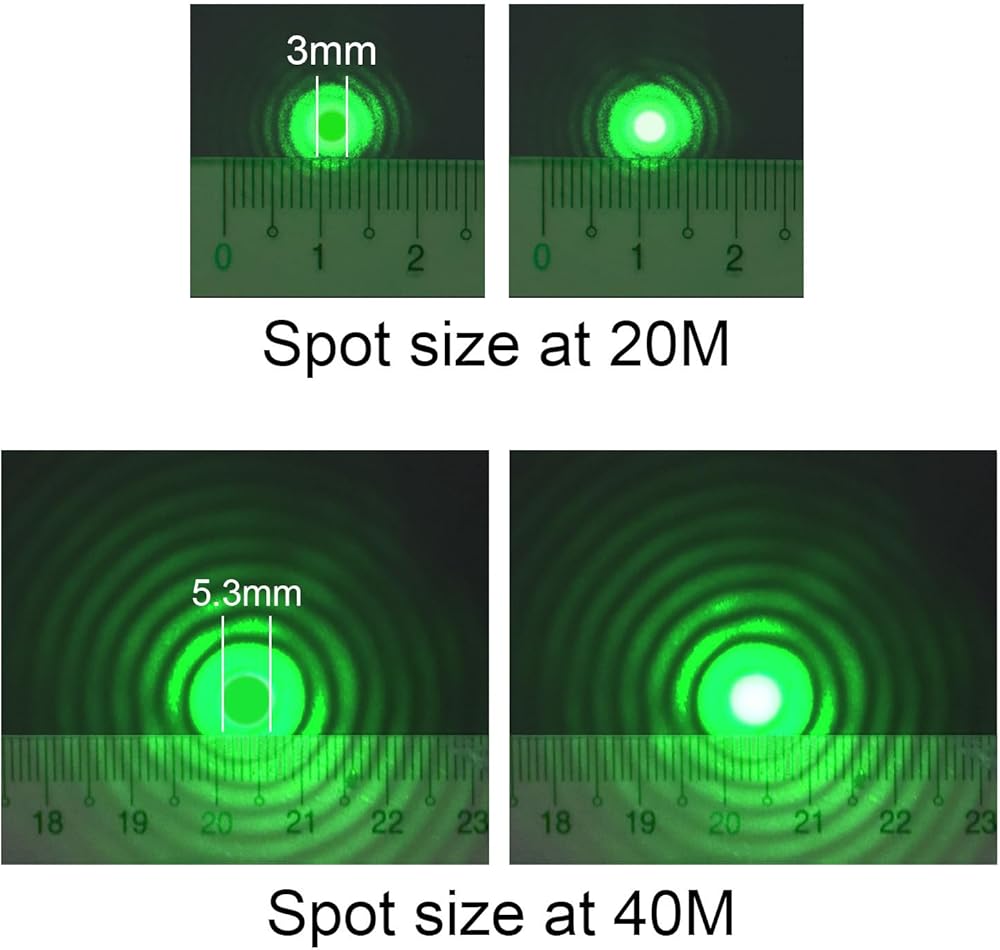

Beam Divergence: Spot size at 130 ft.(40 meters):
Spot size at 328 ft.(100 meters):
Connection type: Lead wire.
Wire Type : 1007-26AWG.
Cable length : 115±15mm

APPLICATIONS:
Red round dot laser - Glass aspherical lens with long back focus length function to generate smallest spot at long distance.
Ideal use for long distance alignment position, targeting, professional laser sight and security monitor.
