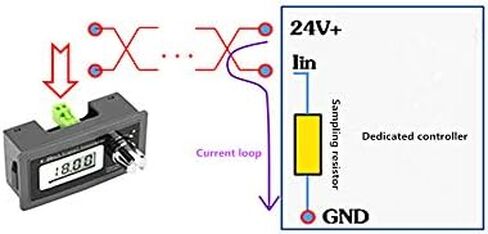

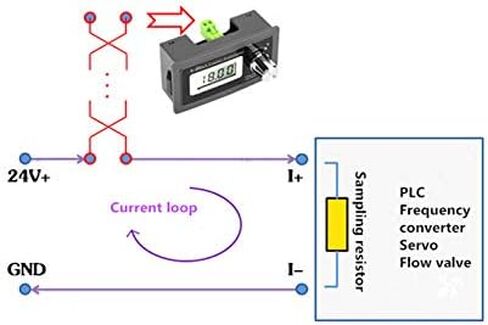

No-source two-wire 4-20mA current loop, wiring compatible with 2, 3, 4 wire system
Digital rotary encoder adjustment (the use of potentiometer, easily affected by temperature and humidity, the resistance value will change).
Coarse and fine adjustment modes can be set for quick and accurate adjustment

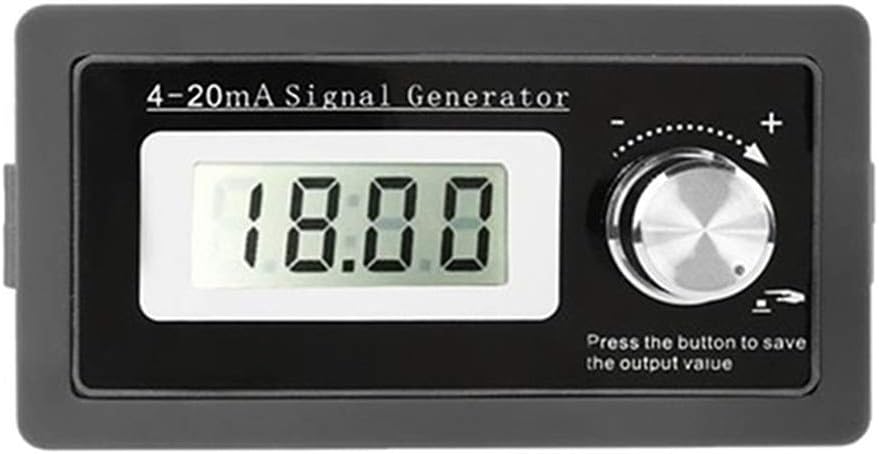

Display mode: Actual current/100.0%/50.0Hz, LCD (with backlight).
Can be set to automatically store output values: automatic / manual
The shell is beautiful and easy to install.

System operation：
Parameter Settings:（Rotate one grid clockwise is "+" Rotate one grid counter-clockwise is "-", Press the knob. is"Confirm"）
1. Press and hold the knob for 2 seconds to enter the parameter setting, Display parameter number "F001", Then press "Confirm ", to Set the value of parameter "F001", =0 is coarse tuning; =1 Fine tuning; Then press "Confirm" to save its value.
2. When the parameter number "FXXX" is displayed, "+" "-" Rotation modification parameter number; Enter the password first "+ - - +", To enter the F002 parameter; Enter the password first "+ - + -", To enter the F100 parameter; Enter the password first "- + - +", To enter the F200 parameter.

Specification:
Power supply voltage: 15V-30V

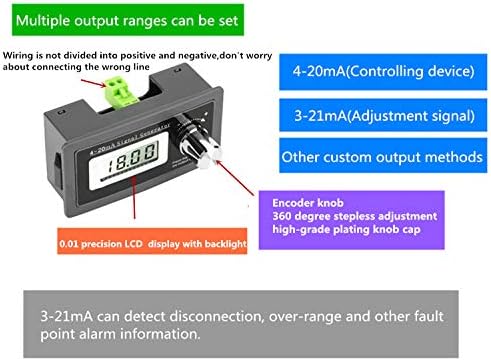

Output range: 4-20mA/3-21mA
Display mode: Real Current / 0-100.0%/ 0-50.0Hz
Sampling resistance: Less than 500 ohms
Output accuracy: ±0.5％
Display accuracy: 0.01
Shell material: ABS

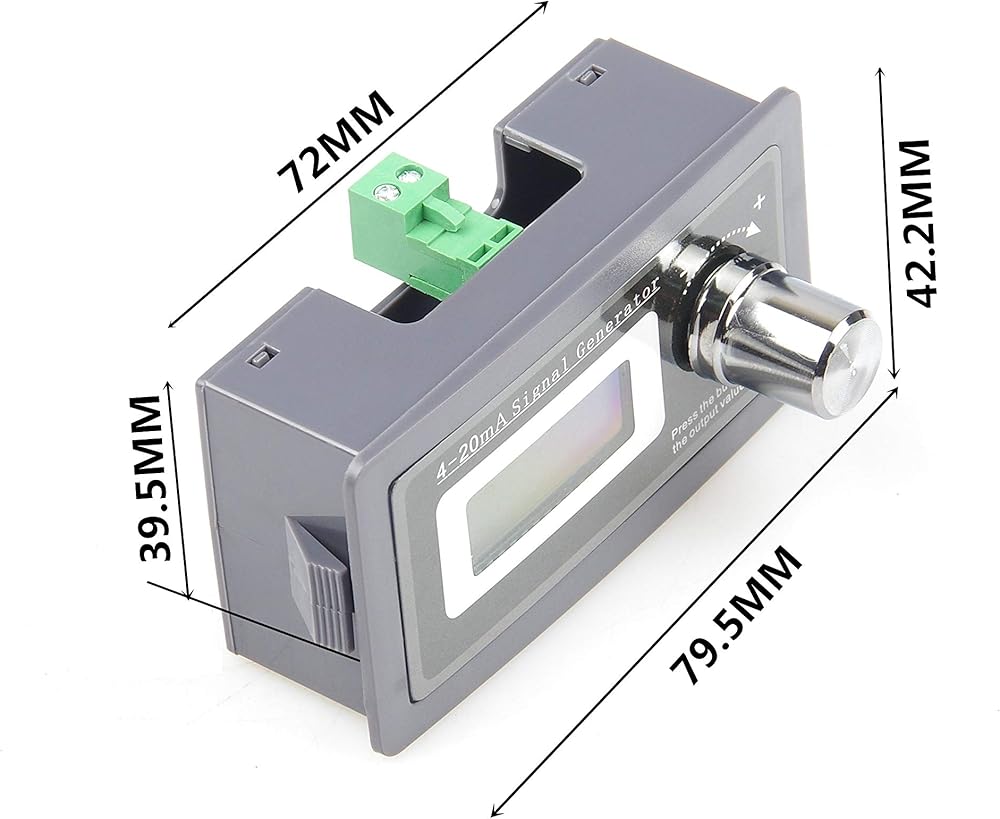

Dimensions: 79.5x42.2x24mm/3.13x1.66x0.94inch
Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3.If you need PDF version of the manual, please contact us.

Package includes:
1 x Current Loop Signal Generator
1 x User Manual (English)
