DAOKI DC 4.5-24V Hall Magnetic Induction Module Electronics Module Parts Magnetic Induction Sensor South and North Pole Detection Resolver for Home, Office and Industrial Electrical

KWD 3.500
Brand
DAOKI
Category
Sensors
Weight
101 g
– 1 +

Special Features

  • 【Scope of application】：can be used in homes, offices and industrial electrical appliances, making your life and experiments more handy.
  • 【Non-magnetic characteristics】：When there is no magnet, the blue and red indicator lights are off, and pins S and N both output high level.
  • 【Magnetic characteristics】：When the south pole of the magnet is detected, the blue indicator light is on, and pin S outputs low level; when the north pole of the magnet is detected, the red indicator light is on, and pin N outputs low level.
  • 【Product performance】：small size, high sensitivity, easy to use. Fast response and good performance to magnetic induction, very accurate and reliable.

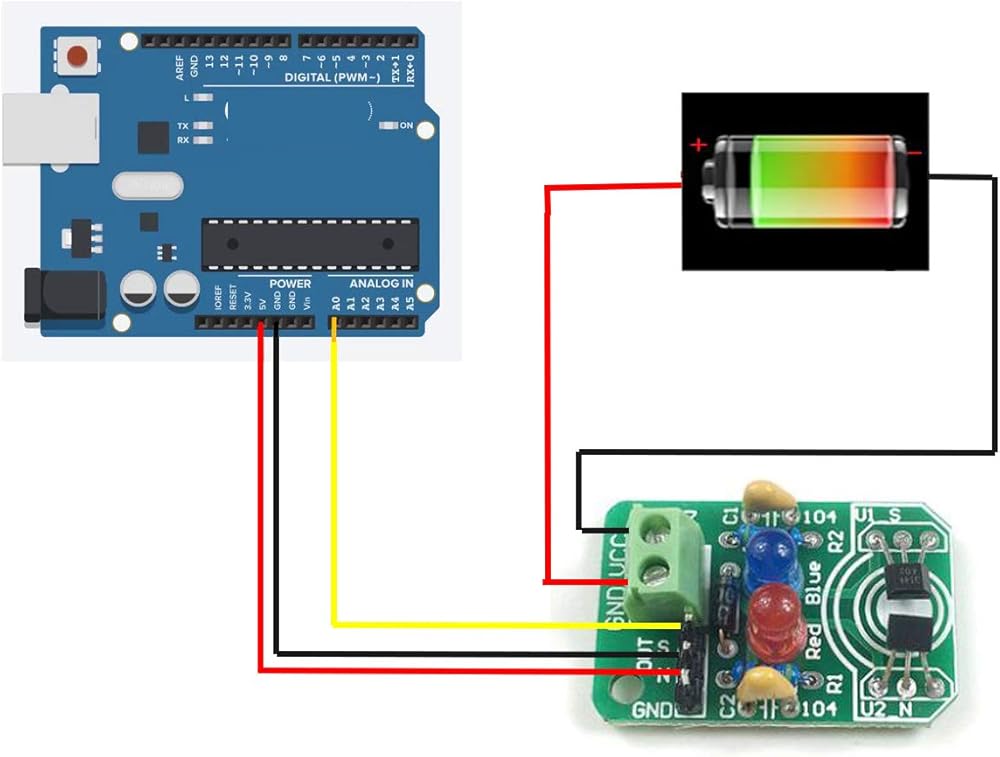

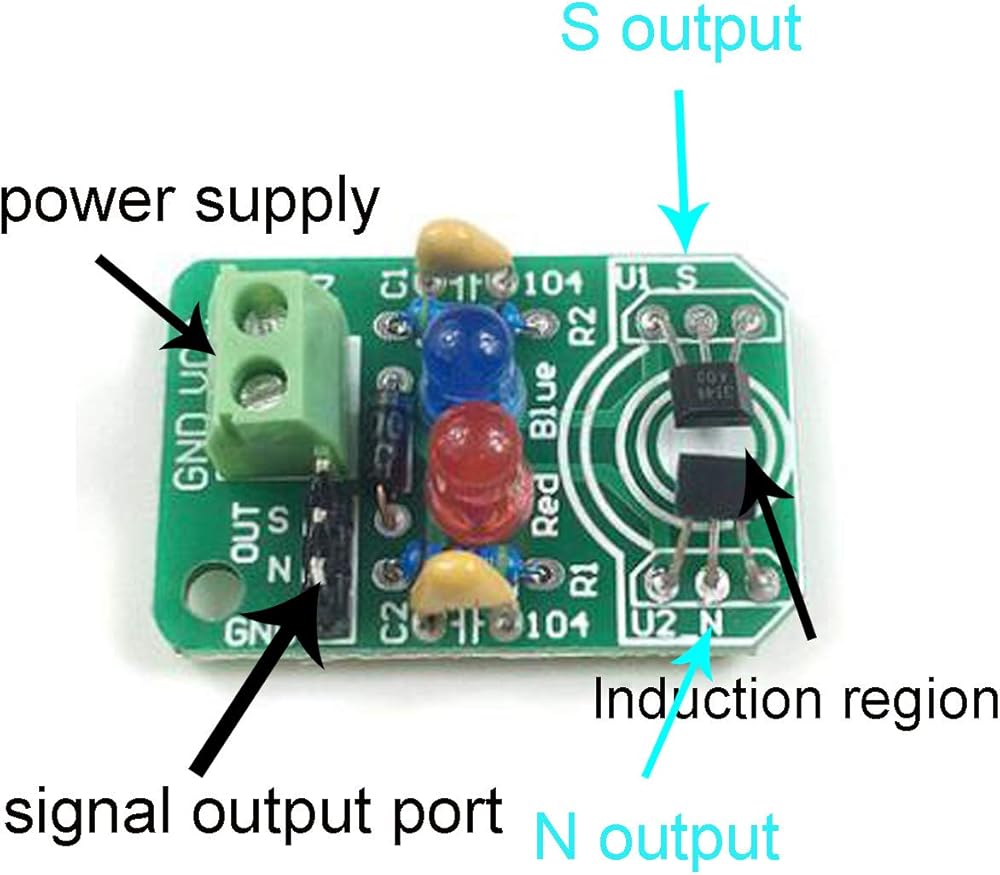

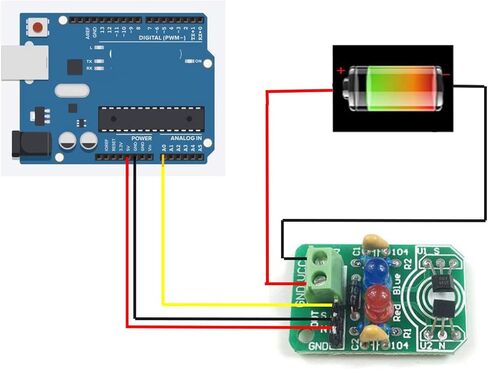

  • 【Installation and wiring instructions】：The module has a fixed bolt hole, which is easy to install and fix. VCC-power supply positive, GND-power supply negative, OUT-output signal.

Description

Product description

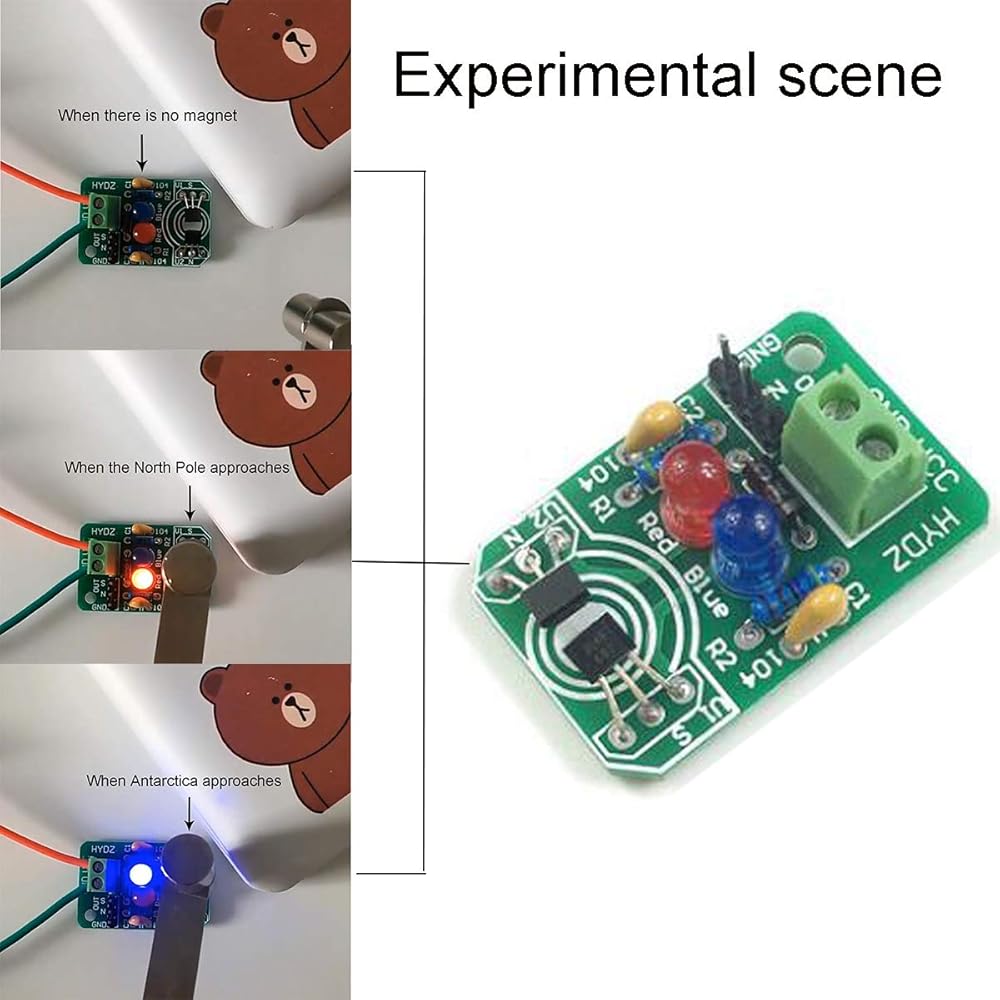

When the Hall magnetic module detects the south pole of the magnet, the blue indicator light is on and pin S outputs low level; when the north pole of the magnet is detected, the red indicator light is on and pin N outputs low level. When there is no magnet, the blue and red indicator lights are off. Both pins S and N output high level.

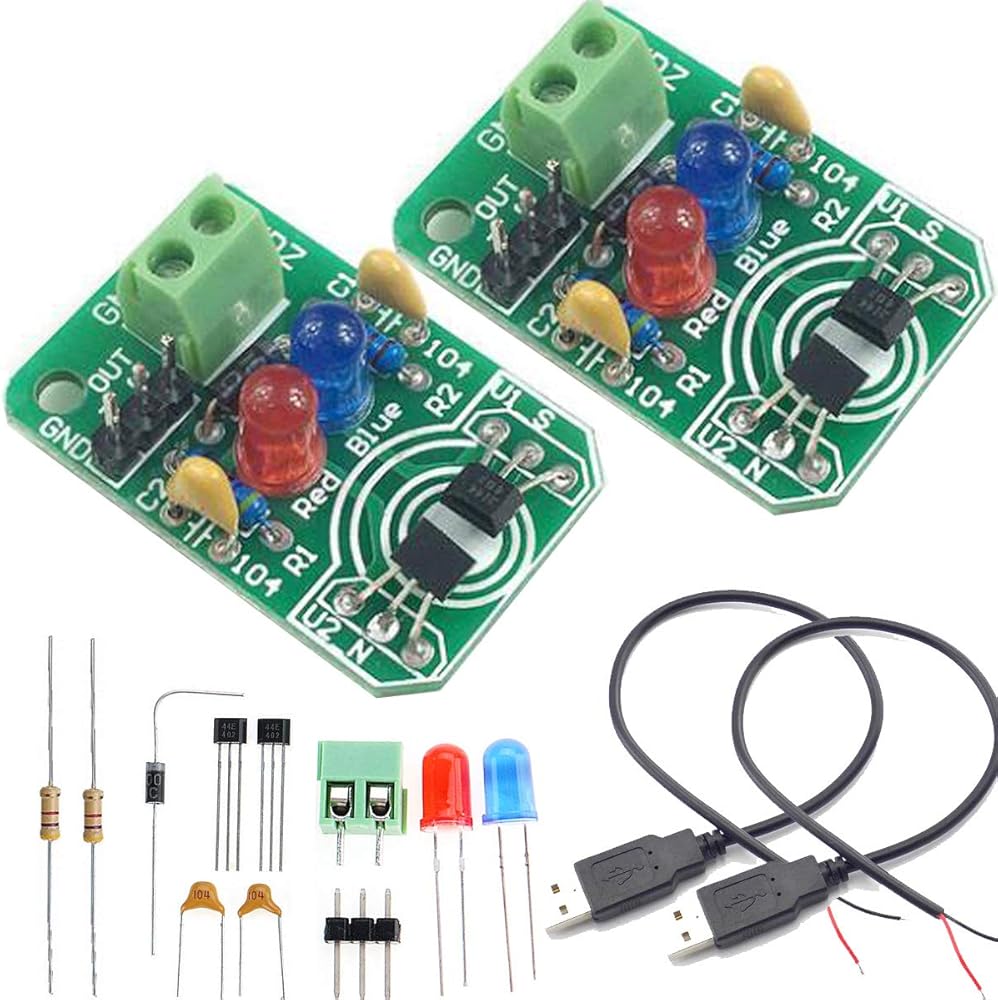

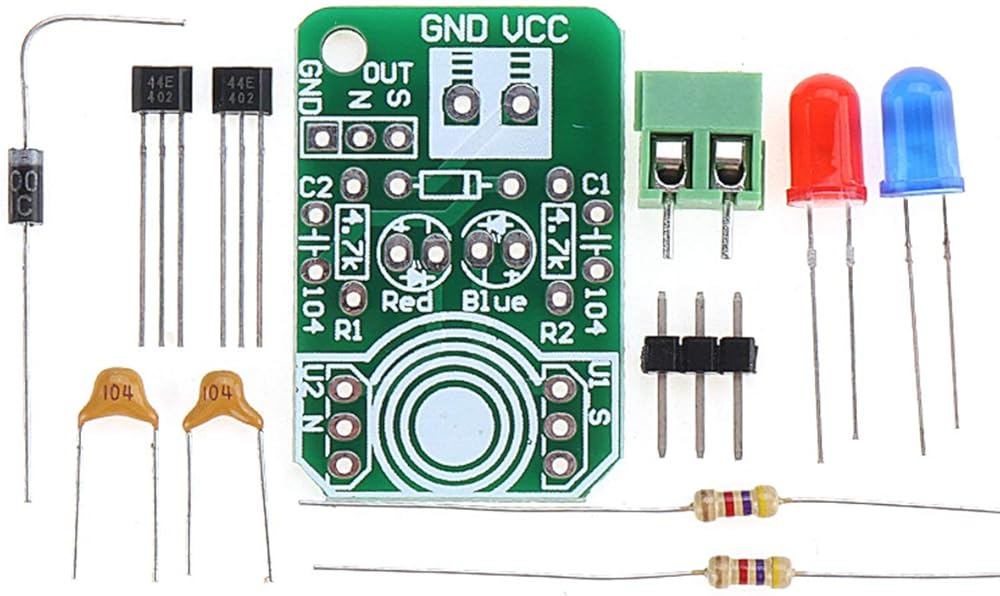

The package includes:

1 x PCB

1 x Terminal

1 x 3P pin header

1 x 1N4007

2 x 4K7 resistance

2 x 104capacitance

2 x Hall element

2 x LED

2 x USB male
