70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC in Kuwait 70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC in Kuwait 70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC in Kuwait 70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC in Kuwait 70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC in Kuwait

70+7.5 uF ±5% 70/7.5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool, Heat Pump, Air Conditioner or AC Motor and Fan Starting 70 7.5 HVAC

KWD 4
KWD 4.500
Brand
TitanOwl
– 1 +

Special Features

  • A dual run circular start capacitor with capacitance of 70+7.5 uF, ±5% tolerance and working voltage of 370V/450V that is made of metallized polypropylene film delivers a robust space-efficient solution with long-term stability.
  • Capacitor dimension: Diameter: 2.13 inch, Height: 5 inch
  • Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
  • This CBB65 capacitor is explosion proof with 10,000 AFC UL-approved Safety Pressure Interrupte and having Insulation resistance greater than 3000 MΩ

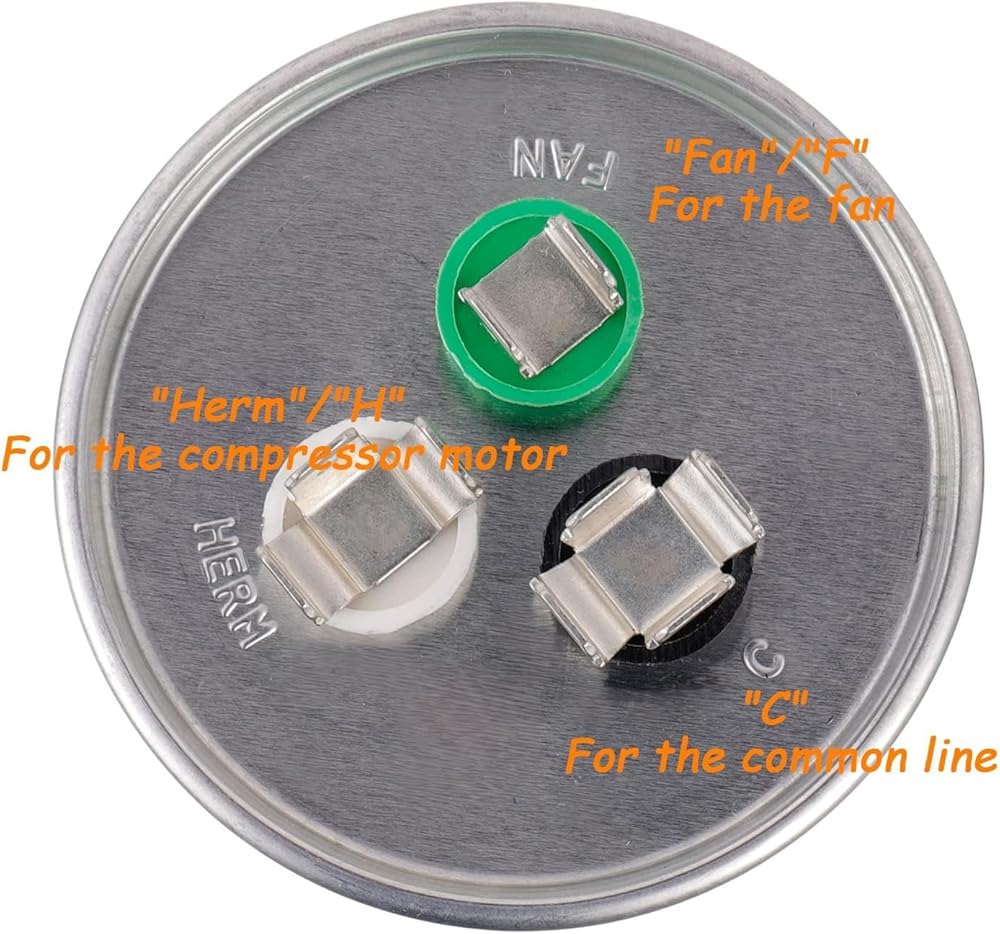

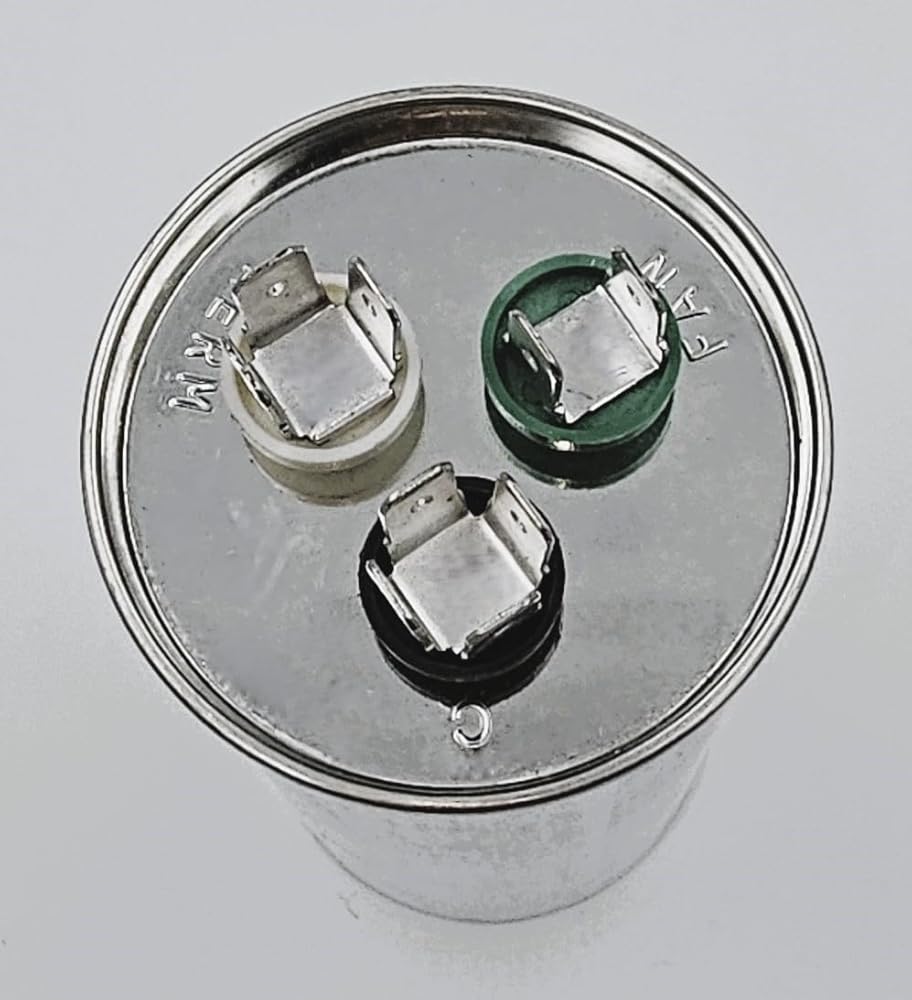

  • Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

Description

Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 70+7.5uf
Tolerance: ±5%
Rated voltage: 370V/450 V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.
It is small in size, lightweight, heat resisting and anti-explosion.
