Description:

Features:
1. Mainly used for water testing, water cooling system
2. Application: Water heaters, credit card machines, water vending machine, flow measurement device
3. High amplitude: ≥ 4.6V
4. Low amplitude: ≤ 0.5V
5. Electric strength: 1250V/min
6. Insulation resistance: ≥ 100MΩ
7. Hydrostatic pressure testing: ≤ 2.0Mpa

Specification:
1. The lowest rated working voltage: DC4.5 5V-24V
2. Maximum operating current: 15mA (DC 5V)
3. Working voltage range: DC 5~18V
4. Load capacity: ≤ 10mA (DC 5V)
5. Use temperature: ≤ 80°C
6. Operating humidity range: 35%~90%RH (no frost)
7. Allowing pressure: pressure 2.0Mpa
8. Temperature: -25 ~ +80 °C
9. External threads: 1/2"
10. Outer diameter: 20mm
11. Intake diameter: 9mm
12. Outlet diameter: 12mm

Application:
water heaters, credit card machines, water vending machine, flow measurement device!

Package Included:

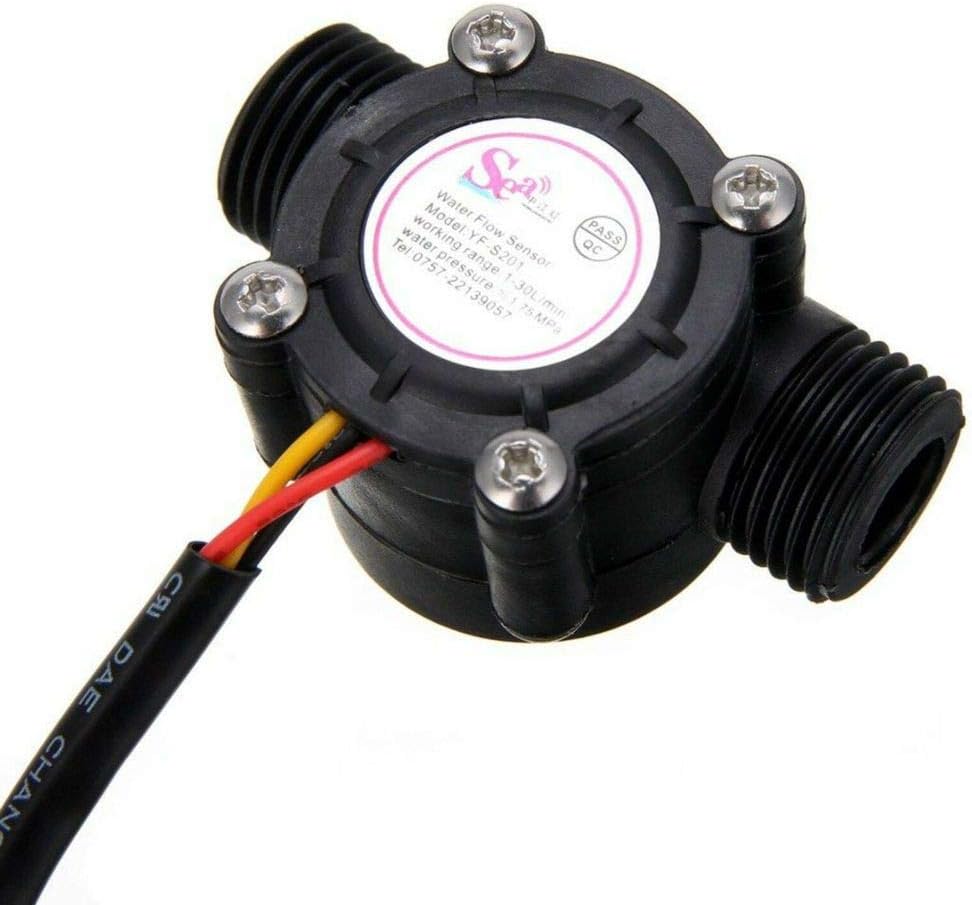

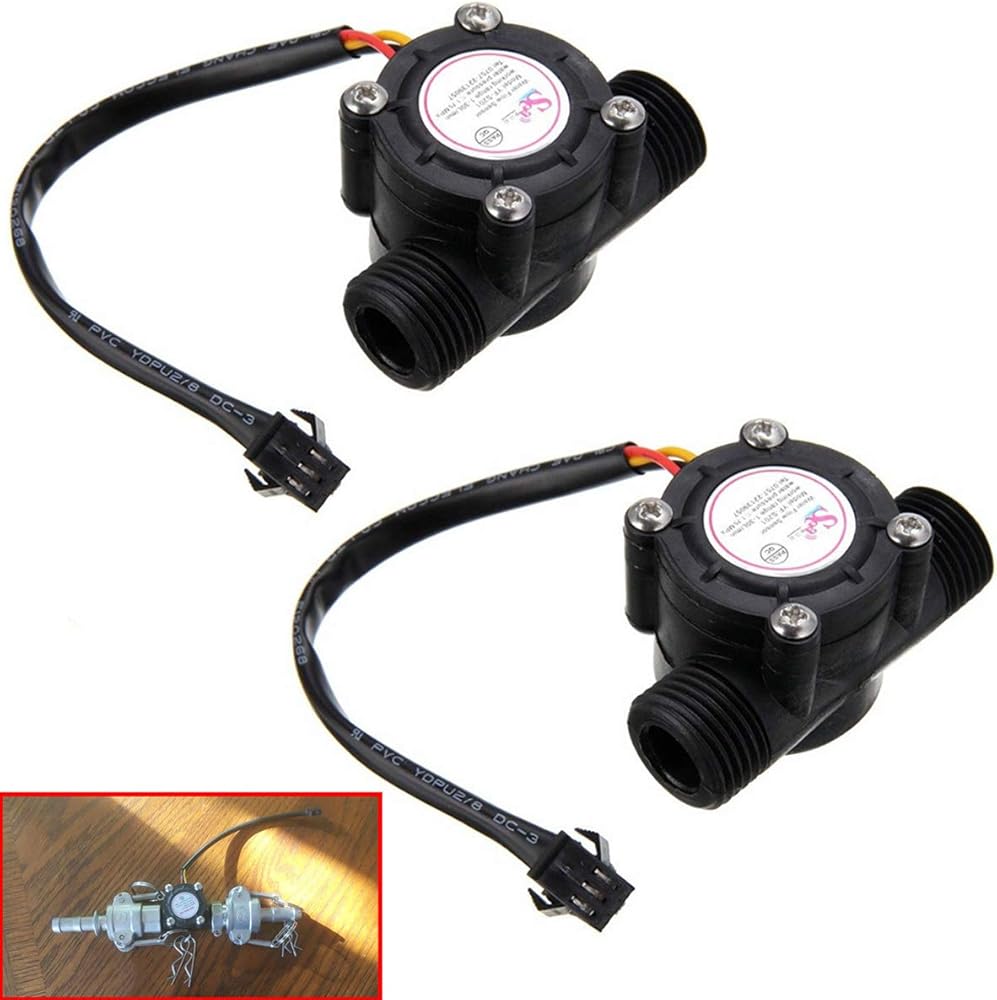

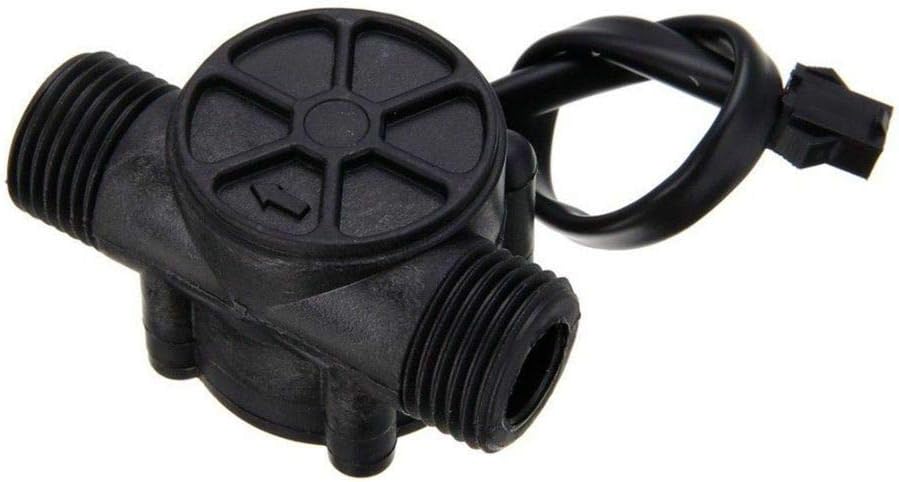

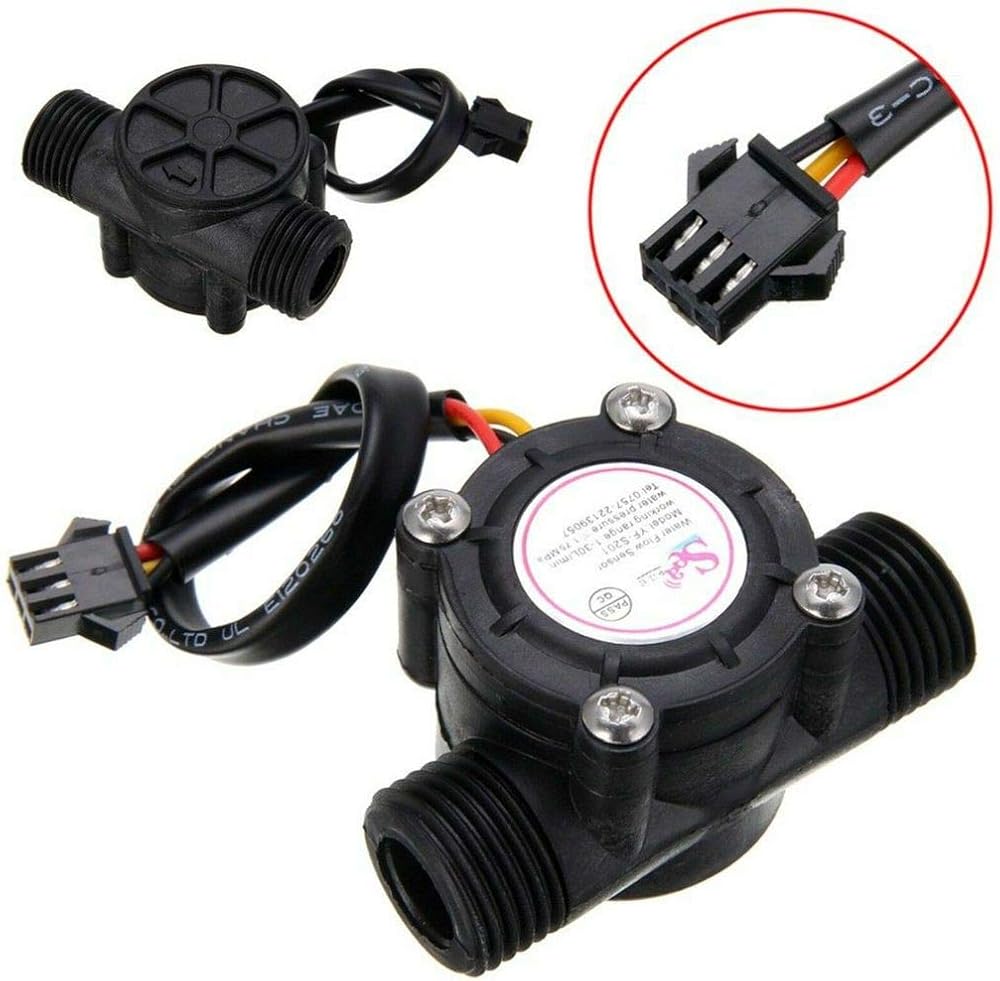

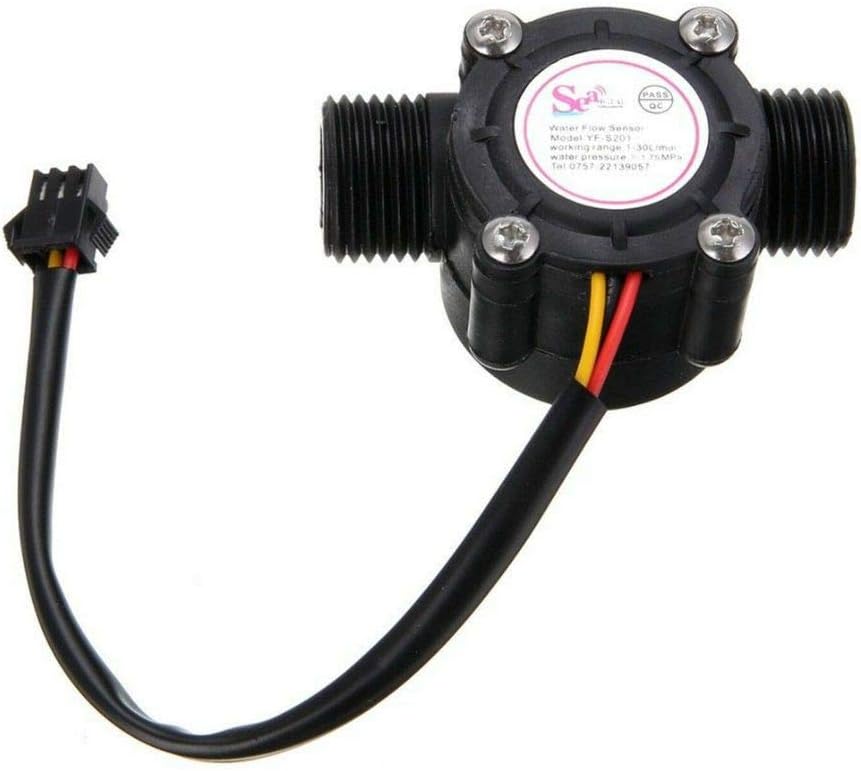

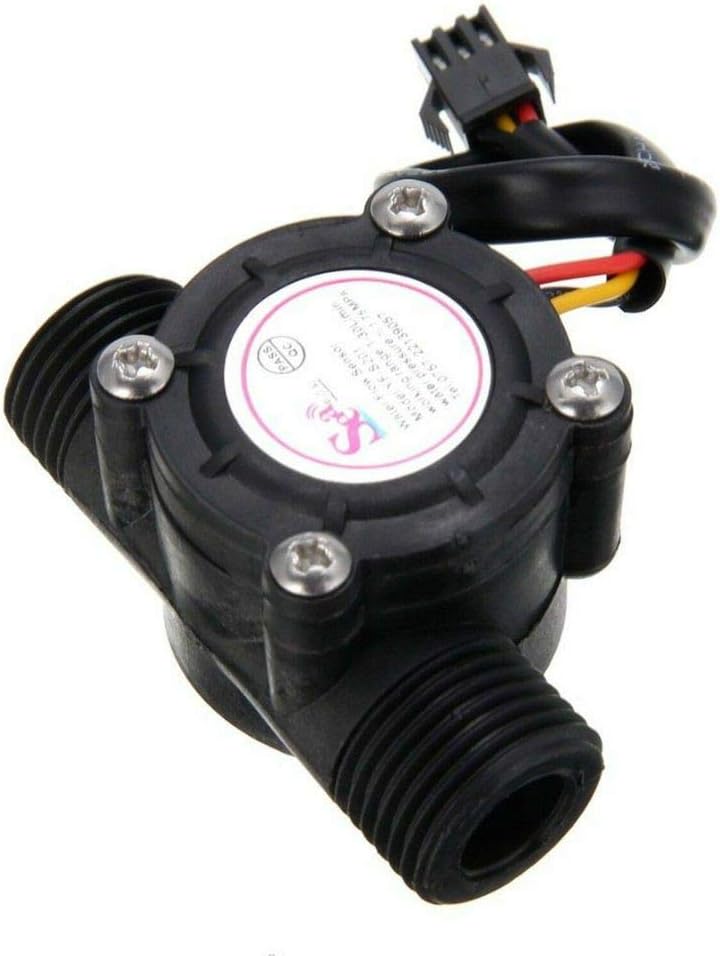

2 x Water flow sensor flowmeter Hall flow sensor Module Water control 1-30L/min
