Description:
1. Lampshift maximum discharge current: 15A
2. Instantaneous discharge current: 25A
3. Charging voltage: 25.5V
4. Charging current: 15A (MAX)
5. Overcharge detection voltage: 4.28 ± 0.05V
6. Overcharge protection delay: 0.1S
7. Overcharge release voltage: 4.08 ± 0.05V
8. Over discharge detection voltage: 2.55 ± 0.08V
9. Overdischarge detection delay: 0.1S
10. The overdischarge release voltage: 2.9 ± 0.01V
11. Overcurrent detection voltage: 150mV
12. Overcurrent detection delay: 9MS
13. Overcurrent protection current: 30 plus or minus 3A
14. Overcurrent protection release condition: Disconnect the load
15. Short circuit detection delay: 250uS
16. Short circuit protection Release condition: disconnect negative open
17. Main circuit conduction resistance: ≤20mΩ
18. Working current: ≤30uA
19. Sleep current (battery over discharge) ≤10uA

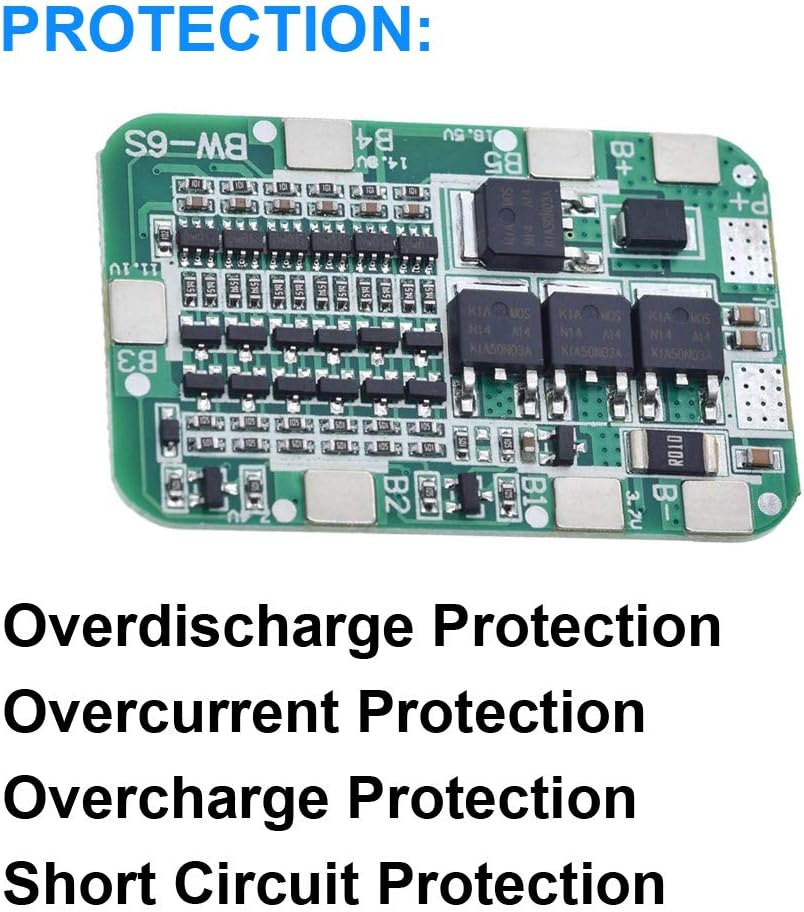

Feature:
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.

Package Included:

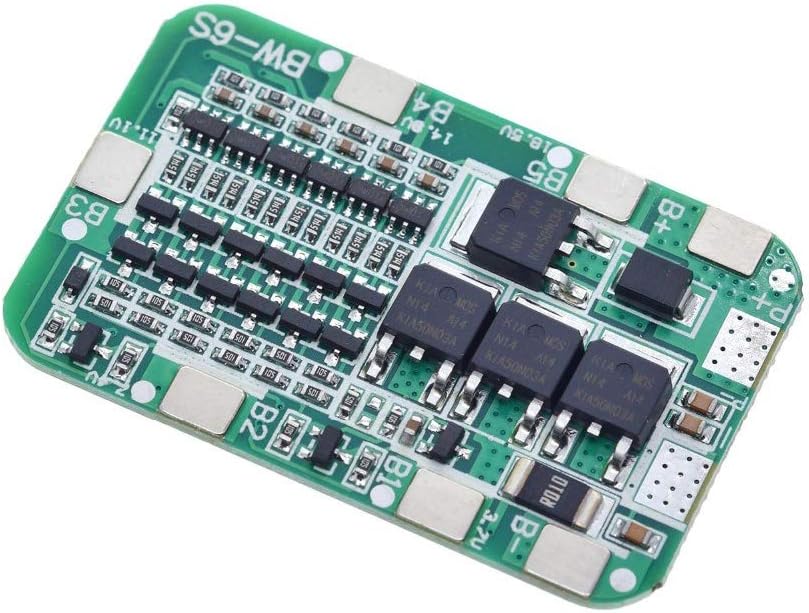

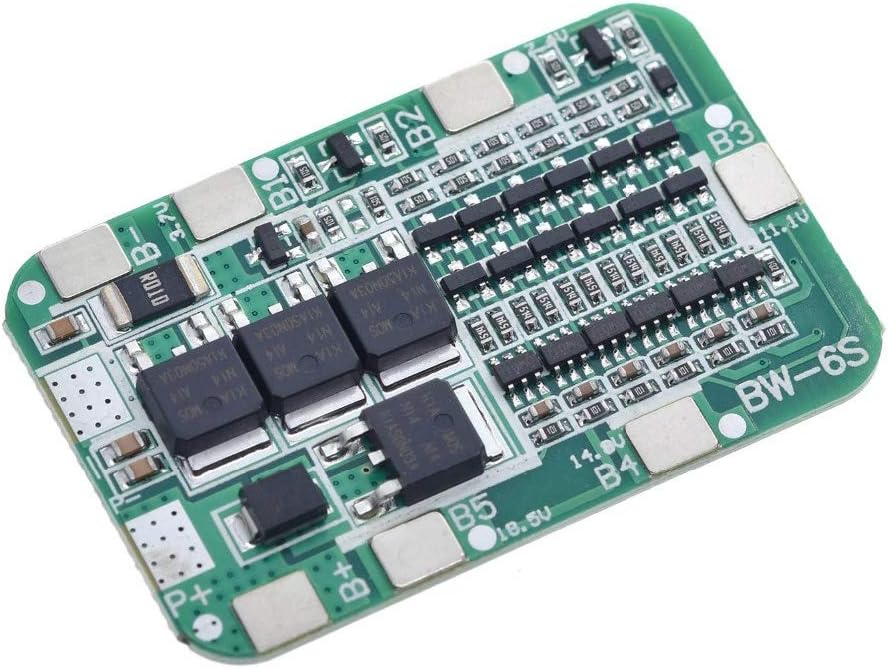

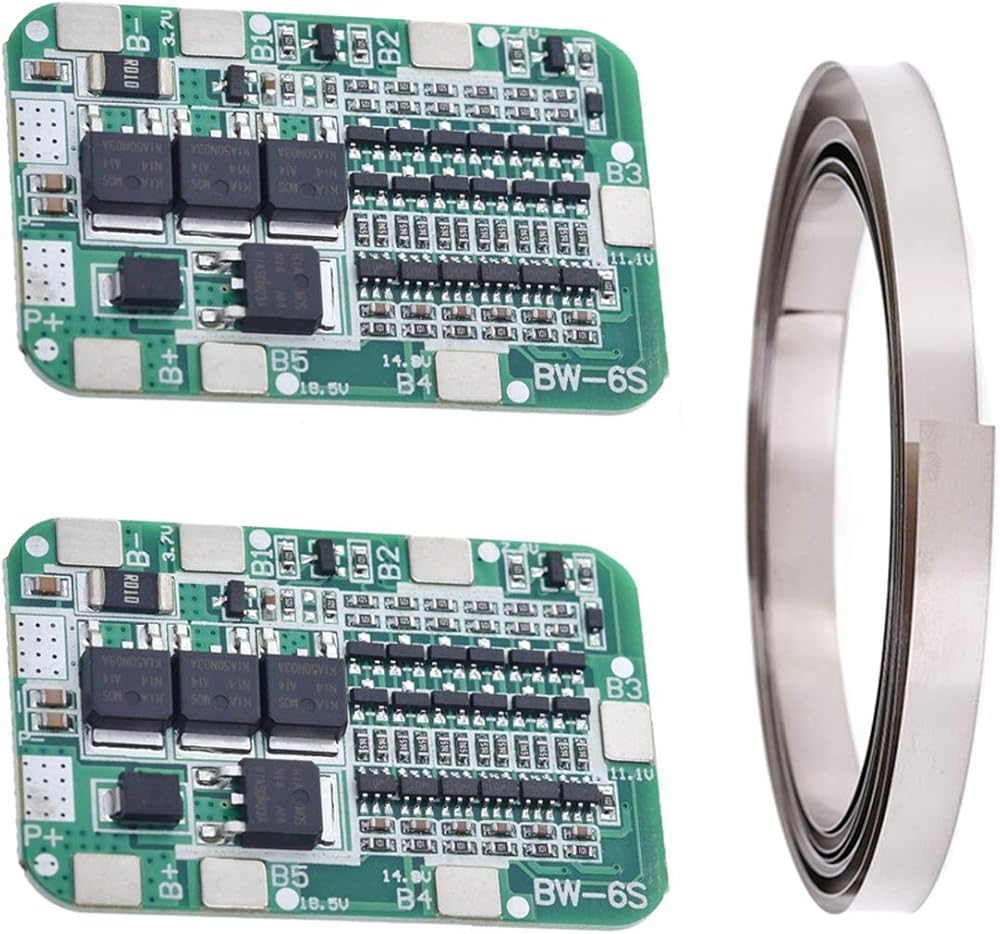

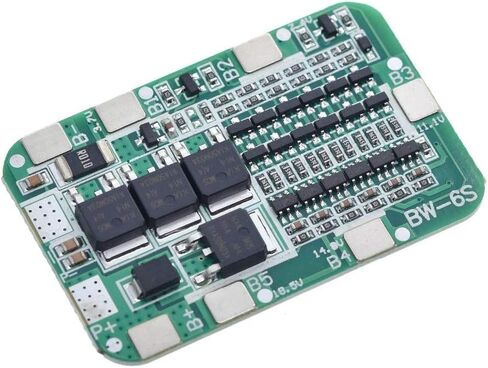

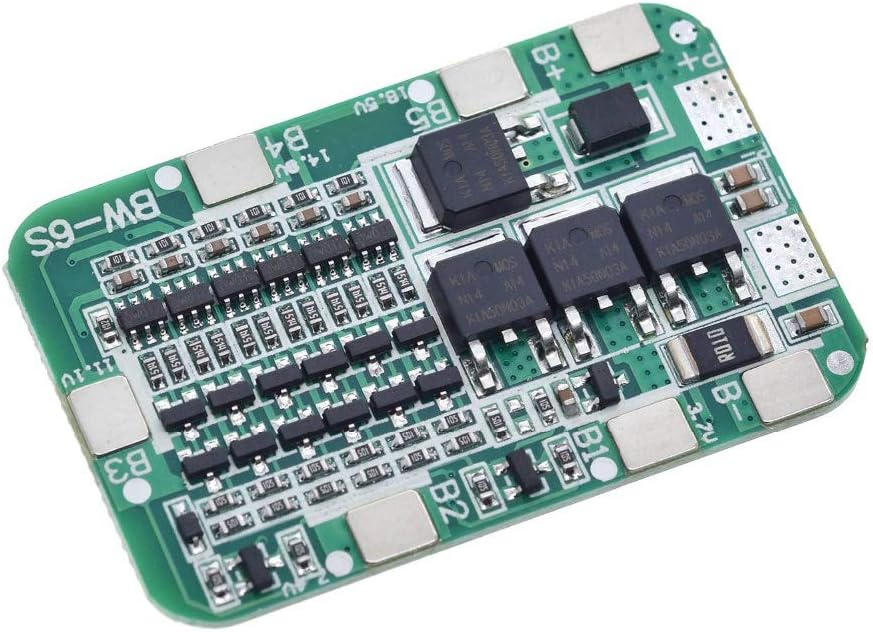

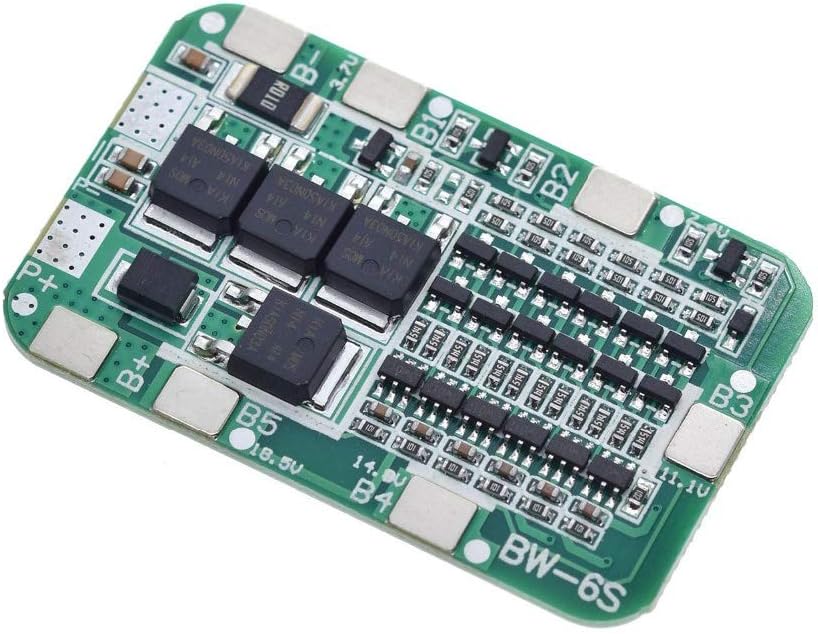

2 x 6S 15A 24V 18650 Lithium Battery Protection Board
1 x 39.inch/1m Nickel Strip
